1sl0

;Ternary 3' complex of T7 DNA polymerase with a DNA primer/template containing a disordered cis-syn thymine dimer on the template and an incoming nucleotide ;

Method: X-RAY DIFFRACTION D_max: 197.1 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

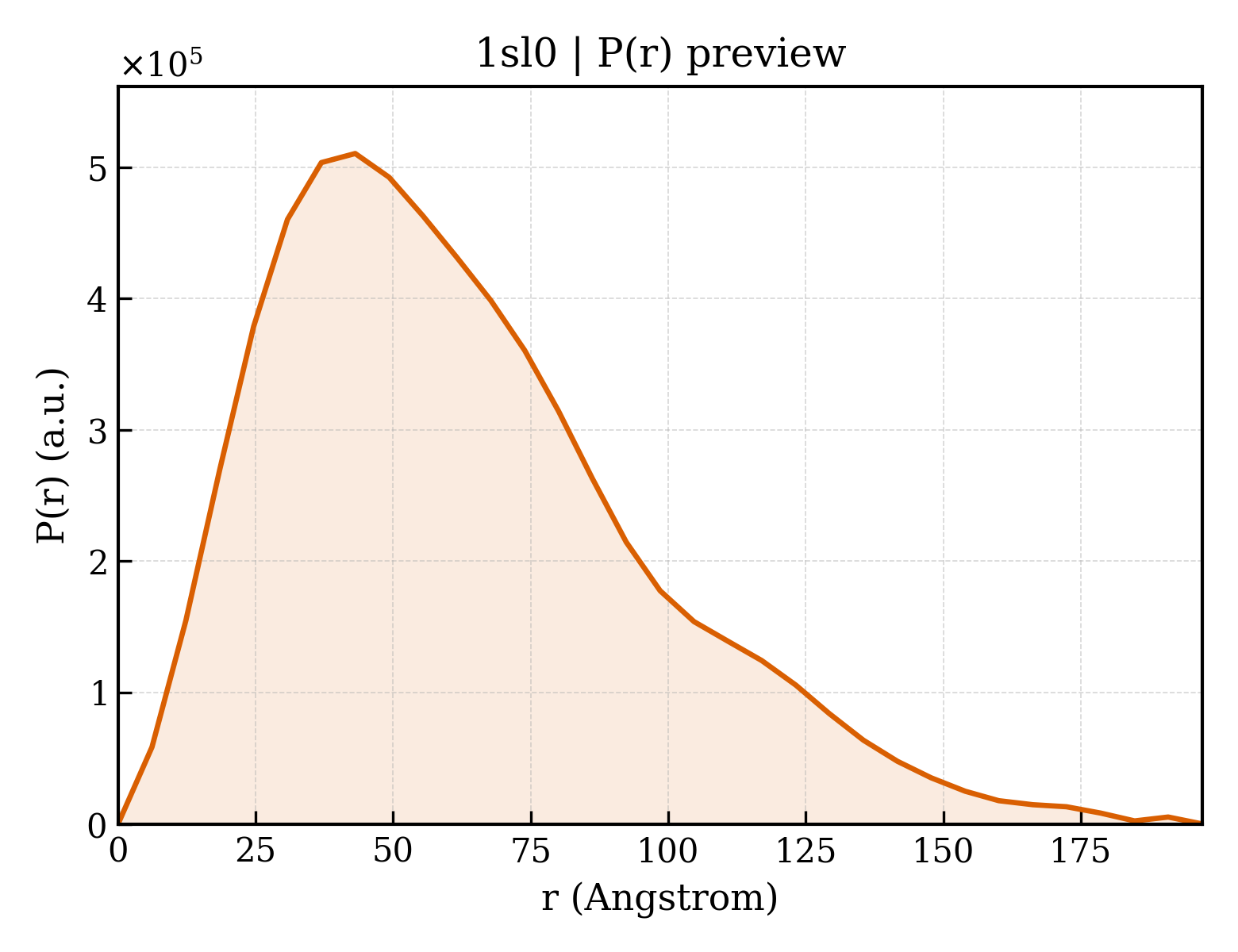

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1sl0
沉积日期 deposition_date	2004-03-05
结构标题 title	;Ternary 3' complex of T7 DNA polymerase with a DNA primer/template containing a disordered cis-syn thymine dimer on the template and an incoming nucleotide ;
关键词 keywords	DNA polymerase, fidelity, lesion bypass, thymine dimer, open, close, TRANSFERASE-ELECTRON TRANSPORT-DNA COMPLEX; TRANSFERASE/ELECTRON TRANSPORT/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.79 Å
回转半径 Rg (电子) rg_electron	50.66 Å
零角强度 I(0) i0	486773000.00
分子量 molecular_weight	169240.0 kDa
排除体积 excluded_volume	206120 Å³
包络体积 envelope_volume	310440 Å³
水化壳体积 shell_volume	56850 Å³
包络直径 envelope_diameter	205.4 Å
壳层 Rg shell_rg	46.76 Å
包络 Rg envelope_rg	51.75 Å
形状 Rg shape_rg	50.67 Å
总 Rg total_rg	50.44 Å
总原子数 total_atoms	11904
残基数 n_residues	1566
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	197.1 Å
Rg (实空间) rg_real	49.94 Å
Rg 误差 (实空间) rg_real_error	3.68 Å
I(0) (实空间) i0_real	4.8680e+08
I(0) 误差 (实空间) i0_real_error	1.1860e+07
Rg (倒空间) rg_reciprocal	48.79 Å
I(0) (倒空间) i0_reciprocal	486100000.0000
解质量估计 total_estimate	0.7187
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	43.1 Å
偏度 Skewness skewness	0.802
峰度 Kurtosis kurtosis	0.369
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	52010000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.363; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.340; Smooth: 0.909

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	5'-D(CPGPAPAPAPAPCPGPAPCPGPGPCPCPAPGPTPGPCPCP*(2DT))-3'
分子量 formula_weight	6426.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	P,Q
原子数 atom_count	11904

CGAAAACGACGGCCAGTGCCT

Entity 2 polymer

描述 description	5'-D(CPCPCP(TTD)PAPGPGPCPAPCPTPGPGPCPCPGPTPCPGPTPTPTPTPCP*G)-3'
分子量 formula_weight	7922.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T,U

CCCTAGGCACTGGCCGTCGTTTTCG

Entity 3 polymer

描述 description	DNA polymerase
分子量 formula_weight	79089.8 kDa
EC 编号 ec_number	2.7.7.7
突变 mutation	DEL(118-123)
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C

MIVSDIEANALLESVTKFHCGVIYDYSTAEYVSYRPSDFGAYLDALEAEVARGGLIVFHNGHKYDVPALTKLAKLQLNREFHLPRENCIDTLVLSRLIHSNLKDTDMGLLRSGKLPGALEAWGYRLGEMKGEYKDDFKRMLEEQGEEYVDGMEWWNFNEEMMDYNVQDVVVTKALLEKLLSDKHYFPPEIDFTDVGYTTFWSESLEAVDIEHRAAWLLAKQERNGFPFDTKAIEELYVELAARRSELLRKLTETFGSWYQPKGGTEMFCHPRTGKPLPKYPRIKTPKVGGIFKKPKNKAQREGREPCELDTREYVAGAPYTPVEHVVFNPSSRDHIQKKLQEAGWVPTKYTDKGAPVVDDEVLEGVRVDDPEKQAAIDLIKEYLMIQKRIGQSAEGDKAWLRYVAEDGKIHGSVNPNGAVTGRATHAFPNLAQIPGVRSPYGEQCRAAFGAEHHLDGITGKPWVQAGIDASGLELRCLAHFMARFDNGEYAHEILNGDIHTKNQIAAELPTRDNAKTFIYGFLYGAGDEKIGQIVGAGKERGKELKKKFLENTPAIAALRESIQQTLVESSQWVAGEQQVKWKRRWIKGLDGRKVHVRSPHAALNTLLQSAGALICKLWIIKTEEMLVEKGLKHGWDGDFAYMAWVHDEIQVGCRTEEIAQVVIETAQEAMRWVGDHWNFRCLLDTEGKMGPNWAICH

来源 Source

来源生物 organism	Enterobacteria phage T7
NCBI 分类编号 ncbi_taxonomy_id	10760
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Thioredoxin 1
分子量 formula_weight	11687.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

SDKIIHLTDDSFDTDVLKADGAILVDFWAEWCGPCKMIAPILDEIADEYQGKLTVAKLNIDQNPGTAPKYGIRGIPTLLLFKNGEVAATKVGALSKGQLKEFLDANLA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	475.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1sl0a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1sl0a2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

结构域编号 domain_id	d1sl0b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

结构域编号 domain_id	d1sl0c1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

结构域编号 domain_id	d1sl0c2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.1 — DNA polymerase I

结构域编号 domain_id	d1sl0d_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

CATH v4.4 (10 domains)

结构域编号 domain_id	1sl0A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1sl0A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1060 — Taq DNA Polymerase; Chain T, domain 4
同源超家族 H-superfamily homologous superfamily	10 — Taq DNA Polymerase; Chain T, domain 4

结构域编号 domain_id	1sl0A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1sl0A04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1sl0B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	1sl0C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	1sl0C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1060 — Taq DNA Polymerase; Chain T, domain 4
同源超家族 H-superfamily homologous superfamily	10 — Taq DNA Polymerase; Chain T, domain 4

结构域编号 domain_id	1sl0C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	370 —

结构域编号 domain_id	1sl0C04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1sl0D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	54.266 Å
晶胞边长 b length_b	105.466 Å
晶胞边长 c length_c	213.931 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.57 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2820
R_work r_work	0.2820
R_free r_free	0.3510

fit	/app/data/saxs_computation/sl/1sl0/1sl0.fit
pddf	/app/data/pr_computation/sl/1sl0/1sl0.pr.out
profile	/app/data/saxs_computation/sl/1sl0/1sl0.dat
