1tt0
Crystal Structure of Pyranose 2-Oxidase

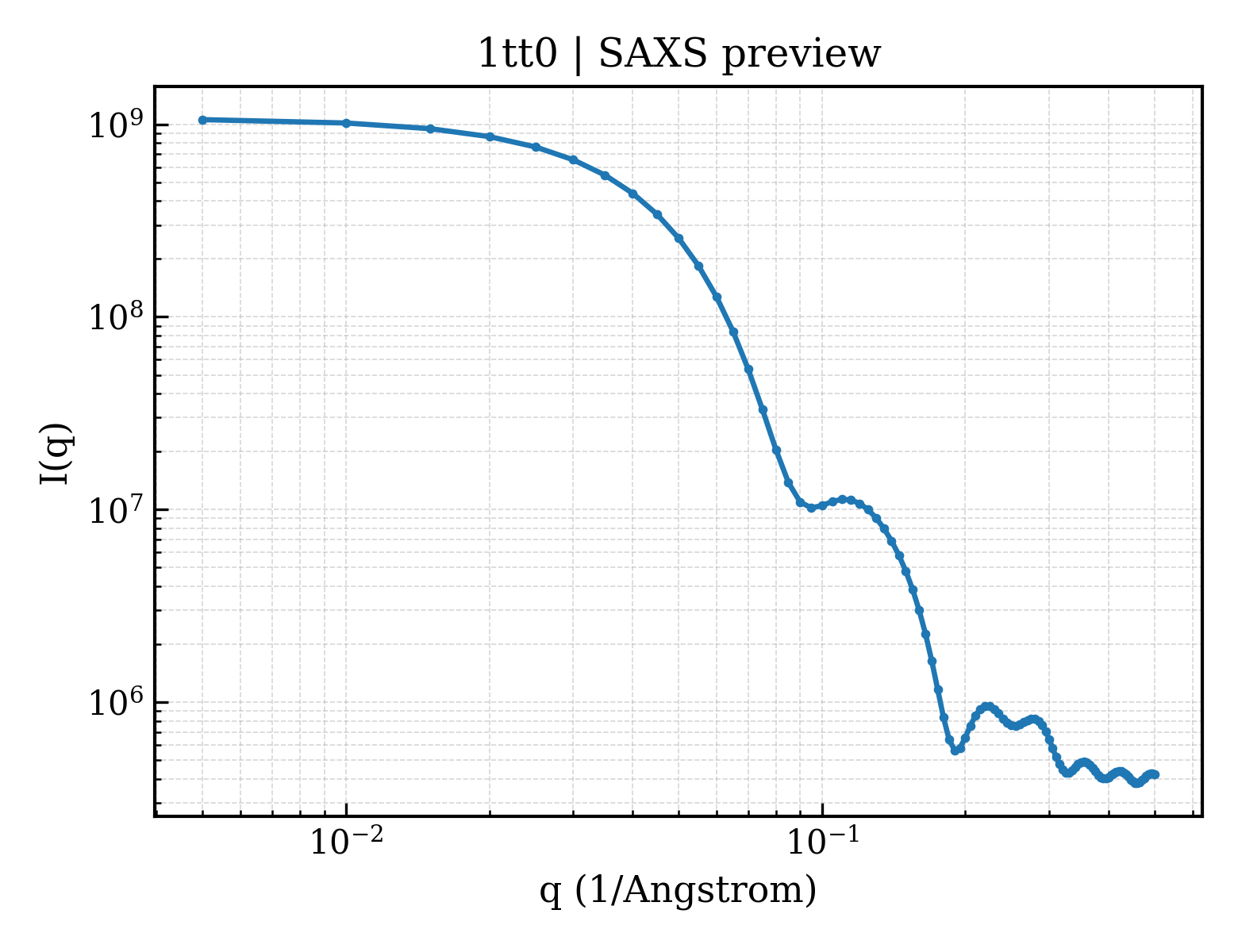

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1tt0 |
| 沉积日期 deposition_date | 2004-06-21 |
| 结构标题 title | Crystal Structure of Pyranose 2-Oxidase |
| 关键词 keywords | ;GMC OXIDOREDUCTASE, ALPHA/BETA STRUCTURE, ROSSMANN FOLD, PHBH FOLD, HOMOTETRAMER, 8-ALPHA-(N3) HISTIDYL FLAVINYLATION, OXIDOREDUCTASE ;; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 40.26 Å |
| 回转半径 Rg (电子) rg_electron | 39.62 Å |
| 零角强度 I(0) i0 | 1071410000.00 |
| 分子量 molecular_weight | 264760.0 kDa |
| 排除体积 excluded_volume | 328940 ų |
| 包络体积 envelope_volume | 410700 ų |
| 水化壳体积 shell_volume | 81919 ų |
| 包络直径 envelope_diameter | 132.3 Å |
| 壳层 Rg shell_rg | 48.37 Å |
| 包络 Rg envelope_rg | 39.26 Å |
| 形状 Rg shape_rg | 39.63 Å |
| 总 Rg total_rg | 40.01 Å |
| 总原子数 total_atoms | 18624 |
| 残基数 n_residues | 2302 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 124.3 Å |
| Rg (实空间) rg_real | 40.05 Å |
| Rg 误差 (实空间) rg_real_error | 0.57 Å |
| I(0) (实空间) i0_real | 1.0710e+09 |
| I(0) 误差 (实空间) i0_real_error | 1.7250e+07 |
| Rg (倒空间) rg_reciprocal | 40.25 Å |
| I(0) (倒空间) i0_reciprocal | 1072000000.0000 |
| 解质量估计 total_estimate | 0.8931 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 54.2 Å |
| 偏度 Skewness skewness | 0.115 |
| 峰度 Kurtosis kurtosis | -0.476 |
| 角度范围 angular_range | — – 0.1950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0001 |
| 最高正则化参数 α highest_alpha | 779600000.0000 |
| 实空间数据点数 n_real_points | 40 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.897 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 4 domains
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1tt0A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1920 — Phage tail proteins - 2 layer sandwich fold |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1tt0B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1920 — Phage tail proteins - 2 layer sandwich fold |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1tt0C02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1920 — Phage tail proteins - 2 layer sandwich fold |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1tt0D02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1920 — Phage tail proteins - 2 layer sandwich fold |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
