SAXSdb — 1u2x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADP-specific phosphofructokinase

Pyrococcus horikoshii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	K6PF_PYRHO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 23–472； UniProt 1–450 Author chain B； PDBConstruct 23–472； UniProt 1–450

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1u2x
Deposition date deposition_date	2004-07-20
Structure title title	Crystal Structure of a Hypothetical ADP-dependent Phosphofructokinase from Pyrococcus horikoshii OT3
Keywords keywords	ADP-Pfk, Pyrococcus, Midwest Center for Structural Genomics, APC5054, protein structure initiative, PSI, MCSG, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1u2x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1u2x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

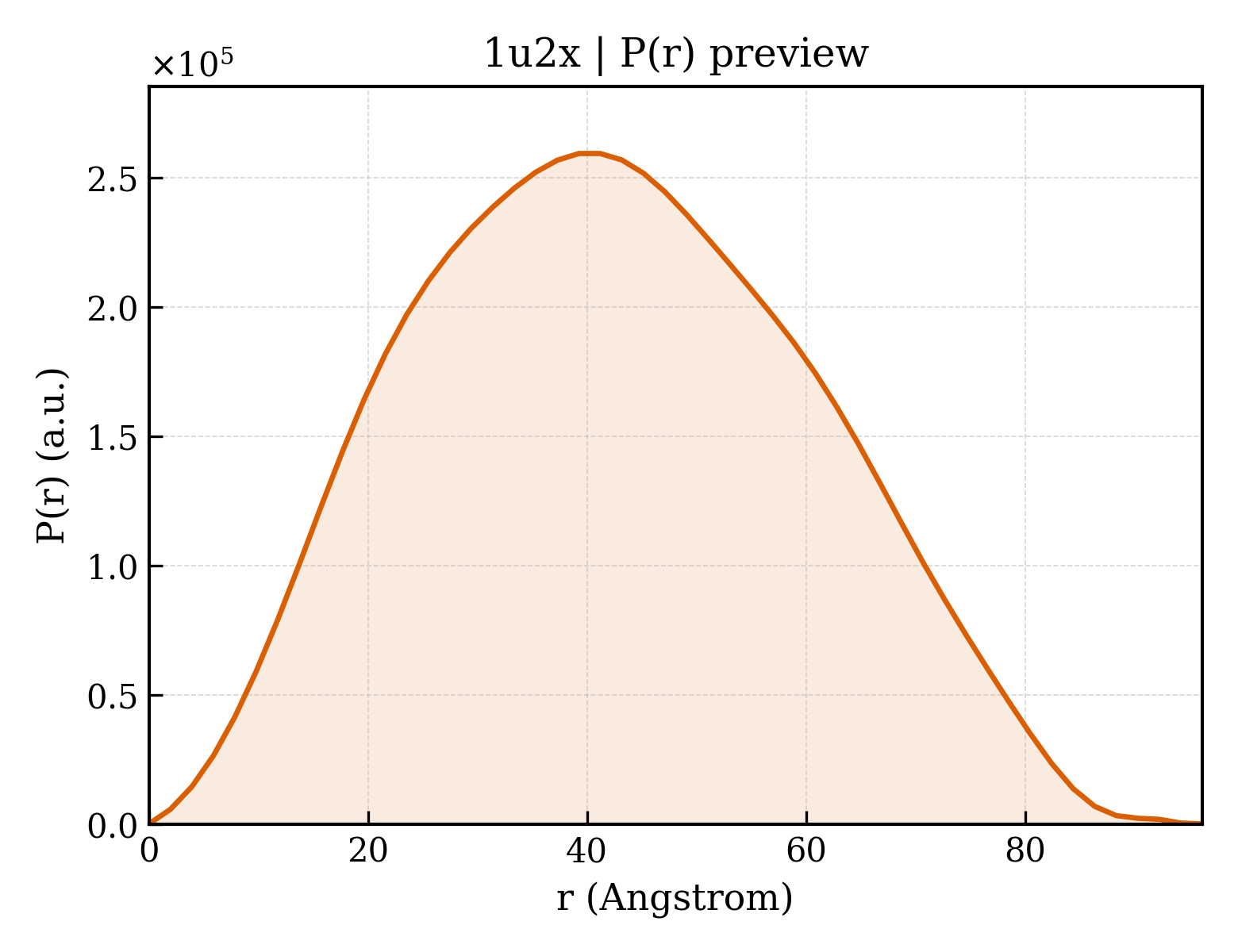

1u2x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.49 Å
Rg (electron density)	23.28 Å
Total Rg	24.23 Å
Atom count	3663
Residues	445
Excluded volume	65894 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1u2x__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1u2x__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ADP-specific phosphofructokinase
Molecular weight formula_weight	54820.7 kDa
EC 编号 ec_number	2.7.1.146
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8143

MGSSHHHHHHSSGRENLYFQGHMIPEHLSIYTAYNANIDAIVKLNQETIQNLINAFDPDEVKRRIEEYPREINEPIDFVARLVHTLKLGKPAAVPLVNEKMNEWFDKTFRYEEERLGGQAGIIANTLAGLKIRKVIAYTPFLPKRLAELFKKGVLYPVVENGELQFKPIQEAYREGDPLKINRIFEFRKGLKFKLGDETIEIPNSGRFIVSARFESISRIETREDIKPFLGEIGKEVDGAIFSGYQGLRTKYSDGKDANYYLRRAKEDIIEFKEKDVKIHVEFASVQDRKLRKKIITNILPFVDSVGIDEAEIAQILSVLGYRELADRIFTYNRLEDSILGGMIILDELNFEILQVHTTYYLMYITHRDNPLSEEELAKSLEFGTTLAAARASLGDIRGPDDYKVGLKVPFNERSEYVKLRFEEAKSRLRMREYKVVVIPTRLVQNPVLTVGLGDTISAGAFLTYLEFLKRHGS

Source Source

Source organism organism	Pyrococcus horikoshii
NCBI taxonomy ID ncbi_taxonomy_id	53953
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	812

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1u2xa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.3 — ADP-specific Phosphofructokinase/Glucokinase

Domain ID domain_id	d1u2xb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.3 — ADP-specific Phosphofructokinase/Glucokinase

CATH v4.4 (4 domains)

Domain ID domain_id	1u2xA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	1u2xA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1u2xB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	1u2xB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1110 — Adenosine kinase, small domain
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	68.065 Å
Unit-cell length b length_b	99.932 Å
Unit-cell length c length_c	82.581 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	39.840 Å
R factor r_factor	0.1768
R_work r_work	0.1742
R_free r_free	0.2259

Crystal Structure of a Hypothetical ADP-dependent Phosphofructokinase from Pyrococcus horikoshii OT3
