SAXSdb — 1uug

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1uug
沉积日期 deposition_date	1998-10-31
结构标题 title	ESCHERICHIA COLI URACIL-DNA GLYCOSYLASE:INHIBITOR COMPLEX WITH WILD-TYPE UDG AND WILD-TYPE UGI
关键词 keywords	DNA BASE EXCISION REPAIR, PROTEIN MIMICRY OF DNA, PROTEIN INHIBITOR, REPLICATION, HYDROLASE; REPLICATION, HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.30 Å
回转半径 Rg (电子) rg_electron	39.88 Å
零角强度 I(0) i0	67680600.00
分子量 molecular_weight	68165.0 kDa
排除体积 excluded_volume	85761 Å³
包络体积 envelope_volume	124660 Å³
水化壳体积 shell_volume	25632 Å³
包络直径 envelope_diameter	122.6 Å
壳层 Rg shell_rg	47.36 Å
包络 Rg envelope_rg	37.79 Å
形状 Rg shape_rg	39.85 Å
总 Rg total_rg	40.45 Å
总原子数 total_atoms	5848
残基数 n_residues	607
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.6 Å
Rg (实空间) rg_real	40.51 Å
Rg 误差 (实空间) rg_real_error	1.30 Å
I(0) (实空间) i0_real	6.7680e+07
I(0) 误差 (实空间) i0_real_error	1.1930e+06
Rg (倒空间) rg_reciprocal	40.31 Å
I(0) (倒空间) i0_reciprocal	67670000.0000
解质量估计 total_estimate	0.6237
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.4 Å
偏度 Skewness skewness	0.152
峰度 Kurtosis kurtosis	-1.304
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15840000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.060; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.299; Smooth: 0.625

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	URACIL-DNA GLYCOSYLASE
分子量 formula_weight	25725.2 kDa
EC 编号 ec_number	3.2.2.3
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	6412

MANELTWHDVLAEEKQQPYFLNTLQTVASERQSGVTIYPPQKDVFNAFRFTELGDVKVVILGQDPYHGPGQAHGLAFSVRPGIAIPPSLLNMYKELENTIPGFTRPNHGYLESWARQGVLLLNTVLTVRAGQAHSHASLGWETFTDKVISLINQHREGVVFLLWGSHAQKKGAIIDKQRHHVLKAPHPSPLSAHRGFFGCNHFVLANQWLEQRGETPIDWMPVLPAESE

来源 Source

来源生物 organism	Escherichia coli K12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	URACIL-DNA GLYCOSYLASE INHIBITOR
分子量 formula_weight	9482.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MTNLSDIIEKETGKQLVIQESILMLPEEVEEVIGNKPESDILVHTAYDESTDENVMLLTSDAPEYKPWALVIQDSNGENKIKML

来源 Source

来源生物 organism	Bacillus phage PBS2
NCBI 分类编号 ncbi_taxonomy_id	10684
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	188

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1uuga_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.18 — Uracil-DNA glycosylase-like
超家族 Superfamily superfamily	c.18.1 — Uracil-DNA glycosylase-like
家族 Family family	c.18.1.1 — Uracil-DNA glycosylase

结构域编号 domain_id	d1uugb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
家族 Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

结构域编号 domain_id	d1uugc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.18 — Uracil-DNA glycosylase-like
超家族 Superfamily superfamily	c.18.1 — Uracil-DNA glycosylase-like
家族 Family family	c.18.1.1 — Uracil-DNA glycosylase

结构域编号 domain_id	d1uugd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.5 — Uracil-DNA glycosylase inhibitor protein
家族 Family family	d.17.5.1 — Uracil-DNA glycosylase inhibitor protein

CATH v4.4 (4 domains)

结构域编号 domain_id	1uugA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	470 — Uracil-DNA Glycosylase, subunit E
同源超家族 H-superfamily homologous superfamily	10 — Uracil-DNA glycosylase-like domain

结构域编号 domain_id	1uugB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

结构域编号 domain_id	1uugC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	470 — Uracil-DNA Glycosylase, subunit E
同源超家族 H-superfamily homologous superfamily	10 — Uracil-DNA glycosylase-like domain

结构域编号 domain_id	1uugD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	20 — Bacteriophage PBS2, uracil-glycosylase inhibitor

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	79.986 Å
晶胞边长 b length_b	86.713 Å
晶胞边长 c length_c	108.641 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.1900
R_free r_free	0.2320

fit	/app/data/saxs_computation/uu/1uug/1uug.fit
pddf	/app/data/pr_computation/uu/1uug/1uug.pr.out
profile	/app/data/saxs_computation/uu/1uug/1uug.dat

ESCHERICHIA COLI URACIL-DNA GLYCOSYLASE:INHIBITOR COMPLEX WITH WILD-TYPE UDG AND WILD-TYPE UGI

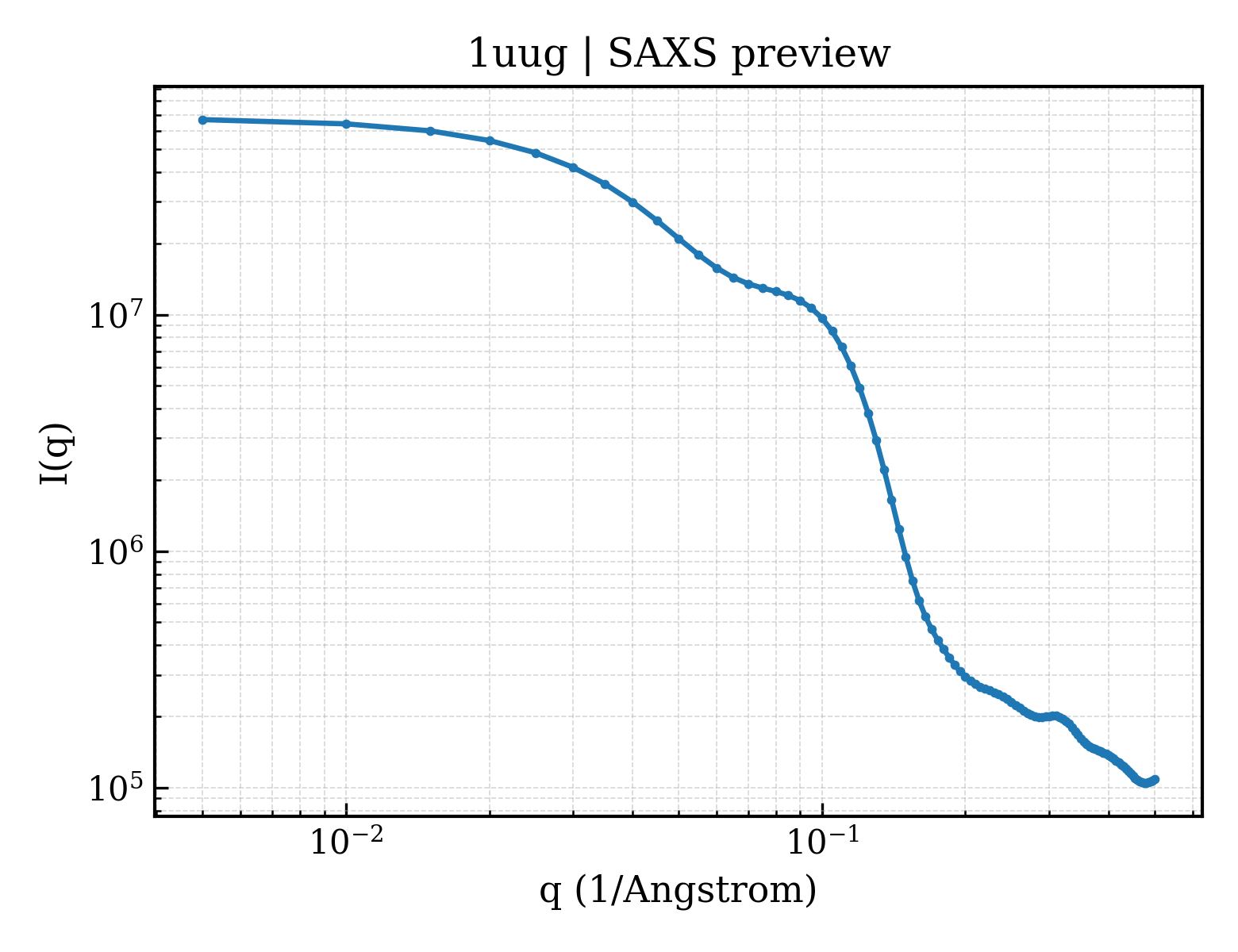

SAXS 散射曲线 SAXS Profile

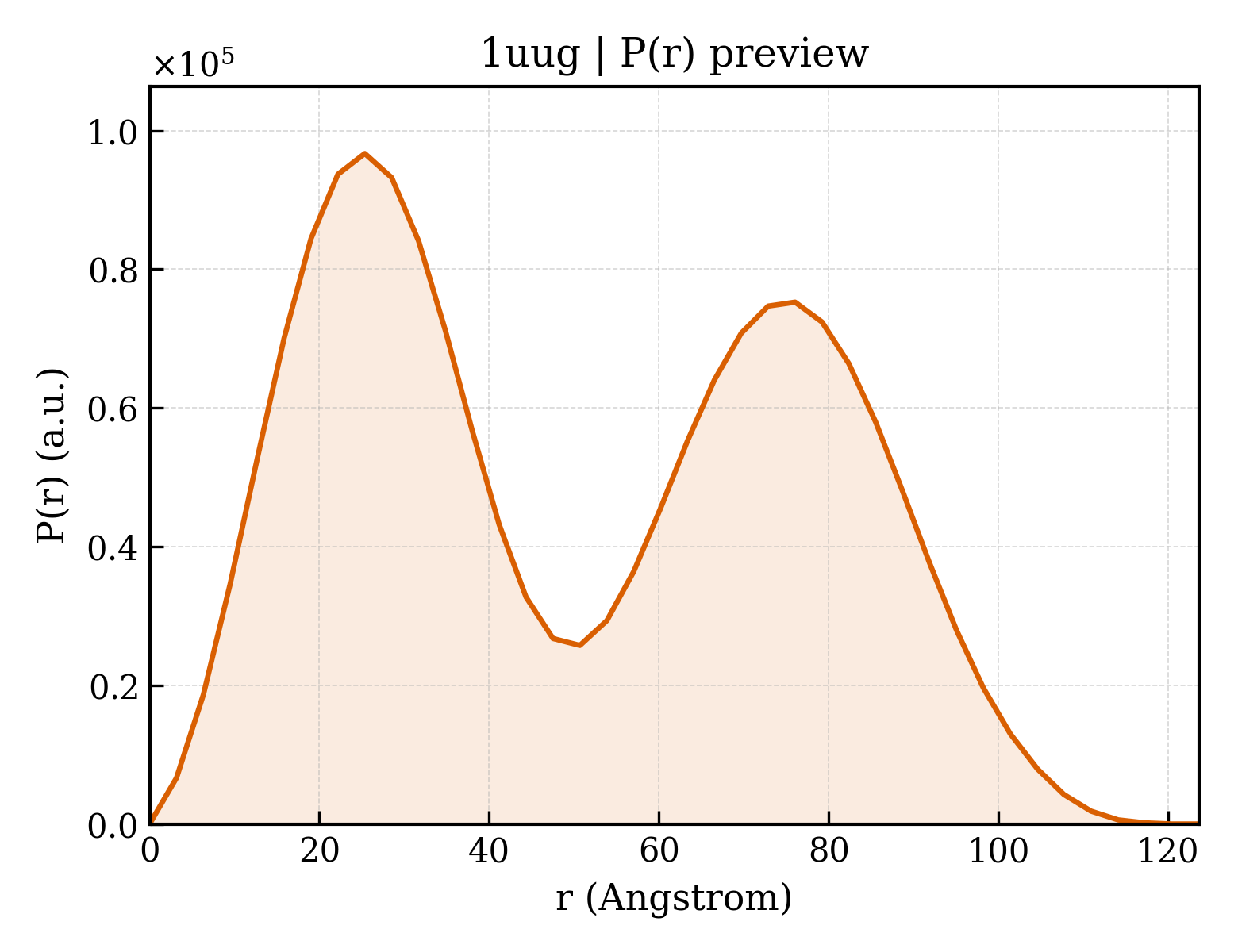

P(r) 距离分布 P(r) Distribution
