SAXSdb — 1vhv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

diphthine synthase

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPHB_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–264； UniProt 2–251 Author chain B； PDBConstruct 15–264； UniProt 2–251

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vhv
Deposition date deposition_date	2003-12-01
Structure title title	Crystal structure of diphthine synthase
Keywords keywords	structural genomics, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vhv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vhv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

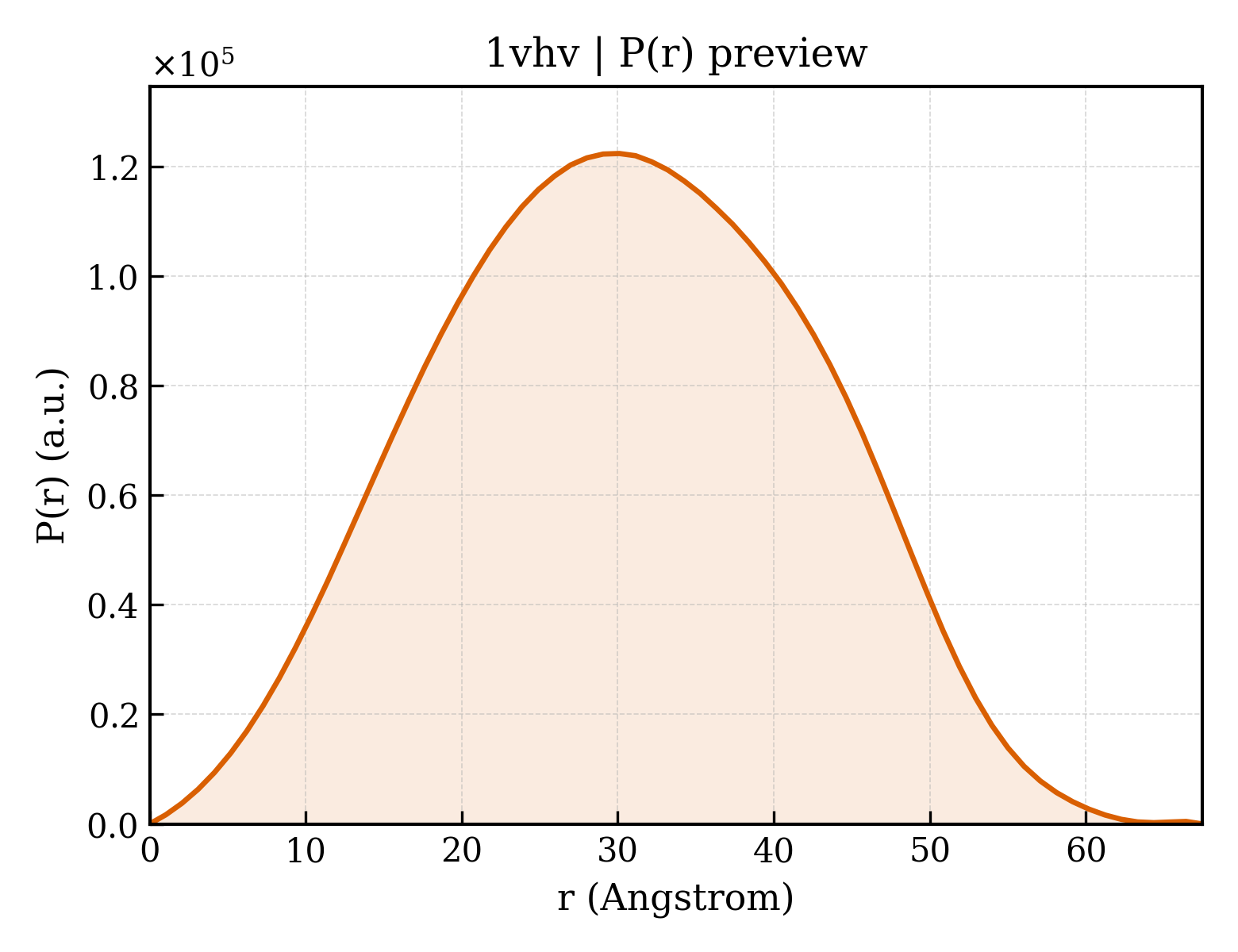

1vhv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.27 Å
Rg (electron density)	22.10 Å
Total Rg	22.89 Å
Atom count	3877
Residues	491
Excluded volume	69709 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vhv__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1vhva1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.90 — Tetrapyrrole methylase
Superfamily Superfamily superfamily	c.90.1 — Tetrapyrrole methylase
Family Family family	c.90.1.1 — Tetrapyrrole methylase

Domain ID domain_id	d1vhva2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vhvb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.90 — Tetrapyrrole methylase
Superfamily Superfamily superfamily	c.90.1 — Tetrapyrrole methylase
Family Family family	c.90.1.1 — Tetrapyrrole methylase

Domain ID domain_id	d1vhvb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1vhvA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1010 — Cobalt-precorrin-4 Transmethylase; domain 1
Homologous superfamily homologous superfamily	10 — Tetrapyrrole methylase, N-terminal domain

Domain ID domain_id	1vhvA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	950 — Methyltransferase, Cobalt-precorrin-4 Transmethylase; Domain 2
Homologous superfamily homologous superfamily	10 — Tetrapyrrole methylase, C-terminal domain

Domain ID domain_id	1vhvB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1010 — Cobalt-precorrin-4 Transmethylase; domain 1
Homologous superfamily homologous superfamily	10 — Tetrapyrrole methylase, N-terminal domain

Domain ID domain_id	1vhvB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	950 — Methyltransferase, Cobalt-precorrin-4 Transmethylase; Domain 2
Homologous superfamily homologous superfamily	10 — Tetrapyrrole methylase, C-terminal domain

▶

Unit-cell length a length_a	50.892 Å
Unit-cell length b length_b	56.416 Å
Unit-cell length c length_c	101.144 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	28.060 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2540

Description description	diphthine synthase
Molecular weight formula_weight	30223.4 kDa
EC 编号 ec_number	2.1.1.98
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4260

Crystal structure of diphthine synthase

1. Protein Identity and Related Structures Protein Identity & Related Structures

diphthine synthase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1vhv__assembly_1__model_1

1vhv__assembly_1__model_1 | I(q)

1vhv__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	2234
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	363
