1w63

AP1 clathrin adaptor core

Method: X-RAY DIFFRACTION D_max: 221.0 Å Quality: EXCELLENT

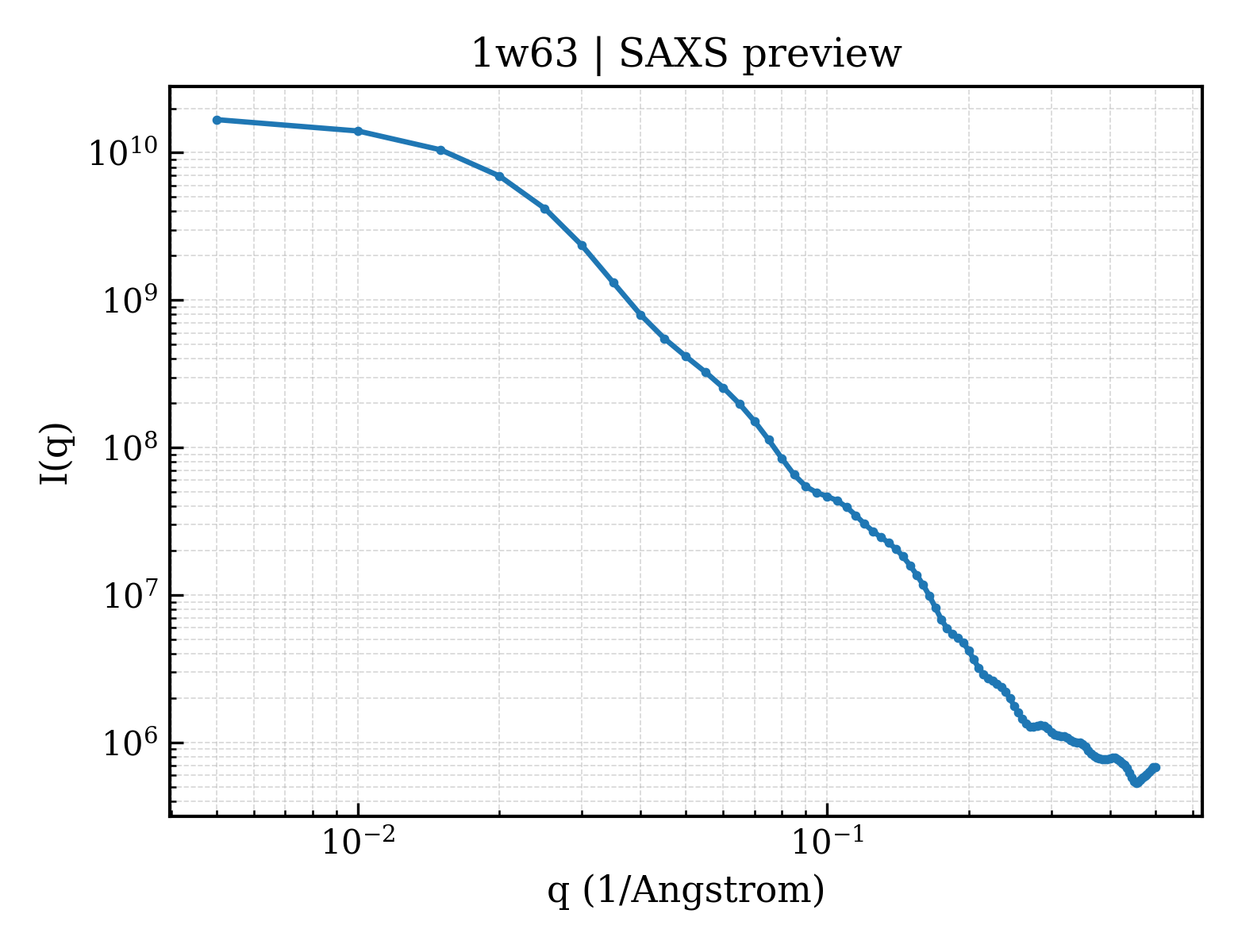

SAXS 散射曲线 SAXS Profile

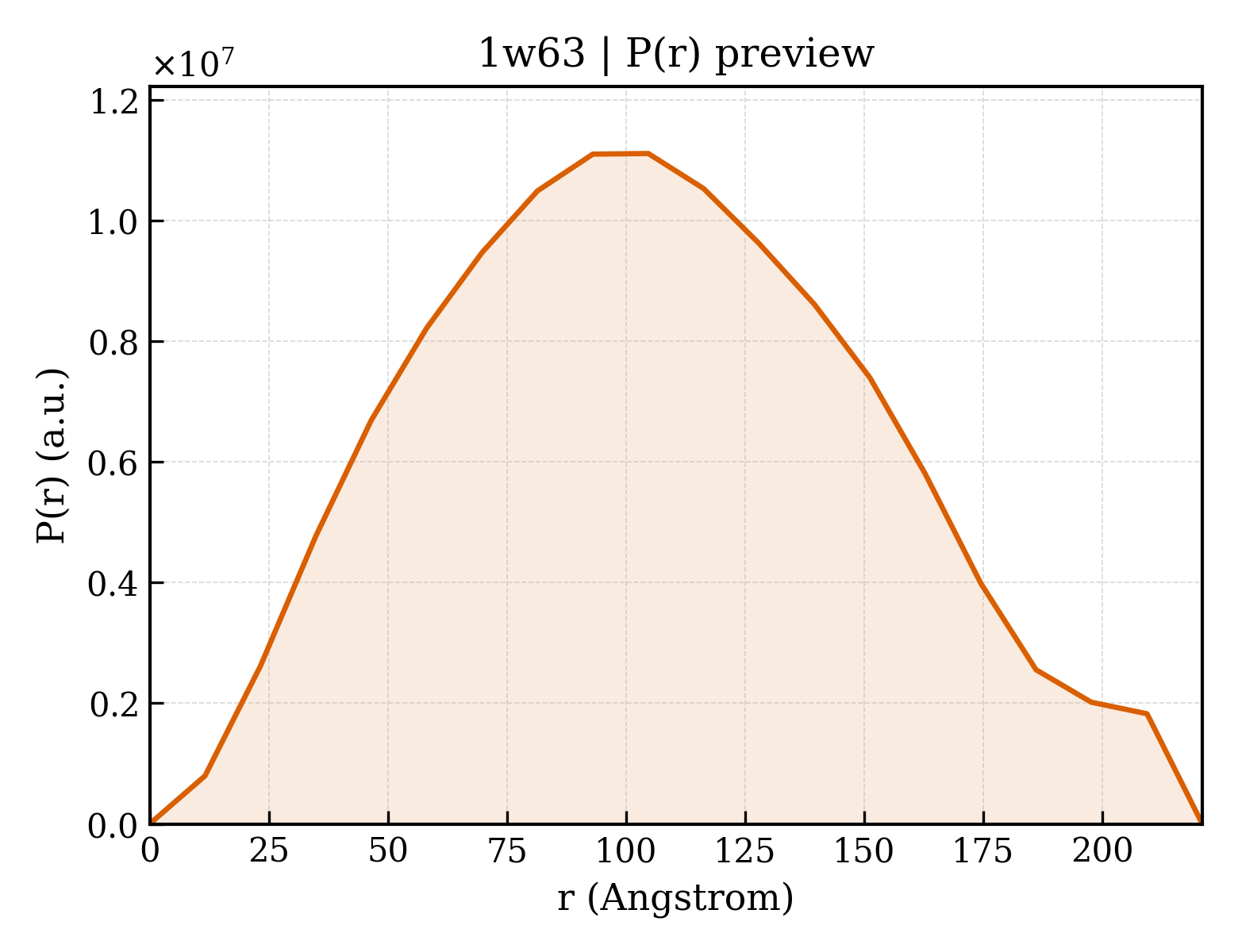

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1w63
沉积日期 deposition_date	2004-08-12
结构标题 title	AP1 clathrin adaptor core
关键词 keywords	ENDOCYTOSIS, CLATHRIN ADAPTOR, TRANSPORT, COATED PITS; ENDOCYTOSIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.19 Å
回转半径 Rg (电子) rg_electron	84.16 Å
零角强度 I(0) i0	17781000000.00
分子量 molecular_weight	1165600.0 kDa
排除体积 excluded_volume	1472200 Å³
包络体积 envelope_volume	2315900 Å³
水化壳体积 shell_volume	230780 Å³
包络直径 envelope_diameter	305.2 Å
壳层 Rg shell_rg	82.67 Å
包络 Rg envelope_rg	82.13 Å
形状 Rg shape_rg	84.16 Å
总 Rg total_rg	84.12 Å
总原子数 total_atoms	81744
残基数 n_residues	10218
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	221.0 Å
Rg (实空间) rg_real	80.99 Å
Rg 误差 (实空间) rg_real_error	0.64 Å
I(0) (实空间) i0_real	1.7190e+10
I(0) 误差 (实空间) i0_real_error	3.2060e+08
Rg (倒空间) rg_reciprocal	83.89 Å
I(0) (倒空间) i0_reciprocal	17760000000.0000
解质量估计 total_estimate	0.9005
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	104.7 Å
偏度 Skewness skewness	0.182
峰度 Kurtosis kurtosis	-0.603
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.3328
最高正则化参数 α highest_alpha	1379000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.989; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	ADAPTER-RELATED PROTEIN COMPLEX 1 GAMMA 1 SUBUNIT
分子量 formula_weight	69728.8 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K
原子数 atom_count	81744

GAGMSMPAPIRLRELIRTIRTARTQAEEREMIQKECAAIRSSFREEDNTYRCRNVAKLLYMHMLGYPAHFGQLECLKLIASQKFTDKRIGYLGAMLLLDERQDVHLLMTNCIKNDLNHSTQFVQGLALCTLGCMGSSEMCRDLAGEVEKLLKTSNSYLRKKAALCAVHVIRKVPELMEMFLPATKNLLNEKNHGVLHTSVVLLTEMCERSPDMLAHFRKLVPQLVRILKNLIMSGYSPEHDVSGISDPFLQVRILRLLRILGRNDDDSSEAMNDILAQVATNTETSKNVGNAILYETVLTIMDIKSESGLRVLAINILGRFLLNNDKNIRYVALTSLLKTVQTDHNAVQRHRSTIVDCLKDLDVSIKRRAMELSFALVNGNNIRGMMKELLYFLDSCEPEFKADCASGIFLAAEKYAPSKRWHIDTIMRVLTTAGSYVRDDAVPNLIQLITNSVEMHAYTVQRLYKAILGDYSQQPLVQVAAWCIGEYGDLLVSGQCEEEEPIQVTEDEVLDILESVLISNMSTSVTRGYALTAIMKLSTRFTCTVNRIKKVVSIYGSSIDVELQQRAVEYNALFKKYDHMRSALLERMPVMEKVTTNGPSEIVQTNGETEPAPLETK

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	ADAPTER-RELATED PROTEIN COMPLEX 1 BETA 1 SUBUNIT
分子量 formula_weight	66086.4 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L

MTDSKYFTTTKKGEIFELKAELNSDKKEKKKEAVKKVIASMTVGKDVSALFPDVVNCMQTDNLELKKLVYLYLMNYAKSQPDMAIMAVNTFVKDCEDPNPLIRALAVRTMGCIRVDKITEYLCEPLRKCLKDEDPYVRKTAAVCVAKLHDINAQMVEDQGFLDTLKDLISDSNPMVVANRVAALSEIAESHPSSNLLDLKAQSINKLLTALNECTEWAQIFILDCLGNYMPKDDREAQSICERVTPRLSHANSAVVLSAVKVLMKFMEMLSKDLDYYATLLKKLAPPLVTLLSAEPEPQYVPLRNINLIVQKRPEILKHEMKVFFVKYNDPIYVKLEKLDIMIRLASQANIAQVLAELKEYATEVDVDFVRKAVRAIGRCAIKVEQSAERCVSTLLDLIQTKVNYVVQEAIVVIKDIFRKYPNKYESVIATLCENLDSDDEPEARAAMIWIVGEYAERSDNADELLESFLDGFHDESTQVQLQLLTAIVKLFLKKPTETQELVQQVLSLATQDSDNPDLRDRGYIYWRLLSTDPVAAKEVVLAEKPLISEETDLIEPTLLDELICYIGTLASVYHKPPNAFVEG

来源 Source

来源生物 organism	RATTUS NORVEGICUS
通用名 common_name	RAT
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	ADAPTOR-RELATED PROTEIN COMPLEX 1, MU 1 SUBUNIT
分子量 formula_weight	48590.7 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,R,V

MSASAVYVLDLKGKVLICRNYRGDVDMSEVEHFMPILMEKEEEGMLSPILAHGGVRFMWIKHNNLYLVATSKKNACVSLVFSFLYKVVQVFSEYFKELEEESIRDNFVIIYELLDELMDFGYPQTTDSKILQEFITQEGHKLETGAPRPPATVTNAVSWRSEGIKYRKNEVFLDVIEAVNLLVSANGNVLRSEIVGSIKMRVFLSGMPELRLGLNDKVLFDNTGRGKSKSVELEDVKFHQCVRLSRFENDRTISFIPPDGEFELMSYRLNTHVKPLIWIESVIEKHSHSRIEYMVKAKSQFKRRSTANNVEIHIPVPNDADSPKFKTTVGSVKWVPENSEIVWSVKSFPGGKEYLMRAHFGLPSVEAEDKEGKPPISVKFEIPYFTTSGIQVRYLKIIEKSGYQAIPWVRYITQNGDYQLRTQ

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

Entity 4 polymer

描述 description	ADAPTER-RELATED PROTEIN COMPLEX 1 SIGMA 1A SUBUNIT
分子量 formula_weight	18758.0 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,S,T,U,W,X

MMRFMLLFSRQGKLRLQKWYLATSDKERKKMVRELMQVVLARKPKMCSFLEWRDLKVVYKRYASLYFCCAIEGQDNELITLELIHRYVELLDKYFGSVCELDIIFNFEKAYFILDEFLMGGDVQDTSKKSVLKAIEQADLLQEEDESPRSVLEEMGLA

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

▼

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1w63a_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63b_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63c_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63d_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63e_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63f_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63g_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63h_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63i_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63j_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63k_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63l_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63m_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63n_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63o_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63p_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63q_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63r_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63s_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63t_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63u_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63v_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63w_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

结构域编号 domain_id	d1w63x_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.23 — clathrin assemblies
超家族 Superfamily superfamily	i.23.1 — clathrin assemblies
家族 Family family	i.23.1.1 — clathrin assemblies

CATH v4.4 (24 domains)

结构域编号 domain_id	1w63A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63E00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63F00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63G00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63H00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63I00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63J00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63K00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63L00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	10 — Leucine-rich Repeat Variant
同源超家族 H-superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

结构域编号 domain_id	1w63M01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63N01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63O01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63P01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63Q00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63R01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63S00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63T00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63U00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63V01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63W00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1w63X00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	60 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	178.140 Å
晶胞边长 b length_b	178.140 Å
晶胞边长 c length_c	1134.994 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	P 32 1 2
空间群编号 int_tables_number	153
晶系 crystal_system	—

分辨率 resolution	4.000 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2972
R_work r_work	0.2972
R_free r_free	0.3097

AP1 clathrin adaptor core

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (4)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

Entity 4 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/w6/1w63/1w63.fit
pddf	/app/data/pr_computation/w6/1w63/1w63.pr.out
profile	/app/data/saxs_computation/w6/1w63/1w63.dat
