SAXSdb — 1w8n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BACTERIAL SIALIDASE

MICROMONOSPORA VIRIDIFACIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	beta-D-galactopyranose × 1 2-DEOXY-2,3-DEHYDRO-N-ACETYL-NEURAMINIC ACID × 1 SODIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NANH_MICVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–601； UniProt 47–647

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w8n
Deposition date deposition_date	2004-09-24
Structure title title	Contribution of the Active Site Aspartic Acid to Catalysis in the Bacterial Neuraminidase from Micromonospora viridifaciens.
Keywords keywords	GLYCOSIDASE, HYDROLASE, NEURAMINIDASE, BETA- PROPELLER FOLD.; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w8n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w8n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

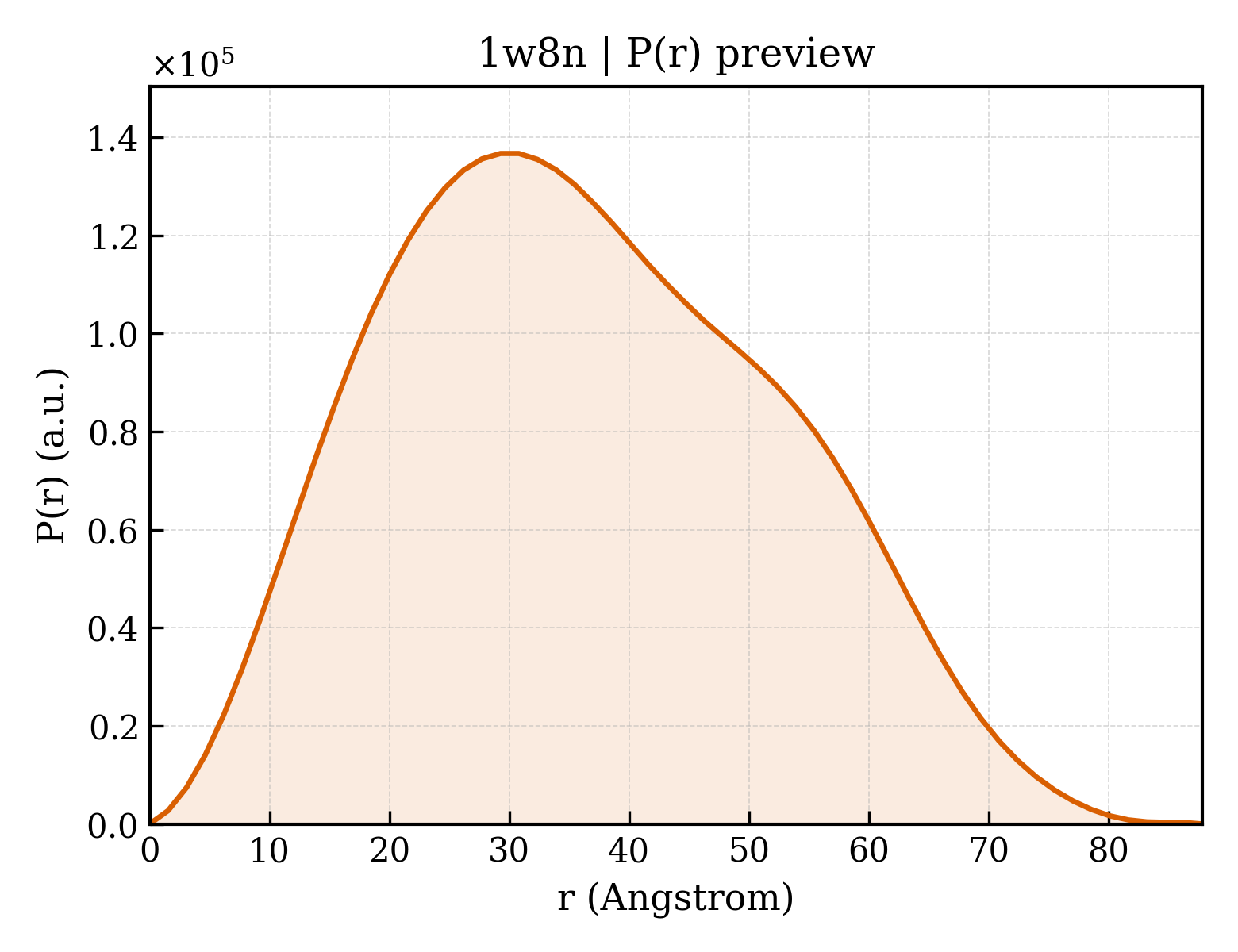

1w8n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.02 Å
Rg (electron density)	27.31 Å
Total Rg	27.99 Å
Atom count	4564
Residues	601
Excluded volume	79643 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w8n__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BACTERIAL SIALIDASE
Molecular weight formula_weight	64240.6 kDa
EC 编号 ec_number	3.2.1.18
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5105

GEPLYTEQDLAVNGREGFPNYRIPALTVTPDGDLLASYDGRPTGIGAPGPNSILQRRSTDGGRTWGEQQVVSAGQTTAPIKGFSDPSYLVDRETGTIFNFHVYSQRQGFAGSRPGTDPADPNVLHANVATSTDGGLTWSHRTITADITPDPGWRSRFAASGEGIQLRYGPHAGRLIQQYTIINAAGAFQAVSVYSDDHGRTWRAGEAVGVGMDENKTVELSDGRVLLNSRDSARSGYRKVAVSTDGGHSYGPVTIDRDLPDPTNNASIIRAFPDAPAGSARAKVLLFSNAASQTSRSQGTIRMSCDDGQTWPVSKVFQPGSMSYSTLTALPDGTYGLLYEPGTGIRYANFNLAWLGGICAPFTIPDVALEPGQQVTVPVAVTNQSGIAVPKPSLQLDASPDWQVQGSVEPLMPGRQAKGQVTITVPAGTTPGRYRVGATLRTSAGNASTTFTVTVGLLDQARMSIADVDSEETAREDGRASNVIDGNPSTFWHTEWSRADAPGYPHRISLDLGGTHTISGLQYTRRQNSANEQVADYEIYTSLNGTTWDGPVASGRFTTSLAPQRAVFPARDARYIRLVALSEQTGHKYAAVAELEVEGQR

Source Source

Source organism organism	MICROMONOSPORA VIRIDIFACIENS
NCBI taxonomy ID ncbi_taxonomy_id	1881
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	beta-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-DEOXY-2,3-DEHYDRO-N-ACETYL-NEURAMINIC ACID
Molecular weight formula_weight	291.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	516

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1w8na1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.2 — E-set domains of sugar-utilizing enzymes

Domain ID domain_id	d1w8na2
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.1 — Galactose-binding domain

Domain ID domain_id	d1w8na3
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.1 — Sialidases
Family Family family	b.68.1.1 — Sialidases (neuraminidases)

CATH v4.4 (3 domains)

Domain ID domain_id	1w8nA01
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1w8nA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1w8nA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	46.602 Å
Unit-cell length b length_b	111.608 Å
Unit-cell length c length_c	143.865 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	87.710 Å
R factor r_factor	0.1680
R_work r_work	0.1660
R_free r_free	0.2190

Contribution of the Active Site Aspartic Acid to Catalysis in the Bacterial Neuraminidase from Micromonospora viridifaciens.
