SAXSdb — 1w9v

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1w9v
沉积日期 deposition_date	2004-10-19
结构标题 title	Specificity and affinity of natural product cyclopentapeptide argifin against Aspergillus fumigatus
关键词 keywords	CHITINASE, ARGIFIN, CHITINASE INHIBITORS, CYCLOPENTAPEPTIDE INHIBITORS, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.54 Å
回转半径 Rg (电子) rg_electron	36.69 Å
零角强度 I(0) i0	125702000.00
分子量 molecular_weight	88745.0 kDa
排除体积 excluded_volume	110010 Å³
包络体积 envelope_volume	133620 Å³
水化壳体积 shell_volume	32314 Å³
包络直径 envelope_diameter	126.4 Å
壳层 Rg shell_rg	39.80 Å
包络 Rg envelope_rg	36.50 Å
形状 Rg shape_rg	36.68 Å
总 Rg total_rg	36.93 Å
总原子数 total_atoms	6267
残基数 n_residues	790
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.9 Å
Rg (实空间) rg_real	36.93 Å
Rg 误差 (实空间) rg_real_error	1.71 Å
I(0) (实空间) i0_real	1.2570e+08
I(0) 误差 (实空间) i0_real_error	2.4570e+06
Rg (倒空间) rg_reciprocal	36.69 Å
I(0) (倒空间) i0_reciprocal	125700000.0000
解质量估计 total_estimate	0.7589
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	28.8 Å
偏度 Skewness skewness	0.462
峰度 Kurtosis kurtosis	-0.694
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21430000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.546; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.460; Smooth: 0.771

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CHITINASE
分子量 formula_weight	47661.8 kDa
EC 编号 ec_number	3.2.1.14
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7347

MRFATSTIVKVALLLSSLCVDAAVMWNRDTSSTDLEARASSGYRSVVYFVNWAIYGRNHNPQDLPVERLTHVLYAFANVRPETGEVYMTDSWADIEKHYPGDSWSDTGNNVYGCIKQLYLLKKQNRNLKVLLSIGGWTYSPNFAPAASTDAGRKNFAKTAVKLLQDLGFDGLDIDWEYPENDQQANDFVLLLKEVRTALDSYSAANAGGQHFLLTVASPAGPDKIKVLHLKDMDQQLDFWNLMAYDYAGSFSSLSGHQANVYNDTSNPLSTPFNTQTALDLYRAGGVPANKIVLGMPLYGRSFANTDGPGKPYNGVGQGSWENGVWDYKALPQAGATEHVLPDIMASYSYDATNKFLISYDNPQVANLKSGYIKSLGLGGAMWWDSSSDKTGSDSLITTVVNALGGTGVFEQSQNELDYPVSQYDNLRNGMQT

来源 Source

来源生物 organism	ASPERGILLUS FUMIGATUS
NCBI 分类编号 ncbi_taxonomy_id	746128
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	ARGIFIN
分子量 formula_weight	693.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

XFDDA

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1080

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1w9va1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.5 — Type II chitinase

结构域编号 domain_id	d1w9va2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.3 — Chitinase insertion domain
家族 Family family	d.26.3.1 — Chitinase insertion domain

结构域编号 domain_id	d1w9vb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.5 — Type II chitinase

结构域编号 domain_id	d1w9vb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.26 — FKBP-like
超家族 Superfamily superfamily	d.26.3 — Chitinase insertion domain
家族 Family family	d.26.3.1 — Chitinase insertion domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1w9vA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1w9vA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1w9vB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1w9vB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	50 — Chitinase A; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	117.704 Å
晶胞边长 b length_b	117.704 Å
晶胞边长 c length_c	99.783 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41
空间群编号 int_tables_number	76
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	19.820 Å
R 因子 r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2480

fit	/app/data/saxs_computation/w9/1w9v/1w9v.fit
pddf	/app/data/pr_computation/w9/1w9v/1w9v.pr.out
profile	/app/data/saxs_computation/w9/1w9v/1w9v.dat

Specificity and affinity of natural product cyclopentapeptide argifin against Aspergillus fumigatus

SAXS 散射曲线 SAXS Profile

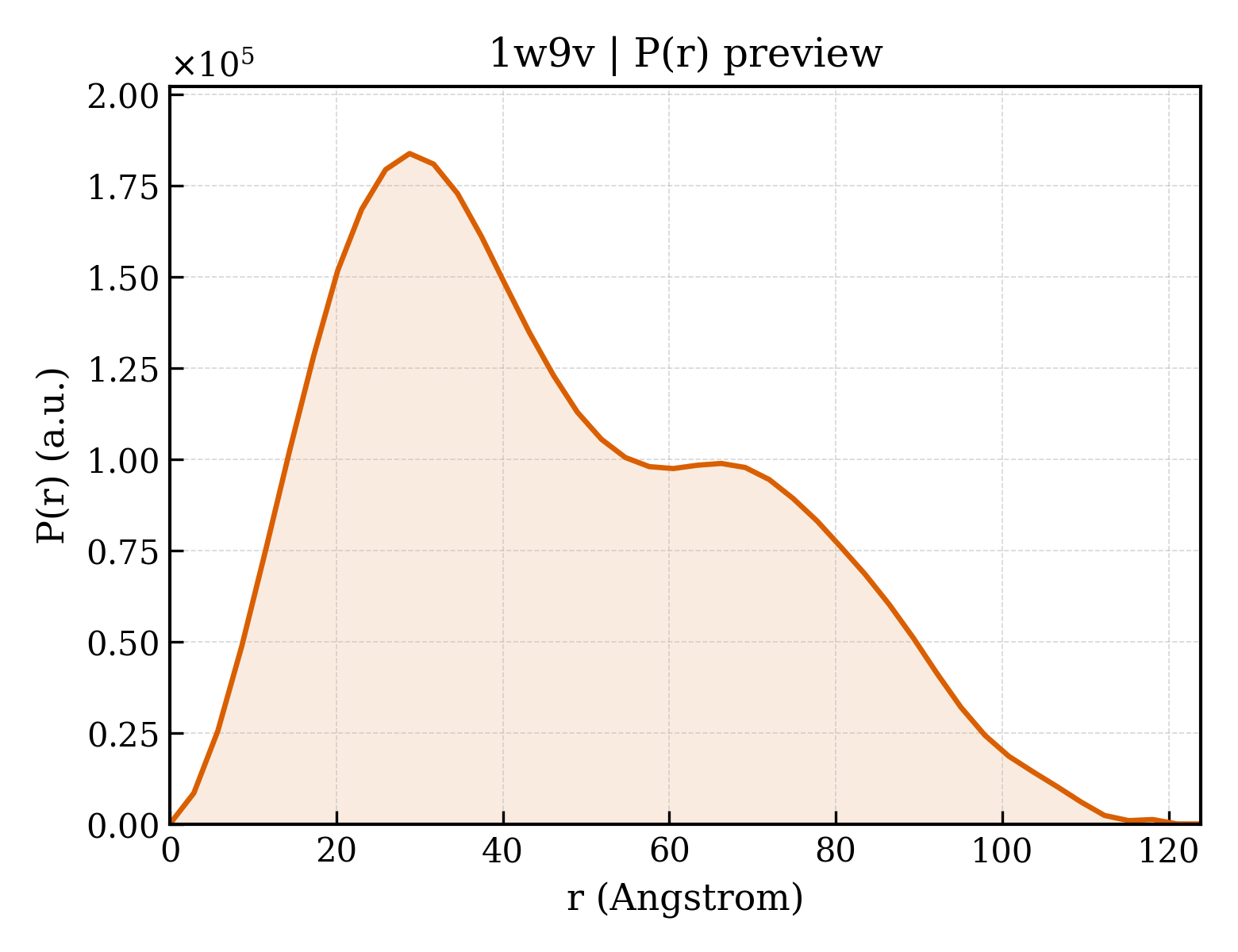

P(r) 距离分布 P(r) Distribution
