1xmn

Crystal structure of thrombin bound to heparin

Method: X-RAY DIFFRACTION D_max: 120.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

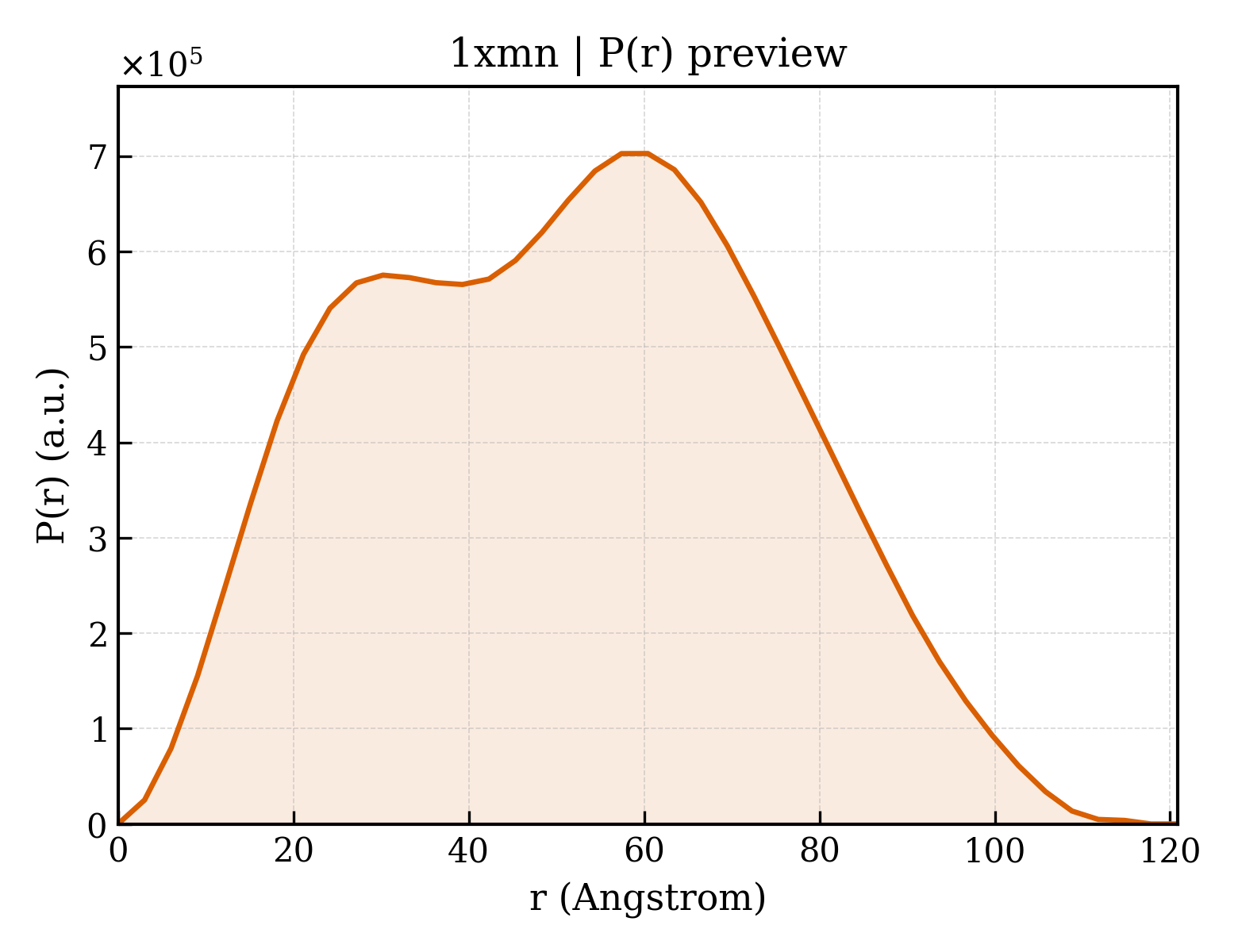

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xmn
沉积日期 deposition_date	2004-10-04
结构标题 title	Crystal structure of thrombin bound to heparin
关键词 keywords	BLOOD CLOTTING, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.97 Å
回转半径 Rg (电子) rg_electron	39.63 Å
零角强度 I(0) i0	562663000.00
分子量 molecular_weight	128410.0 kDa
排除体积 excluded_volume	123530 Å³
包络体积 envelope_volume	230570 Å³
水化壳体积 shell_volume	47756 Å³
包络直径 envelope_diameter	121.8 Å
壳层 Rg shell_rg	46.72 Å
包络 Rg envelope_rg	38.48 Å
形状 Rg shape_rg	39.68 Å
总 Rg total_rg	39.82 Å
总原子数 total_atoms	9666
残基数 n_residues	969
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.9 Å
Rg (实空间) rg_real	39.85 Å
Rg 误差 (实空间) rg_real_error	1.11 Å
I(0) (实空间) i0_real	5.6270e+08
I(0) 误差 (实空间) i0_real_error	9.4520e+06
Rg (倒空间) rg_reciprocal	39.93 Å
I(0) (倒空间) i0_reciprocal	562700000.0000
解质量估计 total_estimate	0.8293
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	60.4 Å
偏度 Skewness skewness	0.076
峰度 Kurtosis kurtosis	-0.788
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	335400000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Thrombin light chain
分子量 formula_weight	4096.5 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	10416

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Entity 2 polymer

描述 description	Thrombin heavy chain
分子量 formula_weight	29780.2 kDa
EC 编号 ec_number	3.4.21.5
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 3 branched

描述 description	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ;
分子量 formula_weight	1750.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ;
分子量 formula_weight	1494.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 branched

描述 description	2-acetamido-2-deoxy-alpha-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide
分子量 formula_weight	454.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 9 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 10 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	750

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1xmn.1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1xmn.2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1xmn.3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1xmn.4
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (8 domains)

结构域编号 domain_id	1xmnB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnF02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1xmnH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	80.907 Å
晶胞边长 b length_b	80.841 Å
晶胞边长 c length_c	114.144 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.05 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.850 Å
最低分辨率 resolution_low	36.600 Å
R 因子 r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2340
