SAXSdb — 1y64

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1y64
沉积日期 deposition_date	2004-12-03
结构标题 title	Bni1p Formin Homology 2 Domain complexed with ATP-actin
关键词 keywords	FH2 ACTIN CYTOSKELETON, COILED COIL, ACTIN, TETRAMETHYLRHODAMINE-5-MALEIMIDE, ATP-STATE, structural protein; STRUCTURAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.81 Å
回转半径 Rg (电子) rg_electron	33.43 Å
零角强度 I(0) i0	120331000.00
分子量 molecular_weight	87654.0 kDa
排除体积 excluded_volume	109960 Å³
包络体积 envelope_volume	153060 Å³
水化壳体积 shell_volume	39124 Å³
包络直径 envelope_diameter	124.3 Å
壳层 Rg shell_rg	38.77 Å
包络 Rg envelope_rg	34.38 Å
形状 Rg shape_rg	33.48 Å
总 Rg total_rg	33.72 Å
总原子数 total_atoms	6162
残基数 n_residues	767
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.7 Å
Rg (实空间) rg_real	33.90 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	1.2030e+08
I(0) 误差 (实空间) i0_real_error	2.0340e+06
Rg (倒空间) rg_reciprocal	33.85 Å
I(0) (倒空间) i0_reciprocal	120300000.0000
解质量估计 total_estimate	0.8681
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.7 Å
偏度 Skewness skewness	0.416
峰度 Kurtosis kurtosis	-0.233
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15490000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.718

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Actin, alpha skeletal muscle
分子量 formula_weight	41875.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6162

DEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 polymer

描述 description	BNI1 protein
分子量 formula_weight	50922.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MPASQIKSAVTSPLLPQSPSLFEKYPRPHKKLKQLHWEKLDCTDNSIWGTGKAEKFADDLYEKGVLADLEKAFAAREIKSLASKRKEDLQKITFLSRDISQQFGINLHMYSSLSVADLVKKILNCDRDFLQTPSVVEFLSKSEIIEVSVNLARNYAPYSTDWEGVRNLEDAKPPEKDPNDLQRADQIYLQLMVNLESYWGSRMRALTVVTSYEREYNELLAKLRKVDKAVSALQESDNLRNVFNVILAVGNFMNDTSKQAQGFKLSTLQRLTFIKDTTNSMTFLNYVEKIVRLNYPSFNDFLSELEPVLDVVKVSIEQLVNDCKDFSQSIVNVERSVEIGNLSDSSKFHPLDKVLIKTLPVLPEARKKGDLLEDEVKLTIMEFESLMHTYGEDSGDKFAKISFFKKFADFINEYKKAQAQNLAAEEEERLYIKHKKIVEEQQK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1y64a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.0 — automated matches

结构域编号 domain_id	d1y64a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.1 — Actin/HSP70

结构域编号 domain_id	d1y64b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.207 — Formin homology 2 domain (FH2 domain)
超家族 Superfamily superfamily	a.207.1 — Formin homology 2 domain (FH2 domain)
家族 Family family	a.207.1.1 — Formin homology 2 domain (FH2 domain)

CATH v4.4 (5 domains)

结构域编号 domain_id	1y64A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	1y64A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	1y64A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	1y64B01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	30 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1y64B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	2220 — Formin, FH2 domain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	231.997 Å
晶胞边长 b length_b	56.229 Å
晶胞边长 c length_c	100.945 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.70 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.050 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.3130
R_work r_work	0.2890
R_free r_free	0.3130

fit	/app/data/saxs_computation/y6/1y64/1y64.fit
pddf	/app/data/pr_computation/y6/1y64/1y64.pr.out
profile	/app/data/saxs_computation/y6/1y64/1y64.dat

Bni1p Formin Homology 2 Domain complexed with ATP-actin

SAXS 散射曲线 SAXS Profile

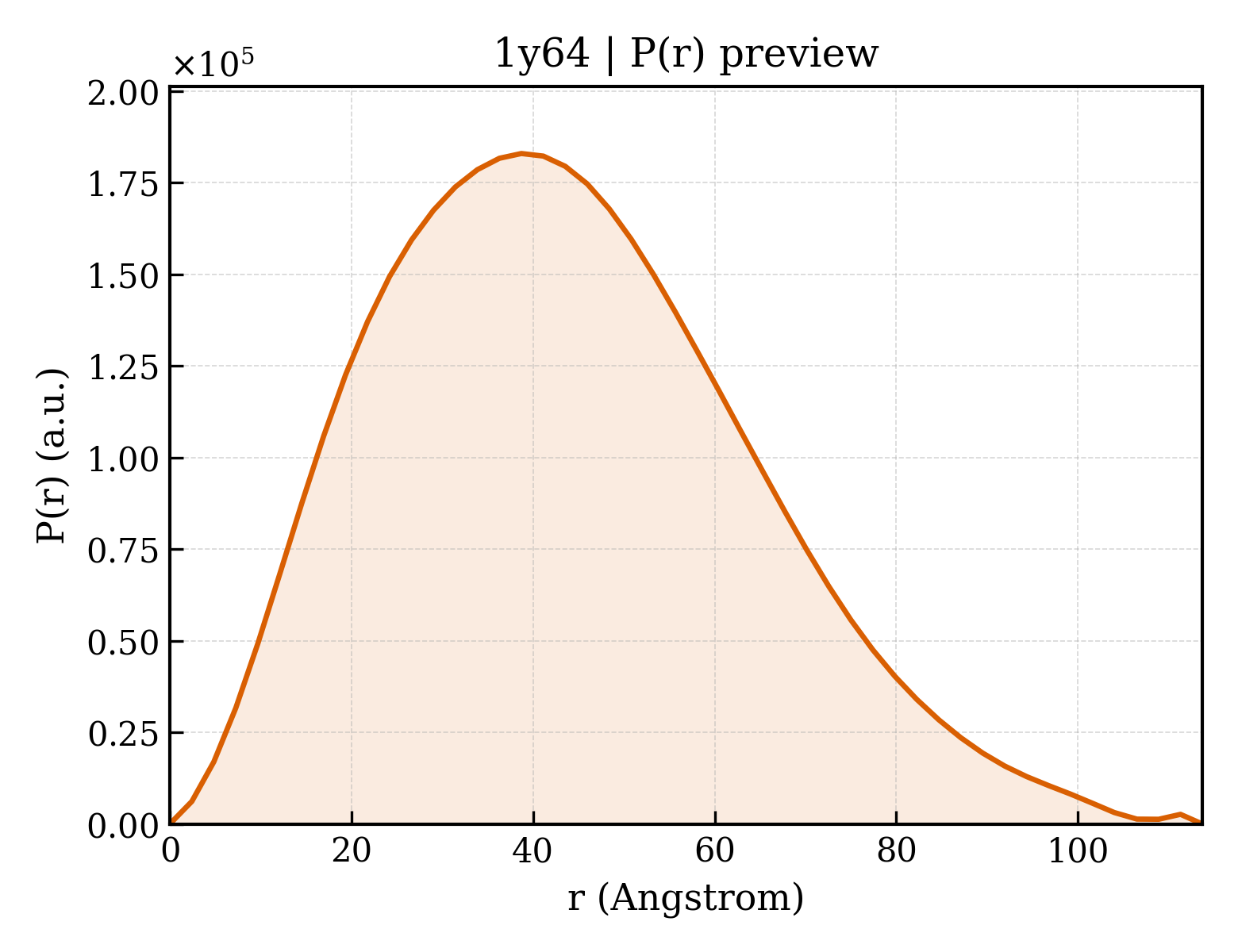

P(r) 距离分布 P(r) Distribution
