1zaa
ZINC FINGER-DNA RECOGNITION: CRYSTAL STRUCTURE OF A ZIF268-DNA COMPLEX AT 2.1 ANGSTROMS

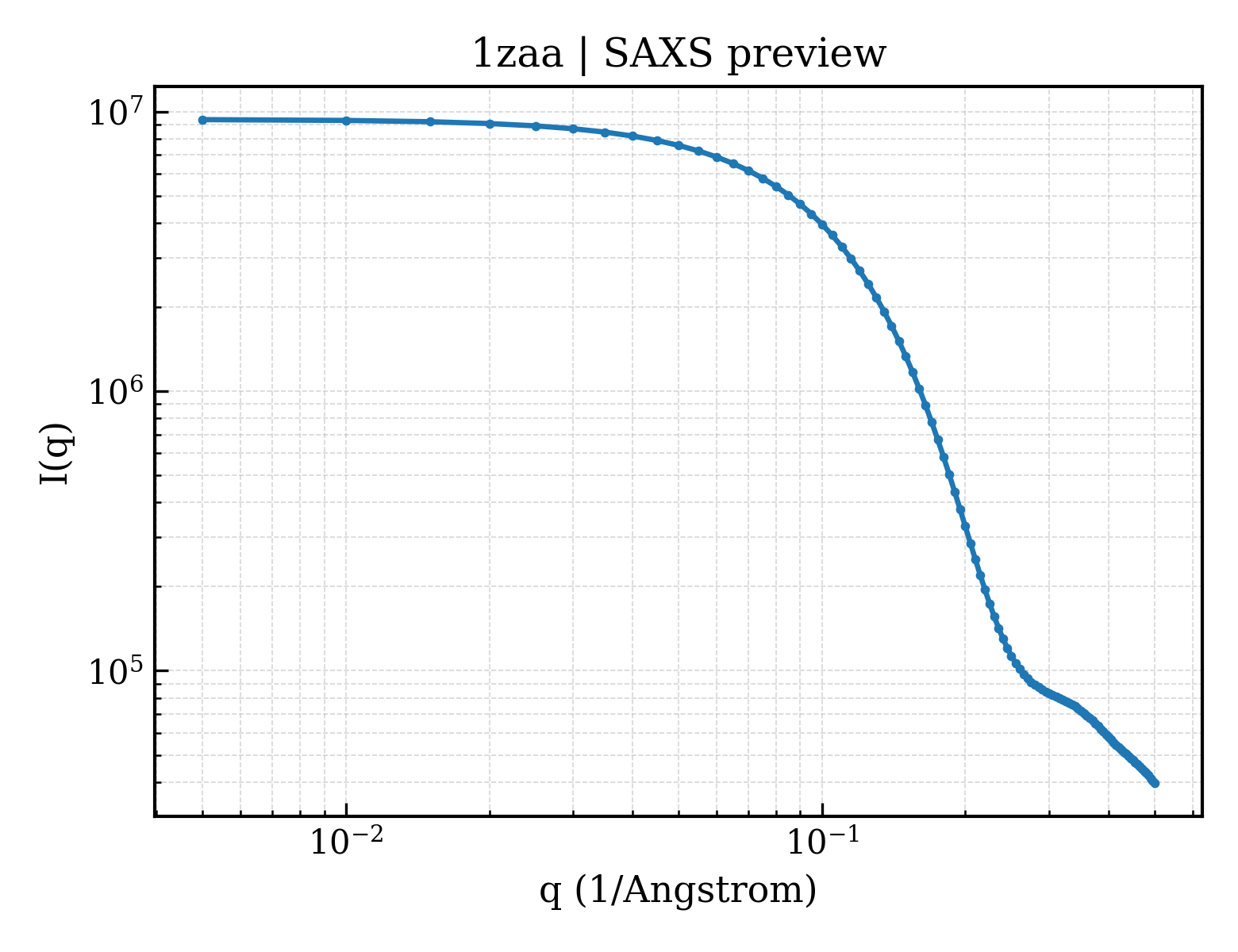

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1zaa |
| 沉积日期 deposition_date | 1992-09-17 |
| 结构标题 title | ZINC FINGER-DNA RECOGNITION: CRYSTAL STRUCTURE OF A ZIF268-DNA COMPLEX AT 2.1 ANGSTROMS |
| 关键词 keywords | PROTEIN-DNA COMPLEX, DOUBLE HELIX, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 16.05 Å |
| 回转半径 Rg (电子) rg_electron | 15.85 Å |
| 零角强度 I(0) i0 | 9372850.00 |
| 分子量 molecular_weight | 17094.0 kDa |
| 排除体积 excluded_volume | 18956 ų |
| 包络体积 envelope_volume | 23282 ų |
| 水化壳体积 shell_volume | 12930 ų |
| 包络直径 envelope_diameter | 56.8 Å |
| 壳层 Rg shell_rg | 21.03 Å |
| 包络 Rg envelope_rg | 16.13 Å |
| 形状 Rg shape_rg | 15.78 Å |
| 总 Rg total_rg | 16.70 Å |
| 总原子数 total_atoms | 1161 |
| 残基数 n_residues | 107 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 55.3 Å |
| Rg (实空间) rg_real | 16.01 Å |
| Rg 误差 (实空间) rg_real_error | 0.38 Å |
| I(0) (实空间) i0_real | 9.3730e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.1770e+05 |
| Rg (倒空间) rg_reciprocal | 16.02 Å |
| I(0) (倒空间) i0_reciprocal | 9373000.0000 |
| 解质量估计 total_estimate | 0.6548 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 19.6 Å |
| 偏度 Skewness skewness | 0.320 |
| 峰度 Kurtosis kurtosis | -0.204 |
| 角度范围 angular_range | — – 0.4950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1121000.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.756; Stabil: 1.000; Sysdev: 0.424; Positv: 1.000; Valcen: 0.967; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1zaac1 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
| 结构域编号 domain_id | d1zaac2 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
| 结构域编号 domain_id | d1zaac3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 1zaaC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
| 结构域编号 domain_id | 1zaaC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
| 结构域编号 domain_id | 1zaaC03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
