1zu1
Solution Structure of the N-terminal Zinc Fingers of the Xenopus laevis double stranded RNA binding protein ZFa
SAXS 散射曲线 SAXS Profile

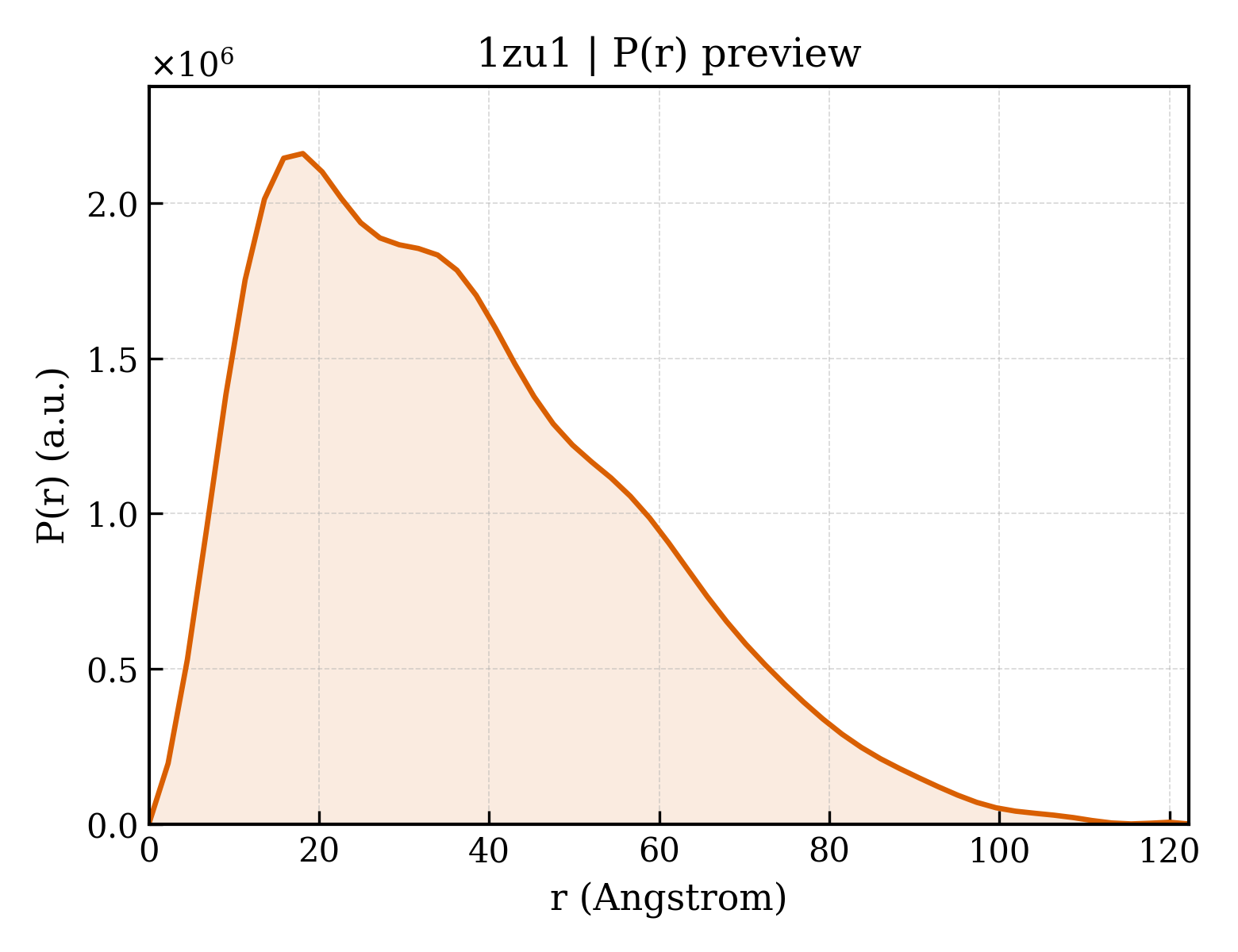

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1zu1 |
| 沉积日期 deposition_date | 2005-05-29 |
| 结构标题 title | Solution Structure of the N-terminal Zinc Fingers of the Xenopus laevis double stranded RNA binding protein ZFa |
| 关键词 keywords | zinc finger protein, helix-loop-helix, helix-turn-helix, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.20 Å |
| 回转半径 Rg (电子) rg_electron | 29.41 Å |
| 零角强度 I(0) i0 | 1318530000.00 |
| 分子量 molecular_weight | 283290.0 kDa |
| 排除体积 excluded_volume | 346670 ų |
| 包络体积 envelope_volume | 251820 ų |
| 水化壳体积 shell_volume | 54813 ų |
| 包络直径 envelope_diameter | 136.4 Å |
| 壳层 Rg shell_rg | 43.16 Å |
| 包络 Rg envelope_rg | 40.48 Å |
| 形状 Rg shape_rg | 29.33 Å |
| 总 Rg total_rg | 30.13 Å |
| 总原子数 total_atoms | 39020 |
| 残基数 n_residues | 2540 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 122.3 Å |
| Rg (实空间) rg_real | 29.79 Å |
| Rg 误差 (实空间) rg_real_error | 2.27 Å |
| I(0) (实空间) i0_real | 1.3190e+09 |
| I(0) 误差 (实空间) i0_real_error | 2.5560e+07 |
| Rg (倒空间) rg_reciprocal | 29.54 Å |
| I(0) (倒空间) i0_reciprocal | 1318000000.0000 |
| 解质量估计 total_estimate | 0.6513 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 18.1 Å |
| 偏度 Skewness skewness | 0.674 |
| 峰度 Kurtosis kurtosis | -0.093 |
| 角度范围 angular_range | — – 0.2700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 667700.0000 |
| 实空间数据点数 n_real_points | 55 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.145; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.044; Smooth: 0.983 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1zu1a1 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.4 — HkH motif-containing C2H2 finger |
| 结构域编号 domain_id | d1zu1a2 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.4 — HkH motif-containing C2H2 finger |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1zu1A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
| 结构域编号 domain_id | 1zu1A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
