1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2b4x
沉积日期 deposition_date	2005-09-27
结构标题 title	Crystal Structure of Antithrombin-III
关键词 keywords	serpin; inhibitor; coagulation; protease, BLOOD CLOTTING; BLOOD CLOTTING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.61 Å
回转半径 Rg (电子) rg_electron	37.73 Å
零角强度 I(0) i0	125001000.00
分子量 molecular_weight	91168.0 kDa
排除体积 excluded_volume	114350 Å³
包络体积 envelope_volume	146380 Å³
水化壳体积 shell_volume	35134 Å³
包络直径 envelope_diameter	130.8 Å
壳层 Rg shell_rg	39.69 Å
包络 Rg envelope_rg	37.70 Å
形状 Rg shape_rg	37.73 Å
总 Rg total_rg	37.88 Å
总原子数 total_atoms	6420
残基数 n_residues	823
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	132.5 Å
Rg (实空间) rg_real	38.16 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	1.2500e+08
I(0) 误差 (实空间) i0_real_error	2.1080e+06
Rg (倒空间) rg_reciprocal	37.83 Å
I(0) (倒空间) i0_reciprocal	125000000.0000
解质量估计 total_estimate	0.7474
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.4 Å
偏度 Skewness skewness	0.548
峰度 Kurtosis kurtosis	-0.558
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	68230000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.445; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.529; Smooth: 0.846

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Antithrombin-III
分子量 formula_weight	48499.4 kDa
突变 mutation	Y220L, N135A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I
原子数 atom_count	6560

VDICTAKPRDIPMNPMCIYRSPEKKATEDEGSEQKIPEATNRRVWELSKANSRFATTFYQHLADSKNDNDNIFLSPLSISTAFAMTKLGACNDTLQQLMEVFKFDTISEKTSDQIHFFFAKLNCRLYRKAAKSSKLVSANRLFGDKSLTFNETYQDISELVYGAKLQPLDFKENAEQSRAAINKWVSNKTEGRITDVIPSEAINELTVLVLVNTILFKGLWKSKFSPENTRKELFYKADGESCSASMMYQEGKFRYRRVAEGTQVLELPFKGDDITMVLILPKPEKSLAKVEKELTPEVLQEWLDELEEMMLVVHMPRFRIEDGFSLKEQLQDMGLVDLFSPEKSKLPGIVAEGRDDLYVSDAFHKAFLEVNEEGSEAAASTAVVIAGRSLNPNRVTFKANRPFLVFIREVPLNTIIFMGRVANPCV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 2 polymer

描述 description	Antithrombin-III
分子量 formula_weight	48592.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

VDICTAKPRDIPMNPMCIYRSPEKKATEDEGSEQKIPEATNRRVWELSKANSRFATTFYQHLADSKNDNDNIFLSPLSISTAFAMTKLGACNDTLQQLMEVFKFDTISEKTSDQIHFFFAKLNCRLYRKANKSSKLVSANRLFGDKSLTFNETYQDISELVYGAKLQPLDFKENAEQSRAAINKWVSNKTEGRITDVIPSEAINELTVLVLVNTIYFKGLWKSKFSPENTRKELFYKADGESCSASMMYQEGKFRYRRVAEGTQVLELPFKGDDITMVLILPKPEKSLAKVEKELTPEVLQEWLDELEEMMLVVHMPRFRIEDGFSLKEQLQDMGLVDLFSPEKSKLPGIVAEGRDDLYVSDAFHKAFLEVNEEGSEAAASTAVVIAGRSLNPNRVTFKANRPFLVFIREVPLNTIIFMGRVANPCV

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	6

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	140

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d2b4xi1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.1 — Serpins
超家族 Superfamily superfamily	e.1.1 — Serpins
家族 Family family	e.1.1.1 — Serpins

结构域编号 domain_id	d2b4xl_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.1 — Serpins
超家族 Superfamily superfamily	e.1.1 — Serpins
家族 Family family	e.1.1.1 — Serpins

CATH v4.4 (4 domains)

结构域编号 domain_id	2b4xI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	497 — Antithrombin; Chain I, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

结构域编号 domain_id	2b4xI02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	39 — Alpha-1-antitrypsin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

结构域编号 domain_id	2b4xL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	497 — Antithrombin; Chain I, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

结构域编号 domain_id	2b4xL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	39 — Alpha-1-antitrypsin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.470 Å
晶胞边长 b length_b	98.670 Å
晶胞边长 c length_c	89.240 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	19.980 Å
R 因子 r_factor	0.2330
R_work r_work	0.2280
R_free r_free	0.2830

fit	/app/data/saxs_computation/b4/2b4x/2b4x.fit
pddf	/app/data/pr_computation/b4/2b4x/2b4x.pr.out
profile	/app/data/saxs_computation/b4/2b4x/2b4x.dat

Crystal Structure of Antithrombin-III

SAXS 散射曲线 SAXS Profile

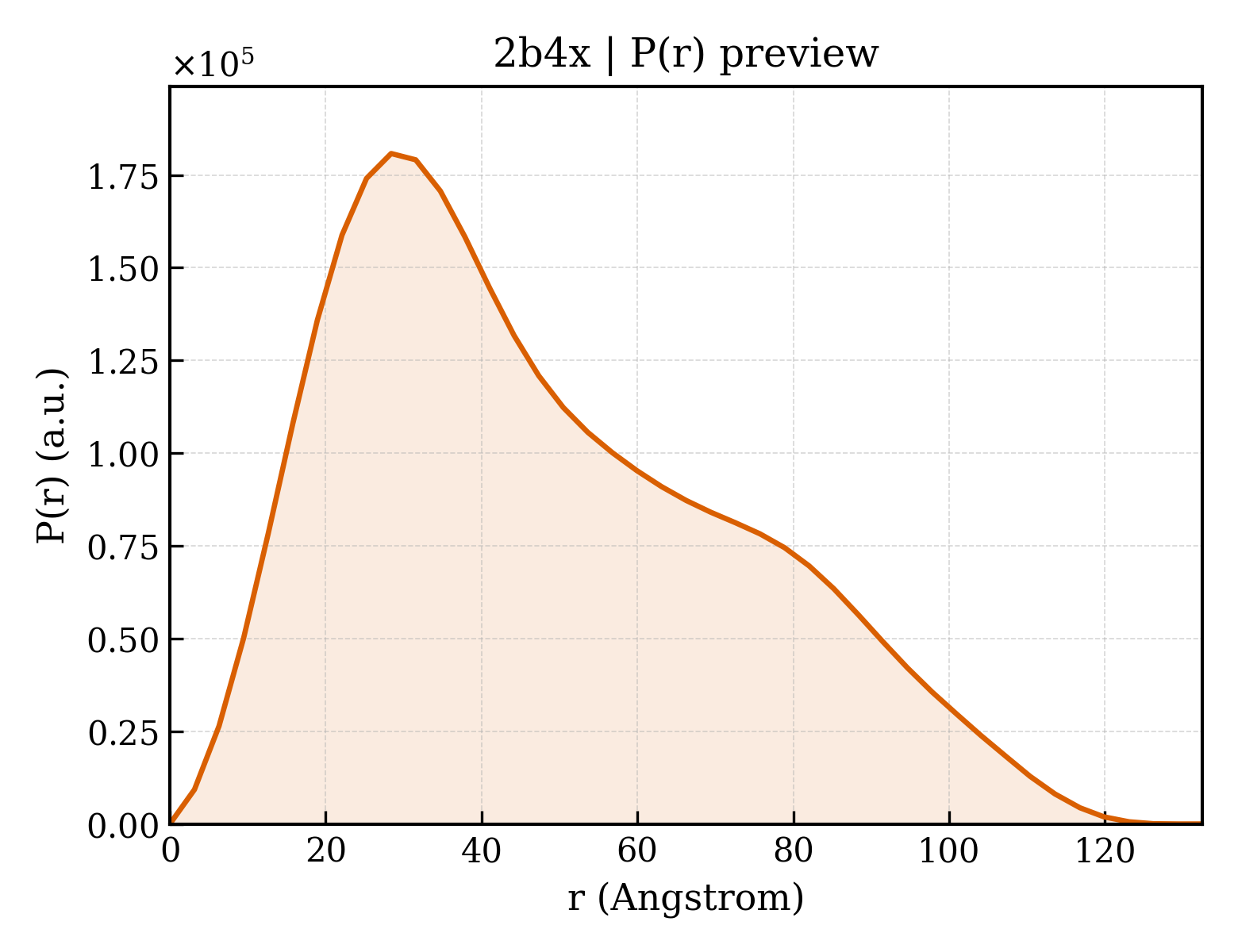

P(r) 距离分布 P(r) Distribution
