2e31
Structural basis for selection of glycosylated substrate by SCFFbs1 ubiquitin ligase
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2e31 |
| 沉积日期 deposition_date | 2006-11-20 |
| 结构标题 title | Structural basis for selection of glycosylated substrate by SCFFbs1 ubiquitin ligase |
| 关键词 keywords | ubiquitin, SCF, ubiquitin ligase, fbs1, LIGASE; LIGASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.81 Å |
| 回转半径 Rg (电子) rg_electron | 29.50 Å |
| 零角强度 I(0) i0 | 30077900.00 |
| 分子量 molecular_weight | 43242.0 kDa |
| 排除体积 excluded_volume | 54231 ų |
| 包络体积 envelope_volume | 70569 ų |
| 水化壳体积 shell_volume | 21537 ų |
| 包络直径 envelope_diameter | 102.3 Å |
| 壳层 Rg shell_rg | 34.11 Å |
| 包络 Rg envelope_rg | 29.10 Å |
| 形状 Rg shape_rg | 29.51 Å |
| 总 Rg total_rg | 29.92 Å |
| 总原子数 total_atoms | 3055 |
| 残基数 n_residues | 379 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

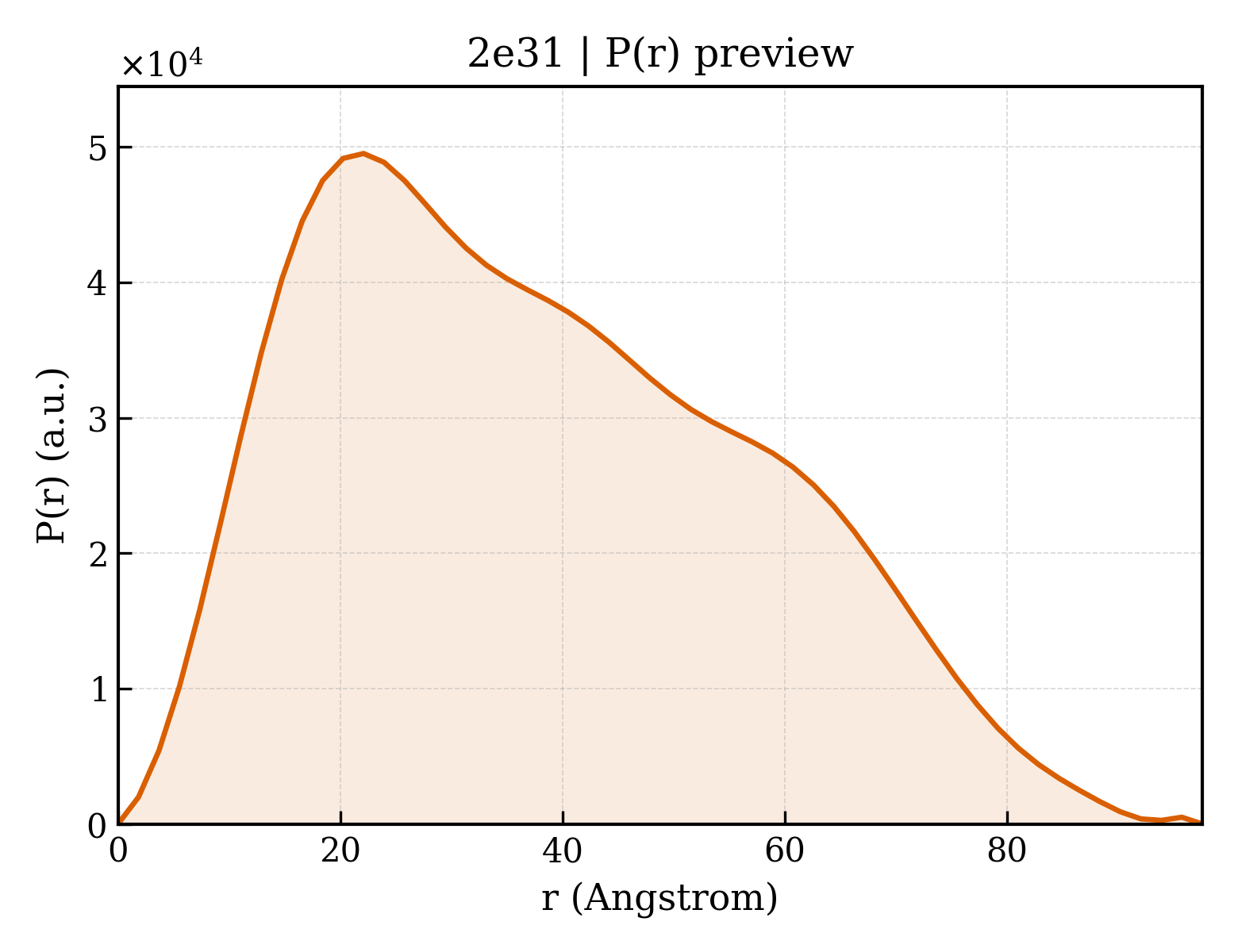

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 97.6 Å |
| Rg (实空间) rg_real | 30.05 Å |
| Rg 误差 (实空间) rg_real_error | 0.99 Å |
| I(0) (实空间) i0_real | 3.0080e+07 |
| I(0) 误差 (实空间) i0_real_error | 4.7910e+05 |
| Rg (倒空间) rg_reciprocal | 29.95 Å |
| I(0) (倒空间) i0_reciprocal | 30080000.0000 |
| 解质量估计 total_estimate | 0.8156 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 22.1 Å |
| 偏度 Skewness skewness | 0.396 |
| 峰度 Kurtosis kurtosis | -0.704 |
| 角度范围 angular_range | — – 0.2650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 7248000.0000 |
| 实空间数据点数 n_real_points | 54 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.756; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.572; Smooth: 0.761 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 5 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2e31b1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.42 — POZ domain |
| 超家族 Superfamily superfamily | d.42.1 — POZ domain |
| 家族 Family family | d.42.1.0 — automated matches |
| 结构域编号 domain_id | d2e31b2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.157 — Skp1 dimerisation domain-like |
| 超家族 Superfamily superfamily | a.157.1 — Skp1 dimerisation domain-like |
| 家族 Family family | a.157.1.1 — Skp1 dimerisation domain-like |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 2e31A01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1280 — Monooxygenase |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 2e31A02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 260 — Galactose-binding domain-like |
| 结构域编号 domain_id | 2e31B00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 710 — Potassium Channel Kv1.1; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Potassium Channel Kv1.1; Chain A |
