SAXSdb — 2fyc

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fyc
沉积日期 deposition_date	2006-02-07
结构标题 title	;Crystal structure of the catalytic domain of bovine beta1,4-galactosyltransferase-I in complex with alpha-lactalbumin, Ca and UDP-galactose ;
关键词 keywords	lactose synthase, M344H mutation, Ca binding, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.50 Å
回转半径 Rg (电子) rg_electron	31.06 Å
零角强度 I(0) i0	139039000.00
分子量 molecular_weight	93249.0 kDa
排除体积 excluded_volume	116220 Å³
包络体积 envelope_volume	139700 Å³
水化壳体积 shell_volume	37803 Å³
包络直径 envelope_diameter	111.9 Å
壳层 Rg shell_rg	37.83 Å
包络 Rg envelope_rg	30.65 Å
形状 Rg shape_rg	31.04 Å
总 Rg total_rg	31.68 Å
总原子数 total_atoms	6540
残基数 n_residues	790
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

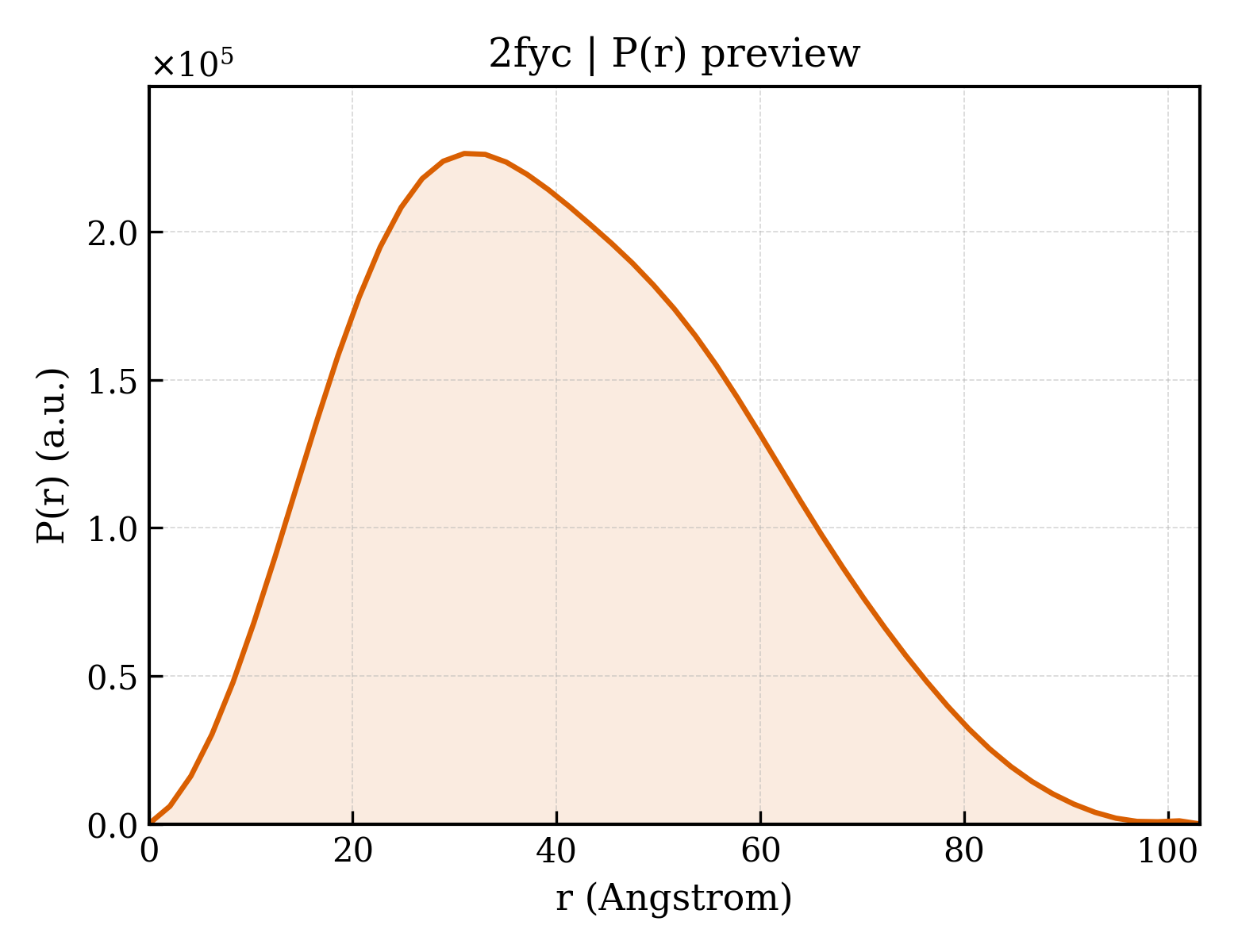

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	103.1 Å
Rg (实空间) rg_real	31.53 Å
Rg 误差 (实空间) rg_real_error	0.82 Å
I(0) (实空间) i0_real	1.3900e+08
I(0) 误差 (实空间) i0_real_error	2.0350e+06
Rg (倒空间) rg_reciprocal	31.52 Å
I(0) (倒空间) i0_reciprocal	139000000.0000
解质量估计 total_estimate	0.8936
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.9 Å
偏度 Skewness skewness	0.341
峰度 Kurtosis kurtosis	-0.488
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	41980000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.897; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.937

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Alpha-lactalbumin
分子量 formula_weight	14015.8 kDa
突变 mutation	C342T, M344H
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	7305

TELTKCKVSHAIKDIDGYQGISLLEWACVLFHTSGYDTQAVVNDNGSTEYGLFQISDRFWCKSSEFPESENICGISCDKLLDDELDDDIACAKKILAIKGIDYWKAYKPMCSEKLEQWRCEKP

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21

Entity 2 polymer

描述 description	beta-1,4-galactosyltransferase
分子量 formula_weight	32856.5 kDa
EC 编号 ec_number	2.4.1.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

ASMTGGQQMGRGSSLTACPEESPLLVGPMLIEFNIPVDLKLVEQQNPKVKLGGRYTPMDCISPHKVAIIIPFRNRQEHLKYWLYYLHPILQRQQLDYGIYVINQAGESMFNRAKLLNVGFKEALKDYDYNCFVFSDVDLIPMNDHNTYRCFSQPRHISVAMDKFGFSLPYVQYFGGVSALSKQQFLSINGFPNNYWGWGGEDDDIYNRLAFRGMSVSRPNAVIGKTRHIRHSRDKKNEPNPQRFDRIAHTKETMLSDGLNSLTYMVLEVQRYPLYTKITVDIGTPS

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI 分类编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Escherichia coli BL21

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
分子量 formula_weight	195.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	GALACTOSE-URIDINE-5'-DIPHOSPHATE
分子量 formula_weight	566.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	URIDINE-5'-DIPHOSPHATE
分子量 formula_weight	404.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	765

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2fyca_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.2 — Lysozyme-like
超家族 Superfamily superfamily	d.2.1 — Lysozyme-like
家族 Family family	d.2.1.2 — C-type lysozyme

结构域编号 domain_id	d2fycb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.2 — beta 1,4 galactosyltransferase (b4GalT1)

结构域编号 domain_id	d2fycc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.2 — Lysozyme-like
超家族 Superfamily superfamily	d.2.1 — Lysozyme-like
家族 Family family	d.2.1.2 — C-type lysozyme

结构域编号 domain_id	d2fycd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.2 — beta 1,4 galactosyltransferase (b4GalT1)

CATH v4.4 (4 domains)

结构域编号 domain_id	2fycA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	530 — Lysozyme
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2fycB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	2fycC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	530 — Lysozyme
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2fycD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	57.374 Å
晶胞边长 b length_b	94.615 Å
晶胞边长 c length_c	99.603 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.78 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	32.560 Å
R 因子 r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2460

fit	/app/data/saxs_computation/fy/2fyc/2fyc.fit
pddf	/app/data/pr_computation/fy/2fyc/2fyc.pr.out
profile	/app/data/saxs_computation/fy/2fyc/2fyc.dat

;Crystal structure of the catalytic domain of bovine beta1,4-galactosyltransferase-I in complex with alpha-lactalbumin, Ca and UDP-galactose ;
