SAXSdb — 2gju

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gju
沉积日期 deposition_date	2006-03-31
结构标题 title	Crystal structure of hypothetical protein PH1004 from Pyrococcus horikoshii OT3
关键词 keywords	;BETA BARREL, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.75 Å
回转半径 Rg (电子) rg_electron	42.61 Å
零角强度 I(0) i0	174824000.00
分子量 molecular_weight	115290.0 kDa
排除体积 excluded_volume	147240 Å³
包络体积 envelope_volume	200910 Å³
水化壳体积 shell_volume	40529 Å³
包络直径 envelope_diameter	142.5 Å
壳层 Rg shell_rg	46.02 Å
包络 Rg envelope_rg	41.45 Å
形状 Rg shape_rg	42.61 Å
总 Rg total_rg	42.78 Å
总原子数 total_atoms	8127
残基数 n_residues	1008
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	144.9 Å
Rg (实空间) rg_real	42.91 Å
Rg 误差 (实空间) rg_real_error	1.72 Å
I(0) (实空间) i0_real	1.7480e+08
I(0) 误差 (实空间) i0_real_error	3.1310e+06
Rg (倒空间) rg_reciprocal	42.75 Å
I(0) (倒空间) i0_reciprocal	174800000.0000
解质量估计 total_estimate	0.8410
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.3 Å
偏度 Skewness skewness	0.265
峰度 Kurtosis kurtosis	-0.740
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	20810000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.759; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.770; Smooth: 0.882

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	252aa long hypothetical protein
分子量 formula_weight	28678.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	9166

MVYVAVLANIAGNFPALTAALEKIEELKEEGYEIEKYYILGNIVGLFPYPREVIEAIKNLAKTSNVKVIRGKYDQLIAMSDPHAGDPKYIDKLEIPDHLKATLKYTWEKLGHEGREYLRDLPIYLVDKIGKNEIFGVYGSPVNPFDGEILPDQPTSYYEAIMRPVKEYEMLLVASPRYPLDAMTMYGRVVCPGSIGFPPAREHKATFALVDAETLKVKFIEVEYDKKIIEDRIKLEKLPEEVIKILYHGGKA

来源 Source

来源生物 organism	Pyrococcus horikoshii
NCBI 分类编号 ncbi_taxonomy_id	70601
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1039

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2gjua_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.159 — Metallo-dependent phosphatases
超家族 Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
家族 Family family	d.159.1.5 — Phosphoesterase-related

结构域编号 domain_id	d2gjub_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.159 — Metallo-dependent phosphatases
超家族 Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
家族 Family family	d.159.1.5 — Phosphoesterase-related

结构域编号 domain_id	d2gjuc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.159 — Metallo-dependent phosphatases
超家族 Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
家族 Family family	d.159.1.5 — Phosphoesterase-related

结构域编号 domain_id	d2gjud_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.159 — Metallo-dependent phosphatases
超家族 Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
家族 Family family	d.159.1.5 — Phosphoesterase-related

CATH v4.4 (4 domains)

结构域编号 domain_id	2gjuA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Metallo-dependent phosphatases

结构域编号 domain_id	2gjuB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Metallo-dependent phosphatases

结构域编号 domain_id	2gjuC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Metallo-dependent phosphatases

结构域编号 domain_id	2gjuD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Metallo-dependent phosphatases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	99.742 Å
晶胞边长 b length_b	129.571 Å
晶胞边长 c length_c	113.557 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.46 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	39.430 Å
R 因子 r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2140

fit	/app/data/saxs_computation/gj/2gju/2gju.fit
pddf	/app/data/pr_computation/gj/2gju/2gju.pr.out
profile	/app/data/saxs_computation/gj/2gju/2gju.dat

Crystal structure of hypothetical protein PH1004 from Pyrococcus horikoshii OT3

SAXS 散射曲线 SAXS Profile

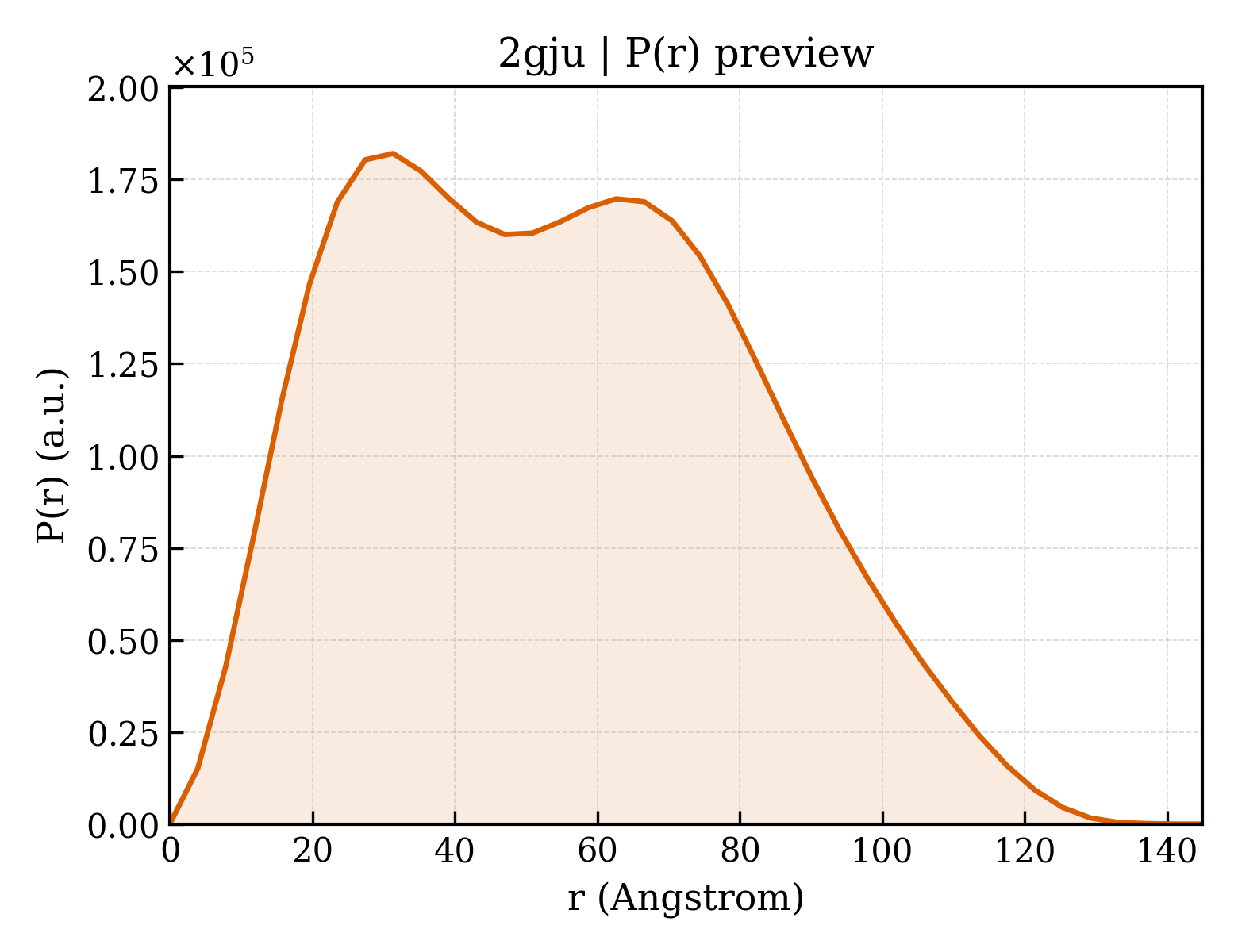

P(r) 距离分布 P(r) Distribution
