SAXSdb — 2hay

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative NAD(P)H-flavin oxidoreductase

Streptococcus pyogenes serotype M1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 3 FLAVIN MONONUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 FLAVIN MONONUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9A120_STRP1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–224； UniProt 1–221 Author chain B； PDBConstruct 4–224； UniProt 1–221 Author chain C； PDBConstruct 4–224； UniProt 1–221 Author chain D； PDBConstruct 4–224； UniProt 1–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hay
Deposition date deposition_date	2006-06-13
Structure title title	The Crystal Structure of the Putative NAD(P)H-Flavin Oxidoreductase from Streptococcus pyogenes M1 GAS
Keywords keywords	;alpha-beta structure, Structural Genomics, PSI-2, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hay__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hay__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

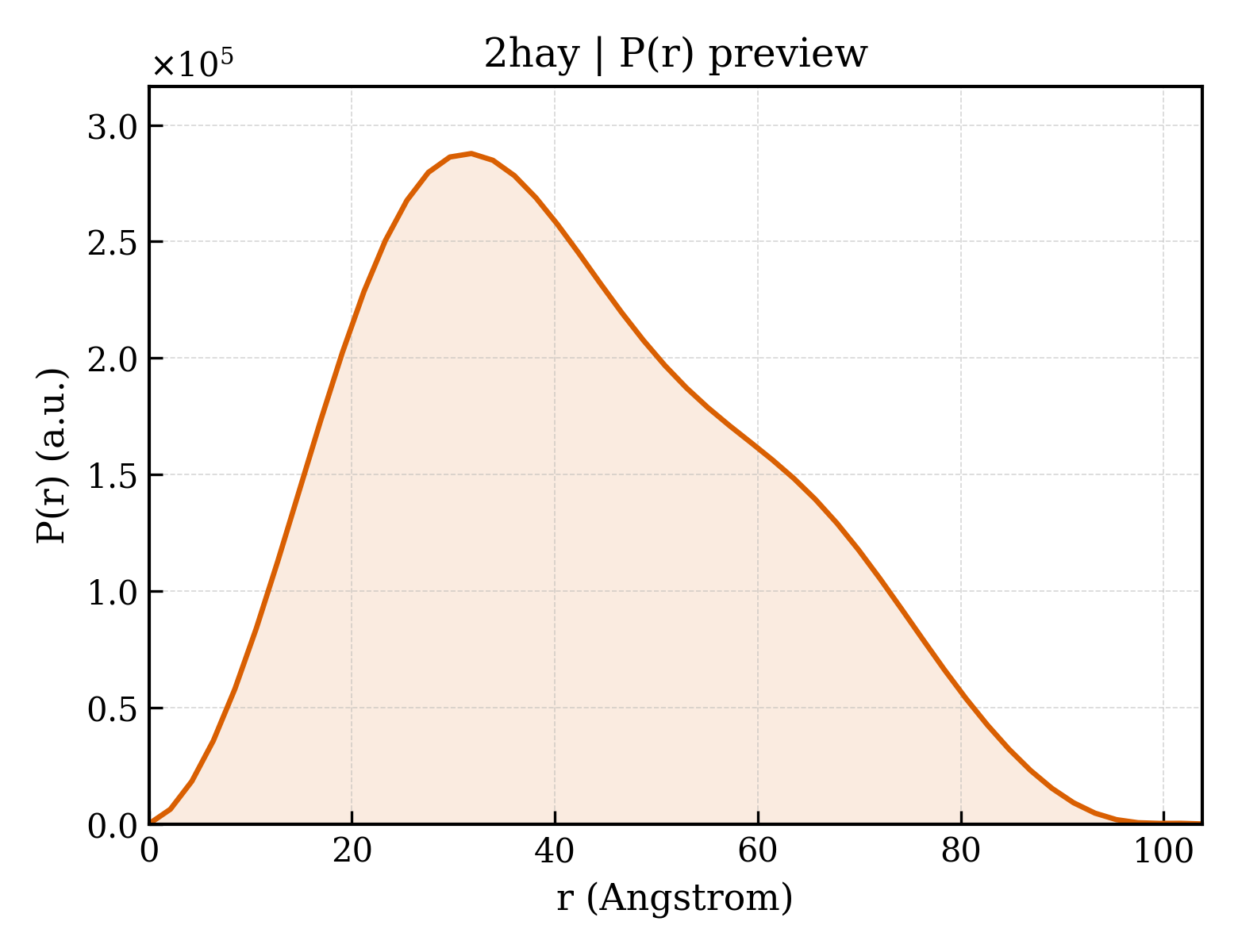

2hay__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.85 Å
Rg (electron density)	20.84 Å
Total Rg	21.61 Å
Atom count	3605
Residues	423
Excluded volume	64497 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hay__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2hay__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Putative NAD(P)H-flavin oxidoreductase
Molecular weight formula_weight	25986.6 kDa
EC 编号 ec_number	1.-.-.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8080

SNAMDQTIHHQIQQALHFRTAVRVYKEEKISDEDLALILDAAWLSPSSIGLEGWRFVVLDNKPIKEEIKPFAWGAQYQLETASHFILLIAEKHARYDSPAIKNSLLRRGIKEGDGLNSRLKLYESFQKEDMDMADNPRALFDWTAKQTYIALGNMMMTAALLGIDTCPIEGFHYDKVNHILAKHNVIDLEKEGIASMLSLGYRLRDPKHAQVRKPKEEVMSVVK

Source Source

Source organism organism	Streptococcus pyogenes serotype M1
NCBI taxonomy ID ncbi_taxonomy_id	301447
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	609

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d2haya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.0 — automated matches

Domain ID domain_id	d2hayb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.0 — automated matches

Domain ID domain_id	d2hayc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.0 — automated matches

Domain ID domain_id	d2hayd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.0 — automated matches

Domain ID domain_id	d2hayd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2hayA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

Domain ID domain_id	2hayB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

Domain ID domain_id	2hayC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

Domain ID domain_id	2hayD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

▶

Unit-cell length a length_a	60.205 Å
Unit-cell length b length_b	91.874 Å
Unit-cell length c length_c	175.693 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.110 Å
Low-resolution limit resolution_low	40.710 Å
R factor r_factor	0.1803
R_work r_work	0.1746
R_free r_free	0.2325

The Crystal Structure of the Putative NAD(P)H-Flavin Oxidoreductase from Streptococcus pyogenes M1 GAS
