2i37

Crystal structure of a photoactivated rhodopsin

Method: X-RAY DIFFRACTION D_max: 155.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

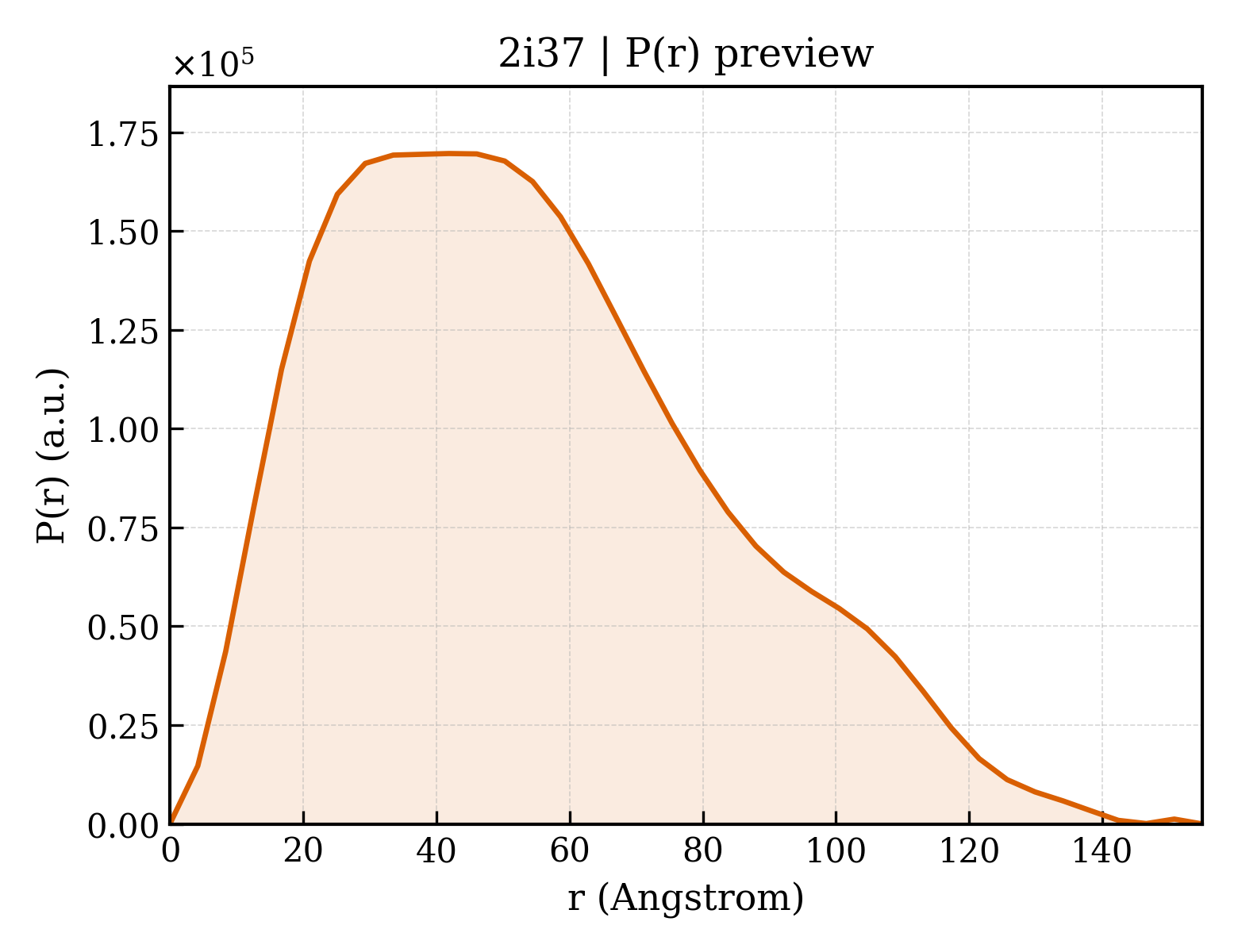

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2i37
沉积日期 deposition_date	2006-08-17
结构标题 title	Crystal structure of a photoactivated rhodopsin
关键词 keywords	trans-membrane protein, GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.59 Å
回转半径 Rg (电子) rg_electron	42.95 Å
零角强度 I(0) i0	156963000.00
分子量 molecular_weight	111080.0 kDa
排除体积 excluded_volume	142440 Å³
包络体积 envelope_volume	199840 Å³
水化壳体积 shell_volume	41801 Å³
包络直径 envelope_diameter	162.4 Å
壳层 Rg shell_rg	43.39 Å
包络 Rg envelope_rg	43.71 Å
形状 Rg shape_rg	42.86 Å
总 Rg total_rg	43.32 Å
总原子数 total_atoms	7814
残基数 n_residues	954
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	155.0 Å
Rg (实空间) rg_real	43.05 Å
Rg 误差 (实空间) rg_real_error	1.99 Å
I(0) (实空间) i0_real	1.5700e+08
I(0) 误差 (实空间) i0_real_error	3.2640e+06
Rg (倒空间) rg_reciprocal	42.60 Å
I(0) (倒空间) i0_reciprocal	156900000.0000
解质量估计 total_estimate	0.7940
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	41.9 Å
偏度 Skewness skewness	0.547
峰度 Kurtosis kurtosis	-0.318
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13310000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.635; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.597; Smooth: 0.816

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Rhodopsin
分子量 formula_weight	39057.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	7814

XMNGTEGPNFYVPFSNKTGVVRSPFEAPQYYLAEPWQFSMLAAYMFLLIMLGFPINFLTLYVTVQHKKLRTPLNYILLNLAVADLFMVFGGFTTTLYTSLHGYFVFGPTGCNLEGFFATLGGEIALWSLVVLAIERYVVVCKPMSNFRFGENHAIMGVAFTWVMALACAAPPLVGWSRYIPEGMQCSCGIDYYTPHEETNNESFVIYMFVVHFIIPLIVIFFCYGQLVFTVKEAAAQQQESATTQKAEKEVTRMVIIMVIAFLICWLPYAGVAFYIFTHQGSDFGPIFMTIPAFFAKTSAVYNPVIYIMMNKQFRNCMVTTLCCGKNPLGDDEASTTVSKTETSQVAPA

Entity 2 branched

描述 description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 4 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	951.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	161.245 Å
晶胞边长 b length_b	161.245 Å
晶胞边长 c length_c	143.442 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 31 1 2
空间群编号 int_tables_number	151
晶系 crystal_system	—

分辨率 resolution	4.150 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.3780
R_work r_work	0.3770
R_free r_free	0.3820
