SAXSdb — 2ipi

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ipi
沉积日期 deposition_date	2006-10-12
结构标题 title	Crystal Structure of Aclacinomycin Oxidoreductase
关键词 keywords	anthracycline, aclacinomycin, oxidoreductase, flavoenzyme, twinning, MAD; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.89 Å
回转半径 Rg (电子) rg_electron	49.91 Å
零角强度 I(0) i0	727263000.00
分子量 molecular_weight	219960.0 kDa
排除体积 excluded_volume	272720 Å³
包络体积 envelope_volume	367840 Å³
水化壳体积 shell_volume	60408 Å³
包络直径 envelope_diameter	155.0 Å
壳层 Rg shell_rg	55.65 Å
包络 Rg envelope_rg	48.11 Å
形状 Rg shape_rg	49.89 Å
总 Rg total_rg	50.17 Å
总原子数 total_atoms	15562
残基数 n_residues	1968
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	143.0 Å
Rg (实空间) rg_real	50.10 Å
Rg 误差 (实空间) rg_real_error	1.07 Å
I(0) (实空间) i0_real	7.2730e+08
I(0) 误差 (实空间) i0_real_error	1.2010e+07
Rg (倒空间) rg_reciprocal	49.90 Å
I(0) (倒空间) i0_reciprocal	727100000.0000
解质量估计 total_estimate	0.8118
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.2 Å
偏度 Skewness skewness	0.216
峰度 Kurtosis kurtosis	-0.995
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	69600000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.861; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Aclacinomycin oxidoreductase (AknOx)
分子量 formula_weight	57221.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	16589

MAHHHHHHHRSAAGTIWEFDGGACGARTALVKVDRVDRRYQDLVTRGFNGRFRGRPDVVYVVHTADQVVDAVNQAMAAGQRIAVRSGGHCFEGFVDDPAVRAVIDMSQMRQVFYDSGKRAFAVEPGATLGETYRALYLDWGVTIPAGVCPQVGVGGHVLGGGYGPLSRRDGVVADHLYAVEVVVVDASGRARKVVATSAADDPNRELWWAHTGGGGGNFGIVTRYWFRTPGATGTDPSQLLPKAPTSTLRHIVTWDWSALTEEAFTRIIDNHGAWHQSNSAAGTPYASMHSVFYLNSRAAGQILLDIQIDGGLDGAEALLNDFVAAVNEGTGVEPAVQRSTEPWLRATLANKFDTGGFDRTKSKGAYLRKPWTAAQAATLYRHLSADSQVWGEVSLYSYGGKVNSVPETATATAQRDSIIKVWMSATWMDPAHDDANLAWIREIYREIFATTGGVPVPDDRTEGTFINYPDVDLVDERWNTSGVPWYTLYYKGNYPRLQKVKARWDPRDVFRHALSVRPPG

来源 Source

来源生物 organism	Streptomyces galilaeus
NCBI 分类编号 ncbi_taxonomy_id	33899
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;METHYL (2S,4R)-2-ETHYL-2,5,7-TRIHYDROXY-6,11-DIOXO-4-{[2,3,6-TRIDEOXY-4-O-{2,6-DIDEOXY-4-O-[(2S,6S)-6-METHYL-5-OXOTETRAHYDRO-2H -PYRAN-2-YL]-ALPHA-D-LYXO-HEXOPYRANOSYL}-3-(DIMETHYLAMINO)-D-RIBO-HEXOPYRANOSYL]OXY}-1,2,3,4,6,11-HEXAHYDROTETRACENE-1-C ARBOXYLATE ;
分子量 formula_weight	811.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1009

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2ipiA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ipiA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2ipiB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ipiB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2ipiC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ipiC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2ipiD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ipiD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.500 Å
晶胞边长 b length_b	266.200 Å
晶胞边长 c length_c	68.700 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	119.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.650 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1850
R_work r_work	—
R_free r_free	0.2420

fit	/app/data/saxs_computation/ip/2ipi/2ipi.fit
pddf	/app/data/pr_computation/ip/2ipi/2ipi.pr.out
profile	/app/data/saxs_computation/ip/2ipi/2ipi.dat

Crystal Structure of Aclacinomycin Oxidoreductase

SAXS 散射曲线 SAXS Profile

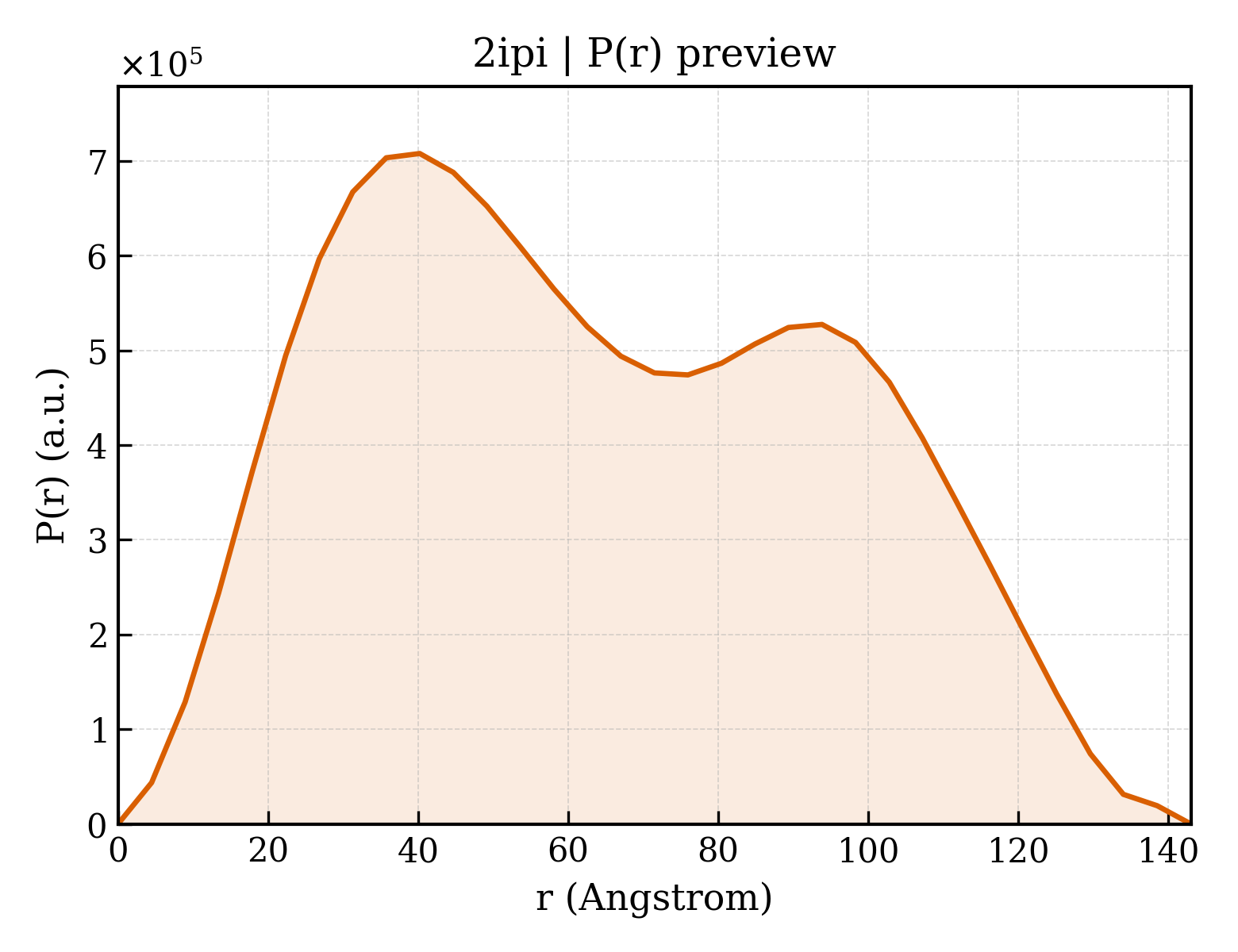

P(r) 距离分布 P(r) Distribution
