SAXSdb — 2iw5

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2iw5
沉积日期 deposition_date	2006-06-26
结构标题 title	Structural Basis for CoREST-Dependent Demethylation of Nucleosomes by the Human LSD1 Histone Demethylase
关键词 keywords	;OXIDOREDUCTASE-TRANSCRIPTION REGULATOR COMPLEX, OXIDOREDUCTASE-REPRESSOR COMPLEX, HISTONE DEMETHYLASE, FAD, LSD1, COREST, REPRESSOR, TRANSCRIPTION REGULATION, HOST-VIRUS INTERACTION, CHROMATIN DEMETHYLATION, NUCLEAR PROTEIN, PHOSPHORYLATION, CHROMATIN REGULATOR, NUCLEOSOMES, TRANSCRIPTION, OXIDOREDUCTASE ;; OXIDOREDUCTASE/TRANSCRIPTION REGULATOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.20 Å
回转半径 Rg (电子) rg_electron	44.58 Å
零角强度 I(0) i0	123845000.00
分子量 molecular_weight	90398.0 kDa
排除体积 excluded_volume	113500 Å³
包络体积 envelope_volume	166110 Å³
水化壳体积 shell_volume	35968 Å³
包络直径 envelope_diameter	158.0 Å
壳层 Rg shell_rg	40.92 Å
包络 Rg envelope_rg	46.07 Å
形状 Rg shape_rg	44.59 Å
总 Rg total_rg	44.34 Å
总原子数 total_atoms	6362
残基数 n_residues	799
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	143.7 Å
Rg (实空间) rg_real	44.24 Å
Rg 误差 (实空间) rg_real_error	1.88 Å
I(0) (实空间) i0_real	1.2380e+08
I(0) 误差 (实空间) i0_real_error	2.2450e+06
Rg (倒空间) rg_reciprocal	43.21 Å
I(0) (倒空间) i0_reciprocal	123700000.0000
解质量估计 total_estimate	0.6318
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.1 Å
偏度 Skewness skewness	0.731
峰度 Kurtosis kurtosis	-0.483
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9298000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.319; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.248; Smooth: 0.003

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	LYSINE-SPECIFIC HISTONE DEMETHYLASE 1
分子量 formula_weight	74126.8 kDa
EC 编号 ec_number	1.-.-.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6440

PSGVEGAAFQSRLPHDRMTSQEAACFPDIISGPQQTQKVFLFIRNRTLQLWLDNPKIQLTFEATLQQLEAPYNSDTVLVHRVHSYLERHGLINFGIYKRIKPLPTKKTGKVIIIGSGVSGLAAARQLQSFGMDVTLLEARDRVGGRVATFRKGNYVADLGAMVVTGLGGNPMAVVSKQVNMELAKIKQKCPLYEANGQAVPKEKDEMVEQEFNRLLEATSYLSHQLDFNVLNNKPVSLGQALEVVIQLQEKHVKDEQIEHWKKIVKTQEELKELLNKMVNLKEKIKELHQQYKEASEVKPPRDITAEFLVKSKHRDLTALCKEYDELAETQGKLEEKLQELEANPPSDVYLSSRDRQILDWHFANLEFANATPLSTLSLKHWDQDDDFEFTGSHLTVRNGYSCVPVALAEGLDIKLNTAVRQVRYTASGCEVIAVNTRSTSQTFIYKCDAVLCTLPLGVLKQQPPAVQFVPPLPEWKTSAVQRMGFGNLNKVVLCFDRVFWDPSVNLFGHVGSTTASRGELFLFWNLYKAPILLALVAGEAAGIMENISDDVIVGRCLAILKGIFGSSAVPQPKETVVSRWRADPWARGSYSYVAAGSSGNDYDLMAQPITPGPSIPGAPQPIPRLFFAGEHTIRNYPATVHGALLSGLREAGRIADQFLGAMYTL

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	REST COREPRESSOR 1
分子量 formula_weight	26425.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRGSEFGRPTETVPQVKKEKHSTQAKNRAKRKPPKGMFLSQEDVEAVSANATAATTVLRQLDMELVSVKRQIQNIKQTNSALKEKLDGGIEPYRLPEVIQKCNARWTTEEQLLAVQAIRKYGRDFQAISDVIGNKSVVQVKNFFVNYRRRFNIDEVLQEWEAEHGKEETNGPSNQKPVKSPDNSIKMPEEEDEAPVLDVRYASAS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	AMMONIUM ION
分子量 formula_weight	18.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	78

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d2iw5a1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.18 — SWIRM domain

结构域编号 domain_id	d2iw5a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2iw5a3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

结构域编号 domain_id	d2iw5b1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.1 — Homeodomain-like
家族 Family family	a.4.1.3 — Myb/SANT domain

结构域编号 domain_id	d2iw5b2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.35 — Demethylase interaction domain of CoREST
家族 Family family	h.1.35.1 — Demethylase interaction domain of CoREST

CATH v4.4 (3 domains)

结构域编号 domain_id	2iw5A01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	2iw5A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	80 — ATP synthase, gamma subunit, helix hairpin domain

结构域编号 domain_id	2iw5B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	1880 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	120.354 Å
晶胞边长 b length_b	178.222 Å
晶胞边长 c length_c	234.932 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	2.570 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2040
R_work r_work	0.2030
R_free r_free	0.2120

fit	/app/data/saxs_computation/iw/2iw5/2iw5.fit
pddf	/app/data/pr_computation/iw/2iw5/2iw5.pr.out
profile	/app/data/saxs_computation/iw/2iw5/2iw5.dat

Structural Basis for CoREST-Dependent Demethylation of Nucleosomes by the Human LSD1 Histone Demethylase

SAXS 散射曲线 SAXS Profile

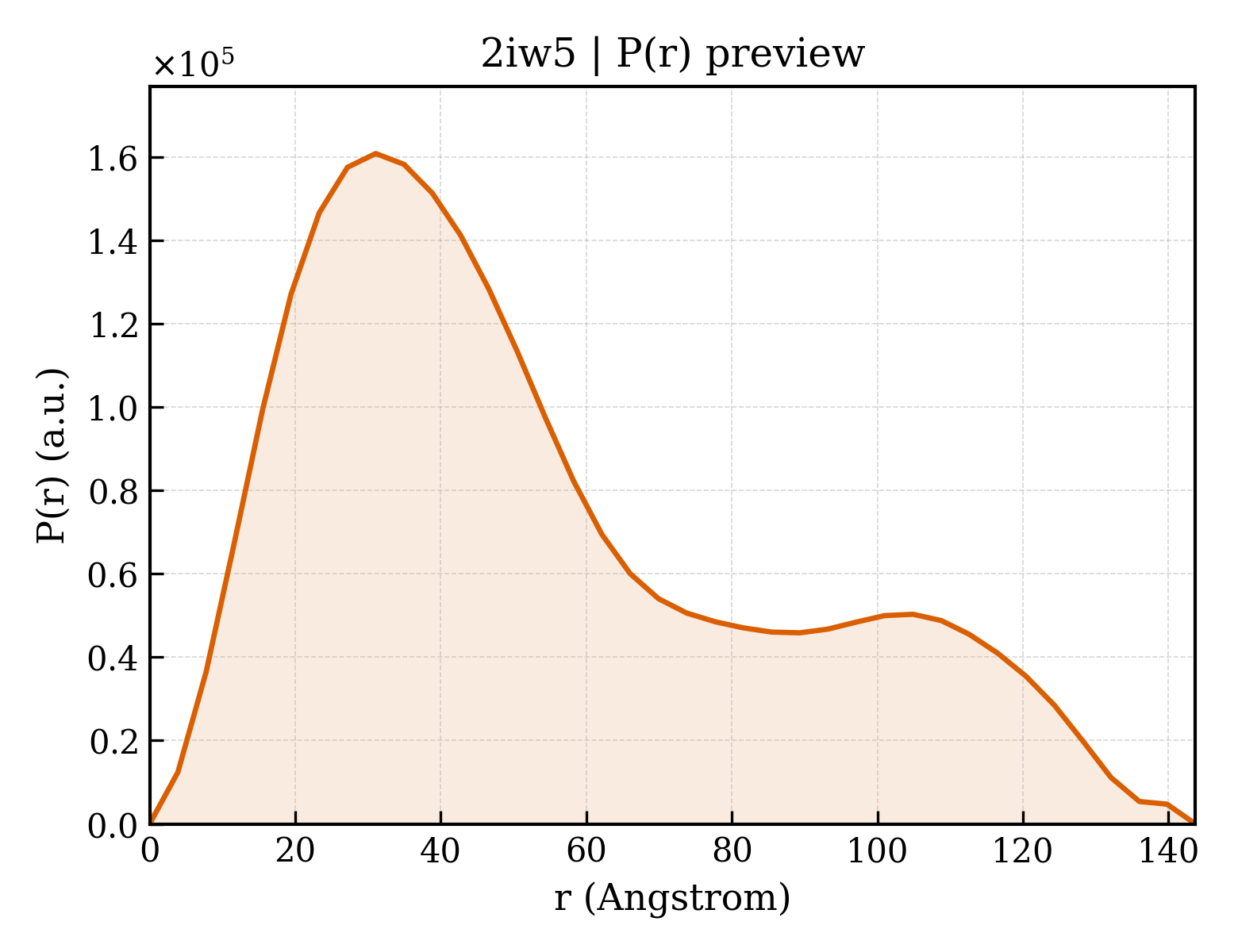

P(r) 距离分布 P(r) Distribution
