8dok

Cryo-EM structure of T/F100 SOSIP.664 HIV-1 Env trimer in complex with 8ANC195 and 10-1074

Method: ELECTRON MICROSCOPY D_max: 178.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

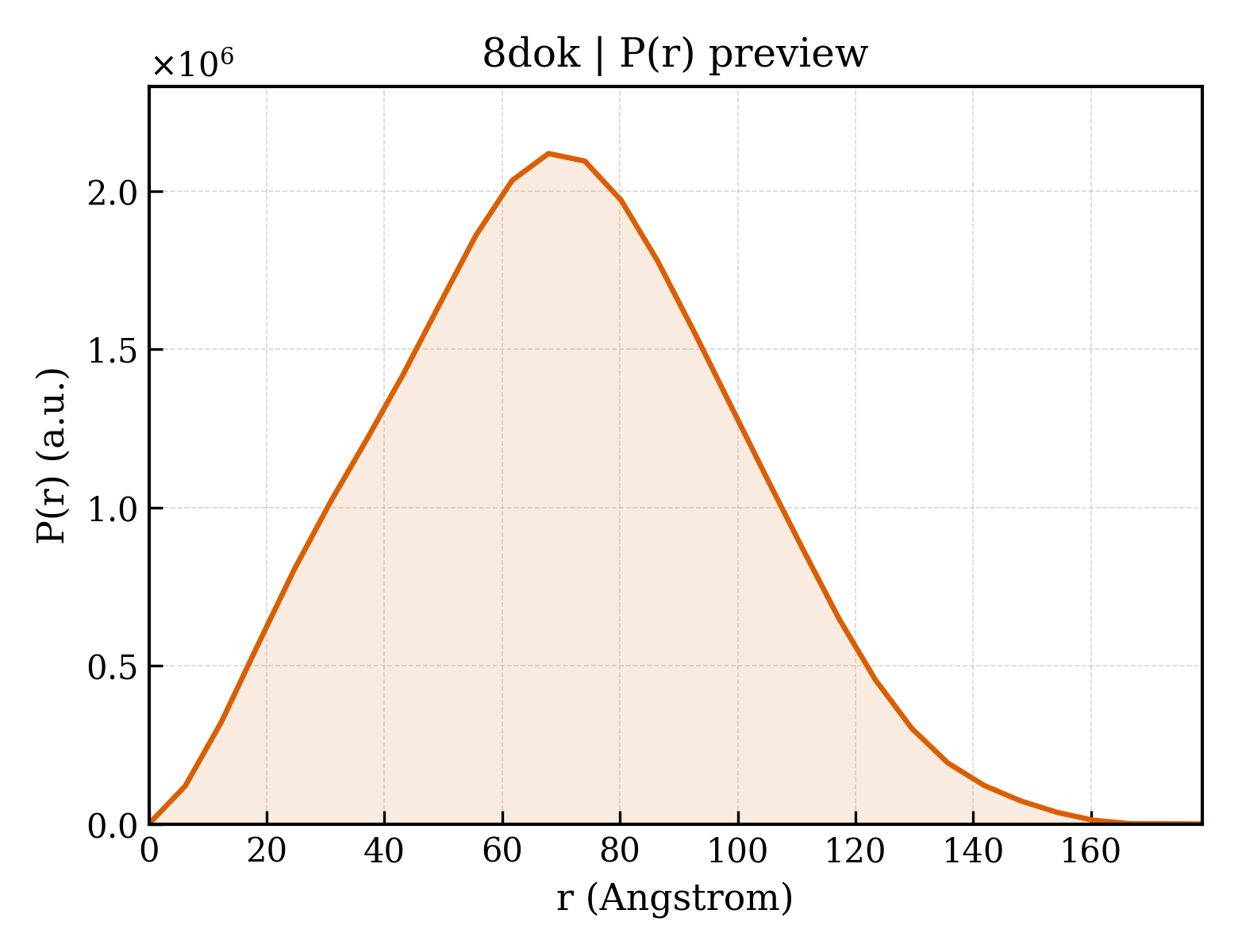

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8dok
沉积日期 deposition_date	2022-07-13
结构标题 title	Cryo-EM structure of T/F100 SOSIP.664 HIV-1 Env trimer in complex with 8ANC195 and 10-1074
关键词 keywords	T/F100 SOSIP, Clade A/E HIV-1, 8ANC195, 10-1074, bnAbs, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.17 Å
回转半径 Rg (电子) rg_electron	53.69 Å
零角强度 I(0) i0	1989290000.00
分子量 molecular_weight	367960.0 kDa
排除体积 excluded_volume	458420 Å³
包络体积 envelope_volume	678430 Å³
水化壳体积 shell_volume	105010 Å³
包络直径 envelope_diameter	175.0 Å
壳层 Rg shell_rg	57.04 Å
包络 Rg envelope_rg	52.84 Å
形状 Rg shape_rg	53.71 Å
总 Rg total_rg	53.74 Å
总原子数 total_atoms	25844
残基数 n_residues	2950
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	178.9 Å
Rg (实空间) rg_real	53.96 Å
Rg 误差 (实空间) rg_real_error	1.52 Å
I(0) (实空间) i0_real	1.9890e+09
I(0) 误差 (实空间) i0_real_error	3.9970e+07
Rg (倒空间) rg_reciprocal	54.32 Å
I(0) (倒空间) i0_reciprocal	1990000000.0000
解质量估计 total_estimate	0.8738
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.9 Å
偏度 Skewness skewness	0.151
峰度 Kurtosis kurtosis	-0.398
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	79890000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.846; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.846

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (14)

Entity 1 polymer

描述 description	CRF-1_AE T/F100 Env gp120
分子量 formula_weight	54739.1 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E,I
原子数 atom_count	25844

ATNNLWVTVYYGVPVWRDADTTLFCASDAKAHETEVHNVWATHACVPTDPNPQEMHLKNVTENFNMWKNNMVEQMQEDVISLWDQSLKPCVKLTPLCVTLNCTSATVTNYTKVNDTSDIIGNITDDVRNCSFNMTTELRDKQQKVYALFYKLDIVPIDDSSNNGSSNFSEYRLINCNTSVIKQACPKVSFDPIPIHYCTPAGYAILRCNDKKFNGTGPCKNVSSVQCTHGIKPVVSTQLLLNGSLAEEGIIIRSENLTNNAKTIIVHFNESVKINCTRPSNNTRTGIHIGPGQVFYKTGDIIGDIRKAYCNISGAQWHKVLGRVANKLKEHFNNKTIVFKPSSGGDPEITMHHFNCRGEFFYCNTTKLFNSTWGGNKNETRDNGTITIPCRIKQIINMWQGVGQAMYAPPIKGVIKCLSNITGILLTRDGGNDSTENNETFRPGGGNIKDNWRNELYKYKVVQIEPLGIAPTKCKRRVVERRRRRR

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI 分类编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	CRF-1_AE T/F100 HIV-1 gp41
分子量 formula_weight	17389.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,J

AVGLGAMIFGFLGAAGSTMGAASITLTVQARQLLSGIVQQQSNLLRAPEAQQHLLQLTVWGIKQLQARVLAVERYLQDQKFLGLWGCSGKIICCTAVPWNSSWSNKTFEEIWNNMTWIEWEREISNYTSQIYDILTISQTQQEKNEKDLLELDAA

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI 分类编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Heavy chain of 8ANC195
分子量 formula_weight	25324.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G,K

QIHLVQSGTEVKKPGSSVTVSCKAYGVNTFGLYAVNWVRQAPGQSLEYIGQIWRWKSSASHHFRGRVLISAVDLTGSSPPISSLEIKNLTSDDTAVYFCTTTSTYDRWSGLHHDGVMAFSSWGQGTLISVSAASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	Light chain of 8ANC195
分子量 formula_weight	23460.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H,L

DIQMTQSPSTLSASTGDTVRISCRASQSITGNWVAWYQQRPGKAPRLLIYRGAALLGGVPSRFRGSAAGTDFTLTIGNLQAEDFGTFYCQQYDTYPGTFGQGTKVEVKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	Heavy chain of 10-1074
分子量 formula_weight	25661.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,O,Q

QVQLQESGPGLVKPSETLSVTCSVSGDSMNNYYWTWIRQSPGKGLEWIGYISDRESATYNPSLNSRVVISRDTSKNQLSLKLNSVTPADTAVYYCATARRGQRIYGVVSFGEFFYYYSMDVWGKGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 polymer

描述 description	Light chain of 10-1074
分子量 formula_weight	23180.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,P,R

SYVRPLSVALGETARISCGRQALGSRAVQWYQHRPGQAPILLIYNNQDRPSGIPERFSGTPDINFGTRATLTISGVEAGDEADYYCHMWDSRSGFSWSFGGATRLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1559.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 8 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	7

Entity 9 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	830.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 10 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 11 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1721.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 12 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 13 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 14 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	42

▼

6. 折叠分类 (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

结构域编号 domain_id	8dokC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokK01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokM01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokO01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokQ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dokR01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	476274

fit	/app/data/saxs_computation/do/8dok/8dok.fit
pddf	/app/data/pr_computation/do/8dok/8dok.pr.out
profile	/app/data/saxs_computation/do/8dok/8dok.dat
