8drw

Product structure of SARS-CoV-2 Mpro C145A mutant in complex with nsp9-nsp10 (C9) cut site sequence

Method: X-RAY DIFFRACTION D_max: 203.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

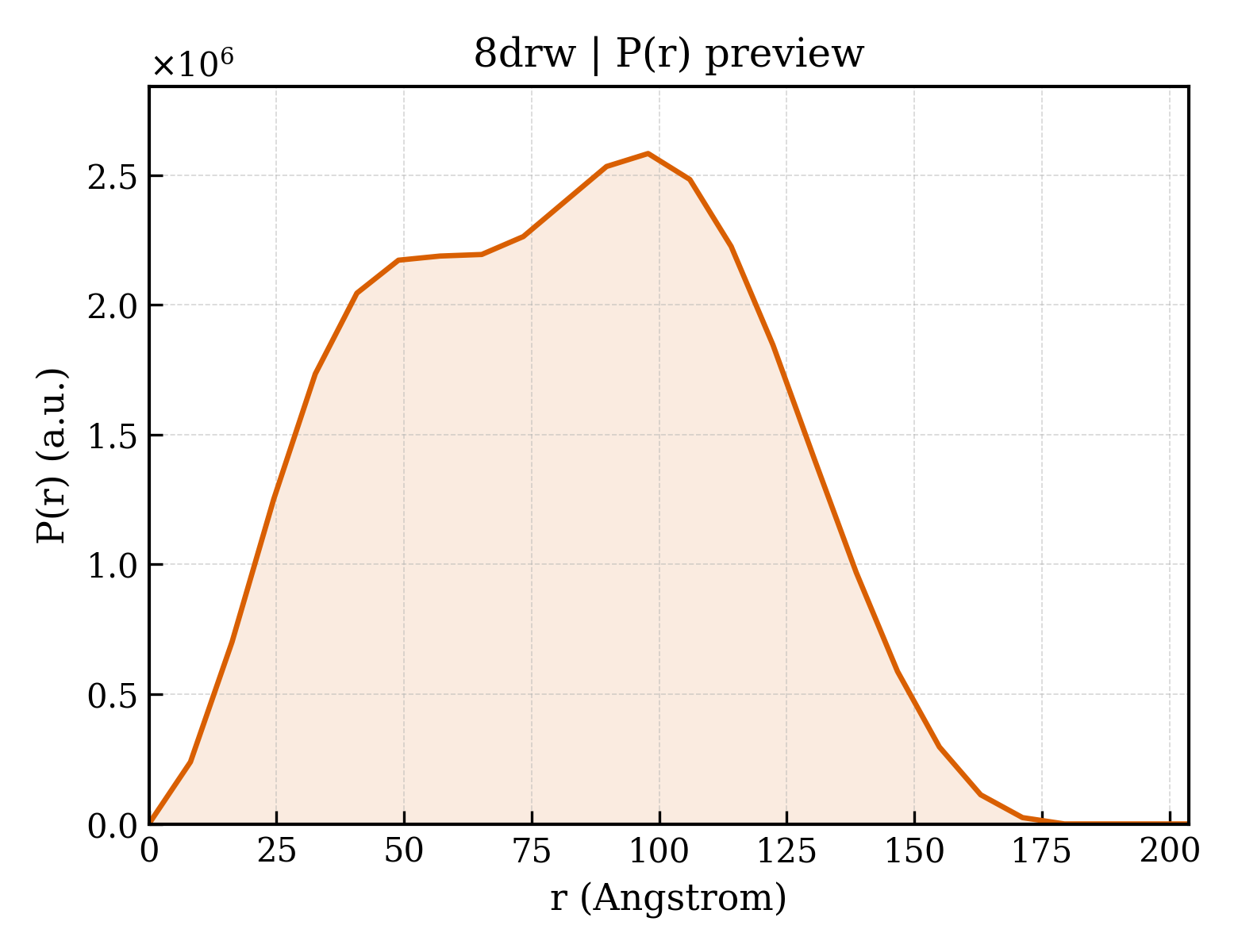

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8drw
沉积日期 deposition_date	2022-07-21
结构标题 title	Product structure of SARS-CoV-2 Mpro C145A mutant in complex with nsp9-nsp10 (C9) cut site sequence
关键词 keywords	Viral protease, SARS-CoV-2, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.71 Å
回转半径 Rg (电子) rg_electron	61.98 Å
零角强度 I(0) i0	3303950000.00
分子量 molecular_weight	478050.0 kDa
排除体积 excluded_volume	594500 Å³
包络体积 envelope_volume	868060 Å³
水化壳体积 shell_volume	114230 Å³
包络直径 envelope_diameter	187.0 Å
壳层 Rg shell_rg	68.25 Å
包络 Rg envelope_rg	58.66 Å
形状 Rg shape_rg	61.93 Å
总 Rg total_rg	62.25 Å
总原子数 total_atoms	33439
残基数 n_residues	4276
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	203.8 Å
Rg (实空间) rg_real	62.45 Å
Rg 误差 (实空间) rg_real_error	1.84 Å
I(0) (实空间) i0_real	3.3040e+09
I(0) 误差 (实空间) i0_real_error	7.0500e+07
Rg (倒空间) rg_reciprocal	62.87 Å
I(0) (倒空间) i0_reciprocal	3306000000.0000
解质量估计 total_estimate	0.8791
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	97.8 Å
偏度 Skewness skewness	0.020
峰度 Kurtosis kurtosis	-0.844
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	405400000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.859; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.851

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Fusion protein of 3C-like proteinase nsp5 and nsp9-nsp10 (C9) cut site
分子量 formula_weight	33843.6 kDa
EC 编号 ec_number	3.4.22.69
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
原子数 atom_count	33657

SGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSAGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCATVRLQ

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
通用名 common_name	SARS-CoV-2, 2019-nCoV
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 non-polymer

描述 description	PENTAETHYLENE GLYCOL
分子量 formula_weight	238.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	22

Entity 4 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	33

Entity 5 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	27

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	210

▼

6. 折叠分类 (SCOP + CATH) 22 domains

CATH v4.4 (22 domains)

结构域编号 domain_id	8drwA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwG02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwH01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwI01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwI02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwJ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwJ02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwK01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8drwK02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwL01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwM01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8drwN01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	275.644 Å
晶胞边长 b length_b	217.218 Å
晶胞边长 c length_c	104.635 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.98 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	56

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.670 Å
最低分辨率 resolution_low	67.100 Å
R 因子 r_factor	0.2052
R_work r_work	0.2046
R_free r_free	0.2392
