8dry

Product structure of SARS-CoV-2 Mpro C145A mutant in complex with nsp12-nsp13 (C12) cut site sequence

Method: X-RAY DIFFRACTION D_max: 233.1 Å Quality: REASONABLE

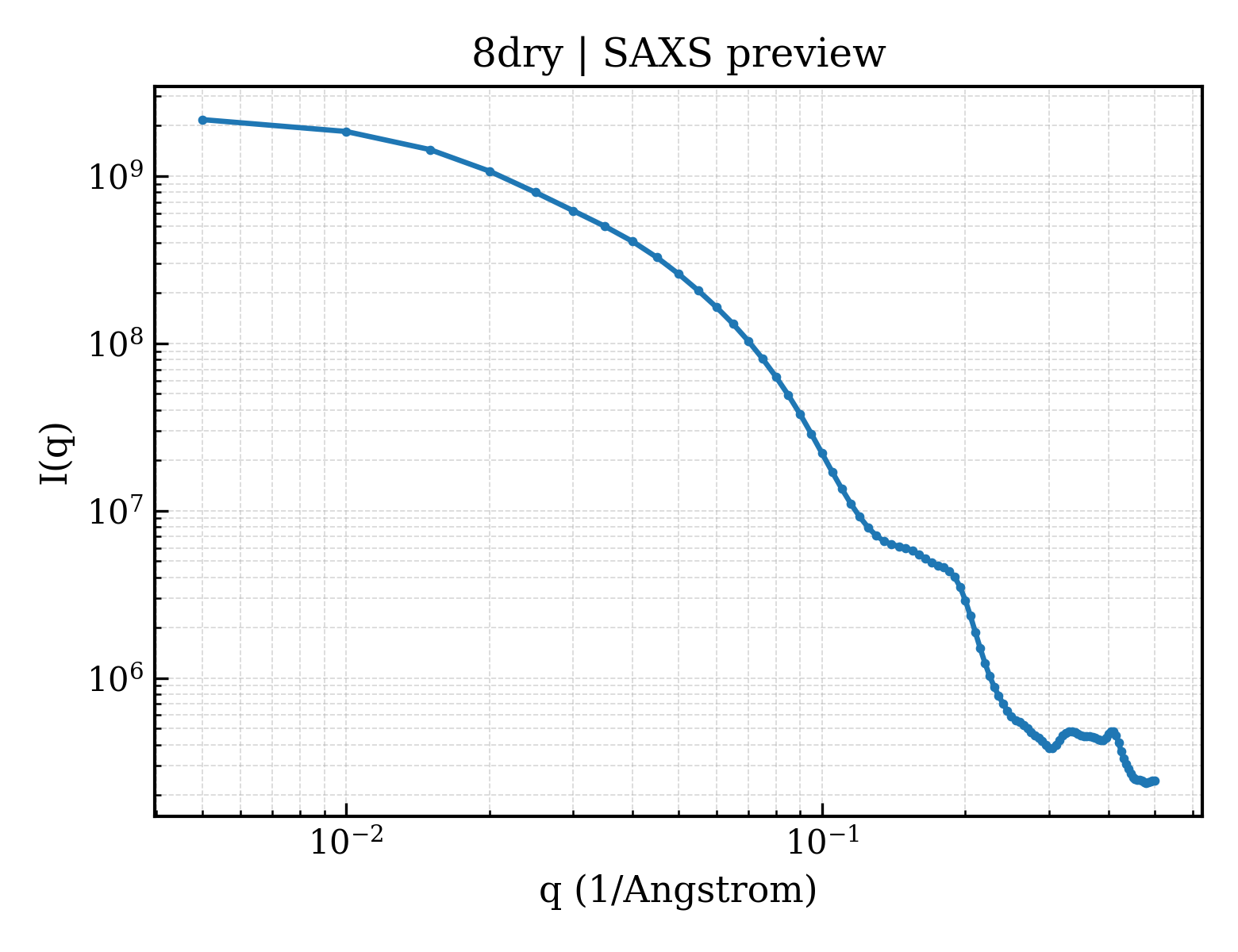

SAXS 散射曲线 SAXS Profile

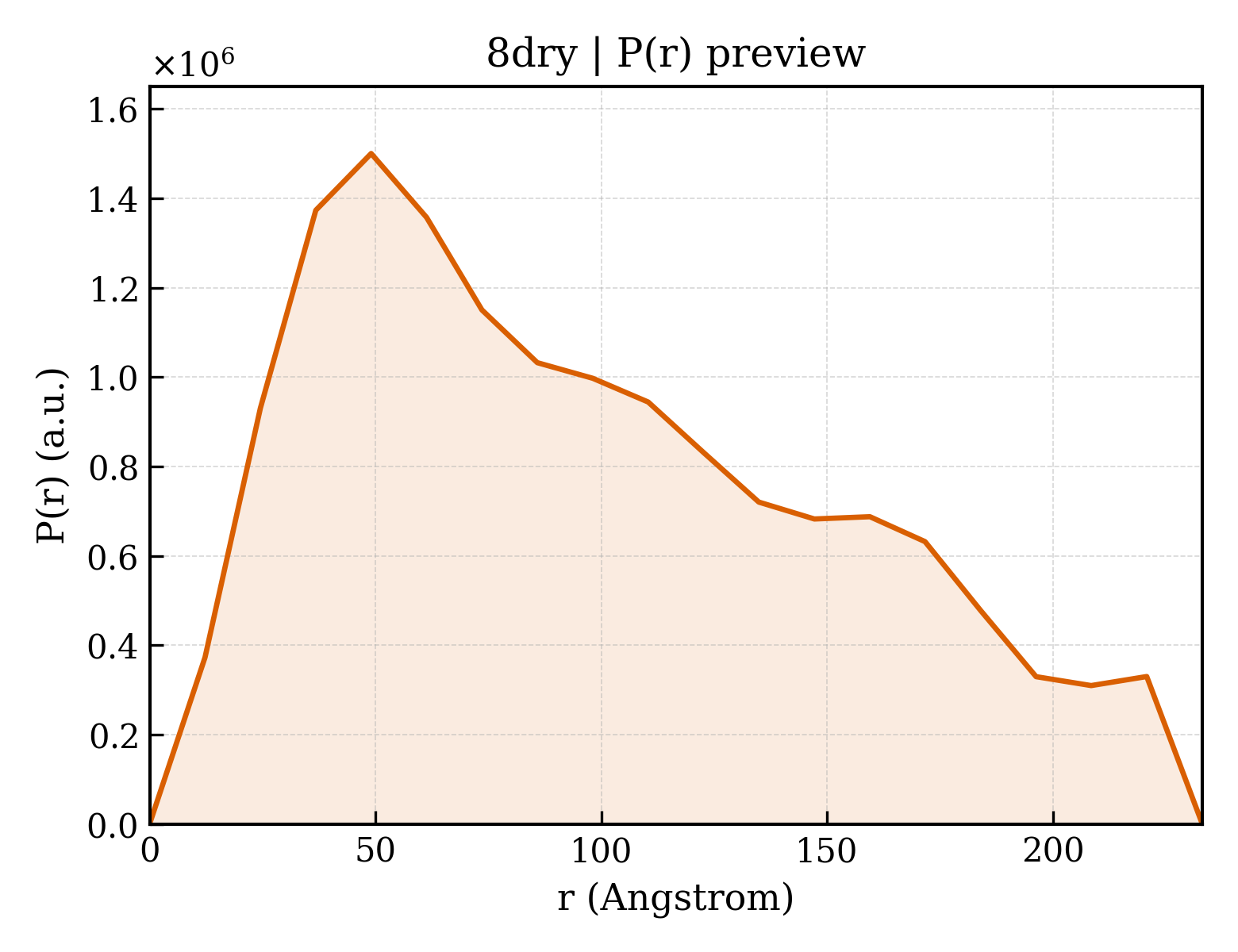

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8dry
沉积日期 deposition_date	2022-07-21
结构标题 title	Product structure of SARS-CoV-2 Mpro C145A mutant in complex with nsp12-nsp13 (C12) cut site sequence
关键词 keywords	Viral protease, SARS-CoV-2, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	81.06 Å
回转半径 Rg (电子) rg_electron	82.79 Å
零角强度 I(0) i0	2300380000.00
分子量 molecular_weight	401150.0 kDa
排除体积 excluded_volume	499900 Å³
包络体积 envelope_volume	764210 Å³
水化壳体积 shell_volume	87594 Å³
包络直径 envelope_diameter	306.3 Å
壳层 Rg shell_rg	61.48 Å
包络 Rg envelope_rg	81.43 Å
形状 Rg shape_rg	82.77 Å
总 Rg total_rg	82.49 Å
总原子数 total_atoms	28128
残基数 n_residues	3644
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	233.1 Å
Rg (实空间) rg_real	78.59 Å
Rg 误差 (实空间) rg_real_error	1.48 Å
I(0) (实空间) i0_real	2.2590e+09
I(0) 误差 (实空间) i0_real_error	4.8060e+07
Rg (倒空间) rg_reciprocal	75.78 Å
I(0) (倒空间) i0_reciprocal	2268000000.0000
解质量估计 total_estimate	0.7417
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	49.1 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.753
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.0474
最高正则化参数 α highest_alpha	51720000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.586; Stabil: 0.971; Sysdev: 1.000; Positv: 1.000; Valcen: 0.657; Smooth: 0.070

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Fusion protein of 3C-like proteinase nsp5 and nsp12-nsp13 (C12) cut site
分子量 formula_weight	33850.6 kDa
EC 编号 ec_number	3.4.22.69,2.7.7.48
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	28308

SGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSAGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCPHTVLQ

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
通用名 common_name	SARS-CoV-2, 2019-nCoV
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	159

▼

6. 折叠分类 (SCOP + CATH) 21 domains

CATH v4.4 (21 domains)

结构域编号 domain_id	8dryA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryG02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryH02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryI01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryJ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryJ02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryK01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryK02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

结构域编号 domain_id	8dryL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	8dryL02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1840 — main proteinase (3clpro) structure, domain 3
同源超家族 H-superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	67.329 Å
晶胞边长 b length_b	107.923 Å
晶胞边长 c length_c	277.248 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.73 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.490 Å
最低分辨率 resolution_low	65.230 Å
R 因子 r_factor	0.1956
R_work r_work	0.1942
R_free r_free	0.2641
