8dto

Vaccine elicited Antibody MU89 bound to CH848.D949.10.17_N133D_N138T.DS.SOSIP.664 HIV-1 Env trimer

Method: ELECTRON MICROSCOPY D_max: 151.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8dto
沉积日期 deposition_date	2022-07-26
结构标题 title	Vaccine elicited Antibody MU89 bound to CH848.D949.10.17_N133D_N138T.DS.SOSIP.664 HIV-1 Env trimer
关键词 keywords	HIV-1 envelope, vaccine-induced antibody, broadly neutralizing antibody, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.97 Å
回转半径 Rg (电子) rg_electron	49.47 Å
零角强度 I(0) i0	1364240000.00
分子量 molecular_weight	298970.0 kDa
排除体积 excluded_volume	370630 Å³
包络体积 envelope_volume	541790 Å³
水化壳体积 shell_volume	90418 Å³
包络直径 envelope_diameter	156.9 Å
壳层 Rg shell_rg	54.29 Å
包络 Rg envelope_rg	48.28 Å
形状 Rg shape_rg	49.50 Å
总 Rg total_rg	49.55 Å
总原子数 total_atoms	20923
残基数 n_residues	2442
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

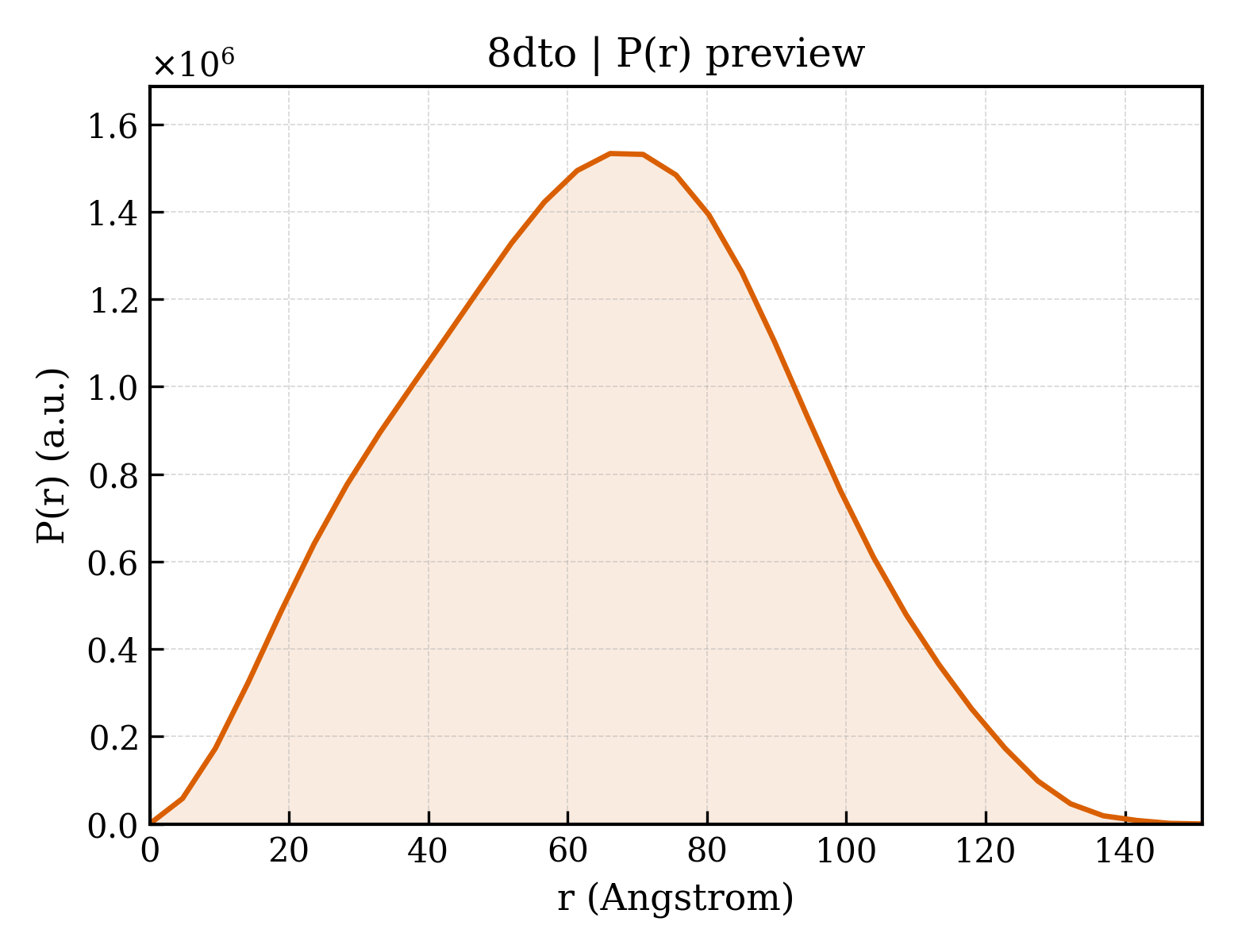

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.1 Å
Rg (实空间) rg_real	49.76 Å
Rg 误差 (实空间) rg_real_error	0.98 Å
I(0) (实空间) i0_real	1.3640e+09
I(0) 误差 (实空间) i0_real_error	2.3210e+07
Rg (倒空间) rg_reciprocal	50.13 Å
I(0) (倒空间) i0_reciprocal	1365000000.0000
解质量估计 total_estimate	0.8746
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	66.1 Å
偏度 Skewness skewness	0.056
峰度 Kurtosis kurtosis	-0.553
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	112900000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.522

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	CH848.3.D0949.10.17chim.6R.DS.SOSIP.664_N133D_N138T gp120
分子量 formula_weight	54136.5 kDa
突变 mutation	N133D, N138T
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,A,I
原子数 atom_count	20923

MGSLQPLATLYLLGMLVASVLAAENLWVTVYYGVPVWKEAKTTLFCASDARAYEKEVHNVWATHACVPTDPSPQELVLGNVTENFNMWKNDMVDQMHEDIISLWDQSLKPCVKLTPLCVTLICSDATVKTGTVEEMKNCSFNTTTEIRDKEKKEYALFYKPDIVPLSETNNTSEYRLINCNTSACTQACPKVTFEPIPIHYCAPAGYAILKCNDETFNGTGPCSNVSTVQCTHGIRPVVSTQLLLNGSLAEKEIVIRSENLTNNAKIIIVHLHTPVEIVCTRPNNNTRKSVRIGPGQTFYATGDIIGDIKQAHCNISEEKWNDTLQKVGIELQKHFPNKTIKYNQSAGGDMEITTHSFNCGGEFFYCNTSNLFNGTYNGTYISTNSSANSTSTITLQCRIKQIINMWQGVGRCMYAPPIAGNITCRSNITGLLLTRDGGTNSNETETFRPAGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVG

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI 分类编号 ncbi_taxonomy_id	12721
宿主生物 host_organism	Mammalia

Entity 2 polymer

描述 description	Envelope Glycoprotein gp141
分子量 formula_weight	17146.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,B,J

AVGIGAVFLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEAQQHLLKLTVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

来源 Source

来源生物 organism	Human immunodeficiency virus
NCBI 分类编号 ncbi_taxonomy_id	12721
宿主生物 host_organism	Mammalia

Entity 3 polymer

描述 description	MU89 Heavy Chain
分子量 formula_weight	14172.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,C,K

QVQLVQSGAEVKKPGASVKVSCKASGYRFTDHYIHWVRQAPGQGPEWMGWINTSSGRSNFAQKFQGRVTMTRDTSISTAYMELNRLKSDDTAVYYCTTGSWISLYYDSSGYPNFDYWGQGTLVTVT

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mammalia

Entity 4 polymer

描述 description	MU89 Light Chain
分子量 formula_weight	10989.1 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,D,L

TQPASVSGSPGQPITISCTGTSSDVGNYDLVSWYQQHPGNAPKYMIYEVTKRPAGISNRFSGSKSGNTASLTISGLQAEDAADYYCCSYAGSSTVIFGGGTKVTVL

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mammalia

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	14

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	6

Entity 8 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	10

Entity 9 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 10 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	627.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 11 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	8dtoC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dtoD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dtoG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dtoH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dtoK01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dtoL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.57 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	72478
