8dy9

Streptomyces venezuelae RNAP unconstrained open promoter complex with WhiA and WhiB transcription factors

Method: ELECTRON MICROSCOPY D_max: 199.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

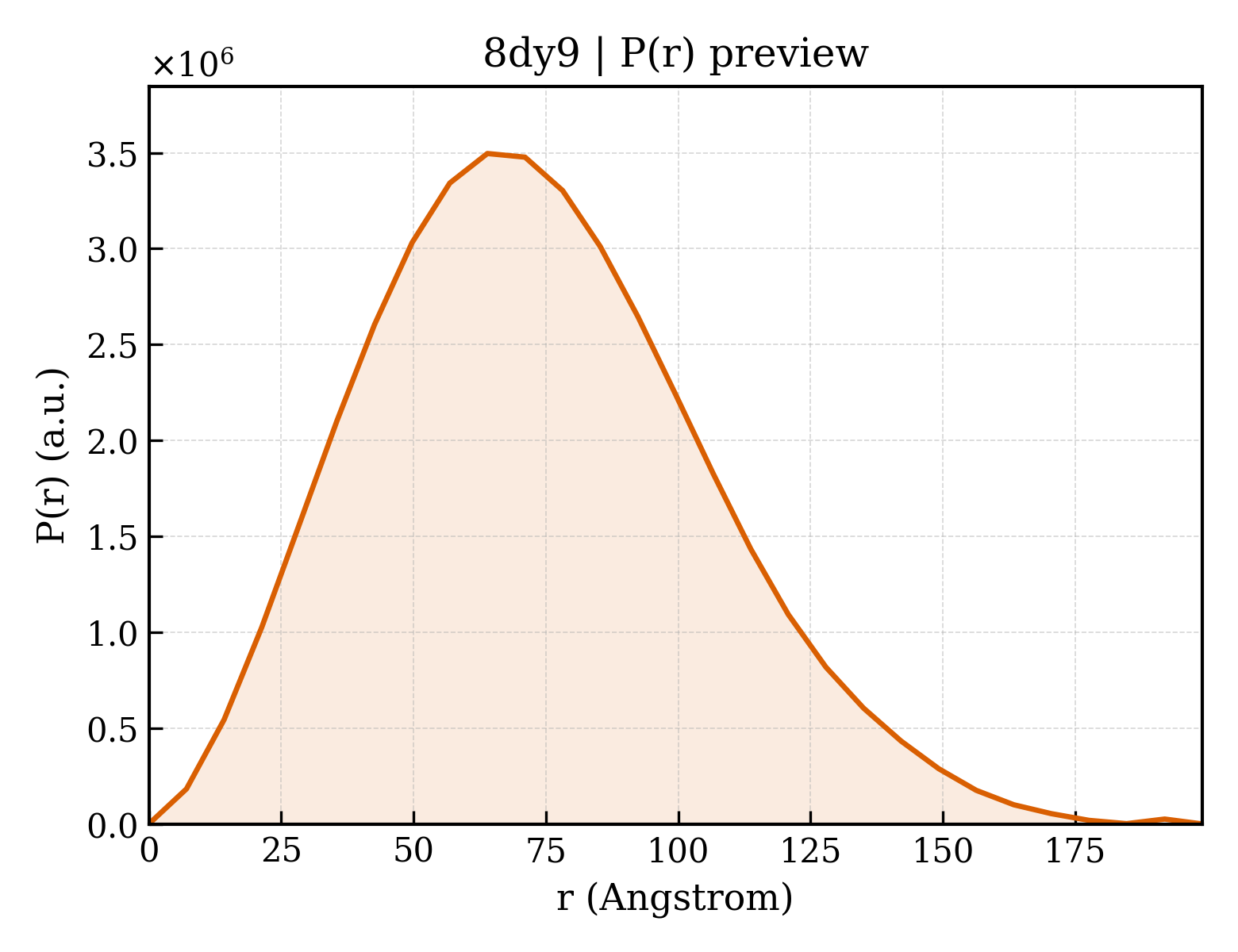

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8dy9
沉积日期 deposition_date	2022-08-03
结构标题 title	Streptomyces venezuelae RNAP unconstrained open promoter complex with WhiA and WhiB transcription factors
关键词 keywords	RNA polymerase, Transcription factor, Iron cluster, TRANSCRIPTION-TRANSFERASE-DNA complex; TRANSCRIPTION/TRANSFERASE/DNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.46 Å
回转半径 Rg (电子) rg_electron	54.95 Å
零角强度 I(0) i0	3521590000.00
分子量 molecular_weight	462410.0 kDa
排除体积 excluded_volume	564950 Å³
包络体积 envelope_volume	870800 Å³
水化壳体积 shell_volume	128540 Å³
包络直径 envelope_diameter	217.7 Å
壳层 Rg shell_rg	59.93 Å
包络 Rg envelope_rg	54.91 Å
形状 Rg shape_rg	54.90 Å
总 Rg total_rg	55.22 Å
总原子数 total_atoms	63435
残基数 n_residues	3921
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	199.0 Å
Rg (实空间) rg_real	56.42 Å
Rg 误差 (实空间) rg_real_error	2.05 Å
I(0) (实空间) i0_real	3.5220e+09
I(0) 误差 (实空间) i0_real_error	7.8790e+07
Rg (倒空间) rg_reciprocal	56.48 Å
I(0) (倒空间) i0_reciprocal	3522000000.0000
解质量估计 total_estimate	0.8541
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	64.0 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.131
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	437000000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.904

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (13)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	36734.6 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	63435

MLIAQRPSLTEEVVDEFRSRFVIEPLEPGFGYTLGNSLRRTLLSSIPGAAVTSIRIDGVLHEFTTVPGVKEDVTDLILNIKQLVVSSEHDEPVVMYLRKQGPGLVTAADIAPPAGVEVHNPDLVLATLNGKGKLEMELTVERGRGYVSAVQNKQVGQEIGRIPVDSIYSPVLKVTYKVEATRVEQRTDFDKLIVDVETKQAMRPRDAMASAGKTLVELFGLARELNIDAEGIDMGPSPTDAALAADLALPIEELELTVRSYNCLKREGIHSVGELVARSEADLLDIRNFGAKSIDEVKAKLAGMGLALKDSPPGFDPTAAADAFGADDDADAGFVETEQY

来源 Source

来源生物 organism	Streptomyces venezuelae ATCC 10712
NCBI 分类编号 ncbi_taxonomy_id	953739
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	130459.0 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MQGTGTRVVSPSPRKDPLLAASRNASTNTNNGASTAPLRISFAKIKEPLEVPNLLALQTESFDWLLGNAAWKARVEAALESGQDVPTKSGLEEIFEEISPIEDFSGSMSLTFRDHRFEPPKNSIDECKDRDFTYGAPLFVTAEFTNNETGEIKSQTVFMGDFPLMTNKGTFVINGTERVVVSQLVRSPGVYFDSSIDKTSDKDIFSAKIIPSRGAWLEMEIDKRDLVGVRIDRKRKQSVTVLLKALGWTTEQILQEFGEYESMRATLEKDHTQGQDDALLDIYRKLRPGEPPTREAAQTLLENLYFNPKRYDLAKVGRYKVNKKLGADEPLDAGVLTTDDVIATIKYLVKLHAGETETIGENGNEIVVETDDIDHFGNRRLRNVGELIQNQVRTGLARMERVVRERMTTQDVEAITPQTLINIRPVVASIKEFFGTSQLSQFMDQNNPLSGLTHKRRLSALGPGGLSRERAGFEVRDVHPSHYGRMCPIETPEGPNIGLIGSLASYGRVNAFGFIETPYRKVVDGQVTDEVDYVTADEEDRFVIAQANAALDEELRFSENRVLVRKRGGEVDYVEPSDVDYMDVSPRQMVSVATAMIPFLEHDDANRALMGANMMRQAVPLIKSEAPLVGTGMEYRCATDAGDVLKAEKDGVVQELSADYITVANDDGTYITYRLHKFSRSNQGTSVNQKVVVDEGDRVIEGQVLADGPATEDGEMALGKNLLVAFMPWEGHNYEDAIILSQRLVQDDVLSSIHIEEHEVDARDTKLGPEEITRDIPNVSEEVLADLDERGIIRIGAEVVAGDILVGKVTPKGETELTPEERLLRAIFGEKAREVRDTSLKVPHGEIGKIIGVRVFDREEGDELPPGVNQLVRVYVAQKRKITDGDKLAGRHGNKGVISKILPIEDMPFLEDGTPVDIILNPLGVPSRMNPGQVLEIHLGWLASRGWDVSGLADEWAQRLQAIGADKVAPGTNVATPVFDGAREDELAGLLNHTIPNRDGERMVLPTGKARLFDGRSGEPFPDPISVGYMYILKLHHLVDDKLHARSTGPYSMITQQPLGGKAQFGGQRFGEMEVWALEAYGAAYALQELLTIKSDDVTGRVKVYEAIVKGENIPEPGIPESFKVLIKEMQSLCLNVEVLSSDGMSIEMRDTDEDVFRAAEELGIDLSRREPSSVEEV

Entity 3 polymer

描述 description	;DNA-directed RNA polymerase subunit beta' ;
分子量 formula_weight	144614.8 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

DDVNFFDELRIGLATADDIRQWSHGEVKKPETINYRTLKPEKDGLFCEKIFGPTRDWECYCGKYKRVRFKGIICERCGVEVTRAKVRRERMGHIELAAPVTHIWYFKGVPSRLGYLLDLAPKDLEKVIYFAAYMITYVDDERRTRDLPSLEAHVSVERQQIENRRDSDLEARAKKLENDLGELEAEGAKADVRRKVREGAEREMKQLRDRAQREIDRLDEVWSRFKNLKVQDLEGDELLYRELRDRFGTYFDGSMGAAALQKRLESFDLEEEAERLREIIRTGKGQKKTRALKRLKVVSAFLQTANSPKGMVLDCVPVIPPDLRPMVQLDGGRFATSDLNDLYRRVINRNNRLKRLLDLGAPEIIVNNEKRMLQEAVDALFDNGRRGRPVTGPGNRPLKSLSDMLKGKQGRFRQNLLGKRVDYSARSVIVVGPQLKLHQCGLPKAMALELFKPFVMKRLVDLNHAQNIKSAKRMVERGRTVVYDVLEEVIAEHPVLLNRAPTLHRLGIQAFEPQLVEGKAIQIHPLVCTAFNADFDGDQMAVHLPLSAEAQAEARILMLSSNNILKPADGRPVTMPTQDMVLGLFFLTTDGELRDTKGEGRAFGSTAEAIMAFDAGELALQSQIDIRFPVGTVAPRGWVPPVTEEGEPEWQQGDSFRLRTSLGRALFNELLPEDYPFVDYSVGKKQLSEIVNDLAERYPKVIVAATLDNLKAAGFYWATRSGVTVAISDVVVPEAKKAIVKGYEEQDEKVQKQYERGLITKEERTQELIAIWTKATNEVAEAMNANFPKTNPIFMMVDSGARGNMMQMRQIAGMRGLVSNAKNETIPRPIKASFREGLTVLEYFISTHGARKGLADTALRTADSGYLTRRLVDVSQDVIIREEDCGTERGLKLRIAERGADGVLRKTDDVETSVYARMLAEDVVVDGKVIAPANVDLGDVLIDALVGAGVEEVKTRSVLTCESAVGTCAFCYGRSLATGKLVDIGEAVGIIAAQSIGEPGTQLTMRTFHTGGVAGDDITQGLPRVVELFEARQPKGVAPISEAAGRVRIEETEKTKKIVVTPDDGTDETAFPISKRARLLVGEGDHVEVGQKLTVGATNPHDVLRILGQRAVQVHLVAEVQKVYNSQGVSIHDKHIEIIIRQMLRRVTIIESGDAELLPGELVERSKFETENRRVVTEGGHPASGRPQLMGITKASLATESWLSAASFQETTRVLTDAAINAKSDSLIGLKENVIIGKLIPAGTGLSRYRNIRVEPTEEAKAAMYSAVGYDDIDYSPFGSGSGQAVPLEDYDYGPYNQ

Entity 4 polymer

描述 description	DNA-directed RNA polymerase subunit omega
分子量 formula_weight	9731.0 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSSSITAPEGIINPPIDELLEATDSKYSLVIYAAKRARQINAYYSQLGEGLLEYVGPLVDTHVHEKPLSIALREINAGLLTSEAIEGPAQ

Entity 5 polymer

描述 description	RNA polymerase sigma factor SigA
分子量 formula_weight	56696.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

FVSASTSRTLPPEIAESESVMALIERGKADGQIAGDDVRRAFEADQIPPTQWKNVLRSLNQILEEEGVTLMVSAAESPKRARKSVAAKSPAKRTATKTVTARTTVTKTTVTAAPASAAEDADPADEAGSAAKKTAAKKTVAKKTVAKKTVAKKTAAKKTTSKKDADELVEGEELLEDVAPGKGEEEETEGESKGFVLSDEDEDDAPAQQVAVAGATADPVKDYLKQIGKVPLLNAEQEVELAKRIEAGLFAEDKLANSDKLAPKLKRELEIIAEDGRRAKNHLLEANLRLVVSLAKRYTGRGMLFLDLIQEGNLGLIRAVEKFDYTKGYKFSTYATWWIRQAITRAMADQARTIRIPVHMVEVINKLARVQRQMLQDLGREPTPEELAKELDMTPEKVIEVQKYGREPISLHTPLGEDGDSEFGDLIEDSEAVVPADAVSFTLLQEQLHSVLDTLSEREAGVVSMRFGLTDGQPKTLDEIGKVYGVTRERIRQIESKTMSKLRHPSRSQVLRDYLD

来源 Source

来源生物 organism	Streptomyces venezuelae
NCBI 分类编号 ncbi_taxonomy_id	54571
宿主生物 host_organism	Escherichia coli

Entity 6 polymer

描述 description	RNA polymerase-binding protein RbpA
分子量 formula_weight	14116.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSERALRGTRLVVTSYETDRGIDLAPRQAVEYACEKGHRFEMPFSVEAEIPPEWECKVCGIQALLVDGDGPEEKKGKPARTHWDMLMERRTREELEEVLAERLAVLRSGAMNIAVHPRDSRKSA

来源 Source

来源生物 organism	Streptomyces venezuelae
NCBI 分类编号 ncbi_taxonomy_id	54571
宿主生物 host_organism	Escherichia coli

Entity 7 polymer

描述 description	Transcriptional regulator WhiB
分子量 formula_weight	10011.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MTELFQELLVEDADEELGWQERALCAQTDPESFFPEKGGSTREAKKVCLACEVRSECLEYALQNDERFGIWGGLSERERRRLKKAAV

来源 Source

来源生物 organism	Streptomyces venezuelae
NCBI 分类编号 ncbi_taxonomy_id	54571
宿主生物 host_organism	Escherichia coli

Entity 8 polymer

描述 description	Probable cell division protein WhiA
分子量 formula_weight	34959.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MTAAVKDEISRLPVTRTCCRKAEVSSILRFAGGLHLVSGRIVIEAELDTAMAARRLKRDILEIFGHSSELIVMAPGGLRRGSRFVVRVVAGGDQLARQTGLVDGRGRPIRGLPPQVVSGATCDAEAAWRGAFLAHGSLTEPGRSSSLEVTCPGPEAALALVGAARRLSIAAKAREVRGVDRVVVRDGDAIGALLTRLGAHESVLAWEERRMRREVRATANRLANFDDANLRRSARAAVAAGARVQRALEILGEEVPEHLAAAGRLRMEHKQASLEELGALADPPLTKDAVAGRIRRLLAMADKRAQDLGIPGTESNLTEELDDSLVG

来源 Source

来源生物 organism	Streptomyces venezuelae
NCBI 分类编号 ncbi_taxonomy_id	54571
宿主生物 host_organism	Escherichia coli

Entity 9 polymer

描述 description	DNA (38-MER)
分子量 formula_weight	15068.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	O,Q

GTGATATCAGCCAGATCGTGCGACACACCGGGCCAATTGGCTTGACACC

Entity 10 polymer

描述 description	DNA (38-MER)
分子量 formula_weight	15121.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	P,R

GGTGTCAAGCCAATTGGCCCGGTGTGTCGCACGATCTGGCTGATATCAC

Entity 11 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 12 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 13 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

结构域编号 domain_id	8dy9A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	8dy9B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

结构域编号 domain_id	8dy9D01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

结构域编号 domain_id	8dy9D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	132 — Topoisomerase I; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

结构域编号 domain_id	8dy9I01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	28 — Endonuclease I-creI
同源超家族 H-superfamily homologous superfamily	10 — Homing endonucleases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.12 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	118181
