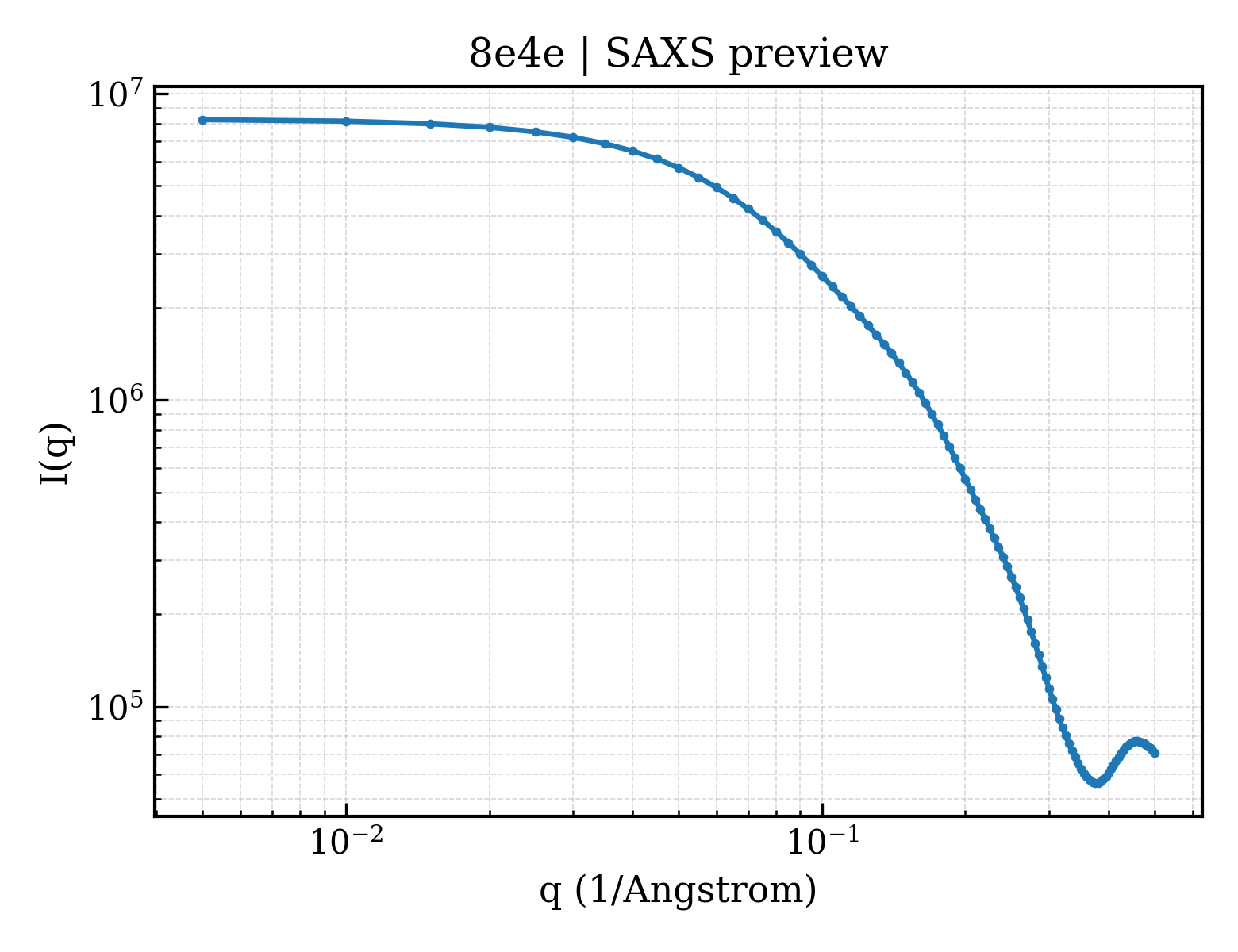

SAXS 散射曲线 SAXS Profile

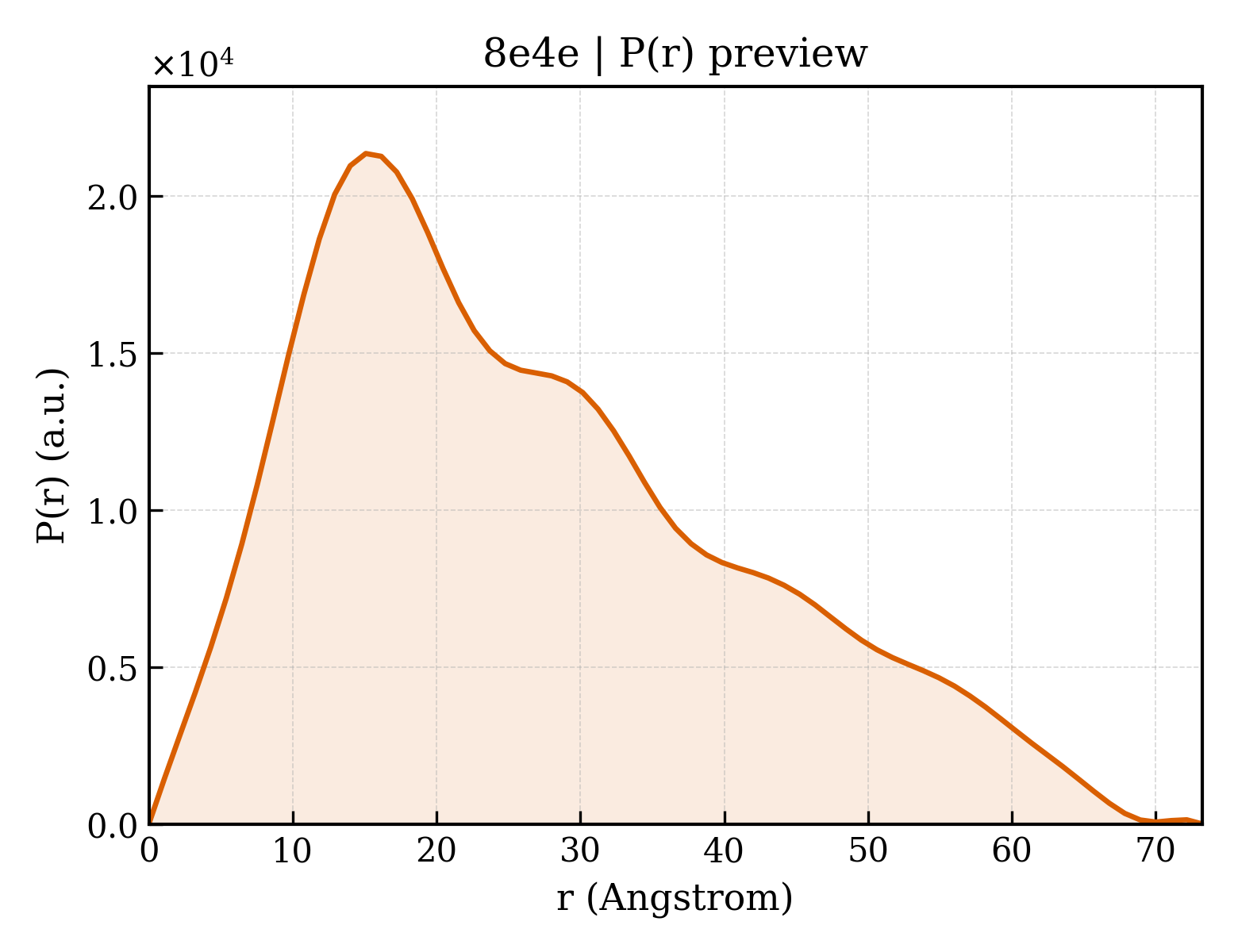

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 8e4e |
| 沉积日期 deposition_date | 2022-08-18 |
| 结构标题 title | [T:Ag+:T] Metal-mediated DNA base pair in a self-assembling rhombohedral lattice |
| 关键词 keywords | Tensegrity triangle, self-assembling crystal, metal-mediated mismatch, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 21.07 Å |
| 回转半径 Rg (电子) rg_electron | 21.32 Å |
| 零角强度 I(0) i0 | 8264320.00 |
| 分子量 molecular_weight | 13071.0 kDa |
| 排除体积 excluded_volume | 12573 ų |
| 包络体积 envelope_volume | 20465 ų |
| 水化壳体积 shell_volume | 9799 ų |
| 包络直径 envelope_diameter | 71.5 Å |
| 壳层 Rg shell_rg | 23.79 Å |
| 包络 Rg envelope_rg | 21.40 Å |
| 形状 Rg shape_rg | 21.31 Å |
| 总 Rg total_rg | 21.59 Å |
| 总原子数 total_atoms | 859 |
| 残基数 n_residues | 42 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 73.2 Å |
| Rg (实空间) rg_real | 21.51 Å |
| Rg 误差 (实空间) rg_real_error | 0.87 Å |
| I(0) (实空间) i0_real | 8.2640e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.2740e+05 |
| Rg (倒空间) rg_reciprocal | 21.43 Å |
| I(0) (倒空间) i0_reciprocal | 8264000.0000 |
| 解质量估计 total_estimate | 0.7224 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 15.1 Å |
| 偏度 Skewness skewness | 0.619 |
| 峰度 Kurtosis kurtosis | -0.414 |
| 角度范围 angular_range | — – 0.3750 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 604800.0000 |
| 实空间数据点数 n_real_points | 69 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.432;
Stabil: 0.999;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.144;
Smooth: 0.950
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 105.126 Å |
| 晶胞边长 b length_b | 105.126 Å |
| 晶胞边长 c length_c | 92.433 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 9 |
对称性 Symmetry
| 空间群 space_group | H 3 |
| 空间群编号 int_tables_number | 146 |
| 晶系 crystal_system | trigonal |
精修参数 Refinement
| 分辨率 resolution | 4.190 Å |
| 最低分辨率 resolution_low | 32.430 Å |
| R 因子 r_factor | 0.2232 |
| R_work r_work | 0.2219 |
| R_free r_free | 0.2383 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | ;DNA (5'-D(*GP*AP*GP*CP*AP*GP*CP*CP*TP*GP*TP*TP*TP*GP*GP*AP*CP*AP*TP*CP*A)-3')
; |
| 分子量 formula_weight | 6463.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 859 |
GAGCAGCCTGTTTGGACATCA
Entity 2
polymer
| 描述 description | ;DNA (5'-D(P*CP*CP*AP*TP*AP*CP*A)-3')
; |
| 分子量 formula_weight | 2066.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
CCATACA
Entity 3
polymer
| 描述 description | ;DNA (5'-D(P*GP*GP*CP*TP*GP*CP*T)-3')
; |
| 分子量 formula_weight | 2129.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | C |
GGCTGCT
Entity 4
polymer
| 描述 description | ;DNA (5'-D(P*CP*TP*GP*AP*TP*GP*T)-3')
; |
| 分子量 formula_weight | 2128.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | D |
CTGATGT
Entity 5
non-polymer
| 描述 description | SILVER ION |
| 分子量 formula_weight | 107.9 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Metal-Mediated DNA Nanotechnology in 3D: Structural Library by Templated Diffraction.
Adv Mater (2023)
Metal-Mediated DNA Nanotechnology in 3D: Structural Library by Templated Diffraction.
Adv Mater (2023)
Files (7)
- pr_distribution /app/data/pr_computation/e4/8e4e/pr_distribution.json
- pr_output /app/data/pr_computation/e4/8e4e/8e4e.pr.out
- pr_plot /app/data/visualization/pr_computation/e4/8e4e/8e4e_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/e4/8e4e/8e4e.dat
- saxs_fit /app/data/saxs_computation/e4/8e4e/8e4e.fit
- saxs_log /app/data/saxs_computation/e4/8e4e/8e4e.log
- saxs_plot /app/data/visualization/saxs_computation/e4/8e4e/8e4e_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/e4/8e4e/8e4e.fit |
| pddf |
/app/data/pr_computation/e4/8e4e/8e4e.pr.out |
| profile |
/app/data/saxs_computation/e4/8e4e/8e4e.dat |
