8e50

Cryo-EM structure of human glycerol-3-phosphate acyltransferase 1 (GPAT1) in complex with CoA and palmitoyl-LPA

Method: ELECTRON MICROSCOPY D_max: 101.7 Å Quality: GOOD

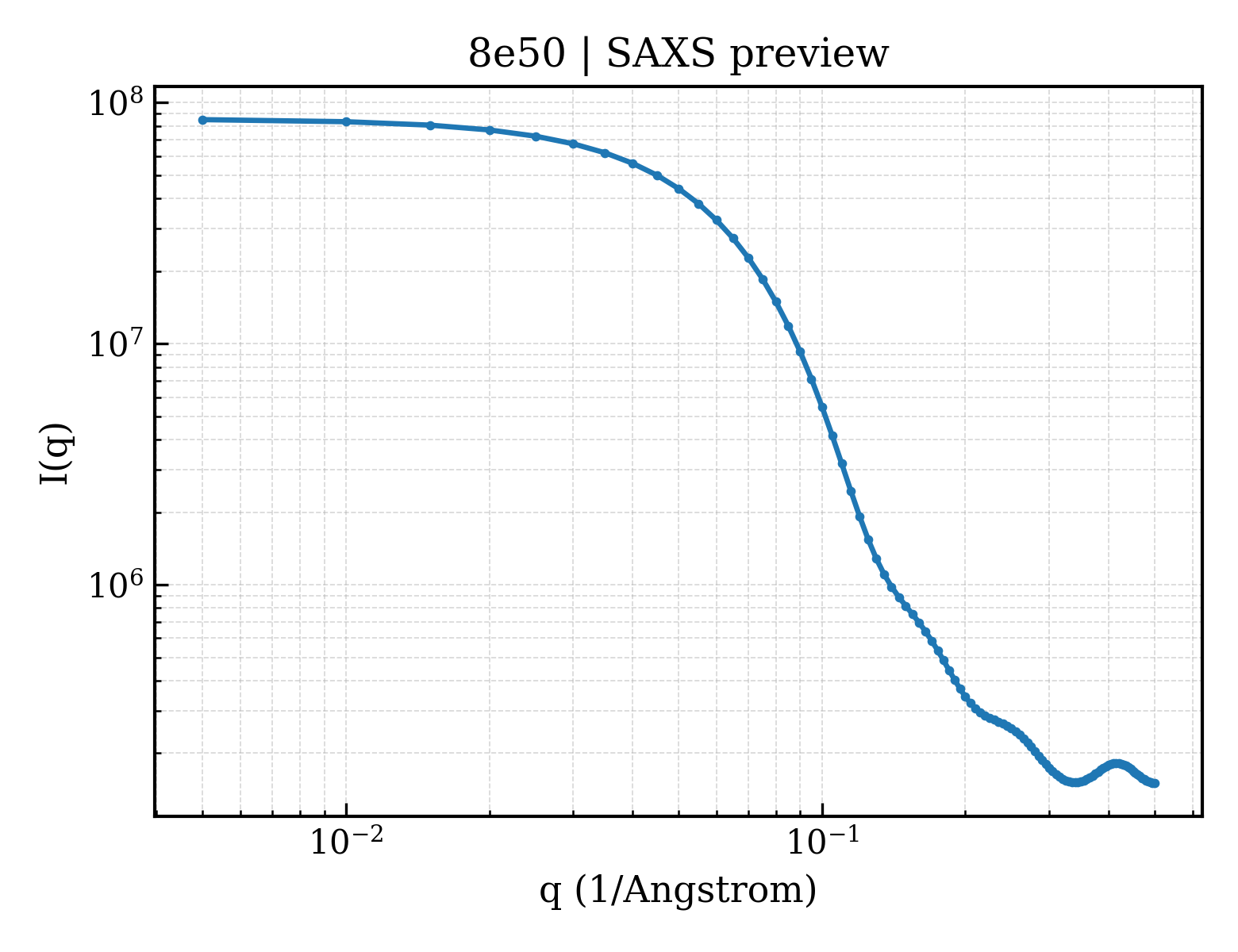

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e50
沉积日期 deposition_date	2022-08-19
结构标题 title	Cryo-EM structure of human glycerol-3-phosphate acyltransferase 1 (GPAT1) in complex with CoA and palmitoyl-LPA
关键词 keywords	acyltransferase, LPA, monotopic, mitochondrial, membrane protein; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.13 Å
回转半径 Rg (电子) rg_electron	27.01 Å
零角强度 I(0) i0	85425500.00
分子量 molecular_weight	74993.0 kDa
排除体积 excluded_volume	95200 Å³
包络体积 envelope_volume	121230 Å³
水化壳体积 shell_volume	36579 Å³
包络直径 envelope_diameter	106.3 Å
壳层 Rg shell_rg	34.91 Å
包络 Rg envelope_rg	27.31 Å
形状 Rg shape_rg	27.01 Å
总 Rg total_rg	27.85 Å
总原子数 total_atoms	5277
残基数 n_residues	651
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

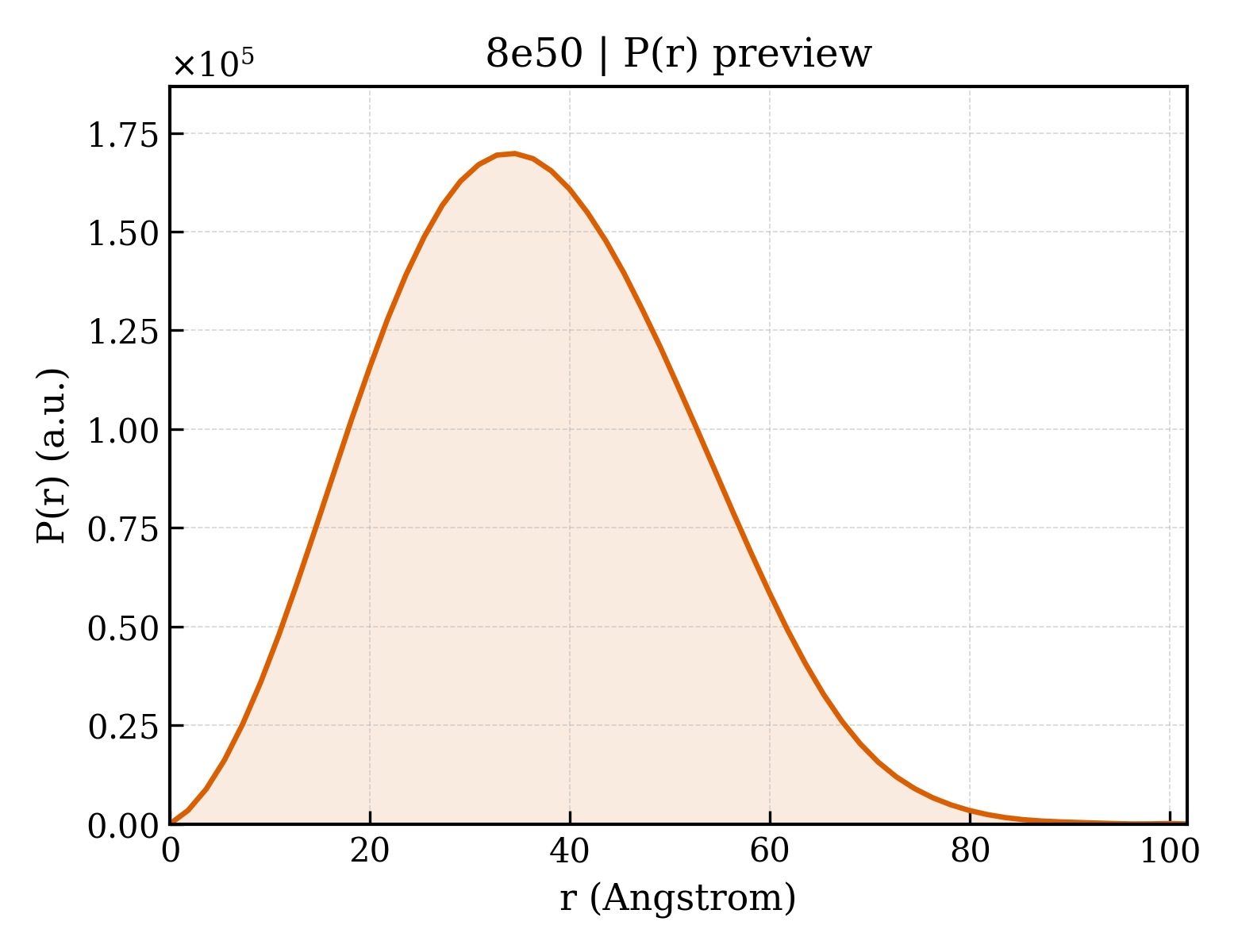

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.7 Å
Rg (实空间) rg_real	28.01 Å
Rg 误差 (实空间) rg_real_error	0.74 Å
I(0) (实空间) i0_real	8.5430e+07
I(0) 误差 (实空间) i0_real_error	1.2500e+06
Rg (倒空间) rg_reciprocal	28.05 Å
I(0) (倒空间) i0_reciprocal	85430000.0000
解质量估计 total_estimate	0.8472
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.5 Å
偏度 Skewness skewness	0.252
峰度 Kurtosis kurtosis	-0.327
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22570000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.678; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.998

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Glycerol-3-phosphate acyltransferase 1, mitochondrial
分子量 formula_weight	86919.5 kDa
EC 编号 ec_number	2.3.1.15
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5277

MDYKDDDDKGSENLYFQSNPSIPSLGLRNVIYINETHTRHRGWLARRLSYVLFIQERDVHKGMFATNVTENVLNSSRVQEAIAEVAAELNPDGSAQQQSKAVNKVKKKAKRILQEMVATVSPAMIRLTGWVLLKLFNSFFWNIQIHKGQLEMVKAATETNLPLLFLPVHRSHIDYLLLTFILFCHNIKAPYIASGNNLNIPIFSTLIHKLGGFFIRRRLDETPDGRKDVLYRALLHGHIVELLRQQQFLEIFLEGTRSRSGKTSCARAGLLSVVVDTLSTNVIPDILIIPVGISYDRIIEGHYNGEQLGKPKKNESLWSVARGVIRMLRKNYGCVRVDFAQPFSLKEYLESQSQKPVSALLSLEQALLPAILPSRPSDAADEGRDTSINESRNATDESLRRRLIANLAEHILFTASKSCAIMSTHIVACLLLYRHRQGIDLSTLVEDFFVMKEEVLARDFDLGFSGNSEDVVMHAIQLLGNCVTITHTSRNDEFFITPSTTVPSVFELNFYSNGVLHVFIMEAIIACSLYAVLNKRGLGGPTSTPPNLISQEQLVRKAASLCYLLSNEGTISLPCQTFYQVCHETVGKFIQYGILTVAEHDDQEDISPSLAEQQWDKKLPEPLSWRSDEEDEDSDFGEEQRDCYLKVSQSKEHQQFITFLQRLLGPLLEAYSSAAIFVHNFSGPVPEPEYLQKLHKYLITRTERNVAVYAESATYCLVKNAVKMFKDIGVFKETKQKRVSVLELSSTFLPQCNRQKLLEYILSFVVL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	COENZYME A
分子量 formula_weight	767.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	(2R)-2-hydroxy-3-(phosphonooxy)propyl hexadecanoate
分子量 formula_weight	410.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.670 Å
最低分辨率 resolution_low	98.000 Å
R 因子 r_factor	0.3726
R_work r_work	0.3726
R_free r_free	—

分辨率 resolution	3.67 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	76033
