SAXSdb — 8e6t

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e6t
沉积日期 deposition_date	2022-08-23
结构标题 title	Human TRPM2 ion channel in 1 mM BR-ADPR
关键词 keywords	TRPM2, TRP, ADPR, ADP-ribose, NUDT9H, NUDT9, calcium, ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.03 Å
回转半径 Rg (电子) rg_electron	59.24 Å
零角强度 I(0) i0	4143560000.00
分子量 molecular_weight	546890.0 kDa
排除体积 excluded_volume	685390 Å³
包络体积 envelope_volume	1112800 Å³
水化壳体积 shell_volume	150940 Å³
包络直径 envelope_diameter	185.8 Å
壳层 Rg shell_rg	66.07 Å
包络 Rg envelope_rg	57.44 Å
形状 Rg shape_rg	59.31 Å
总 Rg total_rg	59.15 Å
总原子数 total_atoms	38612
残基数 n_residues	5160
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	192.9 Å
Rg (实空间) rg_real	59.60 Å
Rg 误差 (实空间) rg_real_error	1.26 Å
I(0) (实空间) i0_real	4.1440e+09
I(0) 误差 (实空间) i0_real_error	7.6710e+07
Rg (倒空间) rg_reciprocal	60.38 Å
I(0) (倒空间) i0_reciprocal	4149000000.0000
解质量估计 total_estimate	0.8771
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.6 Å
偏度 Skewness skewness	0.055
峰度 Kurtosis kurtosis	-0.519
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	458800000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.934; Smooth: 0.878

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Transient receptor potential cation channel subfamily M member 2
分子量 formula_weight	171416.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	38612

MEPSALRKAGSEQEEGFEGLPRRVTDLGMVSNLRRSNSSLFKSWRLQCPFGNNDKQESLSSWIPENIKKKECVYFVESSKLSDAGKVVCQCGYTHEQHLEEATKPHTFQGTQWDPKKHVQEMPTDAFGDIVFTGLSQKVKKYVRVSQDTPSSVIYHLMTQHWGLDVPNLLISVTGGAKNFNMKPRLKSIFRRGLVKVAQTTGAWIITGGSHTGVMKQVGEAVRDFSLSSSYKEGELITIGVATWGTVHRREGLIHPTGSFPAEYILDEDGQGNLTCLDSNHSHFILVDDGTHGQYGVEIPLRTRLEKFISEQTKERGGVAIKIPIVCVVLEGGPGTLHTIDNATTNGTPCVVVEGSGRVADVIAQVANIPVSDITISLIQQKLSVFFQEMFETFTESRIVEWTKKIQDIVRRRQLLTVFREGKDGQQDVDVAILQALLKASRSQDHFGHENWDHQLKLAVAWNRVDIARSEIFMDEWQWKPSDLHPTMTAALISNKPEFVKLFLENGVQLKEFVTWDTLLYLYENLDPSCLFHSKLQKVLVEDPERPACAPAAPRLQMHHVAQVLRELLGDFTQPLYPRPRHNDRLRLLLPVPHVKLNVQGVSLRSLYKRSSGHVTFTMDPIRDLLIWAIVQNRRELAGIIWAQSQDCIAAALACSKILKELSKEEEDTDSSEEMLALAEEYEHRAIGVFTECYRKDEERAQKLLTRVSEAWGKTTCLQLALEAKDMKFVSHGGIQAFLTKVWWGQLSVDNGLWRVTLCMLAFPLLLTGLISFREKRLQDVGTPAARARAFFTAPVVVFHLNILSYFAFLCLFAYVLMVDFQPVPSWCECAIYLWLFSLVCEEMRQLFYDPDECGLMKKAALYFSDFWNKLDVGAILLFVAGLTCRLIPATLYPGRVILSLDFILFCLRLMHIFTISKTLGPKIIIVKRMMKDVFFFLFLLAVWVVSFGVAKQAILIHNERRVDWLFRGAVYHSYLTIFGQIPGYIDGVNFNPEHCSPNGTDPYKPKCPESDATQQRPAFPEWLTVLLLCLYLLFTNILLLNLLIAMFNYTFQQVQEHTDQIWKFQRHDLIEEYHGRPAAPPPFILLSHLQLFIKRVVLKTPAKRHKQLKNKLEKNEEAALLSWEIYLKENYLQNRQFQQKQRPEQKIEDISNKVDAMVDLLDLDPLKRSGSMEQRLASLEEQVAQTAQALHWIVRTLRASGFSSEADVPTLASQKAAEEPDAEPGGRKKTEEPGDSYHVNARHLLYPNCPVTRFPVPNEKVPWETEFLIYDPPFYTAERKDAAAMDPMGDTLEPLSTIQYNVVDGLRDRRSFHGPYTVQAGLPLNPMGRTGLRGRGSLSCFGPNHTLYPMVTRWRRNEDGAICRKSIKKMLEVLVVKLPLSEHWALPGGSREPGEMLPRKLKRILRQEHWPSFENLLKCGMEVYKGYMDDPRNTDNAWIETVAVSVHFQDQNDVELNRLNSNLHACDSGASIRWQVVDRRIPLYANHKTLLQKAAAEFGAHY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	;(3R,4R,5R)-5-(6-amino-8-bromo-9H-purin-9-yl)-3,4,5-trihydroxypentyl [(2S,3S,4S,5R)-3,4,5-trihydroxyoxolan-2-yl]methyl dihydrogen diphosphate (non-preferred name) ;
分子量 formula_weight	640.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	68766

fit	/app/data/saxs_computation/e6/8e6t/8e6t.fit
pddf	/app/data/pr_computation/e6/8e6t/8e6t.pr.out
profile	/app/data/saxs_computation/e6/8e6t/8e6t.dat

Human TRPM2 ion channel in 1 mM BR-ADPR

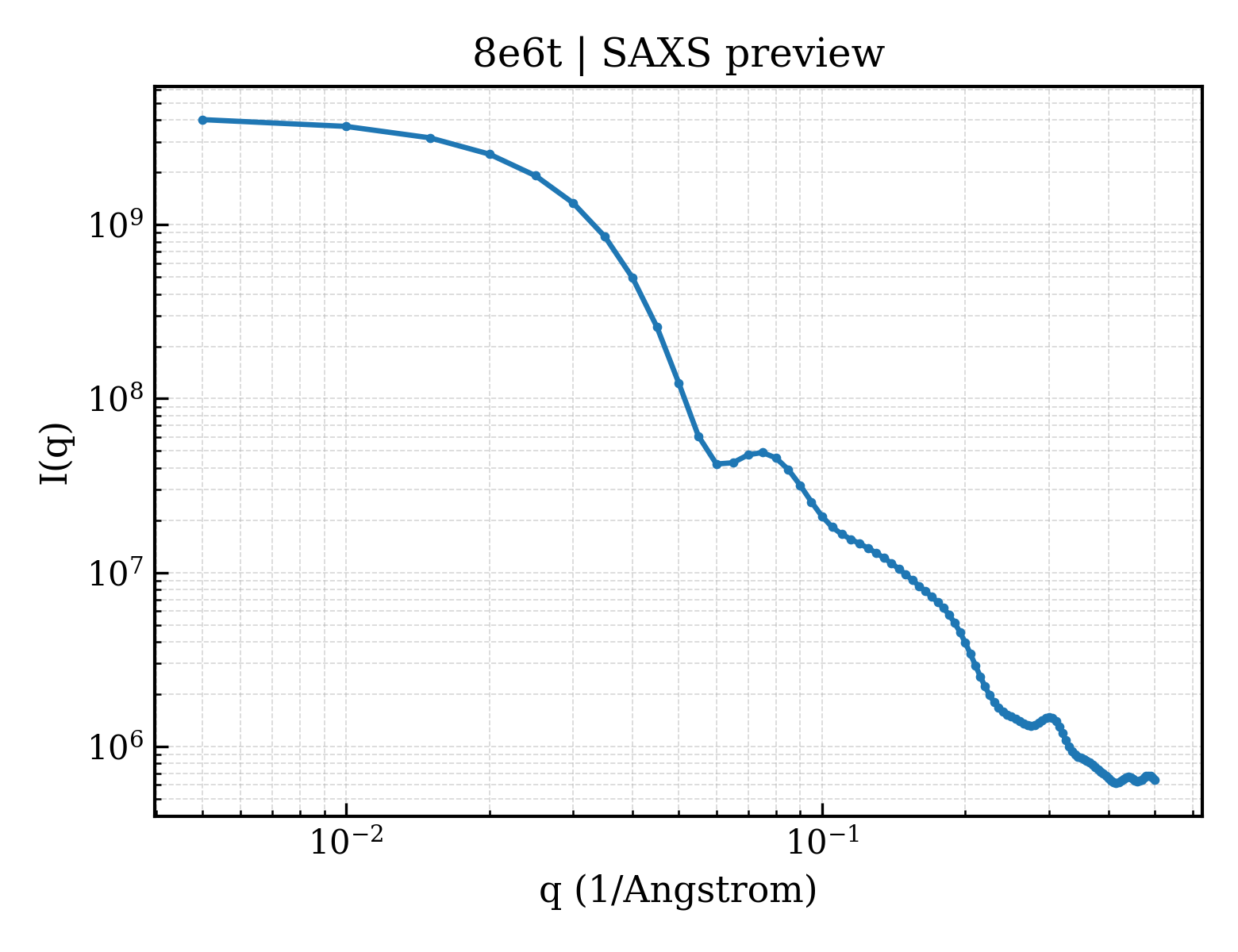

SAXS 散射曲线 SAXS Profile
