8e9i

Mycobacterial respiratory complex I, semi-inserted quinone

Method: ELECTRON MICROSCOPY D_max: 232.1 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

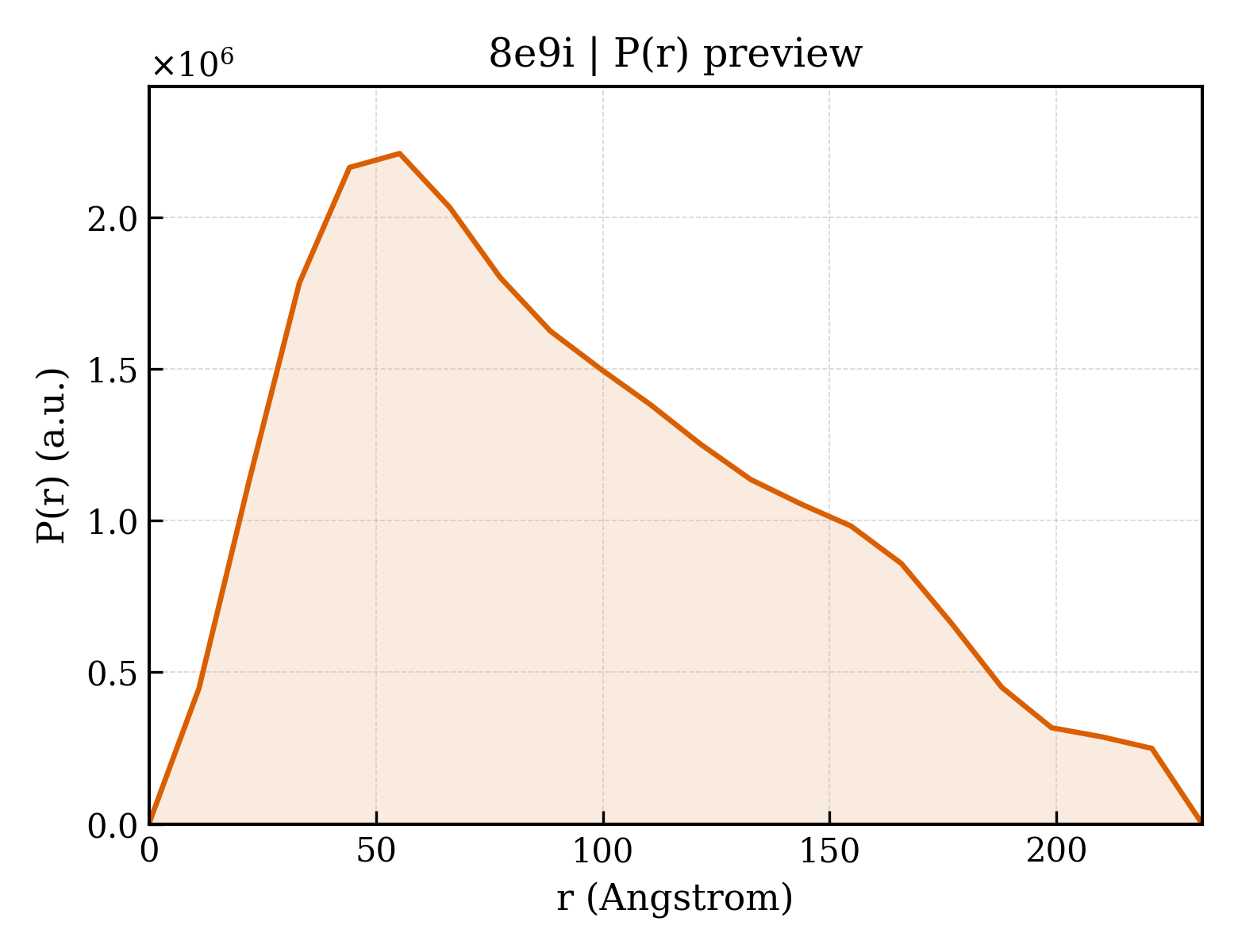

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e9i
沉积日期 deposition_date	2022-08-26
结构标题 title	Mycobacterial respiratory complex I, semi-inserted quinone
关键词 keywords	Complex, Oxidative Phosphorylation, NADH-quinone oxidoreductase, Iron-sulfur Protein, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	74.84 Å
回转半径 Rg (电子) rg_electron	75.31 Å
零角强度 I(0) i0	3261110000.00
分子量 molecular_weight	504210.0 kDa
排除体积 excluded_volume	639070 Å³
包络体积 envelope_volume	880860 Å³
水化壳体积 shell_volume	104950 Å³
包络直径 envelope_diameter	272.2 Å
壳层 Rg shell_rg	63.63 Å
包络 Rg envelope_rg	75.91 Å
形状 Rg shape_rg	75.46 Å
总 Rg total_rg	74.54 Å
总原子数 total_atoms	35471
残基数 n_residues	5048
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.1 Å
Rg (实空间) rg_real	74.51 Å
Rg 误差 (实空间) rg_real_error	1.80 Å
I(0) (实空间) i0_real	3.2410e+09
I(0) 误差 (实空间) i0_real_error	7.3840e+07
Rg (倒空间) rg_reciprocal	71.63 Å
I(0) (倒空间) i0_reciprocal	3235000000.0000
解质量估计 total_estimate	0.5565
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	55.3 Å
偏度 Skewness skewness	0.528
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0789
最高正则化参数 α highest_alpha	94700000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.734; Stabil: 0.996; Sysdev: 0.020; Positv: 1.000; Valcen: 0.873; Smooth: 0.086

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (22)

Entity 1 polymer

描述 description	Two-component system response regulator
分子量 formula_weight	14119.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O
原子数 atom_count	35471

MAGSAPLRILVYSDNPRTREQVRLALGKRIHPELPEIEYVDVATAPMAISQMDAGGFDLAILDGEATPAGGMGVAKQVKDEIDDCPPILVLTGRADDAWLAKWSRAEAAVPHPIDPIRLSDAVVSLLRAPAQ

Entity 2 polymer

描述 description	NADH-quinone oxidoreductase subunit B
分子量 formula_weight	20123.7 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGLEERLPGGILLSTVETVAGYVRKGSLWPATFGLACCAIEMMSTAGPRFDIARFGMERFSATPRQADLMIVAGRVSQKMAPVLRQIYDQMVEPKWVLAMGVCASSGGMFNNYAVVQGVDHVVPVDIYLPGCPPRPEMLLHAILKLHDKIQQMPLGVNREEAIREAEQAALAVPPTIELKGLLR

Entity 3 polymer

描述 description	NADH-quinone oxidoreductase subunit A
分子量 formula_weight	13628.3 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MALYTPILILGAIAAVFAVVSVGIALVIGPRRFNRSKLEAYECGIDPLPPVAAGLTGQRIPIRYYLIAMLFIVFDIEIVFLYPWAVAFDSLGLFAVIEMLLFMLTVFVAYAYVWRRGGLNWD

Entity 4 polymer

描述 description	NADH-quinone oxidoreductase subunit C
分子量 formula_weight	26610.7 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSTSNGSANGTNGVGLPRGDEPEIIAVRRGMFGNRDTGDTSGYGRLVRPVALPGSTPRPYGGYFDAVMDRLAEVLGEERYAMSIERVVVYRDQLTIEVSRVQLPAVASVLRDDPDLRFELCLGVSGVHYPEDTGRELHAVYPLMSITHNRRIQLEVAAPDADPHIPSLYAVYPTTDWHERETYDFFGIIFDGHPSLTRIEMPDDWEGHPQRKDYPLGGIPVEYHGAQIPPPDQRRSYS

Entity 5 polymer

描述 description	NADH-quinone oxidoreductase subunit D
分子量 formula_weight	48556.8 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSTSTVPPDGGEKVVVVGGNDWHEVVAAARAGAAAQAGERIVVNMGPQHPSTHGVLRLILEIEGEIITEARCGIGYLHTGIEKNLEYRNWTQGVTFVTRMDYLSPFFNETAYCLGVEKLLGITDDIPERASVIRVMLMELNRISSHLVALATGGMELGAMSAMFYGFREREEILRVFESITGLRMNHAYIRPGGLAADLPDDAITQVRRLVEILPKRLKDLEDLLNENYIWKARTVGVGYLDLTGCMALGITGPILRSTGLPHDLRKAQPYCGYENYEFDVITDDRCDSYGRYIIRVKEMHESVKIVEQCLARLKPGPVMISDKKLAWPADLKLGPDGLGNSPEHIAKIMGRSMEGLIHHFKLVTEGIRVPPGQVYVAVESPRGELGVHMVSDGGTRPYRVHYRDPSFTNLQAVAATCEGGMVADAIAAVASIDPVMGGVDR

Entity 6 polymer

描述 description	NADH-quinone oxidoreductase subunit E
分子量 formula_weight	25746.7 kDa
EC 编号 ec_number	1.6.99.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSEVFLELGQRPDEAGPPISGPATYPDDVTESLRADAEQIIARYPDARSALLPLLHLVQAQDGYLTPAGIGFCAAQLGLTEAEVTAVATFYSMYRRTPTGDYLVGVCTNTLCAIMGGDAILEALEDHLGVHPGQTTPDGRVTLEHVECNAACDYAPVVMVNWEFYDNQTPSSARDLVDGLRSGSPPPPTRGSLCTFRETARTLAGLTDPNAPGGAPGAATLAGLRLARERGMTAPTPPQTNGSAS

Entity 7 polymer

描述 description	NADH-quinone oxidoreductase subunit G
分子量 formula_weight	83894.8 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MTLAEPTKDTPPVEMVSLTIDDHEISVPKGTLLIRAAELMGIQIPRFCDHPLLDPVGACRQCLVEVEGQRKPMASCTTTVMPDMVVRTQFTSEAADKAQRGVMELLLINHPLDCPICDKGGECPLQNQAMSNGRPETRFEDVKRTFPKPISISSQVLLDRERCVLCARCTRFSSQIAGDPFIDLMERGALQQVGIGQDKPFQSYFSGNTVQICPVGALTGTAYRFRARPFDLVSSPSVCEHCASGCAQRTDHRRGKVLRRLAGDEPEVNEEWNCDKGRWAFTYATVGDRITTPMLRDGGVLRPASWSEALTVAAAGLLTAAGSTGVLVGGRCTVEDAYAYAKFARMVLNTNDVDFRARPHSAEEAEFLAAHVAGQTMGLRYAELENAPTVLLAGFEPEEESPIVFLRLRKGVRKNGVQVVAVAPWASRGLTKLAGTVVPTVPGDEPAALDGMHDDDRLRRPGAVILVGERLATSPGALSAAVRLAAATGARLAWIPRRAGERGAIEAGALPNLLPGGRPVDDADARAEVARAWYISALPEAPGRDTAAILSTAASGHLAALLVGGVELGDLPDPELAVAAVRTTPFVVSLELRESAVTELADVVFPVAPVVEKAGSFLNWEGRPRPFAPSLKTNAIPDLRVLHYLADEIGVDLALPTAEAADAELAQLGTWGGARPPAPTAPPTARPEAGSGQAVLASWRMLLDAGRLQDGEPHLAGTAVRPVARMSAATAAGIGASDGAPVTVSTERGAVTLPLAVTDMPDGVVWLPMNSPGSAVHQRLGVTAGAVVSIGAGA

Entity 8 polymer

描述 description	NADH-quinone oxidoreductase subunit F
分子量 formula_weight	47831.1 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MTPLTPVLSRFWDEPEPWTLETYRRHDGYQGLQRALSMGPDDVIAFVKDSGLRGRGGAGFPTGTKWSFIPQERGDQPAGGPAAKPHYLVINADESEPGTCKDIPLLLTTPHFLVEGAIIAAYAIRARHAFIYVRGEVLPVLRRLQAAVAEAYAAGYLGTDIMGSGFDLDLIVHAGAGAYICGEETALLDSLEGRRGQPRLRPPFPAVAGLYACPTVVNNVESIASVPPIMVNGVDWFRSMGSEKSPGFTLYSLSGHVTRPGQYEAPLGITLRELLEYAGGVRAGHQLKFWTPGGSSTPLLTAEHLDVPLDYEGMASVGSMLGTKALQIFDETTCVVRAVRRWTQFYAHESCGKCTPCREGTYWLAQIYARLENGAGTEADIDKLLDISDNIFGKSFCALGDGAASPIMSSIKHFRDEYVAHLDGGCPFDPHASTLMATEGAGV

Entity 9 polymer

描述 description	NADH-quinone oxidoreductase subunit I
分子量 formula_weight	19860.5 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MPKFLDALAGFAVTLGSMFKKPITEGYPEKPGPVAPRYHGRHQLNRYPDGLEKCIGCELCAWACPADAIYVEGADNTADERYSPGERYGRVYQINYLRCIGCGLCIEACPTRALTMTTEYEMADDNRADLIWGKDKLLAPLQEGMQAPPHDMAPGKTDDDYYLGNVTPITPVPSGTEDAR

Entity 10 polymer

描述 description	NADH-quinone oxidoreductase subunit H
分子量 formula_weight	44477.3 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MTHPDPTLFGHDPWWLMLAKAVAIFVFLLLTVLSAILIERKLLGRMQMRFGPNRVGPAGLLQSLADGIKLALKEGLVPAGVDKPIYLLAPVISVIPAFVAFSVIPLGGAVSVFGHRTPLQLTDLPVAVLFILAATSIGVYGIVLAGWASGSTYPLLGGLRSSAQVVSYEIAMGLSFVAVFLYAGTMSTSGIVAAQDRTWFVFLLLPSFLVYVVSMVGETNRAPFDLPEAEGELVGGFHTEYSSLKFAMFMLAEYVNMTTVSALATTMFLGGWHAPFPFNLIDGANSGWWPLLWFTAKVWTFMFLYFWLRATLPRLRYDQFMALGWKVLIPVSLLWIMVVAITRSLRQHGEGTWAAWLLTAAVVVVVALIWGLATSLRRRTVQPPPPQSTGAYPVPPLPSVGTKETADA

Entity 11 polymer

描述 description	NADH-quinone oxidoreductase subunit J
分子量 formula_weight	26398.8 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MNSDLMLLAAEGARTSTSEAVVFWVVGTVALVGAIGVVAARKAVYSAVFLACTMISLAVLYIAQDAPFLGVVQIVVYTGAVMMLFLFVLMLIGVDLTESLVETIKGHRIAALIAGAGFGILVIAGIGNVSVAGFSGLAAANSGGNVEGLAALIFTRYLWAFELTSALLITAALGAMVLAHRERFERRKTQRELAIERFQTGGHPTPLPNPGVYARHNSVDVPARLPDGSESPLSVSTILPHRTVGSATNGKR

Entity 12 polymer

描述 description	NADH-quinone oxidoreductase subunit K
分子量 formula_weight	10876.9 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MNPDNYLYLSALLFTIGAAGVLLRRNAIVMFMCVELMLNAANLAFVNFSRMHGQLDGQVVAFFTMVVAACEVVVGLAIIMAIFRTRRSASVDDANLLKH

Entity 13 polymer

描述 description	NADH-quinone oxidoreductase, L subunit
分子量 formula_weight	65446.6 kDa
EC 编号 ec_number	1.6.99.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MITDWLPVWLLIALPAAGATILLLAGRRSDRWGHLLGCAMSLAAFAVGTVLFAGMLGRSGEERAVHEALFSWVPVGGLQVDFGLQLDQLSVCFVLLITGVGSLIHIYSIGYMAEDPDRRRFFAYLNLFLAAMLLLVLADNYLGLYAGWEGVGLASYLLIGFWSHKPSAATAAKKAFVVNRVGDMGLAIALMIMFATIGSISFAGVFAAAPGLSEATLSAIGLLLLLGACGKSAQVPLQSWLGDAMEGPTPVSALIHAATMVTAGVYLIVRSGPIFDLAPTAQTGVVIVGAVTLLFGAIIGCAKDDIKKALAASTMSQIGYMVLAAGLGPAGYAFAIMHLLTHGFFKAGLFLGAGSVMHAMNDEVNMRRYGGLRKVLPVTFATFGLGYLAIIGVPPLAGFFSKDGIIEAALGAGGARGVILGGAAILGAGITAFYMTRVMLMTFFGEKRWAANSHPHEAPAVMTWPMILLAVGSVVSGGALAIGGTLSHWLEPVVGTHEAHHAVPVWVVTAIVLAVVAVGIAVAYRMYARQAVPEEVPEGSALTVAARRDLYGDAFNEAVFMRGGQTLTAAMVTVDDKAVDGTAGGLAALVSRTSDALRQVQTGFARSYALSMLGGSALVVAAILAVQLW

Entity 14 polymer

描述 description	NADH-quinone oxidoreductase subunit N
分子量 formula_weight	54013.3 kDa
EC 编号 ec_number	7.1.1.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MITPSIEYGLLSPMLIVFGVAIAGVLIEALAPRQSRYPLQVTLALGGLIATVVAVVFVARGLSGTPGRPAVLGAVVLDAPAVFLQGTIALVGILGIMLIAERQKATVSAGEARGLEDFTPQASAVAGSVAEQLATKTGVMQTEVFPLTMFAIGGMLLFPAADDLLTMFVALEVLSLPLYLLCGLARRRRLLSQEAALKYFLLGAFSSAFFIYGAAMLYGSAGTLDLSGIAESVAAGSGNTSLALLGVALLLVGVLFKVGAVPFHSWIPDVYQGAPTSITAFMAAATKIAAFGAMLRIFYVAVPALRDDWRPVLWAIAILTMVVGTVTAVTQTDVKRMLAYSAVAHSGFILTGVIAANPAGVSSTLFYLFAYGFSTLGAFAVVGLIRNAAGDEETSMAQWAGLGRRYPIVGVVFSLFLLAFAGIPLTSGFVSKFAVFKAAGEGGAIPLVIIGVIASAVAAYFYVRVIVLMFFTEPPDDAPELVVPSGLSTAVVTVTAAVTFALGALPQPLLDLANSAETFLH

Entity 15 polymer

描述 description	NADH-quinone oxidoreductase, M subunit
分子量 formula_weight	56338.3 kDa
EC 编号 ec_number	1.6.99.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MVSTFPWLTVLWAVPVVGAAVVILLPAAQQVLAKWLALAVSVLTLAVTAVVAIGFDPAAAQYQFVESHRWIPSFGTGYILGVDGIALALVVLTAVLVPLLIIAGWNDASRQTGLAGRSVQAYLALTLAVEGMVLMSLVALDILLFYVFFEAMLIPMYFLIGGFGGENRSRAAVKFLLYNLFGGLIMLAAVIGLYVVTAGSDAFAAGTFDFREIVAAVSSGEFAVNPAIMNFLFLGFMFAFAVKAPLWPFHRWLPDAAVEATPASAVLMMAVMDKVGTFGMLRYCLQLFPDASTYFRPVVITLAAIGIVYGAVLAIGQTDVMRLIAYTSISHFGFIILGIFVMTSQGQSGSTLYMINHGISTAALFLIAGFLVSRRGSRLIDSYGGVQKVAPVLAGTFLVAGLATLSLPGLAPFISEFLVLIGTFTRYPVVAVFAATALVLSAVYILWTYQRMMTGPVRDGIGDGDRPVRDLVPRELVVVAPLLALLLVLGIYPKPALDVINPAVEHTLTTIGQTDPEPTVPPTIAEGAR

Entity 16 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 17 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 18 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 19 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 20 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 21 non-polymer

描述 description	MENAQUINONE-9
分子量 formula_weight	785.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 22 non-polymer

描述 description	;(2R)-3-{[(R)-hydroxy({(1S,2R,3R,4R,5S,6S)-3,4,5-trihydroxy-2-(alpha-D-mannopyranosyloxy)-6-[(6-O-undecanoyl-beta-D-mannopyranosyl)oxy]cyclohexyl}oxy)phosphoryl]oxy}-2-(octanoyloxy)propyl undecanoate ;
分子量 formula_weight	1121.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

结构域编号 domain_id	8e9iB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	12280 —

结构域编号 domain_id	8e9iD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	645 — Cytochrome-c3 Hydrogenase; chain B
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 Hydrogenase, chain B

结构域编号 domain_id	8e9iE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1590 — NADH-quinone oxidoreductase subunit E

结构域编号 domain_id	8e9iE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	8e9iF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	11540 — NADH-ubiquinone oxidoreductase 51kDa subunit

结构域编号 domain_id	8e9iG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	8e9iI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3270 —

结构域编号 domain_id	8e9iJ01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	1200 — NADH-ubiquinone/plastoquinone oxidoreductase chain 6, subunit NuoJ

结构域编号 domain_id	8e9iK01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	3510 —

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	14385

fit	/app/data/saxs_computation/e9/8e9i/8e9i.fit
pddf	/app/data/pr_computation/e9/8e9i/8e9i.pr.out
profile	/app/data/saxs_computation/e9/8e9i/8e9i.dat
