1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ee2
沉积日期 deposition_date	2022-09-06
结构标题 title	Crystal Structure of Nanobody VHH219 Bound to Its Antigen PA14 Cif
关键词 keywords	Pseudomonas aeruginosa, nanobody VHH, immunoglobulin domain, CFTR inhibitory factor (Cif), IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.33 Å
回转半径 Rg (电子) rg_electron	39.38 Å
零角强度 I(0) i0	1071260000.00
分子量 molecular_weight	269950.0 kDa
排除体积 excluded_volume	337340 Å³
包络体积 envelope_volume	425060 Å³
水化壳体积 shell_volume	83721 Å³
包络直径 envelope_diameter	132.0 Å
壳层 Rg shell_rg	49.30 Å
包络 Rg envelope_rg	39.12 Å
形状 Rg shape_rg	39.30 Å
总 Rg total_rg	40.11 Å
总原子数 total_atoms	19052
残基数 n_residues	2414
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.1 Å
Rg (实空间) rg_real	40.08 Å
Rg 误差 (实空间) rg_real_error	0.59 Å
I(0) (实空间) i0_real	1.0710e+09
I(0) 误差 (实空间) i0_real_error	1.7580e+07
Rg (倒空间) rg_reciprocal	40.33 Å
I(0) (倒空间) i0_reciprocal	1072000000.0000
解质量估计 total_estimate	0.8941
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	53.7 Å
偏度 Skewness skewness	0.054
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	144700000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.933

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	CFTR inhibitory factor
分子量 formula_weight	34164.7 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,E,F,I,J
原子数 atom_count	19194

AEEFPVPNGFESAYREVDGVKLHYVKGGQGPLVMLVHGFGQTWYEWHQLMPELAKRFTVIAPDLPGLGQSEPPKTGYSGEQVAVYLHKLARQFSPDRPFDLVAHDIGIWNTYPMVVKNQADIARLVYMEAPIPDARIYRFPAFTAQGESLVWHFSFFAADDRLAETLIAGKERFFLEHFIKSHASNTEVFSERLLDLYARSYAKPHSLNASFEYYRALNESVRQNAELAKTRLQMPTMTLAGGGHGGMGTFQLEQMKAYAEDVEGHVLPGCGHWLPEECAAPMNRLVIDFLSRGRHHHHHH

来源 Source

来源生物 organism	Pseudomonas aeruginosa PA14
NCBI 分类编号 ncbi_taxonomy_id	652611
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Nanobody VHH219
分子量 formula_weight	13629.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,G,H,K,L

MAEVQLVESGGGLVQPGGSLRLSCTTSTSLFSITTMGWYRQAPGKQRELVASIKRGGGTNYADSMKGRFTISRDNARNTVFLEMNNLTTEDTAVYYCNAAILAYTGEVTNYWGQGTQVTVSSGQAGQ

来源 Source

来源生物 organism	Vicugna pacos
NCBI 分类编号 ncbi_taxonomy_id	30538
宿主生物 host_organism	Escherichia coli BL21

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	108

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	8ee2A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2C01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8ee2D01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8ee2E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2G01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8ee2H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8ee2I01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2J01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

结构域编号 domain_id	8ee2K01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8ee2L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	76.204 Å
晶胞边长 b length_b	162.599 Å
晶胞边长 c length_c	106.255 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.36 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	43.750 Å
R 因子 r_factor	0.1967
R_work r_work	0.1951
R_free r_free	0.2274

fit	/app/data/saxs_computation/ee/8ee2/8ee2.fit
pddf	/app/data/pr_computation/ee/8ee2/8ee2.pr.out
profile	/app/data/saxs_computation/ee/8ee2/8ee2.dat

Crystal Structure of Nanobody VHH219 Bound to Its Antigen PA14 Cif

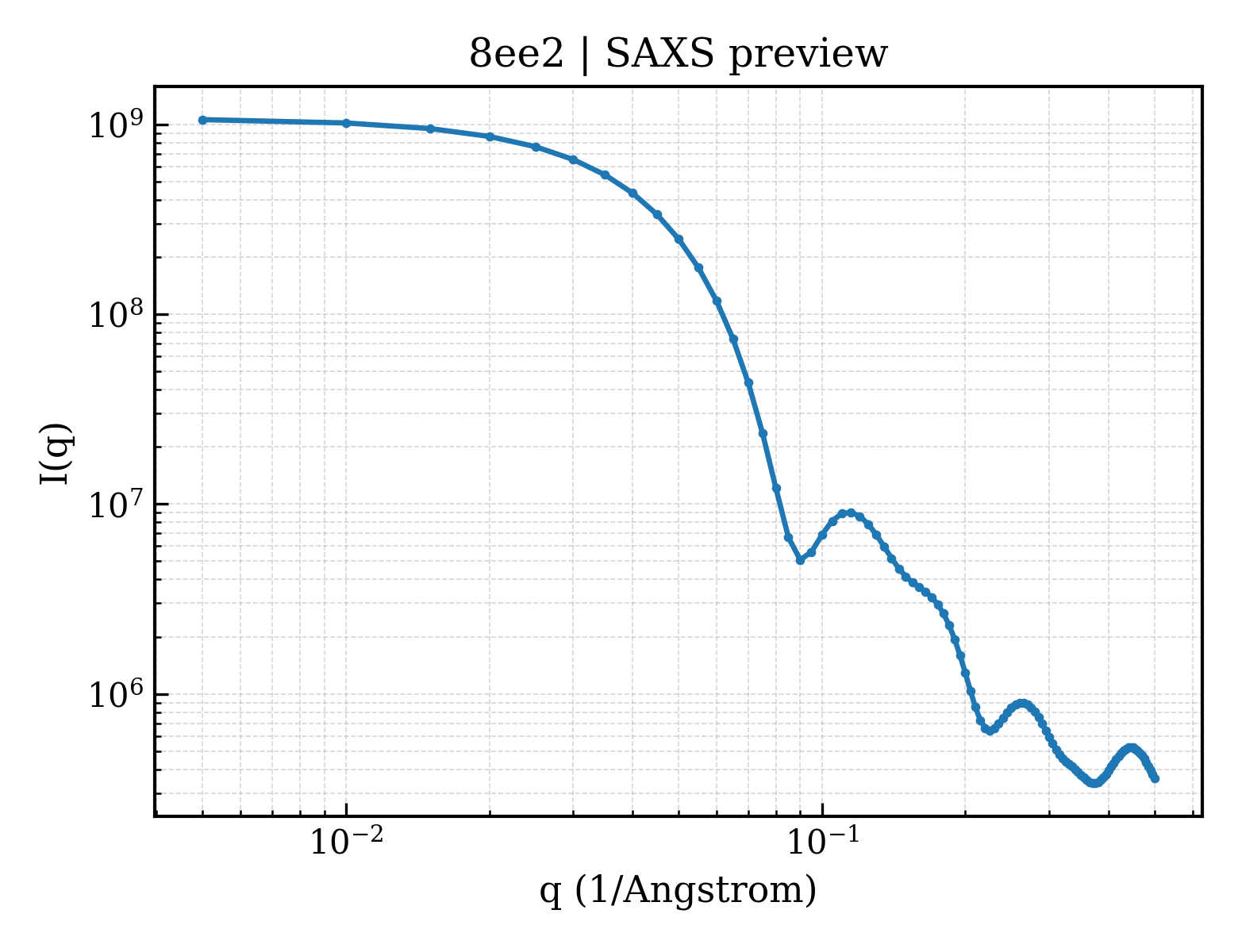

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
