8eeq

CryoEM structures of bAE1 captured in multiple states.

Method: ELECTRON MICROSCOPY D_max: 126.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

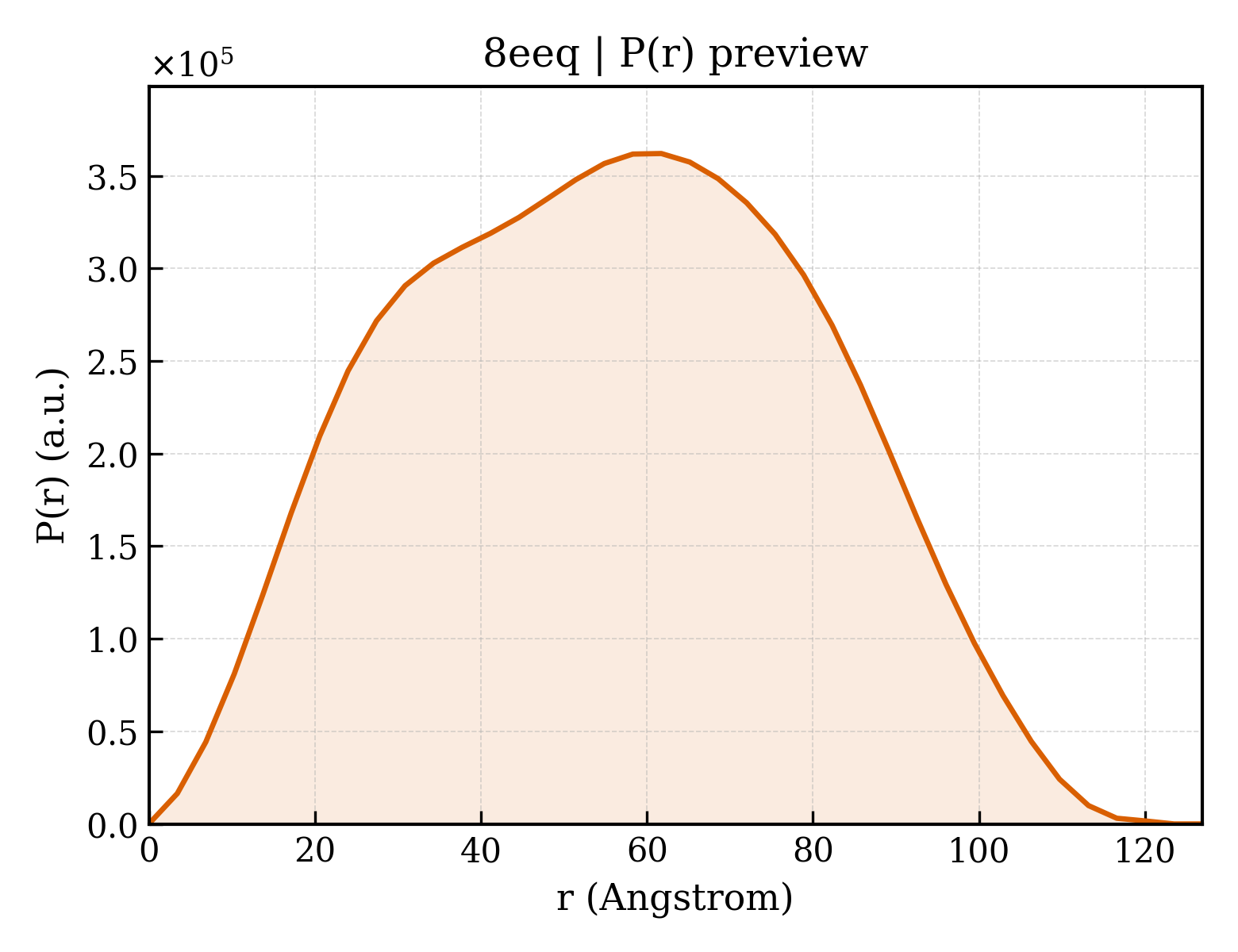

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8eeq

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8eeq
沉积日期 deposition_date	2022-09-07
结构标题 title	CryoEM structures of bAE1 captured in multiple states.
关键词 keywords	cryoEM, Band3, bAE1 (SLC4A1), anion exchanger, STRUCTURAL PROTEIN, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.06 Å
回转半径 Rg (电子) rg_electron	42.35 Å
零角强度 I(0) i0	318205000.00
分子量 molecular_weight	163020.0 kDa
排除体积 excluded_volume	211180 Å³
包络体积 envelope_volume	301420 Å³
水化壳体积 shell_volume	59312 Å³
包络直径 envelope_diameter	131.6 Å
壳层 Rg shell_rg	48.42 Å
包络 Rg envelope_rg	40.55 Å
形状 Rg shape_rg	42.35 Å
总 Rg total_rg	42.68 Å
总原子数 total_atoms	11516
残基数 n_residues	1446
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.9 Å
Rg (实空间) rg_real	42.89 Å
Rg 误差 (实空间) rg_real_error	0.97 Å
I(0) (实空间) i0_real	3.1820e+08
I(0) 误差 (实空间) i0_real_error	5.7080e+06
Rg (倒空间) rg_reciprocal	43.06 Å
I(0) (倒空间) i0_reciprocal	318300000.0000
解质量估计 total_estimate	0.8742
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	61.7 Å
偏度 Skewness skewness	0.035
峰度 Kurtosis kurtosis	-0.795
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42740000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.989; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.394

▶
