SAXSdb — 8eey

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8eey
沉积日期 deposition_date	2022-09-07
结构标题 title	Cas7-11 in complex with DR-mismatched target RNA, Csx29 and Csx30
关键词 keywords	CRISPR, endonuclease, endopeptidase, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.58 Å
回转半径 Rg (电子) rg_electron	52.40 Å
零角强度 I(0) i0	1431890000.00
分子量 molecular_weight	297820.0 kDa
排除体积 excluded_volume	365560 Å³
包络体积 envelope_volume	512710 Å³
水化壳体积 shell_volume	85488 Å³
包络直径 envelope_diameter	221.6 Å
壳层 Rg shell_rg	51.67 Å
包络 Rg envelope_rg	52.71 Å
形状 Rg shape_rg	52.46 Å
总 Rg total_rg	52.19 Å
总原子数 total_atoms	20886
残基数 n_residues	2459
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	201.9 Å
Rg (实空间) rg_real	52.03 Å
Rg 误差 (实空间) rg_real_error	2.99 Å
I(0) (实空间) i0_real	1.4320e+09
I(0) 误差 (实空间) i0_real_error	3.1990e+07
Rg (倒空间) rg_reciprocal	51.21 Å
I(0) (倒空间) i0_reciprocal	1430000000.0000
解质量估计 total_estimate	0.7512
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	52.1 Å
偏度 Skewness skewness	0.695
峰度 Kurtosis kurtosis	0.204
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	190400000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.455; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.552; Smooth: 0.846

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Csx30
分子量 formula_weight	62688.2 kDa
突变 mutation	;427-MKKDKKA-433 replaced with 427-GGS-429. A gap exists because low-resolution density in EM map permitted modeling of only a single residue of the insertion, G at position 427. ;
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E
原子数 atom_count	20886

MNTTTYNTTTDALLEWGKVYFQKEDFSEFLDNLEAYISDAGDSLKDELESGVEKLVLGIKSAEAVIFGEAVIGTTPENEAWYDAEESFLTLDCAVWLSQALDRVVRRQDASLADSLIARLDEAINRVAEKLYADNLSPLRFSSLNEIRRSALEATDEKYHYLFPWHGAACDVDENILLILTEEYHLIGADKAGANLSEELRGDLPFIFAELERDEVLRAYVEKENALSLALENTMREHWAFGLLEAARDEGYNHPYPADVGMRIHQVARAVFSQTNLSPAERLAVAIAGACFTPEISEDRRLEILLDCEERVCEIEAPTGDDTSVRVIKDLKALADHRVRHEIPAESLVSLWFEQIEAAGTDFDTKTPMDELVLRMLSDNVITLSVDRKAASQTETDDVKPQKGKIIPFPVPDIANDEVEYQKAVGGGSANDSKVKFPGLLEIQGCRDGDKAILLEDTDDAAANHRKLFSILKAGKLNSAFFIQSDDGEWVESESKPTMEDNRIILHDSHHSSFVWILDTGSMQLRQSVKCVKDALNKKTGSAKKLKPKTMIVWVTIPQEG

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Cas7-11
分子量 formula_weight	183845.0 kDa
突变 mutation	D429A,D654A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MTTTMKISIEFLEPFRMTKWQESTRRNKNNKEFVRGQAFARWHRNKKDNTKGRPYITGTLLRSAVIRSAENLLTLSDGKISEKTCCPGKFDTEDKDRLLQLRQRSTLRWTDKNPCPDNAETYCPFCELLGRSGNDGKKAEKKDWRFRIHFGNLSLPGKPDFDGPKAIGSQRVLNRVDFKSGKAHDFFKAYEVDHTRFPRFEGEITIDNKVSAEARKLLCDSLKFTDRLCGALCVIRFDEYTPAADSGKQTENVQAEPNANLAEKTAEQIISILDDNKKTEYTRLLADAIRSLRRSSKLVAGLPKDHDGKDDHYLWDIGKKKKDENSVTIRQILTTSADTKELKNAGKWREFCEKLGEALYLKSKDMSGGLKITRRILGDAEFHGKPDRLEKSRSVSIGSVLKETVVCGELVAKTPFFFGAIDEDAKQTALQVLLTPDNKYRLPRSAVRGILRRDLQTYFDSPCNAELGGRPCMCKTCRIMRGITVMDARSEYNAPPEIRHRTRINPFTGTVAEGALFNMEVAPEGIVFPFQLRYRGSEDGLPDALKTVLKWWAEGQAFMSGAASTGKGRFRMENAKYETLDLSDENQRNDYLKNWGWRDEKGLEELKKRLNSGLPEPGNYRDPKWHEINVSIEMASPFINGDPIRAAVDKRGTAVVTFVKYKAEGEEAKPVCAYKAESFRGVIRSAVARIHMEDGVPLTELTHSDCECLLCQIFGSEYEAGKIRFEDLVFESDPEPVTFDHVAIDRFTGGAADKKKFDDSPLPGSPARPLMLKGSFWIRRDVLEDEEYCKALGKALADVNNGLYPLGGKSAIGYGQVKSLGIKGDDKRISRLMNPAFDETDVAVPEKPKTDAEVRIEAEKVYYPHYFVEPHKKVEREEKPCGHQKFHEGRLTGKIRCKLITKTPLIVPDTSNDDFFRPADKEARKEKDEYHKSYAFFRLHKQIMIPGSELRGMVSSVYETVTNSCFRIFDETKRLSWRMDADHQNVLQDFLPGRVTADGKHIQKFSETARVPFYDKTQKHFDILDEQEIAGEKPVRMWVKRFIKRLSLVDPAKHPQKKQDNKWKRRKEGIATFIEQKNGSYYFNVVTNNGCTSFHLWHKPDNFDQEKLEGIQNGEKLDCWVRDSRYQKAFQEIPENDPDGWECKEGYLHVVGPSKVEFSDKKGDVINNFQGTLPSVPNDWKTIRTNDFKNRKRKNEPVFCCEDDKGNYYTMAKYCETFFFDLKENEEYEIPEKARIKYKELLRVYNNNPQAVPESVFQSRVARENVEKLKSGDLVYFKHNEKYVEDIVPVRISRTVDDRMIGKRMSADLRPCHGDWVEDGDLSALNAYPEKRLLLRHPKGLCPACRLFGTGSYKGRVRFGFASLENDPEWLIPGKNPGDPFHGGPVMLSLLERPRPTWSIPGSDNKFKVPGRKFYVHHHAWKTIKDGNHPTTGKAIEQSPNNRTVEALAGGNSFSFEIAFENLKEWELGLLIHSLQLEKGLAHKLGMAKSMGFGSVEIDVESVRLRKDWKQWRNGNSEIPNWLGKGFAKLKEWFRDELDFIENLKKLLWFPEGDQAPRVCYPMLRKKDDPNGNSGYEELKDGEFKKEDRQKKLTTPWTPWA

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Csx29
分子量 formula_weight	88311.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSNPIRDIQDRLKTAKFDNKDDMMNLASSLYKYEKQLMDSSEATLCQQGLSNRPNSFSQLSQFRDSDIQSKAGGQTGKFWQNEYEACKNFQTHKERRETLEQIIRFLQNGAEEKDADDLLLKTLARAYFHRGLLYRPKGFSVPARKVEAMKKAIAYCEIILDKNEEESEALRIWLYAAMELRRCGEEYPENFAEKLFYLANDGFISELYDIRLFLEYTEREEDNNFLDMILQENQDRERLFELCLYKARACFHLNQLNDVRIYGESAIDNAPGAFADPFWDELVEFIRMLRNKKSELWKEIAIKAWDKCREKEMKVGNNIYLSWYWARQRELYDLAFMAQDGIEKKTRIADSLKSRTTLRIQELNELRKDAHRKQNRRLEDKLDRIIEQENEARDGAYLRRNPPCFTGGKREEIPFARLPQNWIAVHFYLNELESHEGGKGGHALIYDPQKAEKDQWQDKSFDYKELHRKFLEWQENYILNEEGSADFLVTLCREIEKAMPFLFKSEVIPEDRPVLWIPHGFLHRLPLHAAMKSGNNSNIEIFWERHASRYLPAWHLFDPAPYSREESSTLLKNFEEYDFQNLENGEIEVYAPSSPKKVKEAIRENPAILLLLCHGEADMTNPFRSCLKLKNKDMTIFDLLTVEDVRLSGSRILLGACESDMVPPLEFSVDEHLSVSGAFLSHKAGEIVAGLWTVDSEKVDECYSYLVEEKDFLRNLQEWQMAETENFRSENDSSLFYKIAPFRIIGFPAE

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	crRNA
分子量 formula_weight	12134.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

UUGAUGUCACGGAACCUUUGUUGUCUUCGACAUGGGUA

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	DR-mismatched target RNA
分子量 formula_weight	8931.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	D

UACCCAUGUCGAAGACAACAAAGUAUUU

Entity 6 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.53 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	65733

fit	/app/data/saxs_computation/ee/8eey/8eey.fit
pddf	/app/data/pr_computation/ee/8eey/8eey.pr.out
profile	/app/data/saxs_computation/ee/8eey/8eey.dat

Cas7-11 in complex with DR-mismatched target RNA, Csx29 and Csx30

SAXS 散射曲线 SAXS Profile

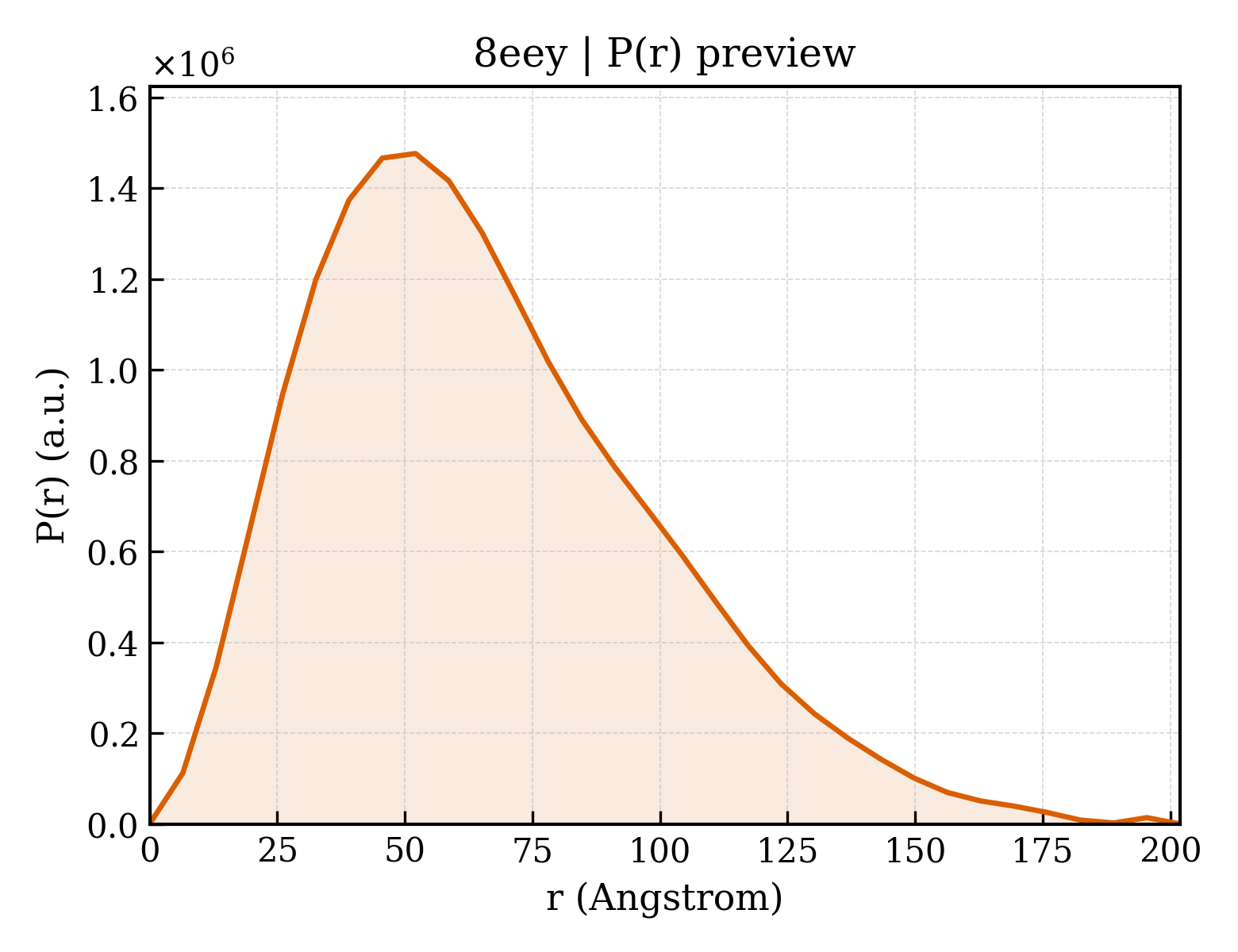

P(r) 距离分布 P(r) Distribution
