Light harvesting phycobiliprotein HaPE555 from the cryptophyte Hemiselmis andersenii CCMP644 in a loose interface filament

条目编号 entry_id	8el3
沉积日期 deposition_date	2022-09-23
结构标题 title	Light harvesting phycobiliprotein HaPE555 from the cryptophyte Hemiselmis andersenii CCMP644 in a loose interface filament
关键词 keywords	phycobiliprotein, antenna, light harvesting, cryptophyte, algae, globin, CALM, CaRSP, photosynthesis, phycoerythrin, Hemiselmis; PHOTOSYNTHESIS
实验方法 method	X-RAY DIFFRACTION

回转半径 Rg (Guinier) rg_guinier	35.13 Å
回转半径 Rg (电子) rg_electron	34.77 Å
零角强度 I(0) i0	179649000.00
分子量 molecular_weight	108300.0 kDa
排除体积 excluded_volume	135840 ų
包络体积 envelope_volume	171710 ų
水化壳体积 shell_volume	42039 ų
包络直径 envelope_diameter	119.5 Å
壳层 Rg shell_rg	40.26 Å
包络 Rg envelope_rg	34.28 Å
形状 Rg shape_rg	34.77 Å
总 Rg total_rg	35.17 Å
总原子数 total_atoms	15095
残基数 n_residues	944
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å−1
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/ų
壳层衬度 contrast_shell	0.0300 e/ų
CRYSOL 版本 crysol_version	4.1.3

最大尺寸 Dmax dmax	116.0 Å
Rg (实空间) rg_real	35.24 Å
Rg 误差 (实空间) rg_real_error	1.17 Å
I(0) (实空间) i0_real	1.7960e+08
I(0) 误差 (实空间) i0_real_error	3.1800e+06
Rg (倒空间) rg_reciprocal	35.17 Å
I(0) (倒空间) i0_reciprocal	179600000.0000
解质量估计 total_estimate	0.8790
解质量评级 solution_quality	GOOD a GOOD solution

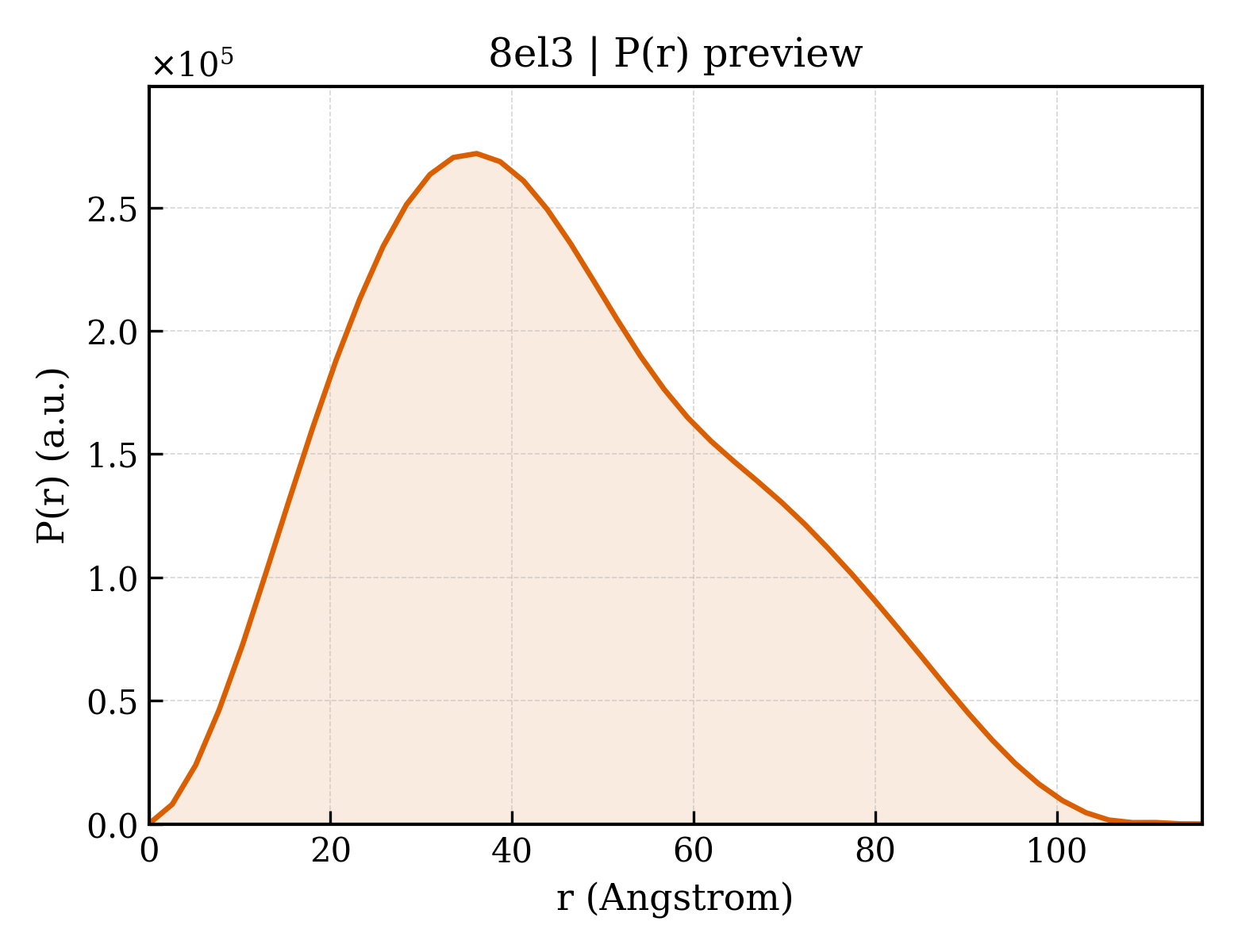

P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.399
峰度 Kurtosis kurtosis	-0.536
角度范围 angular_range	— – 0.2250 Å−1
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	26360000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.926

晶胞参数 Unit Cell

晶胞边长 a length_a	64.802 Å
晶胞边长 b length_b	76.840 Å
晶胞边长 c length_c	103.360 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.73 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

对称性 Symmetry

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

精修参数 Refinement

分辨率 resolution	1.570 Å
最低分辨率 resolution_low	48.330 Å
R 因子 r_factor	0.1706
R_work r_work	0.1701
R_free r_free	0.2010

衍射实验 Diffraction

实验温度 temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/el/8el3/pr_distribution.json
• pr_output /app/data/pr_computation/el/8el3/8el3.pr.out
• pr_plot /app/data/visualization/pr_computation/el/8el3/8el3_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/el/8el3/8el3.dat
• saxs_fit /app/data/saxs_computation/el/8el3/8el3.fit
• saxs_log /app/data/saxs_computation/el/8el3/8el3.log
• saxs_plot /app/data/visualization/saxs_computation/el/8el3/8el3_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/el/8el3/8el3.fit
pddf	/app/data/pr_computation/el/8el3/8el3.pr.out
profile	/app/data/saxs_computation/el/8el3/8el3.dat
