1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8emt
沉积日期 deposition_date	2022-09-28
结构标题 title	Cryo-EM analysis of the human aldehyde oxidase from liver
关键词 keywords	Aldehyde oxidase, AOX1, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.48 Å
回转半径 Rg (电子) rg_electron	46.79 Å
零角强度 I(0) i0	1118780000.00
分子量 molecular_weight	276740.0 kDa
排除体积 excluded_volume	346230 Å³
包络体积 envelope_volume	459200 Å³
水化壳体积 shell_volume	81460 Å³
包络直径 envelope_diameter	167.0 Å
壳层 Rg shell_rg	50.78 Å
包络 Rg envelope_rg	46.72 Å
形状 Rg shape_rg	46.84 Å
总 Rg total_rg	46.75 Å
总原子数 total_atoms	19332
残基数 n_residues	2475
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.2 Å
Rg (实空间) rg_real	46.70 Å
Rg 误差 (实空间) rg_real_error	1.44 Å
I(0) (实空间) i0_real	1.1190e+09
I(0) 误差 (实空间) i0_real_error	2.2870e+07
Rg (倒空间) rg_reciprocal	46.48 Å
I(0) (倒空间) i0_reciprocal	1118000000.0000
解质量估计 total_estimate	0.6464
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.1 Å
偏度 Skewness skewness	0.481
峰度 Kurtosis kurtosis	-0.304
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	281400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.768; Stabil: 1.000; Sysdev: 0.115; Positv: 1.000; Valcen: 0.995; Smooth: 0.757

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Aldehyde oxidase
分子量 formula_weight	148096.5 kDa
EC 编号 ec_number	1.2.3.1,1.17.3.-
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A
原子数 atom_count	19332

MDRASELLFYVNGRKVIEKNVDPETMLLPYLRKKLRLTGTKYGCGGGGCGACTVMISRYNPITKRIRHHPANACLIPICSLYGAAVTTVEGIGSTHTRIHPVQERIAKCHGTQCGFCTPGMVMSIYTLLRNHPEPTLDQLTDALGGNLCRCTGYRPIIDACKTFCKTSGCCQSKENGVCCLDQGINGLPEFEEGSKTSPKLFAEEEFLPLDPTQELIFPPELMIMAEKQSQRTRVFGSERMMWFSPVTLKELLEFKFKYPQAPVIMGNTSVGPEVKFKGVFHPVIISPDRIEELSVVNHAYNGLTLGAGLSLAQVKDILADVVQKLPEEKTQMYHALLKHLGTLAGSQIRNMASLGGHIISRHPDSDLNPILAVGNCTLNLLSKEGKRQIPLNEQFLSKCPNADLKPQEILVSVNIPYSRKWEFVSAFRQAQRQENALAIVNSGMRVFFGEGDGIIRELCISYGGVGPATICAKNSCQKLIGRHWNEQMLDIACRLILNEVSLLGSAPGGKVEFKRTLIISFLFKFYLEVSQILKKMDPVHYPSLADKYESALEDLHSKHHCSTLKYQNIGPKQHPEDPIGHPIMHLSGVKHATGEAIYCDDMPLVDQELFLTFVTSSRAHAKIVSIDLSEALSMPGVVDIMTAEHLSDVNSFCFFTEAEKFLATDKVFCVGQLVCAVLADSEVQAKRAAKRVKIVYQDLEPLILTIEESIQHNSSFKPERKLEYGNVDEAFKVVDQILEGEIHMGGQEHFYMETQSMLVVPKGEDQEMDVYVSTQFPKYIQDIVASTLKLPANKVMCHVRRVGGAFGGKVLKTGIIAAVTAFAANKHGRAVRCVLERGEDMLITGGRHPYLGKYKAGFMNDGRILALDMEHYSNAGASLDESLFVIEMGLLKMDNAYKFPNLRCRGWACRTNLPSNTAFRGFGFPQAALITESCITEVAAKCGLSPEKVRIINMYKEIDQTPYKQEINAKNLIQCWRECMAMSSYSLRKVAVEKFNAENYWKKKGLAMVPLKFPVGLGSRAAGQAAALVHIYLDGSVLVTHGGIEMGQGVHTKMIQVVSRELRMPMSNVHLRGTSTETVPNANISGGSVVADLNGLAVKDACQTLLKRLEPIISKNPKGTWKDWAQTAFDESINLSAVGYFRGYESDMNWEKGEGQPFEYFVYGAACSEVEIDCLTGDHKNIRTDIVMDVGCSINPAIDIGQIEGAFIQGMGLYTIEELNYSPQGILHTRGPDQYKIPAICDMPTELHIALLPPSQNSNTLYSSKGLGESGVFLGCSVFFAIHDAVSAARQERGLHGPLTLNSPLTPEKIRMACEDKFTKMIPRDEPGSYVPWNVPI

Entity 2 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	PHOSPHONIC ACIDMONO-(2-AMINO-5,6-DIMERCAPTO-4-OXO-3,7,8A,9,10,10A-HEXAHYDRO-4H-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-7-YLMETHYL)ESTER
分子量 formula_weight	395.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	DIOXOTHIOMOLYBDENUM(VI) ION
分子量 formula_weight	161.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.92 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	185973

fit	/app/data/saxs_computation/em/8emt/8emt.fit
pddf	/app/data/pr_computation/em/8emt/8emt.pr.out
profile	/app/data/saxs_computation/em/8emt/8emt.dat

Cryo-EM analysis of the human aldehyde oxidase from liver

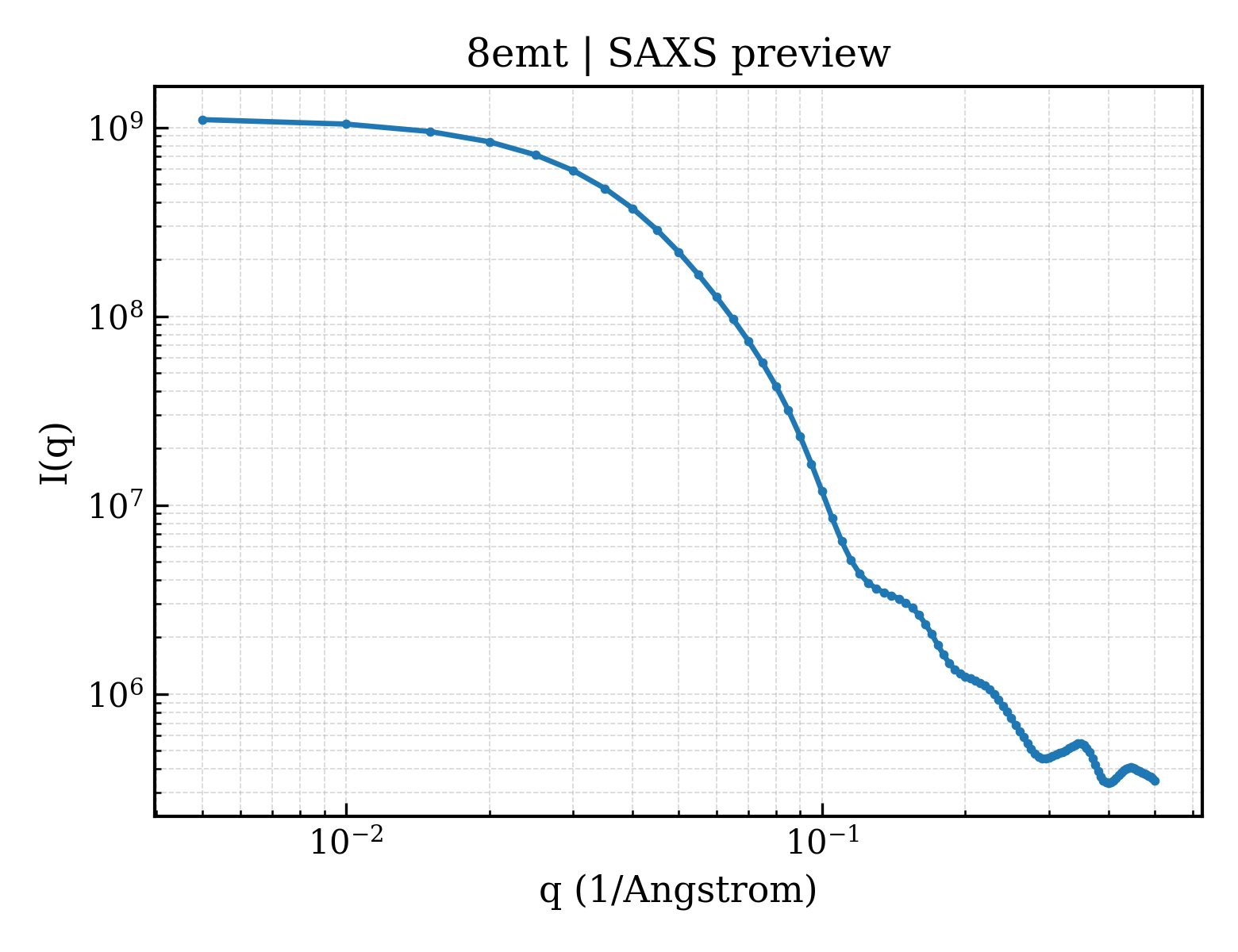

SAXS 散射曲线 SAXS Profile

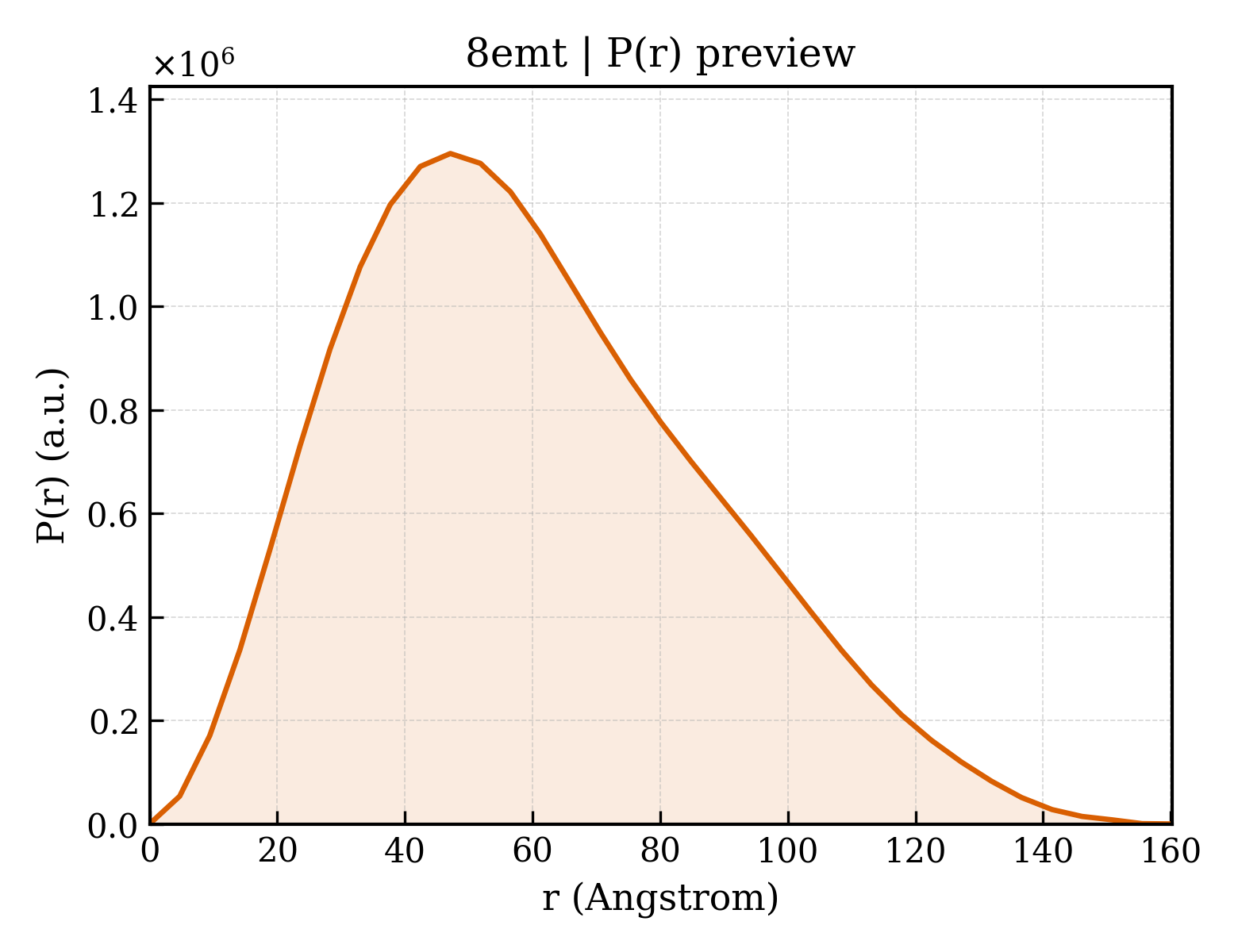

P(r) 距离分布 P(r) Distribution
