SAXSdb — 8eu4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pyruvate kinase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0A0G552_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–470； UniProt 73–542 Author chain B； PDBConstruct 1–470； UniProt 73–542 Author chain C； PDBConstruct 1–470； UniProt 73–542 Author chain D； PDBConstruct 1–470； UniProt 73–542 Author chain E； PDBConstruct 1–470； UniProt 73–542 Author chain F； PDBConstruct 1–470； UniProt 73–542 Author chain G； PDBConstruct 1–470； UniProt 73–542 Author chain H； PDBConstruct 1–470； UniProt 73–542

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eu4
Deposition date deposition_date	2022-10-18
Structure title title	Escherichia coli pyruvate kinase A301S
Keywords keywords	Pyruvate kinase, Long term evolution experiment, Kinase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eu4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eu4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

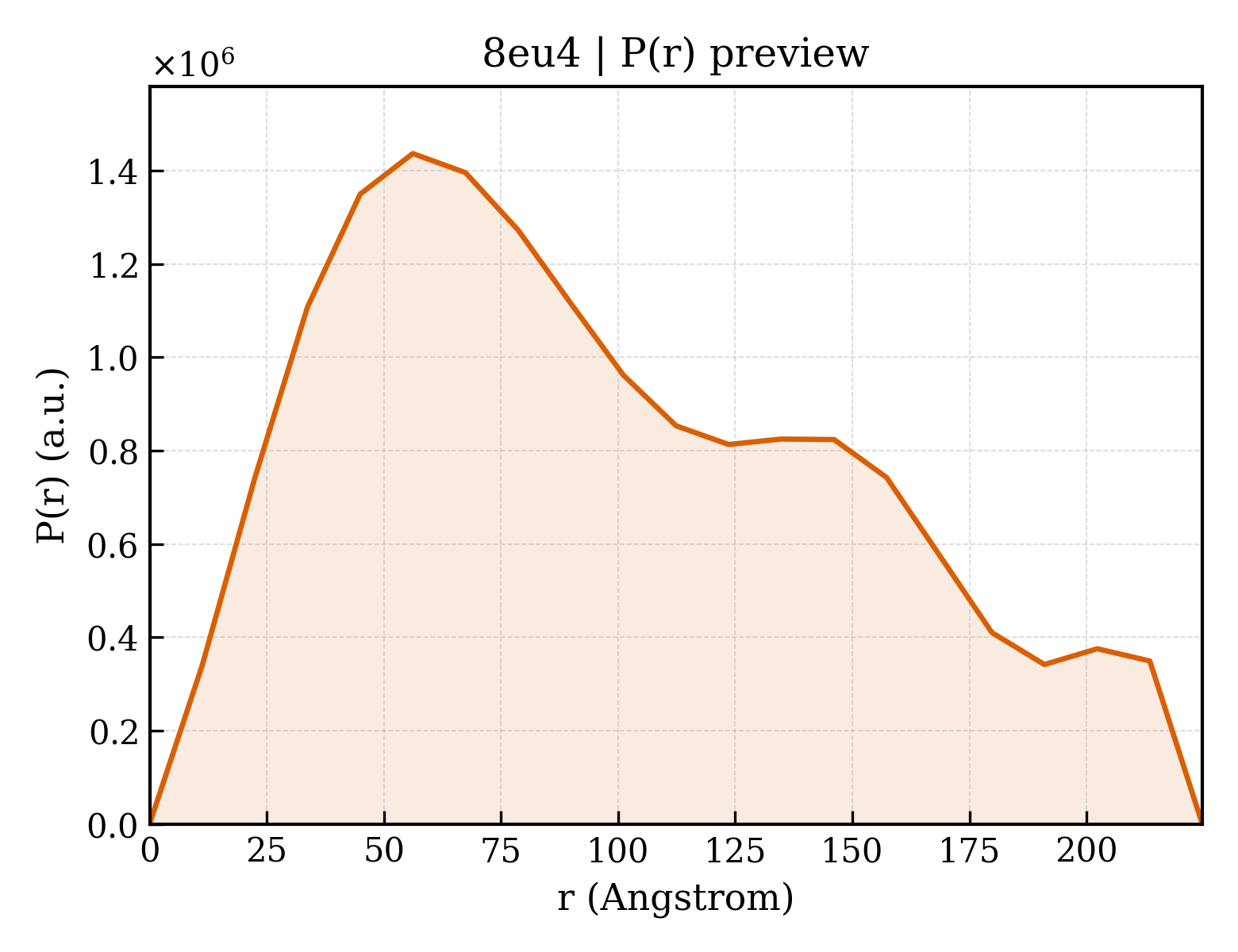

8eu4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.37 Å
Rg (electron density)	43.95 Å
Total Rg	44.17 Å
Atom count	28098
Residues	1848
Excluded volume	248470 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eu4__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8eu4__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Pyruvate kinase
Molecular weight formula_weight	50808.3 kDa
EC 编号 ec_number	2.7.1.40
Mutation mutation	A301S
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E,D,G,B,F,H,C
Atom count atom_count	57299

MKKTKIVCTIGPKTESEEMLAKMLDAGMNVMRLNFSHGDYAEHGQRIQNLRNVMSKTGKTAAILLDTKGPEIRTMKLEGGNDVSLKAGQTFTFTTDKSVIGNSEMVAVTYEGFTTDLSVGNTVLVDDGLIGMEVTAIEGNKVICKVLNNGDLGENKGVNLPGVSIALPALAEKDKQDLIFGCEQGVDFVAASFIRKRSDVIEIREHLKAHGGENIHIISKIENQEGLNNFDEILEASDGIMVARGDLGVEIPVEEVIFAQKMMIEKCIRARKVVITATQMLDSMIKNPRPTRAEAGDVANSILDGTDAVMLSGESAKGKYPLEAVSIMATICERTDRVMNSRLEFNNDNRKLRITEAVCRGAVETAEKLDAPLIVVATQGGKSARAVRKYFPDATILALTTNEKTAHQLVLSKGVVPQLVKEITSTDDFYRLGKELALQSGLAHKGDVVVMVSGALVPSGTTNTASVHVL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1066

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	8eu4A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4B01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4C01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4D01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4E01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4F01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4G01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	8eu4H01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

▶

Unit-cell length a length_a	129.334 Å
Unit-cell length b length_b	74.473 Å
Unit-cell length c length_c	240.826 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.04 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	48.170 Å
R factor r_factor	0.2037
R_work r_work	0.2020
R_free r_free	0.2236
