SAXSdb — 8ev9

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ev9
沉积日期 deposition_date	2022-10-20
结构标题 title	Cryo-EM structure of cGMP bound truncated human CNGA3/CNGB3 channel in lipid nanodisc, transition state 1
关键词 keywords	CNGA3, CNGB3, ligand-bound, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.19 Å
回转半径 Rg (电子) rg_electron	39.53 Å
零角强度 I(0) i0	567352000.00
分子量 molecular_weight	207520.0 kDa
排除体积 excluded_volume	264740 Å³
包络体积 envelope_volume	357120 Å³
水化壳体积 shell_volume	72727 Å³
包络直径 envelope_diameter	127.0 Å
壳层 Rg shell_rg	47.70 Å
包络 Rg envelope_rg	38.59 Å
形状 Rg shape_rg	39.51 Å
总 Rg total_rg	40.07 Å
总原子数 total_atoms	14645
残基数 n_residues	1778
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	115.5 Å
Rg (实空间) rg_real	39.97 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	5.6740e+08
I(0) 误差 (实空间) i0_real_error	9.4920e+06
Rg (倒空间) rg_reciprocal	40.18 Å
I(0) (倒空间) i0_reciprocal	567500000.0000
解质量估计 total_estimate	0.8348
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	53.3 Å
偏度 Skewness skewness	0.089
峰度 Kurtosis kurtosis	-0.488
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	43690000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Cyclic nucleotide-gated cation channel alpha-3
分子量 formula_weight	63402.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	14661

MDYKDDDDKKTKKKDAIVVDPSSNLYYRWLTAIALPVFYNWYLLICRACFDELQSEYLMLWLVLDYSADVLYVLDVLVRARTGFLEQGLMVSDTNRLWQHYKTTTQFKLDVLSLVPTDLAYLKVGTNYPEVRFNRLLKFSRLFEFFDRTETRTNYPNMFRIGNLVLYILIIIHWNACIYFAISKFIGFGTDSWVYPNISIPEHGRLSRKYIYSLYWSTLTLTTIGETPPPVKDEEYLFVVVDFLVGVLIFATIVGNVGSMISNMNASRAEFQAKIDSIKQYMQFRKVTKDLETRVIRWFDYLWANKKTVDEKEVLKSLPDKLKAEIAINVHLDTLKKVRIFQDCEAGLLVELVLKLRPTVFSPGDYICKKGDIGKEMYIINEGKLAVVADDGVTQFVVLSDGSYFGEISILNIKGSKSGNRRTANIRSIGYSDLFCLSKDDLMEALTEYPEAKKALEEKGRQILMKDNLIDEELARAGADPKDLEEKVEQLGSSLDTLQTRFARLLAEYNATQMKMKQRLSQLESQVKGGGDKPLADGEVPGDATKTEDKQQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Cyclic nucleotide-gated cation channel beta-3
分子量 formula_weight	84637.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MDYKDDDDKSGDLTTNPDPQNAAEPTGTVPEQKEMDPGKEGPNSPQNKPPAAPVINEYADAQLHNLVKRMRQRTALYKKKLVEGDLSSPEASPQTAKPTAVPPVKESDDKPTEHYYRLLWFKVKKMPLTEYLKRIKLPNSIDSYTDRLYLLWLLLVTLAYNWNCCFIPLRLVFPYQTADNIHYWLIADIICDIIYLYDMLFIQPRLQFVRGGDIIVDSNELRKHYRTSTKFQLDVASIIPFDICYLFFGFNPMFRANRMLKYTSFFEFNHHLESIMDKAYIYRVIRTTGYLLFILHINACVYYWASNYEGIGTTRWVYDGEGNEYLRCYYWAVRTLITIGGLPEPQTLFEIVFQLLNFFSGVFVFSSLIGQMRDVIGAATANQNYFRACMDDTIAYMNNYSIPKLVQKRVRTWYEYTWDSQRMLDESDLLKTLPTTVQLALAIDVNFSIISKVDLFKGCDTQMIYDMLLRLKSVLYLPGDFVCKKGEIGKEMYIIKHGEVQVLGGPDGTKVLVTLKAGSVFGEISLLAAGGGNRRTANVVAHGFANLLTLDKKTLQEILVHYPDSERILMKKARVLLKQKAKTAEATPPRKDLALLFPPKEETPKLFKTLLGGTGKASLARLLKLKREQAAQKKENSEGGEEEGKENEDKQKENEDKQKENEDKGKENEDKDKGREPEEKPLDRPECTASPIAVEEEPHSVRRTVLPRGTSRQSLIISMAPSAEGGEEVLTIEVKEKAKQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	CYCLIC GUANOSINE MONOPHOSPHATE
分子量 formula_weight	345.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

结构域编号 domain_id	8ev9A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

结构域编号 domain_id	8ev9B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

结构域编号 domain_id	8ev9C01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.33 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	304034

fit	/app/data/saxs_computation/ev/8ev9/8ev9.fit
pddf	/app/data/pr_computation/ev/8ev9/8ev9.pr.out
profile	/app/data/saxs_computation/ev/8ev9/8ev9.dat

Cryo-EM structure of cGMP bound truncated human CNGA3/CNGB3 channel in lipid nanodisc, transition state 1

SAXS 散射曲线 SAXS Profile

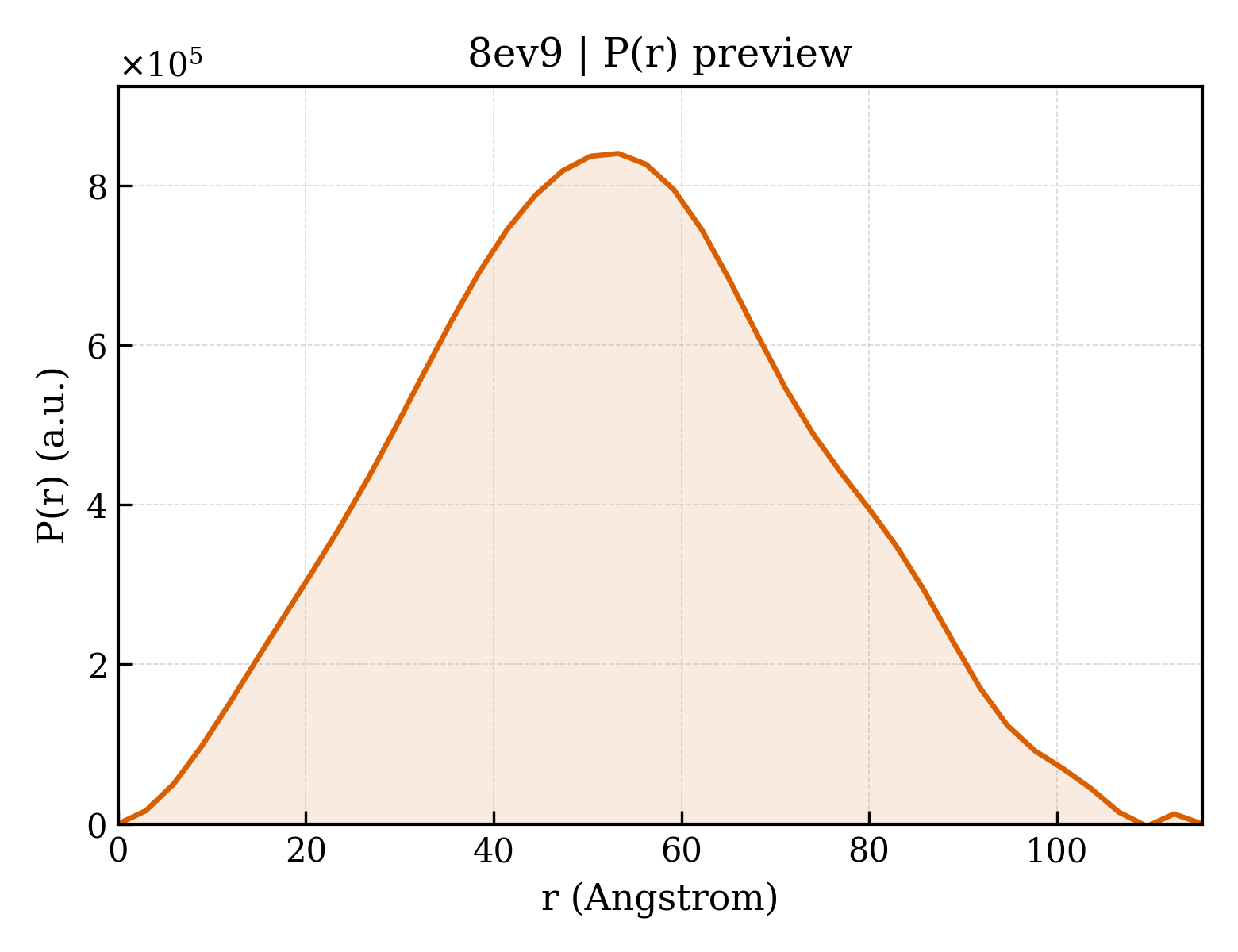

P(r) 距离分布 P(r) Distribution
