1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8f3d
沉积日期 deposition_date	2022-11-09
结构标题 title	3-methylcrotonyl-CoA carboxylase in filament, beta-subunit centered
关键词 keywords	enzyme, multienzyme, multi-enzyme, biotin-dependent, leucine catabolism, PROTEIN FIBRIL, LIGASE; LIGASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.36 Å
回转半径 Rg (电子) rg_electron	69.60 Å
零角强度 I(0) i0	9536380000.00
分子量 molecular_weight	822550.0 kDa
排除体积 excluded_volume	1028100 Å³
包络体积 envelope_volume	1649200 Å³
水化壳体积 shell_volume	195130 Å³
包络直径 envelope_diameter	247.5 Å
壳层 Rg shell_rg	73.07 Å
包络 Rg envelope_rg	69.11 Å
形状 Rg shape_rg	69.60 Å
总 Rg total_rg	69.63 Å
总原子数 total_atoms	57846
残基数 n_residues	7464
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	259.5 Å
Rg (实空间) rg_real	73.34 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	9.6170e+09
I(0) 误差 (实空间) i0_real_error	1.5970e+08
Rg (倒空间) rg_reciprocal	68.83 Å
I(0) (倒空间) i0_reciprocal	9524000000.0000
解质量估计 total_estimate	0.8289
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	79.0 Å
偏度 Skewness skewness	0.717
峰度 Kurtosis kurtosis	0.314
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.9130
最高正则化参数 α highest_alpha	1000000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.564; Stabil: 0.862; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.534

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	3-methylcrotonyl-CoA carboxylase beta-subunit
分子量 formula_weight	76468.5 kDa
EC 编号 ec_number	6.4.1.4
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	57846

MDKTHVLRNTTRGMFRTSMMRVLGRPGSLSVTASAGGTACVPMAALLRRSATPAAASATAASAMSALWCTRCFESSSAGSPPKVSDAGMKERSTQEPCVAATPTPSDTAATLAAAATPAPAAPIKSKGVDYARLYAHHPIDYERSTSKSPNILRLPANTSDPTYQENMARMEGLVEQLRARVRYVQAGGVVPEEEAAKAGVSISSIEADDRVRKLHLSRGKMLARDRIERLIDPGTRFLELSQLAGWDLYWDDKKKEYERCYSGGIVTGIGLVNGVRCMLVANDATVKGGTYYPITVKKHLRAQKIAEQNHLPCIYLVDSGGANLSRQDDVFPDEQHFGRIFYNEAQMSIKSISQIAVVMGSCTAGGAYVPAMADENIIVARNGTIFLGGPPLVLAATGEKVSSEELGGADVHCRISGVGDHYATDDLHALYLARRAVANLNLKEHNEARNPTDVKPVPPLYDPRELGGFIPDMLSDVVKSFDVRAIIARIVDGSRFDEFKALYGNTLVCGFARIEGMQVGIIANQGILYSESALKGAHFIGLCTQRNVPLLFLQNITGFMVGKKYEEGGIARNGARLVMAVSSAPVPKVTVLIGGSYGAGNYGMCGRAFEPRFLFMWPNARISVMGGTQAATVLTLTNRNLKNASEAEIAAFKDKVKKKYEKEGSCYYSTARLWDDGVIAPEDTRVVVAEALRATRLAPMEKRERV

Entity 2 polymer

描述 description	3-methylcrotonyl-CoA carboxylase alpha-subunit
分子量 formula_weight	76283.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,M

MLRYTGLWRERKVEKLLVANRGEIACRVFRTCREMHIRTVALFCEAERNAKHVAEADEAVCIGPPPAVNSYLRGEHIISVAKQLNVDAIHPGYGFLSENASFADAITRSGIEFIGPPASAISLMGSKSESKRIMEAAGVPVVPGYYGENQNVSFLAEEAKKVGFPILIKAVSGGGGKGMKIVERPEDFTFMLESAKREATNFFKDDRVILERYVKRSRHIECQIFFDKHGRGVFFFERDCSVQRRYQKVLEEAPAPHLSMETRQRIGEVALQAAKAVGYVGAGTVEFIFDTSTGEFYFMEMNTRLQVEHPVTEEVCRIKGAPLDLVKLQIKTAMGKPLTFSQEDVTLVGSCIEARVYAESPERGFLPESGPLTFIREPFQGVRGPARTRLDTGFREGDNVLIHYDPMLAKVISWGRSREEALRGLRQALGEYKVAGINTNIEFLKRCCETPEFARGGVTTNFISEHESQLLKSPVVTPEVAAMAATAWLLNRCDNWRGAFRLNSDTNATVHFYIDDHPVEVRLHTEGANYHKIFFSVWDHDGSFEVCSGPVTSKHRDQKSIVNDFTFLFENGMHHTVLAVATEGDVTVIGSFGLHQLRLLPLTDGFGDSSTAGGTSTKIVSPMPGKVSKLLVKSGDLVEKGQVLVIVEAMKMEHPVRALQDGRVSFLVKEGEVVGGDHVLATVAEEE

Entity 3 non-polymer

描述 description	5-(HEXAHYDRO-2-OXO-1H-THIENO[3,4-D]IMIDAZOL-6-YL)PENTANAL
分子量 formula_weight	228.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	8f3dH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

结构域编号 domain_id	8f3dI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

结构域编号 domain_id	8f3dJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

结构域编号 domain_id	8f3dK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

结构域编号 domain_id	8f3dL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

结构域编号 domain_id	8f3dM01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	20 — ATP-grasp fold, B domain

▶

7. 引用文献 (2)

▶

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	13250

fit	/app/data/saxs_computation/f3/8f3d/8f3d.fit
pddf	/app/data/pr_computation/f3/8f3d/8f3d.pr.out
profile	/app/data/saxs_computation/f3/8f3d/8f3d.dat

3-methylcrotonyl-CoA carboxylase in filament, beta-subunit centered

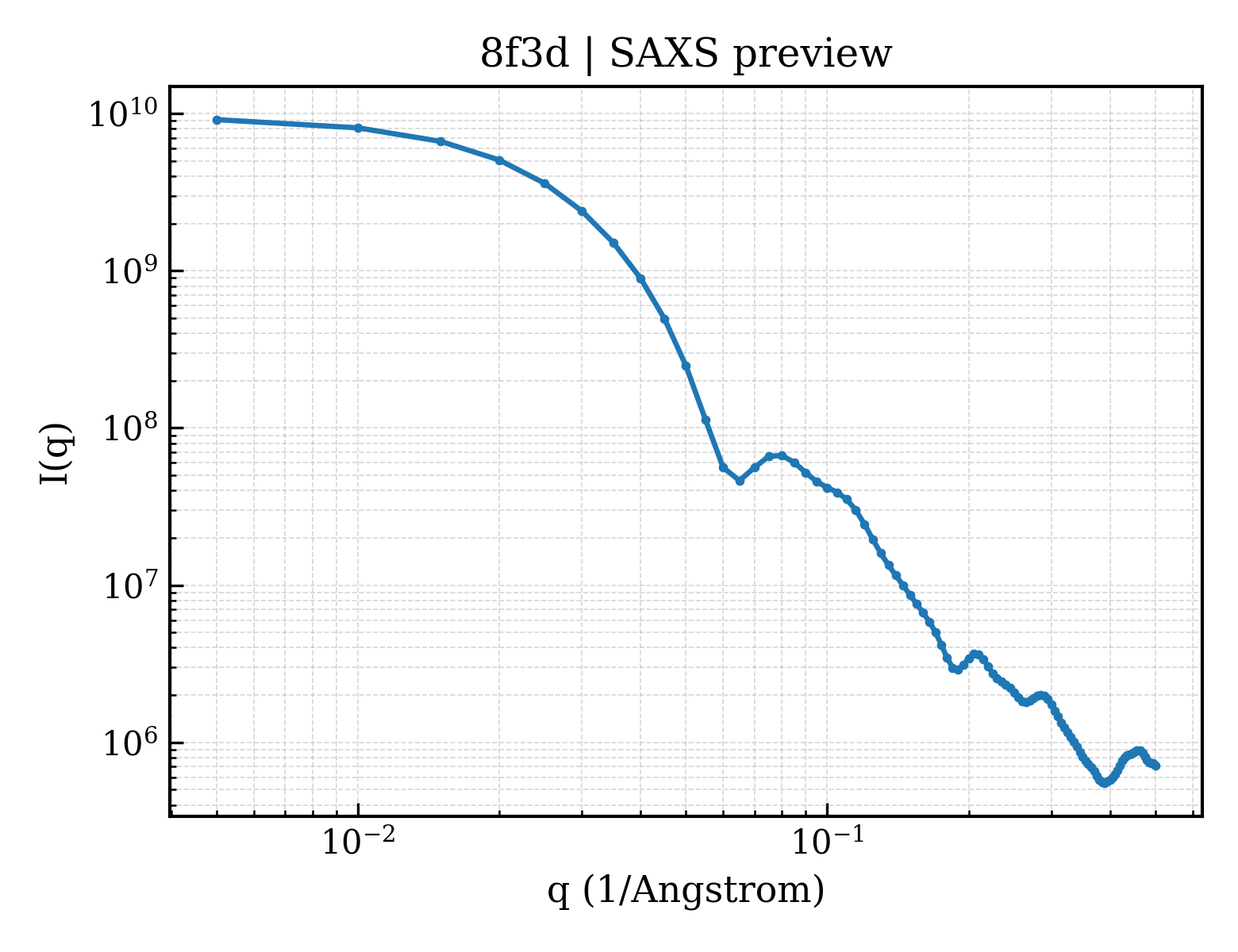

SAXS 散射曲线 SAXS Profile

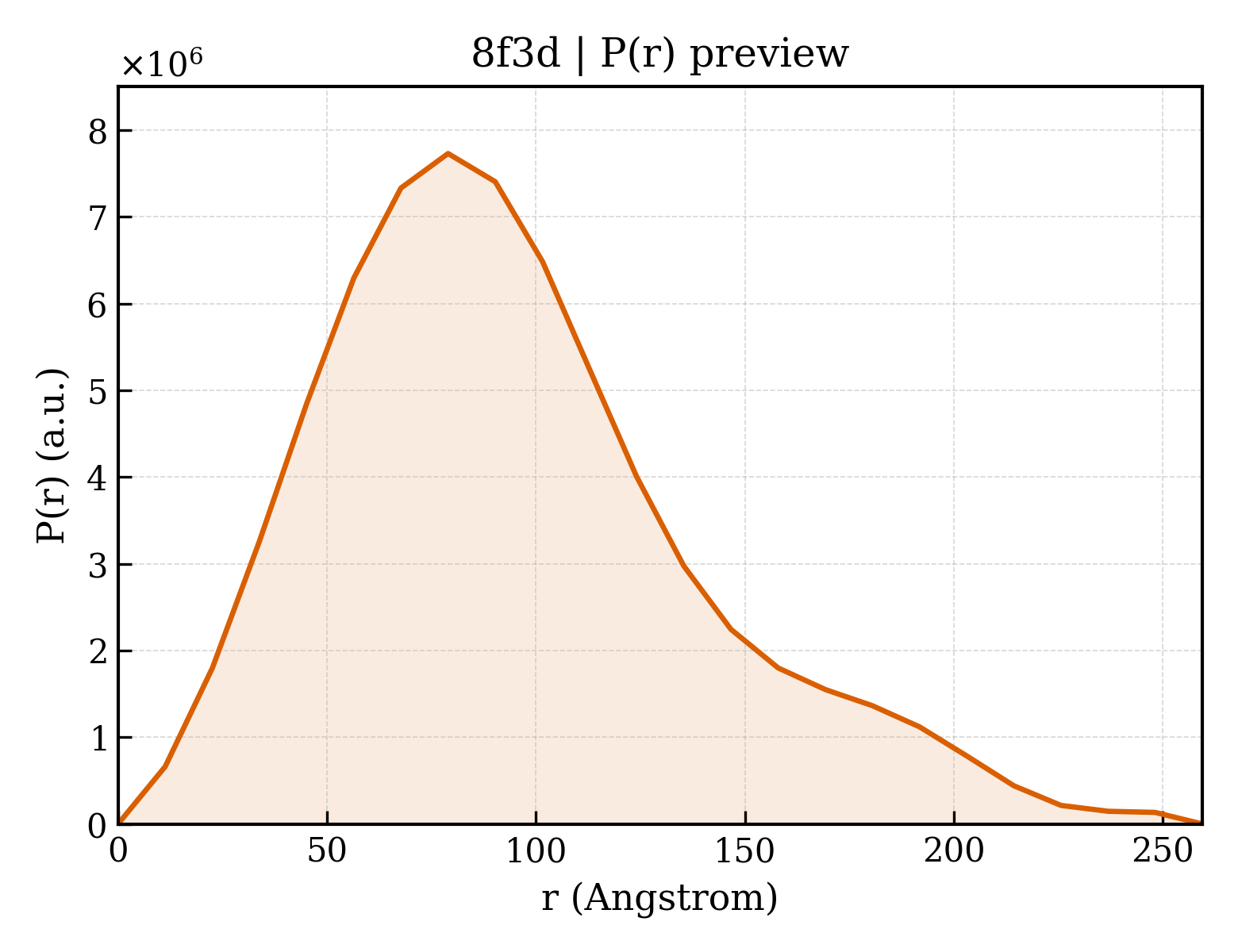

P(r) 距离分布 P(r) Distribution
