SAXSdb — 8f6h

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8f6h
沉积日期 deposition_date	2022-11-16
结构标题 title	Cryo-EM structure of a Zinc-loaded asymmetrical TMD D70A mutant of the YiiP-Fab complex
关键词 keywords	Zinc transporter, cation diffusion facilitator, membrane protein, transport protein; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.24 Å
回转半径 Rg (电子) rg_electron	49.35 Å
零角强度 I(0) i0	310937000.00
分子量 molecular_weight	147930.0 kDa
排除体积 excluded_volume	186250 Å³
包络体积 envelope_volume	270440 Å³
水化壳体积 shell_volume	49725 Å³
包络直径 envelope_diameter	156.3 Å
壳层 Rg shell_rg	46.64 Å
包络 Rg envelope_rg	49.17 Å
形状 Rg shape_rg	49.35 Å
总 Rg total_rg	49.21 Å
总原子数 total_atoms	20768
残基数 n_residues	1358
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	144.7 Å
Rg (实空间) rg_real	48.42 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	3.1090e+08
I(0) 误差 (实空间) i0_real_error	6.5410e+06
Rg (倒空间) rg_reciprocal	48.24 Å
I(0) (倒空间) i0_reciprocal	310900000.0000
解质量估计 total_estimate	0.6134
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	35.1 Å
偏度 Skewness skewness	0.224
峰度 Kurtosis kurtosis	-0.813
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16600000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.978; Stabil: 1.000; Sysdev: 0.044; Positv: 1.000; Valcen: 0.903; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Cadmium and zinc efflux pump FieF
分子量 formula_weight	32441.2 kDa
突变 mutation	D70A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	20768

MTQTSQYDFWVKLASRASVATALTLITIKLLAWLYSGSASMLASLTDSFADTLASIINFIAIRYAIVPAAHDHRYGHGKAEPLAALAQSAFIMGSAFLLLFYGGERLLNPSPVENATLGVVVSVVAIVLTLALVLLQKRALAATNSTVVEADSLHYKSDLFLNAAVLLALVLSQYGWWWADGLFAVLIACYIGQQAFDLGYRSIQALLDRELDEDTRQRIKLIAKEDPRVLGLHDLRTRQAGKTVFIQFHLELDGNLSLNEAHSITDTTGLRVKAAFEDAEVIIHQDPVQVEPTTQ

来源 Source

来源生物 organism	Shewanella oneidensis MR-1
NCBI 分类编号 ncbi_taxonomy_id	211586
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Fab2r light chain
分子量 formula_weight	23580.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQIWSWPLITFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Fab2r heavy chain
分子量 formula_weight	25406.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,F

EISEVQLVESGGGLVQPGGSLRLSCAASGFTIYSSSIHWVRQAPGKGLEWVASIYSSSGSTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARQSYSGLSPRRHWSYGAMDYWGQGTLVTVFNQIKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	8f6hA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1510 — Alpha-lytic protease prodomain-like
同源超家族 H-superfamily homologous superfamily	10 — Cation efflux protein transmembrane domain

结构域编号 domain_id	8f6hA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1350 — Cation efflux protein, cytoplasmic domain

结构域编号 domain_id	8f6hB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1510 — Alpha-lytic protease prodomain-like
同源超家族 H-superfamily homologous superfamily	10 — Cation efflux protein transmembrane domain

结构域编号 domain_id	8f6hB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1350 — Cation efflux protein, cytoplasmic domain

结构域编号 domain_id	8f6hC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hE02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8f6hF02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	188414

fit	/app/data/saxs_computation/f6/8f6h/8f6h.fit
pddf	/app/data/pr_computation/f6/8f6h/8f6h.pr.out
profile	/app/data/saxs_computation/f6/8f6h/8f6h.dat

Cryo-EM structure of a Zinc-loaded asymmetrical TMD D70A mutant of the YiiP-Fab complex

SAXS 散射曲线 SAXS Profile

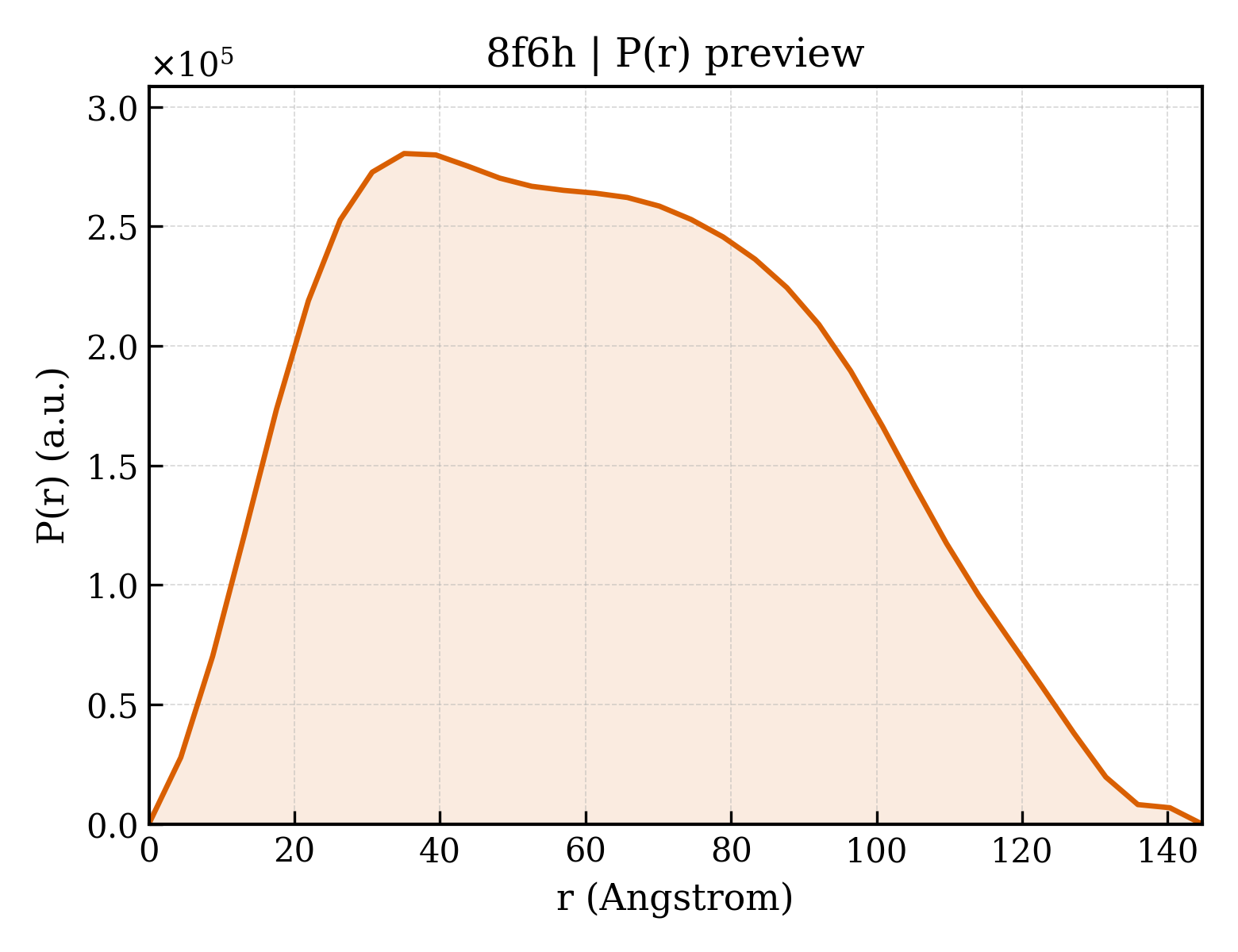

P(r) 距离分布 P(r) Distribution
