8f8o

;Crystal Structure of the Succinyl-diaminopimelate Desuccinylase (DapE) from Acinetobacter baumannii in complex with Succinic and L-Lactic Acids ;

Method: X-RAY DIFFRACTION Dmax: 113.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

SAXS profile for 8f8o

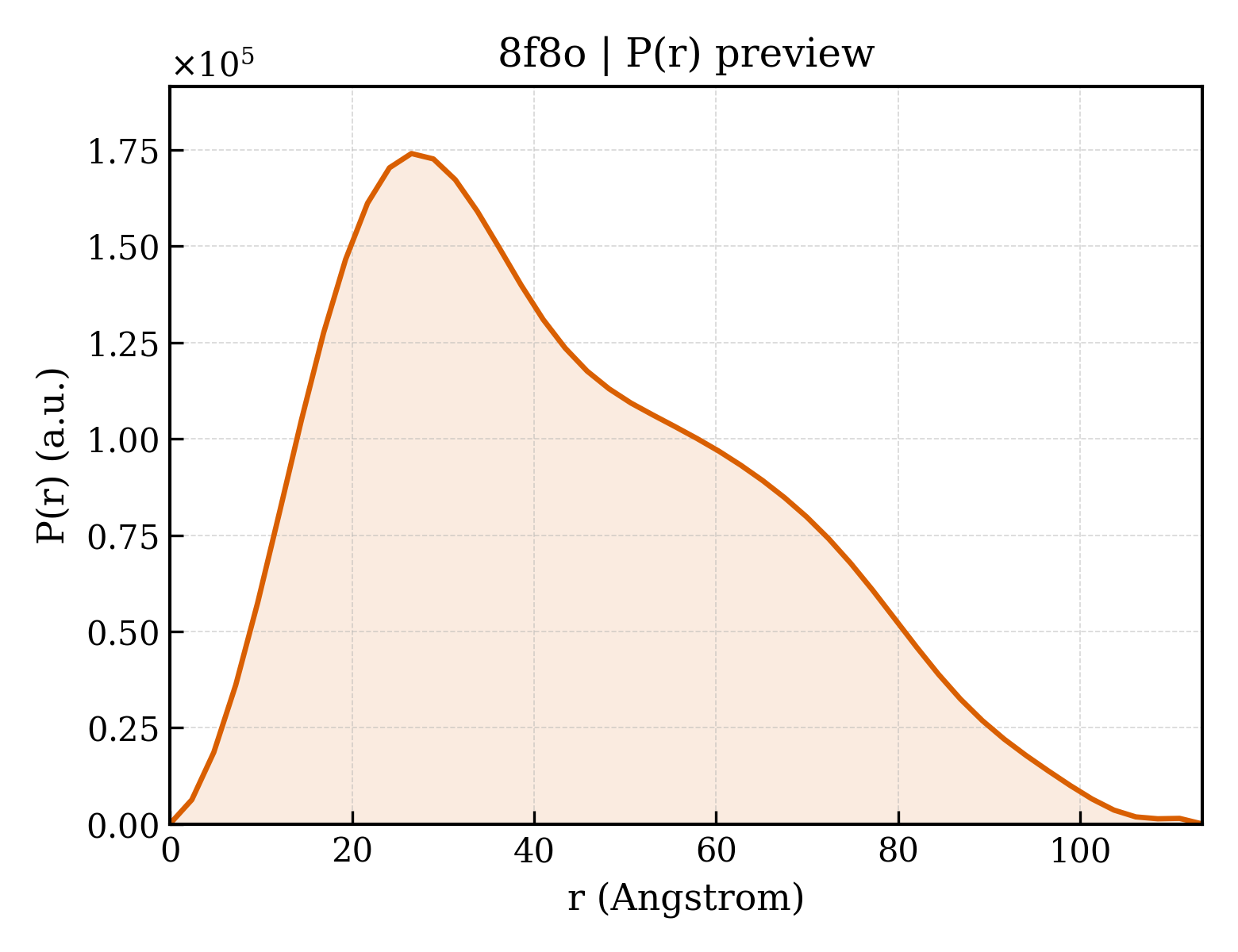

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8f8o
下载 Download
▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id8f8o
沉积日期 deposition_date2022-11-22
结构标题 title;Crystal Structure of the Succinyl-diaminopimelate Desuccinylase (DapE) from Acinetobacter baumannii in complex with Succinic and L-Lactic Acids ;
关键词 keywords;Center for Structural Biology of Infectious Diseases (CSBID), DapE, Succinate, L-Lactate, Structural Genomics, Center for Structural Genomics of Infectious Diseases, CSGID, HYDROLASE ;; HYDROLASE
实验方法 methodX-RAY DIFFRACTION
▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier33.87 Å
回转半径 Rg (电子) rg_electron33.94 Å
零角强度 I(0) i0112108000.00
分子量 molecular_weight83155.0 kDa
排除体积 excluded_volume103130 ų
包络体积 envelope_volume125000 ų
水化壳体积 shell_volume32243 ų
包络直径 envelope_diameter121.8 Å
壳层 Rg shell_rg38.55 Å
包络 Rg envelope_rg33.66 Å
形状 Rg shape_rg33.95 Å
总 Rg total_rg34.26 Å
总原子数 total_atoms5821
残基数 n_residues742
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 Å−1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3
▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax113.4 Å
Rg (实空间) rg_real34.16 Å
Rg 误差 (实空间) rg_real_error0.96 Å
I(0) (实空间) i0_real1.1210e+08
I(0) 误差 (实空间) i0_real_error1.8850e+06
Rg (倒空间) rg_reciprocal33.98 Å
I(0) (倒空间) i0_reciprocal112100000.0000
解质量估计 total_estimate0.7878
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary26.5 Å
偏度 Skewness skewness0.483
峰度 Kurtosis kurtosis-0.572
角度范围 angular_range— – 0.2350 Å−1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha48190000.0000
实空间数据点数 n_real_points48
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.658; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.526; Smooth: 0.736
▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
