8fda

Human Cytochrome P450 17A1 in complex with steroidal isonitrile inhibitor

Method: X-RAY DIFFRACTION D_max: 119.4 Å Quality: GOOD

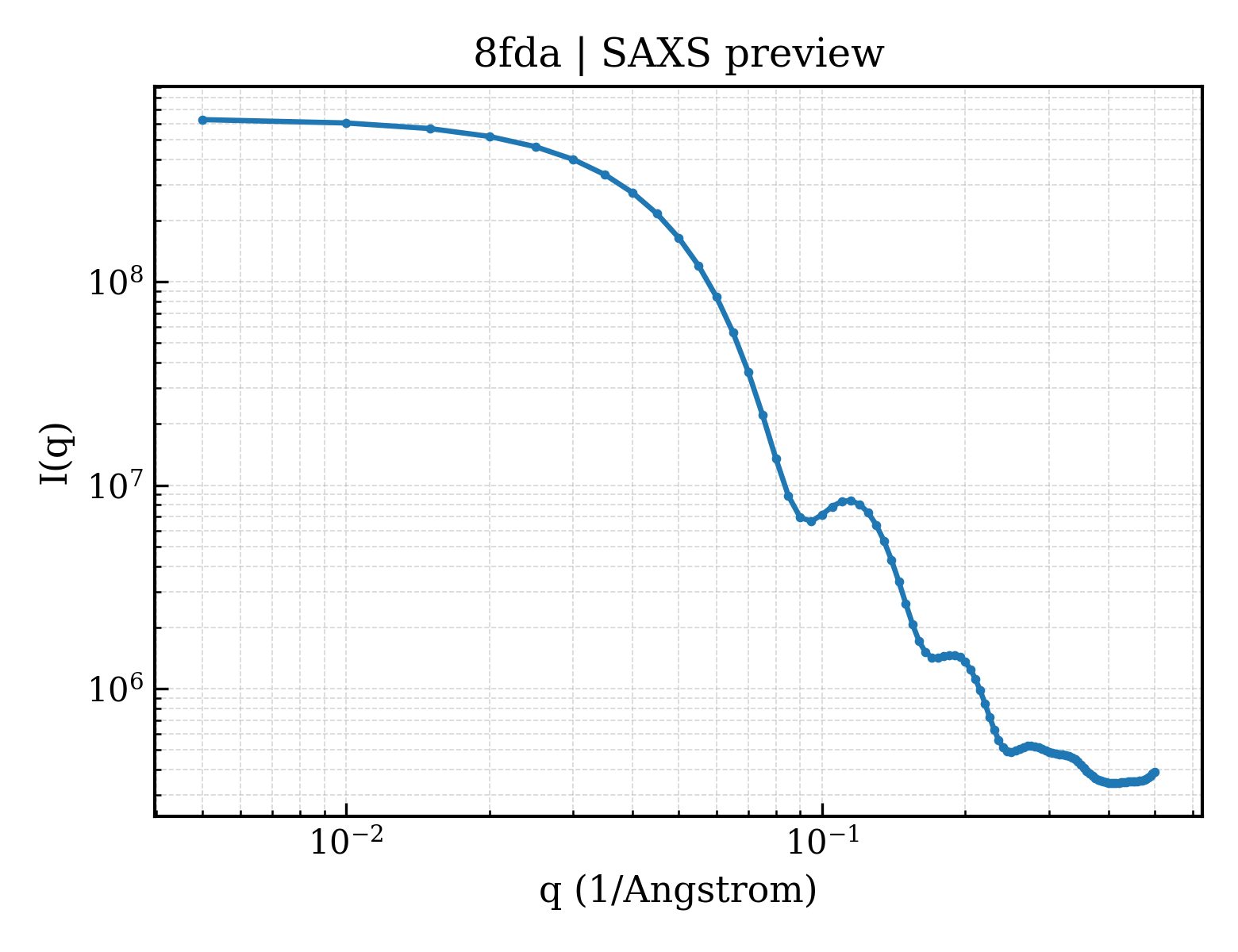

SAXS 散射曲线 SAXS Profile

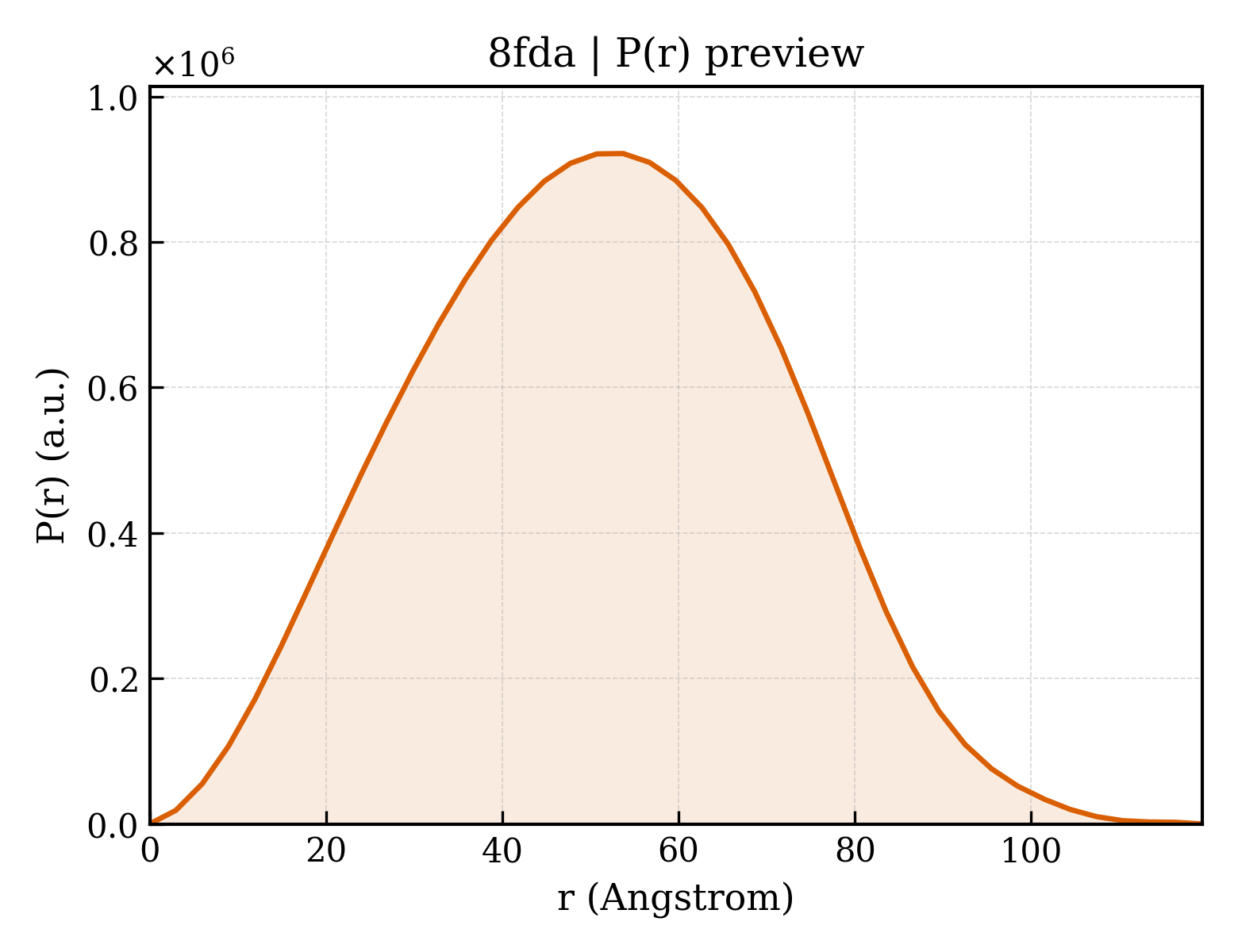

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fda
沉积日期 deposition_date	2022-12-02
结构标题 title	Human Cytochrome P450 17A1 in complex with steroidal isonitrile inhibitor
关键词 keywords	Cytochrome P450 17A1, Cytochrome P450 c17, 17-alpha hydroxylase, 17, 20 lyase, isonitrile, steroid, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.09 Å
回转半径 Rg (电子) rg_electron	37.91 Å
零角强度 I(0) i0	633907000.00
分子量 molecular_weight	215510.0 kDa
排除体积 excluded_volume	274040 Å³
包络体积 envelope_volume	345530 Å³
水化壳体积 shell_volume	72900 Å³
包络直径 envelope_diameter	128.2 Å
壳层 Rg shell_rg	46.16 Å
包络 Rg envelope_rg	37.27 Å
形状 Rg shape_rg	37.90 Å
总 Rg total_rg	38.43 Å
总原子数 total_atoms	30684
残基数 n_residues	1865
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	119.4 Å
Rg (实空间) rg_real	38.75 Å
Rg 误差 (实空间) rg_real_error	0.83 Å
I(0) (实空间) i0_real	6.3390e+08
I(0) 误差 (实空间) i0_real_error	9.6370e+06
Rg (倒空间) rg_reciprocal	38.97 Å
I(0) (倒空间) i0_reciprocal	634000000.0000
解质量估计 total_estimate	0.8937
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	53.7 Å
偏度 Skewness skewness	0.049
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	120200000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.909

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Steroid 17-alpha-hydroxylase/17,20 lyase
分子量 formula_weight	55740.1 kDa
EC 编号 ec_number	1.14.14.19,1.14.14.32
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	30965

MAKKTGAKYPKSLLSLPLVGSLPFLPRHGHMHNNFFKLQKKYGPIYSVRMGTKTTVIVGHHQLAKEVLIKKGKDFSGRPQMATLDIASNNRKGIAFADSGAHWQLHRRLAMATFALFKDGDQKLEKIICQEISTLCDMLATHNGQSIDISFPVFVAVTNVISLICFNTSYKNGDPELNVIQNYNEGIIDNLSKDSLVDLVPWLKIFPNKTLEKLKSHVKIRNDLLNKILENYKEKFRSDSITNMLDTLMQAKMNSDNGNAGPDQDSELLSDNHILTTIGDIFGAGVETTTSVVKWTLAFLLHNPQVKKKLYEEIDQNVGFSRTPTISDRNRLLLLEATIREVLRLRPVAPMLIPHKANVDSSIGEFAVDKGTEVIINLWALHHNEKEWHQPDQFMPERFLNPAGTQLISPSVSYLPFGAGPRSCIGEILARQELFLIMAWLLQRFDLEVPDDGQLPSLEGIPKVVFLIDSFKVKIKVRQAWREAQAEGSTHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
EC 编号 ec_number	1.14.14.19,1.14.14.32
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	;[(1~{R})-1-[(3~{S},5~{S},8~{R},9~{S},10~{S},13~{S},17~{R})-3-methanoyloxy-10,13-dimethyl-1,2,3,4,5,6,7,8,9,11,12,13,14,15,16,17-hexadecahydrocyclopenta[a]phenanthren-17-yl]ethyl]-methylidyne-azanium ;
分子量 formula_weight	357.5 kDa
EC 编号 ec_number	1.14.14.19,1.14.14.32
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	268

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	86.130 Å
晶胞边长 b length_b	152.275 Å
晶胞边长 c length_c	171.587 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	38.960 Å
R 因子 r_factor	0.2165
R_work r_work	0.2158
R_free r_free	0.2594
