8fh4

;Crystal structure of HPK1 kinase domain T165E,S171E phosphomimetic mutant in complex with 3-[6-chloro-4-(9-methyl-1-oxa-4,9-diazaspiro[5.5]undec-4-yl)-7H-pyrrolo[2,3-d]pyrimidin-5-yl]benzonitrile ;

Method: X-RAY DIFFRACTION D_max: 134.3 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fh4
沉积日期 deposition_date	2022-12-13
结构标题 title	;Crystal structure of HPK1 kinase domain T165E,S171E phosphomimetic mutant in complex with 3-[6-chloro-4-(9-methyl-1-oxa-4,9-diazaspiro[5.5]undec-4-yl)-7H-pyrrolo[2,3-d]pyrimidin-5-yl]benzonitrile ;
关键词 keywords	inhibitor, hematopoietic, kinase, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.84 Å
回转半径 Rg (电子) rg_electron	42.51 Å
零角强度 I(0) i0	241468000.00
分子量 molecular_weight	131240.0 kDa
排除体积 excluded_volume	166540 Å³
包络体积 envelope_volume	242110 Å³
水化壳体积 shell_volume	50489 Å³
包络直径 envelope_diameter	137.0 Å
壳层 Rg shell_rg	44.21 Å
包络 Rg envelope_rg	41.42 Å
形状 Rg shape_rg	42.52 Å
总 Rg total_rg	42.58 Å
总原子数 total_atoms	9239
残基数 n_residues	1157
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

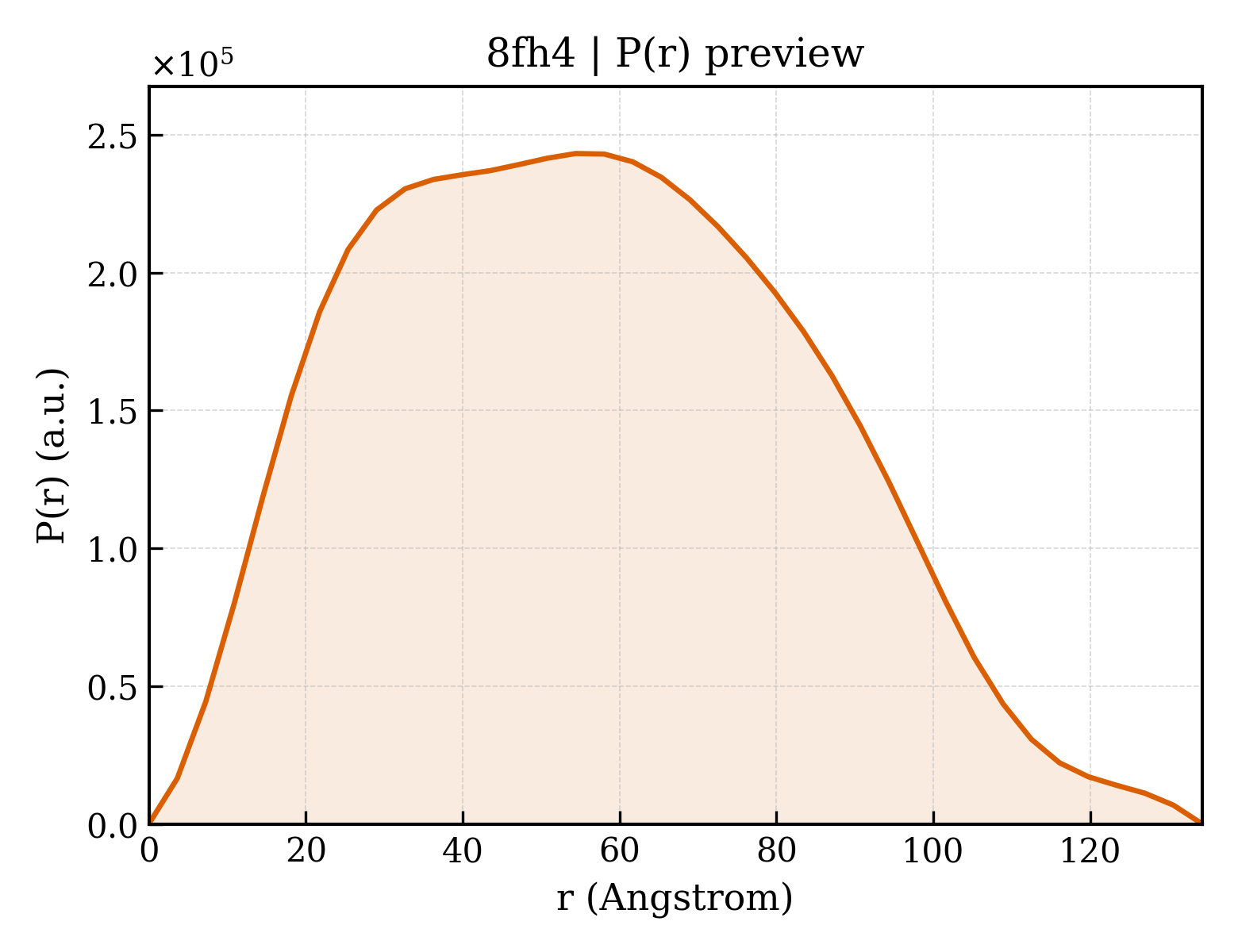

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.3 Å
Rg (实空间) rg_real	44.01 Å
Rg 误差 (实空间) rg_real_error	0.51 Å
I(0) (实空间) i0_real	2.3940e+08
I(0) 误差 (实空间) i0_real_error	3.5810e+06
Rg (倒空间) rg_reciprocal	42.84 Å
I(0) (倒空间) i0_reciprocal	241500000.0000
解质量估计 total_estimate	0.6804
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.4 Å
偏度 Skewness skewness	0.232
峰度 Kurtosis kurtosis	-0.666
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	2.2330
最高正则化参数 α highest_alpha	19650000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 0.902; Sysdev: 0.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.307

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Mitogen-activated protein kinase kinase kinase kinase 1
分子量 formula_weight	37141.7 kDa
EC 编号 ec_number	2.7.11.1
突变 mutation	T165E, S171E
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	10077

MASHHHHHHDYDGATTENLYFQGSMDVVDPDIFNRDPRDHYDLLQRLGGGTYGEVFKARDKVSGDLVALKMVKMEPDDDVSTLQKEILILKTCRHANIVAYHGSYLWLQKLWICMEFCGAGSLQDIYQVTGSLSELQISYVCREVLQGLAYLHSQKKIHRDIKGANILINDAGEVRLADFGISAQIGAELARRLEFIGTPYWMAPEVAAVALKGGYNELCDIWSLGITAIELAELQPPLFDVHPLRVLFLMTKSGYQPPRLKEKGKWSAAFHNFIKVTLTKSPKKRPSATKMLSHQLVSQPGLNRGLILDLLDKLKNPGKGPSIGDIEDEE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	(3P)-3-[6-chloro-4-(9-methyl-1-oxa-4,9-diazaspiro[5.5]undecan-4-yl)-7H-pyrrolo[2,3-d]pyrimidin-5-yl]benzonitrile
分子量 formula_weight	422.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	834

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	57.756 Å
晶胞边长 b length_b	70.505 Å
晶胞边长 c length_c	86.042 Å
晶胞夹角 α angle_alpha	97.66 °
晶胞夹角 β angle_beta	108.73 °
晶胞夹角 γ angle_gamma	92.66 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.827 Å
最低分辨率 resolution_low	69.560 Å
R 因子 r_factor	0.1888
R_work r_work	0.1874
R_free r_free	0.2152
