8fhw

;Cryo-EM structure of Cryptococcus neoformans trehalose-6-phosphate synthase homotetramer in complex with uridine diphosphate and glucose-6-phosphate ;

Method: ELECTRON MICROSCOPY D_max: 114.2 Å Quality: EXCELLENT

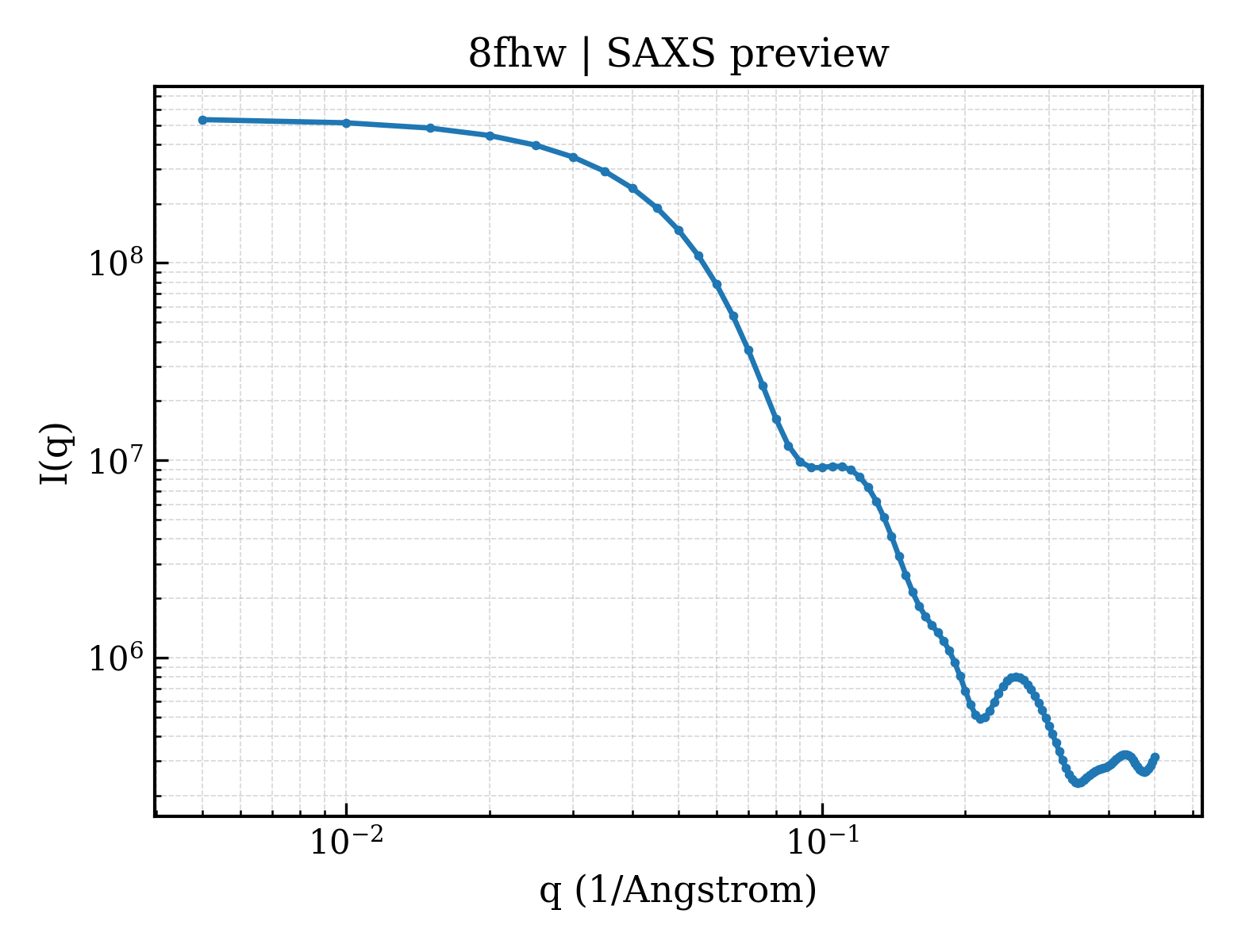

SAXS 散射曲线 SAXS Profile

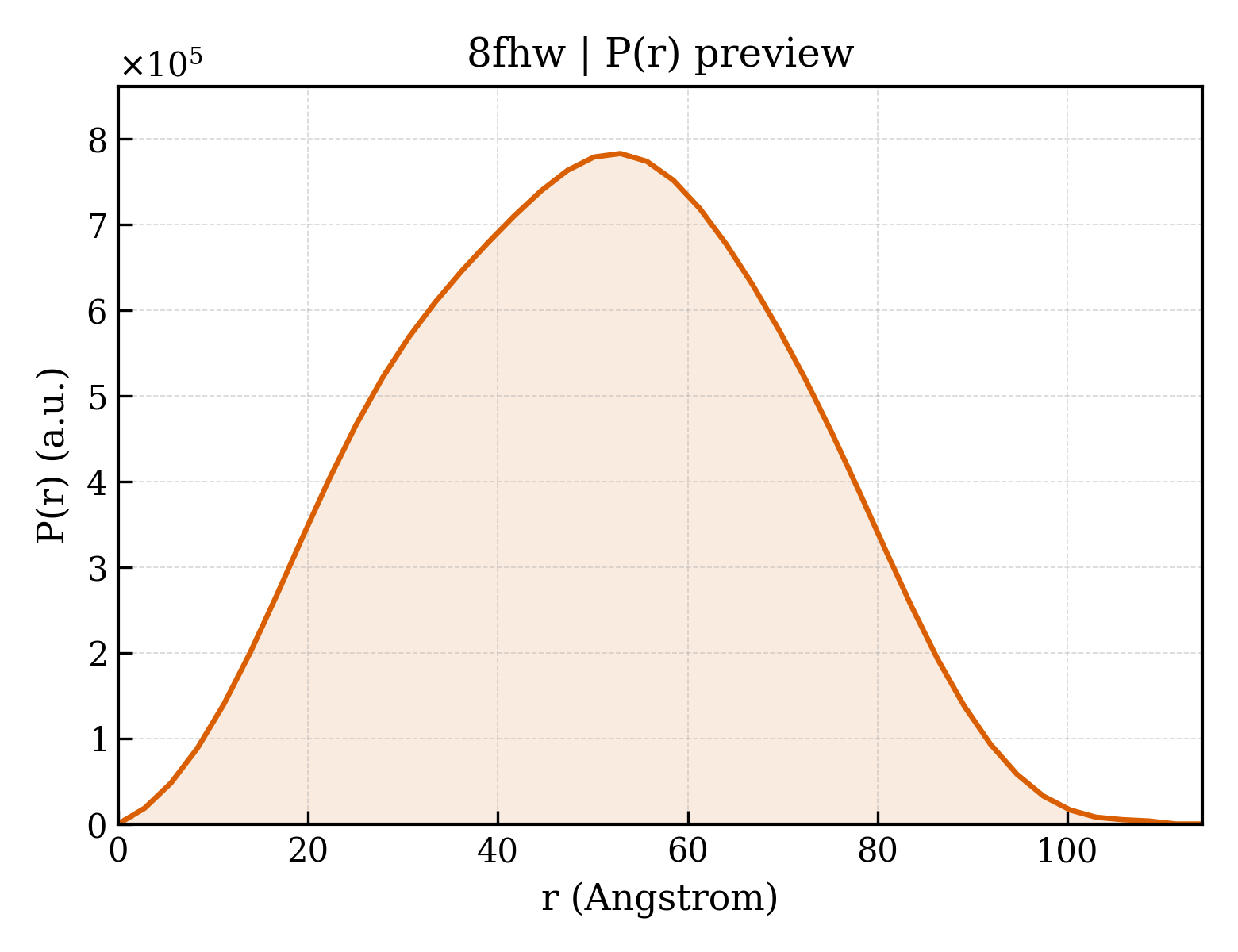

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fhw
沉积日期 deposition_date	2022-12-15
结构标题 title	;Cryo-EM structure of Cryptococcus neoformans trehalose-6-phosphate synthase homotetramer in complex with uridine diphosphate and glucose-6-phosphate ;
关键词 keywords	Glycosyltransferase, Complex, TRANSFERASE; TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.53 Å
回转半径 Rg (电子) rg_electron	37.70 Å
零角强度 I(0) i0	538583000.00
分子量 molecular_weight	193340.0 kDa
排除体积 excluded_volume	243170 Å³
包络体积 envelope_volume	314840 Å³
水化壳体积 shell_volume	65971 Å³
包络直径 envelope_diameter	118.2 Å
壳层 Rg shell_rg	46.81 Å
包络 Rg envelope_rg	36.95 Å
形状 Rg shape_rg	37.69 Å
总 Rg total_rg	38.26 Å
总原子数 total_atoms	26464
残基数 n_residues	1728
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	114.2 Å
Rg (实空间) rg_real	38.21 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	5.3860e+08
I(0) 误差 (实空间) i0_real_error	9.6280e+06
Rg (倒空间) rg_reciprocal	38.41 Å
I(0) (倒空间) i0_reciprocal	538700000.0000
解质量估计 total_estimate	0.9049
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	52.9 Å
偏度 Skewness skewness	0.020
峰度 Kurtosis kurtosis	-0.628
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	149300000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.901

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
分子量 formula_weight	76815.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	26464

MHHHHHHSSGVDLGTENLYFQSNAMTTMSNDIPNSPTSTSFTGTFSPAATAANTAANARTSDAPSPTTSSSGPKLETSKEQRLIVVSNRLPVTISKDDNGEYHFKMSSGGLVSALSGCKKTMSFTWIGWPGKDIPMQDRETVNRRLLDEYNCYPVYLSDELADSHYNGFSNSILWPLFHYHPGEMNFDAAHWLAYREANMRFADVVSSLVQAGDMVWVQDYHLMLLPMLLRSMITGESAQGEMVRQELGRVKEGVDDTVVKEVLKMGPGVAQAEDEGVEMLDDVEEEGGEMDVKSSPKRPHYARGMSTFQKQELVAKEKGKEGIRIGFFLHTPFPSSEIYRILPVRREILLGVLQCDLIGFHTYDYARHFLSSCTRILGLETQPNGIEFDGRYCQVGTFPIGIDPNQFIEGLQKESIVKRLRSLEARFEGVKVIIGVDRLDYIKGIPQKLQALETFLTQHPEWIGKVVLVQLAIPSRQDVEEYQDLRACVNELVGRINGRFGTVESVPIHYMHKSVPFEELTAMYALADACLVTSTRDGMNLVAYEYISSQAERHGSMILSEFAGAAQSFNGSLLINPWDVQSTADAINQALTLSPQQRKTNWQKLFNYVSKYTAEAWGVSFVNELNRLSGQRPSGPTGLAGRRKSGSLSRTSSKASIQRRKSSQSGIVTGLGAAAGAAVNWAQAQVQGGSQT

来源 Source

来源生物 organism	Cryptococcus neoformans var. grubii H99
NCBI 分类编号 ncbi_taxonomy_id	235443
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	URIDINE-5'-DIPHOSPHATE
分子量 formula_weight	404.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	6-O-phosphono-alpha-D-glucopyranose
分子量 formula_weight	260.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	854608
