8fjl

Golden Shiner Reovirus Core Tropical Vertex

Method: ELECTRON MICROSCOPY D_max: 272.1 Å Quality: EXCELLENT

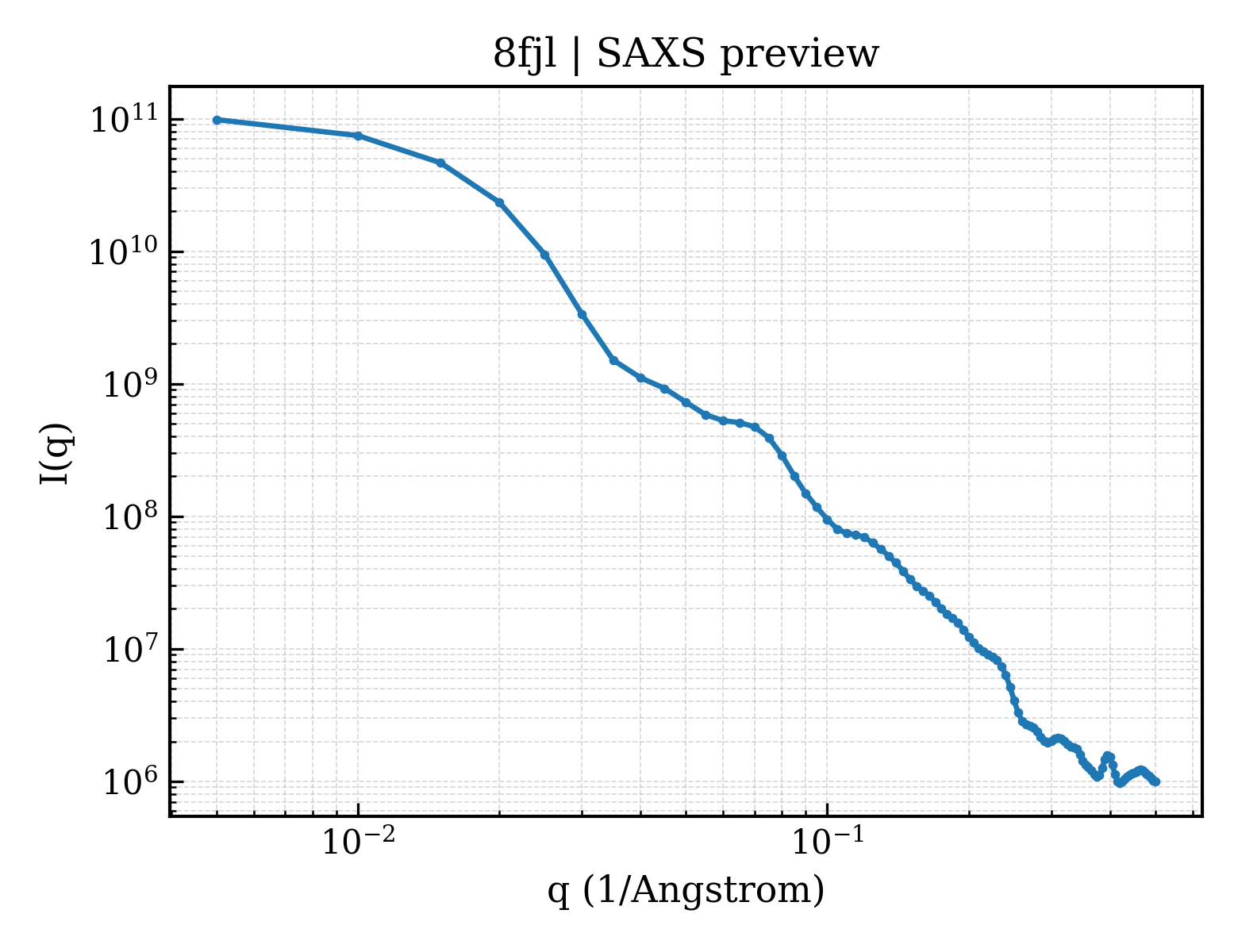

SAXS 散射曲线 SAXS Profile

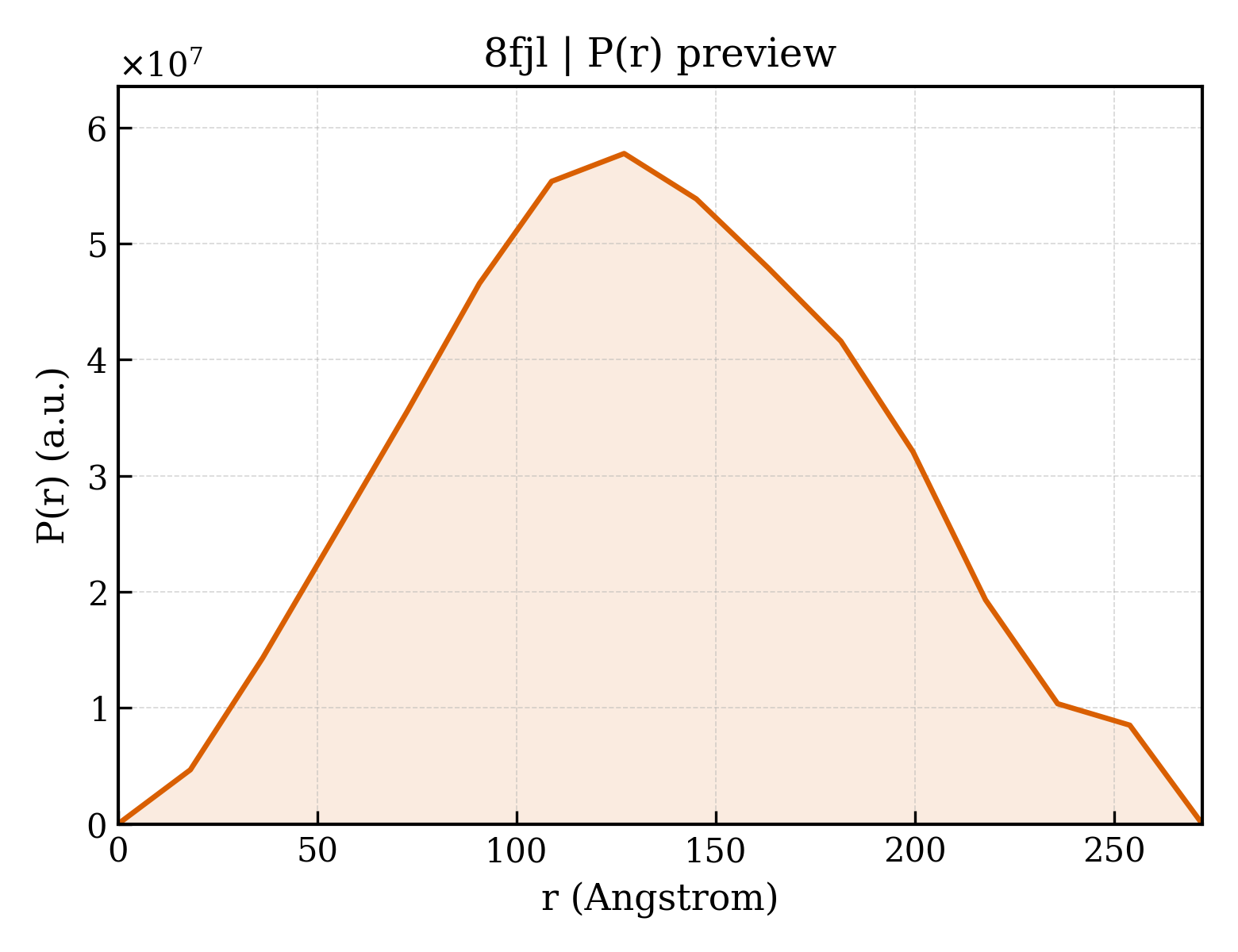

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fjl
沉积日期 deposition_date	2022-12-19
结构标题 title	Golden Shiner Reovirus Core Tropical Vertex
关键词 keywords	dsRNA, virus, RNA-dependent, RNA-polymerase; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	104.60 Å
零角强度 I(0) i0	107666000000.00
分子量 molecular_weight	2748400.0 kDa
排除体积 excluded_volume	3411500 Å³
包络体积 envelope_volume	5604000 Å³
水化壳体积 shell_volume	429220 Å³
包络直径 envelope_diameter	340.9 Å
壳层 Rg shell_rg	108.30 Å
包络 Rg envelope_rg	102.30 Å
形状 Rg shape_rg	104.60 Å
总 Rg total_rg	104.60 Å
总原子数 total_atoms	197669
残基数 n_residues	24352
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	272.1 Å
Rg (实空间) rg_real	101.60 Å
Rg 误差 (实空间) rg_real_error	0.48 Å
I(0) (实空间) i0_real	1.0320e+11
I(0) 误差 (实空间) i0_real_error	1.7830e+09
Rg (倒空间) rg_reciprocal	107.00 Å
I(0) (倒空间) i0_reciprocal	108400000000.0000
解质量估计 total_estimate	0.9071
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	127.0 Å
偏度 Skewness skewness	0.103
峰度 Kurtosis kurtosis	-0.576
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.7271
最高正则化参数 α highest_alpha	4461000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.951; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase VP2
分子量 formula_weight	141605.3 kDa
EC 编号 ec_number	2.7.7.48
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	197669

EELFNALPQPLQQLSLALAGEIPLTDHIFEQAASTWHVQPRSLTYKLLDHIPFSTPVVVPPSIYHSLDWSKCFAVNQDRVERVPTIDDPDDVYVPNSDIGPLLTSLHTIPDYGFLHPAIENDATTLRAERARCASTFYKIASSQARQVKLDPIRMLGFLLLVQARPRVPSGLVTDQPTRRDPTQSPALHAIWQVMQYYKVAGVYYAPALVVPSGAIWWIPPPGKRNVVSVQYLLTDLINLAILAHMTDMSPTLELTGVLMYLRAASSHSHAYTLLQMKSVFPALSLRSMYRNKGFGGKAPAIEWTEPRSKYKFRWTGVTQLHDGLRPRSPSMDVPTLEVLTKYELVDIGHIIIRERNAHPRHNHDSVRFVRDVMALTSGMYLVRQPTMSVLREYSQVPDIKDPIPPSAWTGPIGNVRYLLPSVQGPARHLYDTWRAAARQIAQDPQWHDPLNQAIMRAQYVTARGGSSASLKFALKVTGIVLPEYDDSKVKKSSKIYQAAQIARIAFMLLIAAIHAEVTMGIRNQVQRRARSIMPLNVIQQAISAPHTLVANYINKHMNLSTTSGSVVTDKVIPLILYASTPPNTVVNVDIKACDASITYNYFLSVICGAMHEGFEVGNADAAFMGVPSTIVSDRRSSVAPYSRPISGLQTMVQHLADLYAAGFRYSVSDAFSSGNKFSFPTSTFPSGSTATSTEHTANNSTMMEYFLNVHAPSHVKSASLKRILTDMTIQRNYVCQGDDGILLLPHEAASKISADDMNELLTCLRDYGQLFGWNYDIDWSDTAEYLKLYALMGCRIPNTSRHPPVGKEYAAPQTDEIWPSLIDIVIGHHLNGVTDVLNWREWLRFSWAFACYSSRGGYTNPKGQSFSAQYPWWTFVYLGIPPILLPGQTPFIHSCYMPPGDQGMFSILNGWRDWLISHASTTLPPLRHNHPVWGLSDVPSLLSQFGVYAGYHAAQHYRRPKPAPETASSDSINQITSDLTEYLFYDSALKARVMKGRYNWERLSSSLSLNVGSRVPSLFDVPGKWVAAGRDAEKPPPSSVEDMFTSLNRCIRRPTHSFSRLLELYLRVHVTLGESIPLAIDPDVPQVAGADPANDDHWFKYTCLGDIPSATRNYFGESLFVGRVVSGLDVEAVDATLLRLKILGAPPEAFIAVLNGIGMSDSEAHQIAGRISLANAQLVQIARVVHLSIPSSWMTLNTGPYIHHHAYDFKPGITQPSAKSRDKSIWMSPILKLLCTSYAMTVAGPVRTSIVTEIDGSAAALSGNLRVWMRDV

Entity 2 polymer

描述 description	Microtubule-associated protein VP5
分子量 formula_weight	79347.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MITIVVIPTAHFSWTDTNFLNSVDYRLTSQPKIRDRFAVYAPGWLRRQLDEFSASLTASELLQALQTIPIPVKARCLLLPKPKRFAQWLLDVPSANIWHIPVTTLRATVASKHPSSDVYNYIPDHVPPSAEFDTVTRRVAAGRDIYVRSTKVLGAPLCLAAPAKYYAGYLSTHQLDGVYPDNWAPDNFHKREFCLTILPSLLGPRTFLLDVDADRDASYPLSVLWPQLRVLALKSRLLLPPVALLRRVVDPGLKPTWSADSDAAFRALRLSRPSSASKPTGFDFSALPVVDIICLFESEPDDHGRVAPGTRLTIHSVPTDLLTSLSIQEGVRYPLRQESGMFVPWVLLALLMSDDVTISGTRRSVKLETAHASARPFVHITVERCASARVVDVRGSPAMYANAVCLTLPKGSYKSTIIDTLPAMFSDLSILEQAAVIDSDALGDSLRPSFETQFLERLENLDPKLLDRAVASILSPASDTSDDAVTTVLDVFNALYREVMTPAQRSRLPLLTQQGRVLAFAHSDYELLSANIPIQVVRGSIPIDHVVNLLARRNRVGGTALQVLLDYCYRTQASPLAPTPAGRLYKQLFGPWLMVPRLSDPLIKLRLVASAPAKVLRAAGWTIDGDPPLEVSCLCAYVTDRAMAAALIERRLDSRALVNVGGDQLMFVEYAPPLPLVSIPRTFLLPVTYVVHWVSPQRVLLNGGNVSFTSGLEWTFDD

Entity 3 polymer

描述 description	Major inner capsid protein VP3
分子量 formula_weight	124694.5 kDa
EC 编号 ec_number	3.6.4.13
来源方法 src_method	nat
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,E,F,G,H,I,J,K,L

DIITRPTSDSIAAVANATKPAAVVSDPQSMKVTPIVNPSSYVCNVCNARFSTMSALSEHLRSDHRDDASTLLATPMINNAIRSFLTAWDGIRILSPDVSSKHLSAYLDSAVANGPELIVEDTGLCTSFMLLDNIPSAHLTKELIGFTWFMQMYQMTPPLPEGAVNRIVCMTNWASLGDEGRGLEVRLPPPTDSSVHAYKTVLSRGYIDNAQFNPLALRSNVLLMLLQFTLSNLKINKSSTFTSDVTTITSGRMIRAFEGRPELLALAYPGRAVLPTQTKNAQFLSTAIADRIGRLDRANLIGGEVSAMVECMELCDALTLHIRETYVMLLRSMHQDPTQIVQIVNECANNLLNSTIPISLRPTILCPWFASSEDLRLQQVMHLVNISSNTAAALPLVEALSTLLRSVTPLVLDPTVLTNAITTISESTTQTISPISEILRLLQPMGNDYAAFWKCIASWAYNGLVTTVLSEDAFPDSSQSITHLPSMWKCLFLTLAGPMTSDPHSPVKVFMALANLLAQPEPIAIGVPGMHQTTPASQFSHPGVWPPGFLNPQLINPQQAPLLRAFAEHIRANWPQPSEFGYGSTLQGSANLFIPPNRMVYPWPNQPLPRLTVAPTYDSAMSNWISTTIAFFIRVVNSVNMTATVNDLTRRTMTGVMTAMRQVKTMTPFYIQHMCPTELSVLASVTVTPPFQVPFTRLVQNDVITNVLVARVDPAQRGDAAVDIRATHATFAAALPVDPAAIVVAMLCGQTETNLIPSHHYGKAFAPLFASNAMFTRNQRAVITREAFVCARSAVAQCQDAGFLVPRPLDALRQFDVTSAAAAEIMHAVNDAFKTAFDLDGALLDGLALYGDPRIADLSAAYLQYGGNVVREHVPPGPSHIHRTLQQVESTFMAEMNLFNVARGNLYLVQTATNGNWSPMAPVAAPPFVRGGPNVRVVGRFGTIVPRPDGLEPQLIDDGNVPRDIAGDWVYPSDVLQVSVAVFCDYVWPMVKAGRTRVLVELGHYVYTLHYYDPQISLDEAPILEEWLSKINPAGIPPVPFCIPIPQVYPCITARRVHYAFTSENNNDSLFSTNAASIDTAFGENAAVSPLRWPGLVDPNYRVGTNDLPNRITLYNSLYRYNFTYPTLDGIMYVRSAT

Entity 4 polymer

描述 description	Major inner capsid protein VP3
分子量 formula_weight	9147.7 kDa
EC 编号 ec_number	3.6.4.13
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,k,l,m

TASPADTNVVPAKDAPTTNSPPSTTSPNQAAADANQQQAGIVSSQSGPNAVGDSAPSTSVNNDGDIITRPTSDSIAAVANATKPAAVVSDPQSM

Entity 5 polymer

描述 description	RNA (38-MER)
分子量 formula_weight	8850.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a5,b5

UAUAUAUAUAUAUAUAUAUAUAUAUAUA

Entity 6 polymer

描述 description	RNA (30-MER)
分子量 formula_weight	12027.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	b6,a6

UAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUA

Entity 7 polymer

描述 description	RNA (52-MER)
分子量 formula_weight	16474.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a1,b1

UAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUA

Entity 8 polymer

描述 description	RNA (39-MER)
分子量 formula_weight	12662.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a3,b3

UAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUA

Entity 9 polymer

描述 description	Clamp protein VP6
分子量 formula_weight	44489.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,X,a,b,d,e,g,h,n

AQRQFFGLTYNFYGQPAPLFDLNDLQELAGCYARPWTSRFSHLAISTGSLPVWSARYPSVASRNIIVNTLLGAHLNPFAGGQVTSHQGITWRDPVLSSLAPVPAIQPPPVWAVAENVPLDSNNYPTYVLNLSSMWPINQDVHIMTMWALSDQGPIYHLEVPVDPMPAATTAALMAYIGVPIAHLAQTAYRFAGQLPQSPDSTMVSTIRWLSAIWFGSLTGRLNRSRTCNGFYFEFAKPALNPDQAVLKWNDGARAAPPAAAQSSYMRCISPHWQHQIVEVAGALMSQSVTAVTGLPALIDEATLPAWSQGVANLTGNGQGVVPCLDYNPVPMAAARHLQWRQDGLITAAQEAQLNNDYTAYALTIERHLTAMLVANPIAAGRMPIQPFNAADFGQAGQTAAAVALAQAMFV

Entity 10 polymer

描述 description	Outer capsid protein VP1
分子量 formula_weight	141109.8 kDa
EC 编号 ec_number	2.7.7.50,2.1.1.56
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y,Z,c,f,i

AAVFGIQLVPKLNTSTTRRTFLPLRFDLLLDRLQSTNLHGVLYRALDFNPVDRSATVIQTYPPLNAWSPHPAFIENPLDYRDWTEFIHDRALAFVGVLTQRYPLTQNAQRYTNPLVLGAAFGDFLNARSIDIFLDRLFYGPTQESPITSITKFPYQWTIDFNVTADSVRTPAGCKYITLYGYDPSRPSTPATYGKHRPTYATVFYYSTLPARSRLLANLAAGPTVLEHFDSPTYGPHLLLPQTGDVLGYSSSLISQAALLMVESVMDALRDNANASASTAVTRLDQSYHPVTSFDPSTFNTLLQRATNLALLAVQGVQSESAIPAIPTMSDVRSFVARLMAEGDPQQWFPYRVDQILYWPESPFVPPIGPFYAPFRPVNFPFTTGSYTVVPDASRPLRLLPQYRNATITVQQADDAYEDTALSPLITTHGFCVTGGVSTSIYDISGDPTAYPPAQLVDTPNDYFDRERMARRDLFRRLRAPADRSAIKDRAVFDFLASLVNPTTANPVLDTSFSMAYLGASSAHANADEPVILADIRSGSIPGLPIPRRIVQFGYDVVHGSLLDLSRAVPTGTFGLVYADLDQVEDAGTDMPAANRAAIAMLGTALQMTTAGGVSVLKVNFPTRAFWTQVFNLYATHATTLHLVKPTIVNSSEVFLVFGGRQSNGALRSTTALQRALLSLYARNAAIDRAVTHIPFFGVPDDGTSDLGIDAVRLFDPMFSDAVANLPSNALASLVSRVVPSSIMFTRVPSNGPVSTTIYGKRTFLSNRRRARLRDVPMLITTTLVHQRRFTTPPTFTLFSSEAVPVTTLVAAGYNSFISEQTRNPNLAHLLDLGTGPECRILSLIPPTLQVTMSDARPCAELMASFDPALTAYVQGDYSTAAFWNGIRCDSATAIFTLGAAAAAAGTDLIAFVQQLIPRIVAAGGTRMWLQLNTPLYEVSSLPDLIDIDLRDRVYRFNGGERVEPYADPVPLQQAIAALLPAAALSWHTLSPTCDWLPYIIGVGSPLNLSDINTAISYSRLTPILHIDTTTPPLRVNPVPTPLNQQCAIRITSLDPAAVLSVQHNGVEVIGGTPGNVISVAGAAALQYILANQEFLLQFTPTLPGIFDVFLTTLGQPPVPRGSFTITPPPTTVVLNMPPPGQLDFTDVGNDARITCDPYYQLAVCIFKDGQYVRVNPEKASVVTNAPNRDLHFVLDLADNHVLLYLCDVTPSGLGDRIAFPIVDIYRIAFPRNTPVRASLPYTGGGAHLTSGGNPFMSLTTPPAVLPAGVALAALSTSVATQYPTYTLPAGVYEYVI

Entity 11 polymer

描述 description	RNA (60-MER)
分子量 formula_weight	19016.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a2,b2

UAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUAUA

Entity 12 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.27 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	99323

fit	/app/data/saxs_computation/fj/8fjl/8fjl.fit
pddf	/app/data/pr_computation/fj/8fjl/8fjl.pr.out
profile	/app/data/saxs_computation/fj/8fjl/8fjl.dat
