8fmf

;Structure of CBASS Cap5 from Pseudomonas syringae as an activated tetramer with the cyclic dinucleotide 3'2'-c-diAMP ligand (1 tetramer in the AU) ;

Method: X-RAY DIFFRACTION Dmax: 105.6 Å Quality: GOOD

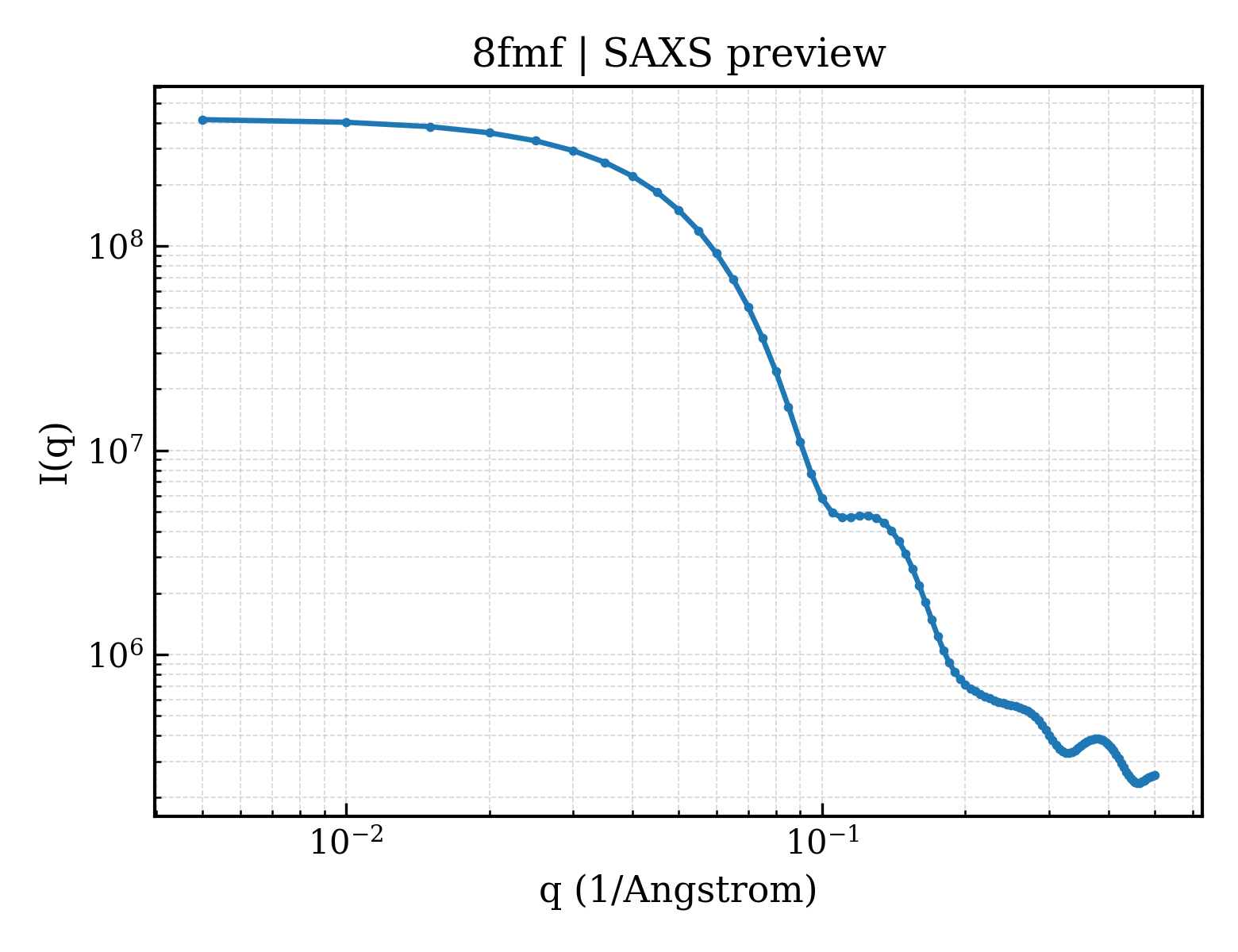

SAXS 散射曲线 SAXS Profile

SAXS profile for 8fmf

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8fmf
下载 Download
▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id8fmf
沉积日期 deposition_date2022-12-23
结构标题 title;Structure of CBASS Cap5 from Pseudomonas syringae as an activated tetramer with the cyclic dinucleotide 3'2'-c-diAMP ligand (1 tetramer in the AU) ;
关键词 keywordscyclic dinucleotide, bacterial immunity, CBASS, Cap5 effector DNA endonuclease, viral defense, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 methodX-RAY DIFFRACTION
▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier34.49 Å
回转半径 Rg (电子) rg_electron33.65 Å
零角强度 I(0) i0420290000.00
分子量 molecular_weight162140.0 kDa
排除体积 excluded_volume201220 ų
包络体积 envelope_volume244450 ų
水化壳体积 shell_volume58079 ų
包络直径 envelope_diameter113.9 Å
壳层 Rg shell_rg42.30 Å
包络 Rg envelope_rg33.52 Å
形状 Rg shape_rg33.67 Å
总 Rg total_rg34.13 Å
总原子数 total_atoms22464
残基数 n_residues1444
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 Å−1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3
▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax105.6 Å
Rg (实空间) rg_real34.28 Å
Rg 误差 (实空间) rg_real_error0.58 Å
I(0) (实空间) i0_real4.2030e+08
I(0) 误差 (实空间) i0_real_error6.3920e+06
Rg (倒空间) rg_reciprocal34.42 Å
I(0) (倒空间) i0_reciprocal420300000.0000
解质量估计 total_estimate0.8976
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary45.9 Å
偏度 Skewness skewness0.099
峰度 Kurtosis kurtosis-0.506
角度范围 angular_range— – 0.2300 Å−1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha114000000.0000
实空间数据点数 n_real_points47
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.907
▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
