8fmg

;Structure of CBASS Cap5 from Pseudomonas syringae as an activated tetramer with the cyclic dinucleotide 3'2'-c-diAMP ligand (3 tetramers in the AU) ;

Method: X-RAY DIFFRACTION D_max: 209.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fmg
沉积日期 deposition_date	2022-12-23
结构标题 title	;Structure of CBASS Cap5 from Pseudomonas syringae as an activated tetramer with the cyclic dinucleotide 3'2'-c-diAMP ligand (3 tetramers in the AU) ;
关键词 keywords	cyclic dinucleotide, bacterial immunity, CBASS, Cap5 effector DNA endonuclease, viral defense, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.95 Å
回转半径 Rg (电子) rg_electron	70.22 Å
零角强度 I(0) i0	3431810000.00
分子量 molecular_weight	482500.0 kDa
排除体积 excluded_volume	598460 Å³
包络体积 envelope_volume	901430 Å³
水化壳体积 shell_volume	110300 Å³
包络直径 envelope_diameter	229.6 Å
壳层 Rg shell_rg	65.76 Å
包络 Rg envelope_rg	68.43 Å
形状 Rg shape_rg	70.22 Å
总 Rg total_rg	70.15 Å
总原子数 total_atoms	66832
残基数 n_residues	4339
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

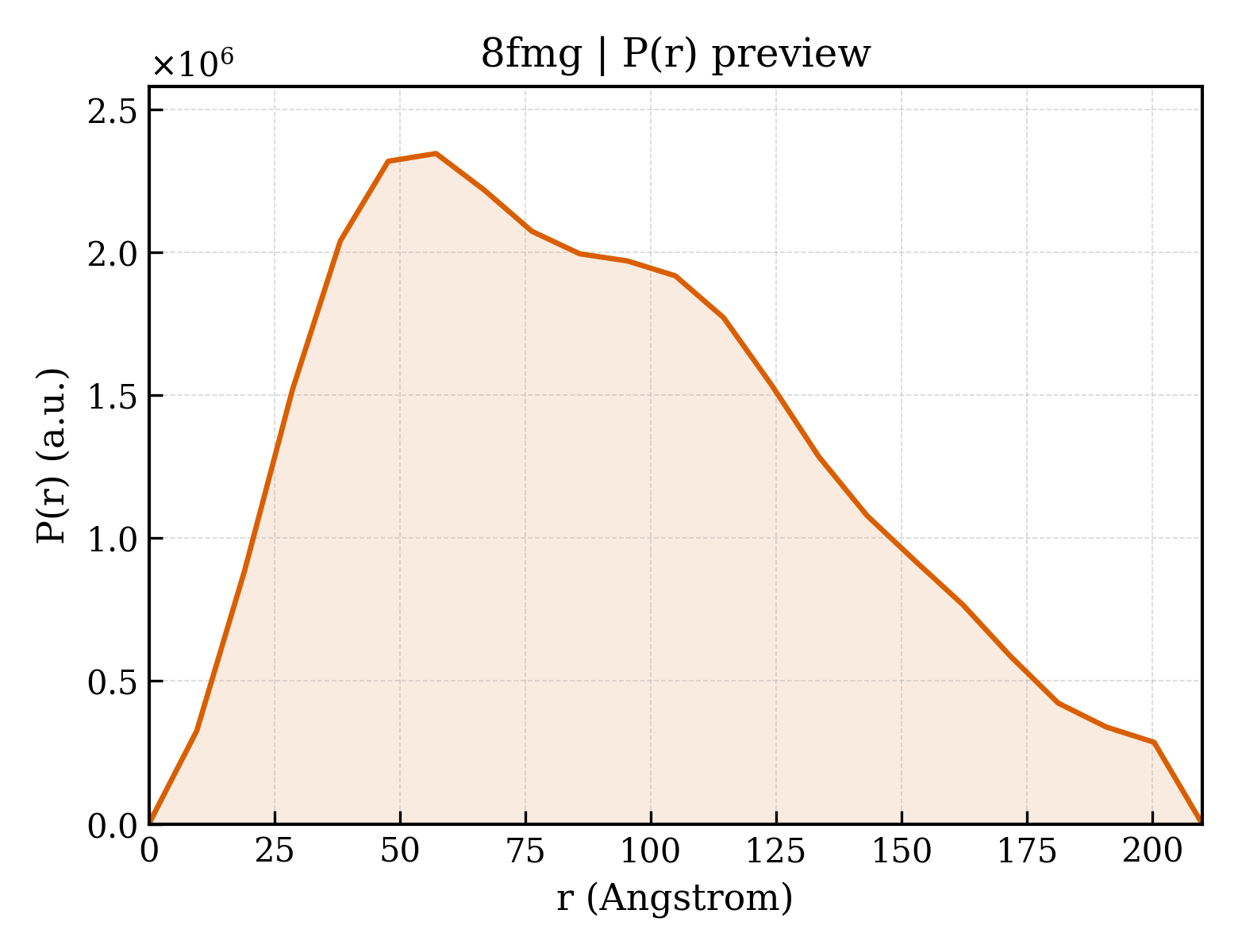

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	209.8 Å
Rg (实空间) rg_real	70.17 Å
Rg 误差 (实空间) rg_real_error	1.55 Å
I(0) (实空间) i0_real	3.4290e+09
I(0) 误差 (实空间) i0_real_error	7.2980e+07
Rg (倒空间) rg_reciprocal	68.65 Å
I(0) (倒空间) i0_reciprocal	3421000000.0000
解质量估计 total_estimate	0.8312
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.2 Å
偏度 Skewness skewness	0.419
峰度 Kurtosis kurtosis	-0.587
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0040
最高正则化参数 α highest_alpha	246700000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.028

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	SAVED domain-containing protein
分子量 formula_weight	42769.2 kDa
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,K,L,M,N
原子数 atom_count	69460

MAEKEDAKPASGRFNTNDETKRIVWTQTAGHCELCGTDLTFDYRAGKPMKWGEVAHILPASPKGPRGRADHDAEAHTNDTANLMLLCPGCHDKIDRDADGYPENDLSGLHQAYLERIRLAATTPDGGRAIPLIVQSQHFQTINDIPVRDLLTAMSAEGLTAFDQGIKIAFAAPGPRGRDTTYWQNVKDSVQYELEQQLKRRGGTYGDSPALAVVGLADIPALMMLGQSIGDRSKRLIFSFHREHLLRWPDQSAEPPSFLFTPPPNGDGPLALVLSISAQVPVRDVTDALPGARIAELSIPEPSYAMVQNRRVIHAFRDALQIRLSQLEALTPDPIHVFAAIPAALAIEFGALLTTQHQHTYLIFDRDKENQDRFTQTLQLGPVAQEAM

来源 Source

来源生物 organism	Pseudomonas syringae
NCBI 分类编号 ncbi_taxonomy_id	317
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	13

Entity 4 non-polymer

描述 description	;Cyclic (adenosine-(2'-5')-monophosphate-adenosine-(3'-5')-monophosphate ;
分子量 formula_weight	658.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2474

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	145.192 Å
晶胞边长 b length_b	80.522 Å
晶胞边长 c length_c	406.841 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.62 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	1.790 Å
最低分辨率 resolution_low	58.120 Å
R 因子 r_factor	0.1816
R_work r_work	0.1794
R_free r_free	0.2254

fit	/app/data/saxs_computation/fm/8fmg/8fmg.fit
pddf	/app/data/pr_computation/fm/8fmg/8fmg.pr.out
profile	/app/data/saxs_computation/fm/8fmg/8fmg.dat
