8fn2

The structure of a 50S ribosomal subunit in the Lyme disease pathogen Borreliella burgdorferi

Method: ELECTRON MICROSCOPY D_max: 259.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

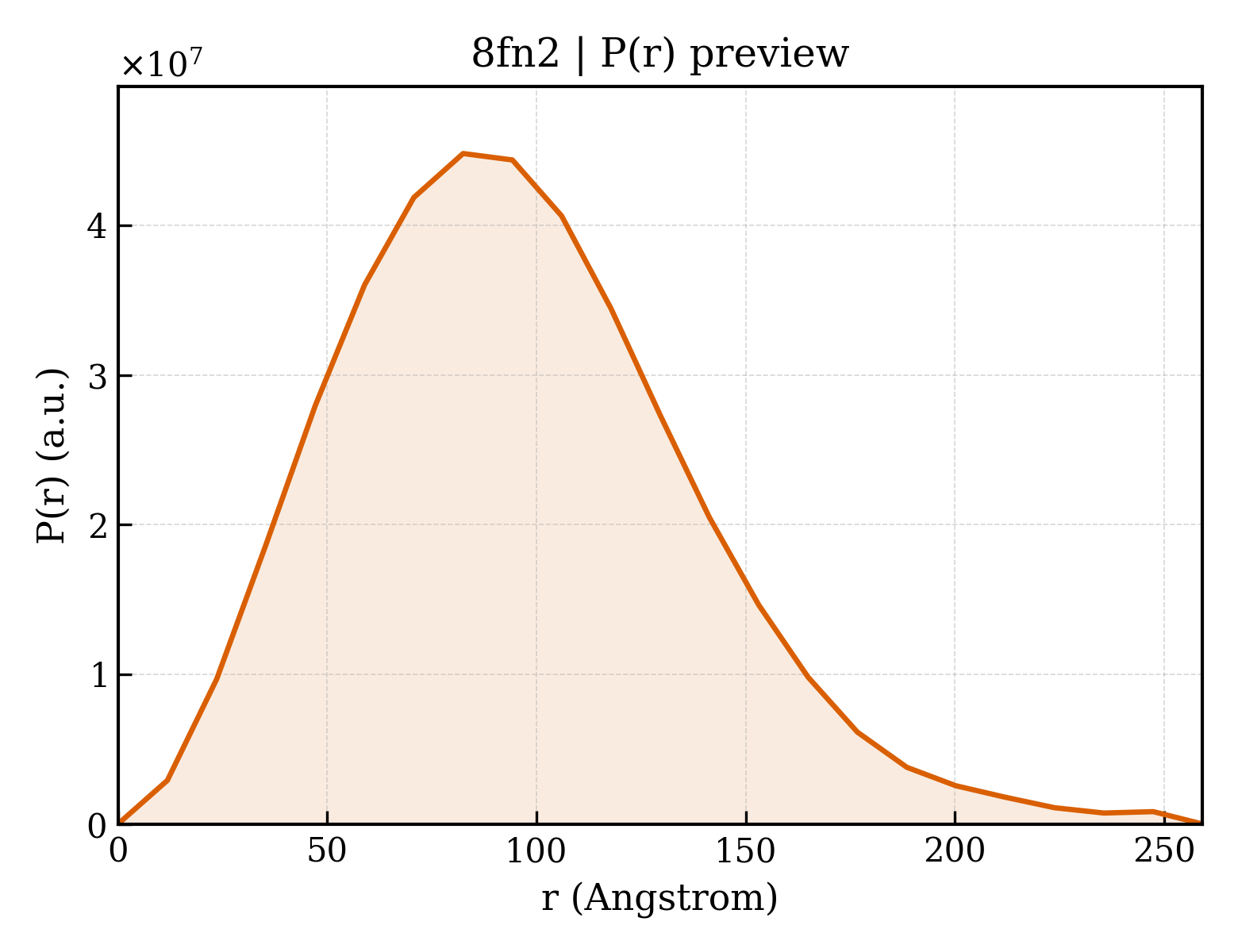

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fn2
沉积日期 deposition_date	2022-12-26
结构标题 title	The structure of a 50S ribosomal subunit in the Lyme disease pathogen Borreliella burgdorferi
关键词 keywords	hibernating ribosome, bacterial, pathogen, 50S, translation, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.25 Å
回转半径 Rg (电子) rg_electron	71.16 Å
零角强度 I(0) i0	57745100000.00
分子量 molecular_weight	1333700.0 kDa
排除体积 excluded_volume	1374300 Å³
包络体积 envelope_volume	2296900 Å³
水化壳体积 shell_volume	247420 Å³
包络直径 envelope_diameter	256.5 Å
壳层 Rg shell_rg	82.81 Å
包络 Rg envelope_rg	71.03 Å
形状 Rg shape_rg	71.24 Å
总 Rg total_rg	71.09 Å
总原子数 total_atoms	89742
残基数 n_residues	6507
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	259.1 Å
Rg (实空间) rg_real	73.24 Å
Rg 误差 (实空间) rg_real_error	1.34 Å
I(0) (实空间) i0_real	5.7780e+10
I(0) 误差 (实空间) i0_real_error	1.1670e+09
Rg (倒空间) rg_reciprocal	70.78 Å
I(0) (倒空间) i0_reciprocal	57820000000.0000
解质量估计 total_estimate	0.8845
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	82.5 Å
偏度 Skewness skewness	0.540
峰度 Kurtosis kurtosis	0.310
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.9733
最高正则化参数 α highest_alpha	7335000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.679; Stabil: 0.888; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.872

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (35)

Entity 1 polymer

描述 description	23S ribosomal RNA
分子量 formula_weight	948648.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	89742

UGGUCAAAGUAAUAAGAGUCUAUGGUGAAUGCCUAGGAGCUUUAAGGCGAAGAAGGUCGUGGUAAGCUGCGAAAAGCUUGGGGGAGAAGCAAACAUUUAUUGAUCCCAAGAUUACCGAAUGGAGUAAUCCAGCUAGCAAGAUGCUAGCUAUCUAUUAUUUAAAUAAUAGAGGCGAUACCAGGGGAAGUGAACCAUCUAAGUACCCUGAGGAAAAGAAAUCAAAGAGAUUCCCUUAGUAGUGGCGAGCGAAAAGGGAGUAGCCCAAACUUUAAAUGUGUCAAGCUGCAGAGCGUUGCAUUUAUGGGGUUGUAGGACGUUUAGGCUUAGUCUGUAAUAAGCAAAAAAGUUACAAAAUAUUUAUAUAGAAGAAUAAUCUGGAAAGUUUAACCAAAGAAGGUGAUAGUCCUGUAAUUUAAAUGUAAAUAUCUUUUUAAAAUGUUCCUGAGUAGGACGAGGCACGAGAAACCUUGUUUGAAGCUGGGGAGACCACUCUCCAAGGCUAAAUACUAGAAAGCUACCGAUAGAGAAGAGUACCGUGAGGGAAAGGUGAAAAGAACCCCGGGAGGGGAGUGAAAUAGAACUGAAACCGUAGACUUACAAGCAGUCAAAGCCGUAAUUUAUUGCGGUGAUGGCGUGCCUUUUGCAUAAUGAACCUGCGAGUUAUCAUGUCUAGCAAGAUUAAAGCAUAGAAGUGCUGGAGUCGAAGCGAAAGCGAGUCUUAAAAGGGCGAUUUAGUUAGAUGUGGUAGACCCGAAGCCGAGUGAUCUAUUUAUGGCCAGGCUGAAGCUUGGGUAAAACCAAGUGGAGGGCCGAACUCUAGUCUGUUUAAAAAGGCAGGGAUGAGCUGUGAAUAGGAGUGAAAGGCUAAACAAACUCGGAGAUAGCUGGUUCUCCCCGAAAUGGAUUUAAGUUCAGCCUUAUUUUAGUUUAAUAGAGGUAGAGCACUAAUUGAGCUAGGGCCUGUCAAAGGGUACCAAACUCAGUUAAACUCCGAAUGCUAUUAAAUGAUGAAUAGGAGUGAGACUAUGGGCGAUAAGGUUCAUAGUCGAGAGGGAAACAACCCAGACCAACAGCUAAGGUCUCAAAAAUGUGUUAAGUGGAAAAGGAGGUUUAGGUACGUAAACAGCCAGGAGGUUGGCUUAGAAGCAGCCAUACCUUUAAAGAGUGCGUAAUAGCUCACUGGUCGAGUACUUAAGCGCCGAUAAUGUAACGGGGCUAAACACAUUACCGAAGCUUUGGAUCUUAACGAAAGUUAAGAUGGUAGGGGAGCGUUCUGUAAGCCAGAGAAGUUAAGCUGGAAAGUUUGAUGGAGGUAUCAGAAGUGAGAAUGCAGGUAUGAGUAACGAAAAAAUGGGUGAGAUUCCCAUUCGCCGAAAACCUAAGGUUUCCUGGGUAAAGGUCGUCUUCCCAGGGUUAGUCGGCCCCUAAGGCAAAGCUGAAAAGUGUAGUCGAUGGGAAACGGGUUAAUAUUCCCGUACCUCUUAUAGUUUCGAUGGAGUGACGCAUGAGGUUAACUACUGCUAGGCGAUGGUUGUCCUAGUUUAAGCAUUAAGGCGAUGAUCUUAAUAGGAAAAUCCGUUAAGAGAGCUAAGAUGUGAUGAUGAGUGCUAUUUAGGUAGCAUGAAAUGUAGGUAGUCAAGGUGCCAAGAAAUAGCUUCUAAGGUUAGGCUAUAAGGGACCGUACCGCAAACCGACACAGGUAGGUGGGAUGAAAAUUCUAAGGCGCGCGAGAGAAUCCACGUUAAGGAACUCUGCAAAAUACGUACGUAACUUCGGGAUAAGUACGACCUAAGCAAUUAGGUAGCAUAAAAAUGGUCCAAACGACUGUUUACCAAAAACACAGGUCUCUGCAAAUCUGUAAAGAGAAGUAUAGGGACUGACACCUGCCCGGUGCUGGAAGGUUAAGAGGAGAUGUUAGUUUAUGCGAAGCAUUGAAUUUAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAUGGUGUAACGAUUUGGACGCUGUCUCAACGUGGAGCUCGGUGAAAUUGAAGUAUCGGUGAAGAUGCCGAUUACUUGUGGUUAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGGUAUUGAGAUUUGAUUAAAUAUGUGUAGGAUAGGUGGGAGACUUUGAAGCUAUCUCGUCAGGGGUAGUGGAGUCAAUCUUGAAAUACCACCCUUGUUUAAUUAGGUUUCUAACUUAUAGAAAUAUGAGGAGAGUGCCAGGUGGGUAGUUUGACUGGGGCGGUCGCCUCCUAAAGAGUAACGGAGGUGCGCAAAGGUUACCUUAGAGUGGUUGGAAAUCACUCUGUAAGUGUAAAGGCAUAAGGUAGCUUAACUGUAAGACUGACAAGUCGAACAGAUACGAAAGUAGGUCUUAGUGAUCUGGCGGUGGCAAGUGGAAGCGCCGUCACUUAACGAAUAAAAGGUACUCCGGGGAUAACAGGCUUAUCCUUCCCAAGAGUUCACAUCGACGGAAGGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUAGGGCUGGAGCAGGUCCUAAGGGUAUGGCUGUUCGCCAUUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUUGGUCCCUAUCUGCCACAAGCGUUGGAUAUUUGAGAGGAGCUAUCUUUAGUACGAGAGGACCGAGAUGGACGAACCUCUAGUGUGCCAGUUAUCCUGCCAAGGGUAAGUGCUGGGUAGCUACGUUCGGAAAGGAUAACCGCUGAAAGCAUCUAAGUGGGAAGCCUUCCUCAAGAUGAGAUAUCCUUUAAGGGUCCUGGAAGAAUACCAGGUUGAUAGGUUAGAAGUGUAAGUAUAGCAAUAUAUUAAGCUGACUAAUACUAAUUACCCGUAUCUUUGGCCA

Entity 2 polymer

描述 description	5S ribosomal RNA
分子量 formula_weight	36188.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

CCCUGGUGGUUAAAGAAAAGAGGAAACACCUGUUAUCAUUCCGAACACAGAAGUUAAGCUCUUAUUCGCUGAUGGUACUGCGAGUUCGCGGGAGAGUAGGUUAUUGCCAGGG

Entity 3 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	30655.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MGIKTYKPKTSSLRYKTTLSFDDLSKGNDPLKSLTKGKKFKSGRDSSGRISIRRRGGGHKRKYRLIDFNRRDKFSIPARVASIEYDPNRSANIALLVYKDGEKRYIISPKGIKVGDVLESGPNAPIKIGNALPLENIPIGRTVHNIELNVGKGGQLIRSAGGYAMILASDGNYVTVKLSSGEMRLIFKKCIATIGEIGNEDYANISIGKAGKSRWLGRRPKVRGVAMNPVDHPHGGGEGKTSGGRHPVSPWGQPTKGYKTRKKKRYSDKFIIKRRNK

Entity 4 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22266.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MLGLIGKKVGMTQIFQKNGIVVPVTVIEFQPNYIIGKKTVDRDGYSALIAGSVDLKSSKVSKPIKGQYKSLKDIEPKRYVIELKGLDGYDAGDEIKVDVFKSVKYVDVTGTTKGKGFQGAMKRHNFSGGPSSHGSKFHRHLGGTGQATTPARTFKGTKMAGRMAGNQQTIQNLEVVLIDEEKRALLVKGAVPGAKGSFVVVKKSKK

Entity 5 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	23535.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MERKVFSKDGKEIGTINLDDRVFNIEISHGSIYNAIKNELSNLRVGTSSTKTRSEVRGSSKKPWKQKGTGRARVGTKRNPVWIGGGIALGPKPRDYSYRLPKKVKKLAFKSVLSLRAADENSFKVIENFNVESGKTKDLALIIKNFASFNGKVVILLGNDDQMIKRAGKNIRDLKILSFDKLRVVDLFYAKNLIALESAVNKLNEFYIK

Entity 6 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	20445.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MNYVPELKKYYKDSVIKELVKEFEYKSIMQVPKLEKIVISVGVGEAVRNKKLLDSAVLELAQITGQKAVKTKAKKAIAGFKIRQGQEIGAKVTLRGNAMYEFLYKLIHLALPRVKDFRGINGDAFDGNGNYSFGITEQIIFSEIDYDKIERISGLNITIVTTASNDKESKALLLKFGMPFSN

Entity 7 polymer

描述 description	50S ribosomal protein L6
分子量 formula_weight	19972.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSRIGRLPIKIPDAVKVDVKDNLVIVEGIRGRLVQDIKDSINVKVENGSVIVDRVLNDKKAKAYHGLYRSLIFNMVKGVTEGFSKSLTINGIGYRVEQQGNSLFLSLGYSTQFEYVIPDGISVKLDGNTKISVEGIDKFKVGQVAAEIRSLKKPEPYKGKGIKYDNEVIRRKVGKSGVKK

Entity 8 polymer

描述 description	50S ribosomal protein L9
分子量 formula_weight	17122.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MKVILKEDFINLGKEGDTVEVRDGFARNYLLPKGFAVFSNKHNIEIFNQKRRSILKKQEAKKQMANDLKSKLDLVKLEFFMKSNDSGKLFHSINSLNIADELLKLGFDIERKKIDIHHGTLKTFGTYDVTIKLYEGISSIIKVEIKKE

Entity 9 polymer

描述 description	50S ribosomal protein L10
分子量 formula_weight	18086.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MSAKINAKKLEMFDLLKQFIDSKQNLFFLDYRGLNVAQLTELRNKIEGEHGSLKVVKNNIMKMVLKEKNINVVDSCLVGPTVVVTALEEANVIAKIFYDFVKSSTLKVKGGFVLGEFYDEAKVQAYSKLPTKKESISLFASVLKAPVSKLARTLKALADVKN

Entity 10 polymer

描述 description	50S ribosomal protein L11
分子量 formula_weight	14731.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

KAISWIKLQVPAAQAAPGAKIGQALGPHGVSGPQFVKEFNERTAKMDPGIVVPVIITVYSDKSFSFIVKTPPASILIKKAIGIESGSKKSNTDKVGTISKEKLMEIARIKMSDLNAKSESAAFKIIAGSARSMGVEVEK

Entity 11 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16594.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

NKITNNDTIWIKPKTVEKKWYVIDAADRILGKVAVDVVKILRGKHKAYYTPHQDLGDNVIIINASKVKLTGKKYQQKLYYRHSRYPGGLYSDTFRTLSERKPCAPLEIAIKGMLPKGPLGRNLFRNLKVFSGSEHTLKAQNPIKL

Entity 12 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13465.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MIQMQTYLTIADNTGGKVAQCIKVLGGSKRRYAKIGDIITIVVKQAIPNSSVKKGDVYKAVIVRTSKEVRRKNGTYVRFDDNACVILDANLSPRGKRVFGPVARELRDANFMKVVSLASEVI

Entity 13 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	16073.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MFNLLKPKGASKRRKIVGRGPGSGLGKTSGRGQKGQKARNTSPRLGFEGGQTPLYRRLPRKGFSNSDYKLEYAIVNLGDIDKKFKDGQVVNYDTLLENKLIKKKNKKIKILSNGKLTKKVSFEVSKISKSAESLVIKIGCTIQLV

Entity 14 polymer

描述 description	50S ribosomal protein L16
分子量 formula_weight	15598.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MLSPKKVKYRKKQRGRLSGEAQKGNKISFGEYGLVSLETNFITARQIEAARIAMTRKIKRGGRVWIRIFPDIPYTKKPAETRMGKGKGGVDHWNAPVKLGTVMFEMSGVVEELAQEAMSLASSKLPVKTMFVVRRDLR

Entity 15 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	14308.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MKTKLGFNRLSRKSSHRRALLKNMVISFFKHEKISSTKTKLFEVKRFAERLITRAKVDTVHNRRELSKFIHDKHILNKLFTKISPVFRQRSGGYTRMIKLGKRYGDAAEMAILELVEKPLK

Entity 16 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	13753.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MKKIKEAEQRKLRRKKRIKDKIGRGVASRPRITVFKSNRYFYAQVIDDSKGHTIASISTIEKSLNLGKNIDDVKKLGEVLAKRLKEKNINNLIFDRNGYKYHGLIASFATSLREFGINI

Entity 17 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13544.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MDLIRKIEAQNKKNEAFVFNVGDTVRVVYKIIEGSNERLQSFEGIVISFQNKGIGKTFLIRKISSGIGVEKIFPVYSPIIEKVEVLRRGKVRRAKLYYMRNRIGKAAMKIKERLTIK

Entity 18 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	13416.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

ARAKNGTVHVARRKRILKKTKGFWGTKKSNYKKAKDTLRKGMMYATRDRKVRKRDFRRLWISRISAALSDTGVTYSRFIEGLLKSNIKINRKILSNLAIEDVEAFKKIVLEIRR

Entity 19 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	12204.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MYALVEINGKQYKAIEGEFLKIDKISPVEKDKLEFNSVLLINKDGEVKIGKPYVVNSLIRCTYKEDKKDKKVVSYRYRRRKSSERKVGHRQTYSYILVDEIVF

Entity 20 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	13150.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

LVNRRYTAKGKNLPSSPKKVRPIADNIRGESYIKAIAVLCSMPNKGAKLLEKVVKSAASNAMYHNKNLSEDMIFVKTVMVDDGRRRKKIWPRARGRADRLVNRNCHIFVEVDEKK

Entity 21 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	11164.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MKAYDIIVSPMLTEKTNTQRESINVYVFKVNKRANKKEVGAAIKELFNVTPVSCNLLNIKSKAKVVVSRKGYPIGKGKTSSWKKAYVYLKKEDKIDIF

Entity 22 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11467.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MKTKLKIGDSVKILSGKDRGRIGKIASINRKKNKVIVESCNMVKKVIKARTPQEKGRIIDKEAAIDISNVMIFVKGTSSRLGIRFENNEKIRYLKKNGQRI

Entity 23 polymer

描述 description	50S ribosomal protein L25
分子量 formula_weight	20347.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

ENSRVLSCQYRSSFGSSNARRIRAKSEIPAVVYGQGKDVSHLRIKSSEFNKKFAKFTDNTVLILDDGKLERCVFVKDAAENIASKLIYHIDFYEVDRNVELEKYVPIKLIGASIGVKEGGILTVLKEQVKVRSLPLDLPEFIELDLTPVNKGDSVLLKDLVLPSNVRLAENDENLEVVIIK

Entity 24 polymer

描述 description	50S ribosomal protein L27
分子量 formula_weight	8104.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

GSSKNGRDSISKRLGVKRSGGQFVKAGEIIVRQRGTKFHKGKNVGLGRDYTIFALSSGKVEFKTLKGRKYVSIV

Entity 25 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	10069.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

ARKCEITGKKTMFGNNVPRKGLAKKKGGAGQHIGVKTKRTFKVNLINKKFFIPNLGRSVSIKVSANALRSISKIGLDAFLKKNCKKIENFL

Entity 26 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	7915.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MKNFKNFTLEDMKAKRLELKKEYLDLRFKSVVGHVENPLKKREIRRDIARLNTMICEYELGIRKV

Entity 27 polymer

描述 description	50S ribosomal protein uL30
分子量 formula_weight	11661.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

IKRKLRLQLKKARFNASRSRSKNKCFIKRMENNRKIISKNNINVQVFLVRSLIGKLNKKVKVLKALGLNKIGDKKVHFLNESIKGMLNETINMILLSEVM

Entity 28 polymer

描述 description	50S ribosomal protein L31 type B
分子量 formula_weight	9318.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MRKDIHPKNNLVVFKDGSNGAMFLTKSTLNSKETIKYIDGKEYPLVTVEITSKSHPFYTGQQKFVDAAGRIDKFNKRYKKS

Entity 29 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6960.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

AVPKFKPSKSRSRTRRSINMRKKIPQFQECSNCGNLGVRHRICLKCGYYRNNQYLEIGL

Entity 30 polymer

描述 description	50S ribosomal protein L33
分子量 formula_weight	6100.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

AVELISLICEETGIRNYTTTKNRRNKQEKLELMKYCPKLRKHTLHKEGKIK

Entity 31 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	6059.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MKRTYQPSRVKRNRKFGFRARMKTKGGRLILSRRRAKGRMKLTVSDEKKK

Entity 32 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7840.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MANKMKTRKSAKKRYSFTVNGKVKYKKQNLRHILTKKSSKRKRNLRKSGNLSCFEVKRIKTLLPYG

Entity 33 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4418.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MKVRVSVKPICEKCKVIKRKGVLRIICDNLKHKQRQK

Entity 34 polymer

描述 description	50S ribosomal protein bL38
分子量 formula_weight	5351.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

RVGSKELISRWGGKIIMKSKFENGKIKHYAECQTSKNTARKPRDLF

Entity 35 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	12449

fit	/app/data/saxs_computation/fn/8fn2/8fn2.fit
pddf	/app/data/pr_computation/fn/8fn2/8fn2.pr.out
profile	/app/data/saxs_computation/fn/8fn2/8fn2.dat

The structure of a 50S ribosomal subunit in the Lyme disease pathogen Borreliella burgdorferi

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (35)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 non-polymer

7. 引用文献 (1)

8. 文件与曲线 (10)
