8fnk

Cryo-EM structure of RNase-untreated RESC-B in trypanosomal RNA editing

Method: ELECTRON MICROSCOPY D_max: 224.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

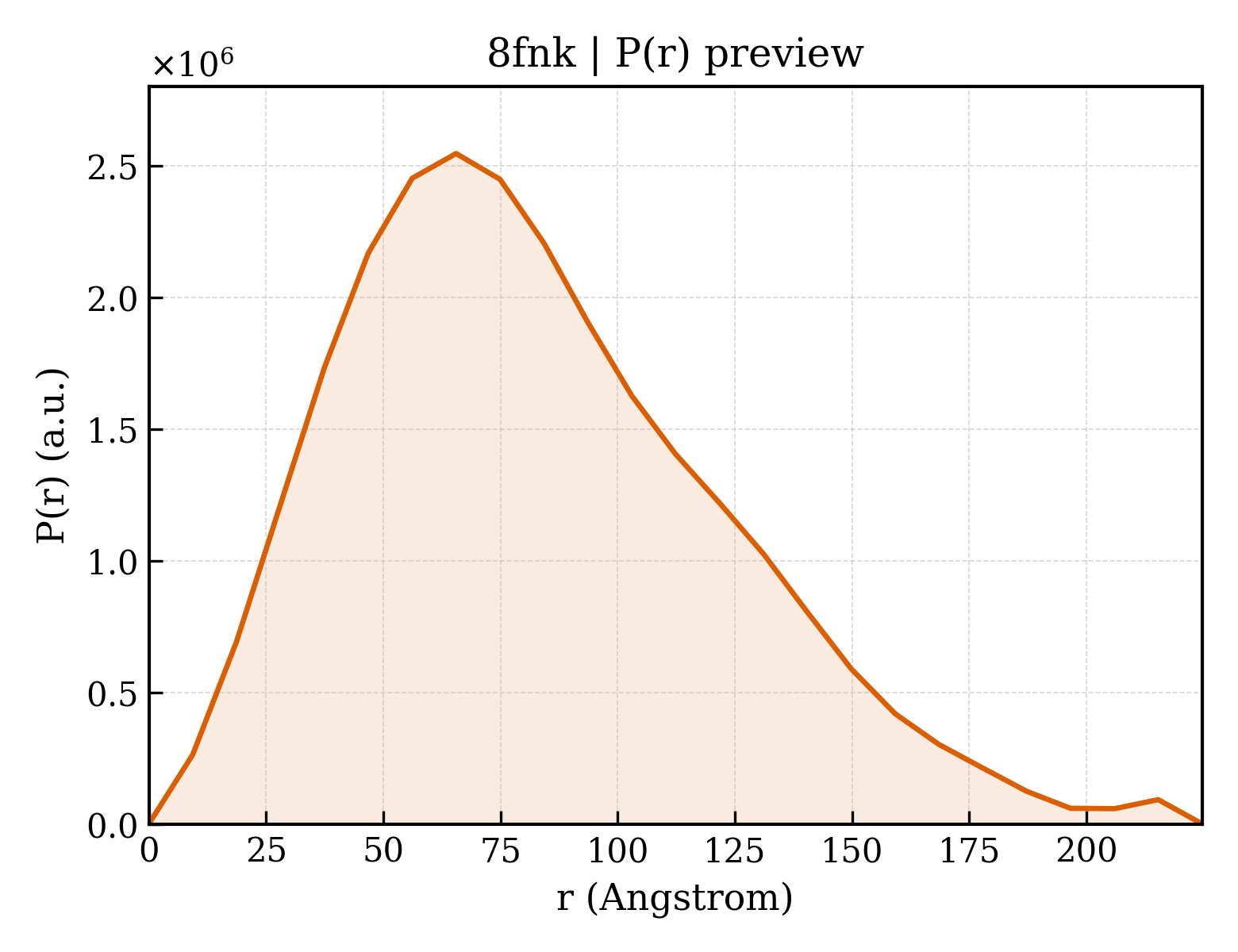

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fnk
沉积日期 deposition_date	2022-12-27
结构标题 title	Cryo-EM structure of RNase-untreated RESC-B in trypanosomal RNA editing
关键词 keywords	HEAT repeat, trypanosoma, RNA editing substrate binding complex, gRNA, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	64.47 Å
回转半径 Rg (电子) rg_electron	63.75 Å
零角强度 I(0) i0	3022550000.00
分子量 molecular_weight	441050.0 kDa
排除体积 excluded_volume	543660 Å³
包络体积 envelope_volume	861760 Å³
水化壳体积 shell_volume	117860 Å³
包络直径 envelope_diameter	275.6 Å
壳层 Rg shell_rg	61.09 Å
包络 Rg envelope_rg	62.62 Å
形状 Rg shape_rg	63.68 Å
总 Rg total_rg	63.94 Å
总原子数 total_atoms	30831
残基数 n_residues	3750
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	224.7 Å
Rg (实空间) rg_real	64.42 Å
Rg 误差 (实空间) rg_real_error	1.91 Å
I(0) (实空间) i0_real	3.0090e+09
I(0) 误差 (实空间) i0_real_error	6.3890e+07
Rg (倒空间) rg_reciprocal	63.71 Å
I(0) (倒空间) i0_reciprocal	3014000000.0000
解质量估计 total_estimate	0.8421
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	65.5 Å
偏度 Skewness skewness	0.607
峰度 Kurtosis kurtosis	0.069
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0486
最高正则化参数 α highest_alpha	252600000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.730; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.748

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	mRNA
分子量 formula_weight	15963.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	m
原子数 atom_count	30831

UAUAUAAUAGAAUAAGAUAAGUUUUUUUUUUUUUUUUUUUUUUUUUUUUUU

Entity 2 polymer

描述 description	gRNA
分子量 formula_weight	13742.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	g

AAAAAAAAAAAAAAAAAAAAAAAAAAAUUUUUUUUUUUUUUUU

Entity 3 polymer

描述 description	RNA-editing substrate-binding complex protein 5 (RESC5)
分子量 formula_weight	43469.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MLRHTSRNNALHAFVRSPHYRTIPSAGPNGIVVNRDMLVHQFRDFYKTLQHCSLVDKVHLMSERPSVEALRVADQMVSIGATFLEMPLTGMEHRATEFMESMRYVRGAGGPSTLASYLQDTENCRCNSGDVVCLPNGIAVGHGPRTNAVAHTTLKQLFEVKDDQFSFDVFTLEQEGDAPPLGDYFGFAGSNVLLTWKDEHGLLAVDQYQQKQPHTEMNVVYLEPGCHFLSFYGVDHTIDVLVQKGYERSMDSIAAAGLNPIPVQWSEMDKLGISMRAAVLPLKFFKANVGGMLSRNKSRGARWQTHQLQKGSGSGSASSGASAAGSSGASASSGASAAGSSGASAGHHHHHHHHHHSGSEDQVDPRLIDGKASAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Entity 4 polymer

描述 description	RNA-editing substrate-binding complex protein 6 (RESC6)
分子量 formula_weight	57823.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MRSALRRCILRHQGCLRMKQSLSAFPTVVTGMTRHQGNSLIGTTHGAELSLAGDPQSVSHLSARNIATEALQMKKLHQERGGNPMLAQQARRVLFATSIAGQNLDARSVALLLNTAVYFGMESDAKLVRECIDYCLKNDKLITVDVLPIVVTACATLKSRDAREVIEMQAQKAARNAKFLDAKDVTNIISAFSKTGINHEKLFAFLSRRVQTLARVGEFEAAHLVILANAFSRLRYRDKFLFGAIARRAMSLRERVTVNELVPLIVAFSKIGLKDPKLSKRFATKAMEYVDQMNAEQVASMFMAFAYFGIRYDQLFGVLTNRAVELIDEFNAQYISTTLNAFQRIGINNPELFDNLAERALAVVQDHDARDISKTVTALAHFGLKDEELFKRLASHAASIADQFDAMGLVNTAHAFARTNFLQQDMAVALSERSVYVCRLLDAGETRRLLWALAKFQVRDPKILTPVFNRCLALHYDFFADPTGSEEIEEIFDFYGPNFCPPLYQLYISRGSTPQA

Entity 5 polymer

描述 description	RNA-editing substrate-binding complex protein 7 (RESC7)
分子量 formula_weight	18669.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MRSSRGILFLSGAFAIRGMSAYHSYQRLDTVSHTSKVYSLQMQRQTVHFTPITRLGVEATANPTTATNATGQTGDGDGATALDVAMRVNKLKRLHQTGGGPSGKKQVELDAWRDLNNLTEAQINSAEGKAVSLLLNSWAYFAKYWEKGAEGPSASLSEVTPSNDSSSAGEHGTQ

Entity 6 polymer

描述 description	RNA-editing substrate-binding complex protein 8 (RESC8)
分子量 formula_weight	61109.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MLNVLSSTASAALATVVVARPSALHLIFERCKLNLVEFTAQDVYQICTTAYNMDTLGMLQDPDFMRGLHDAFRRSDQTVISPFQANLIADTFRKVGINSMPKEVSVPEEDAISPESLILVLRNMNITKQRDERKINEVLKLMFPILDEFSPTQLSLTVTELARLKSTNADFVGKLAKRIMEYNDDLSALDISSAAVSLAYCPGISHNILYRMMQIVEERMGEFQPEDYINVLHALNTLGPKFVNTFRKIVECGLQHVENMDAVTLTNYMVCFSTMDYKQREHIDIYADALVEVATDLSEKDLVMAFIALQRLRLLSDTMFGTMASCVIRYAAKMDPRNIAPIMDICSTVPHASDHLMKVLMDRAVECTRILTANQLGDILDILGLYPPAREHPLVQLFGKQARLRLDLMGPDALANATRGLANLGYADPEYYAQAAETGFRYGFKDWTLLEPMLMGLSITGQCPPTMVRVLGSHIAPMARSMSLMEIERANRYLRRLGCEDDFVYKAMASRVLQFVKEVTPEMPEDLQVLLQRGAVEPGAAPGVM

Entity 7 polymer

描述 description	RNA-editing substrate-binding complex protein 9 (RESC9)
分子量 formula_weight	96668.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9

MLLPTLERLLERCGRPIFSNVEDVRMVMASLLDISAYVDRASTKVIAKPLRRFCHKDPDTVASVMEAVPIDAAEPTHGRRAAMLLRCLPKHSCDEVIWERAVAATLAGLKSRKWDLHDYRVAMAHAGRGGRHAPALAAAAEEFVSSSARTASQSELPALLVILTSLPELKRSPCLQVAADRIVQLSEILSPAAIGQICASVNKVSFRHTAMAIALQEEAIRFAEESDLFSAVQLFSFICQQEKEAISPDAVKCLAERVIEGKDLDQETVSVLCRALRSIPRPHRPELLREIGEMMEFLGGEVKELLELPVAKGGLKGDVSAGDIQSFISKFLSLDGLLPADHDRPGTYMAAIVACVDYITERLEDIVSDENPPFSIIPHLLNINMEETRRCGQAIIREAAEQGIHFPTLQVFRFLLALGDHNMRDQRVYRHLRNEFAKTASDIPMIQLCAALKCFVRGLMQNVETQSLDEQVEHELEKEDMDAFLRFCVENLRRGFADGMEVKCVMAATESLYQLGYTSTEFYEQVARYLGSKCSSASASVNSSETATAVCLALGEDILDRHPDVHTFLLEVEKSGLKGEASLSPTEWMNKNDPANFITPLTEIQQEGWNIINRMVETRAADTEKLTALANEYVAILKSTRVDDLKYFFGVFEEKVFKQDRILKQCLDYLVESNAAVKLSATSIGAMLNSLAAIRFTYHRSVKQFMIAISTEQWSEMDASPLVKIVSAMAKLSLRLPQVLVHVGDRLLDVYTFLSPLDTALVINSLQSIGYGNDEVLMMLMRHAASSARRWDEVSLTLLFGASGVHRLLRNVEVAAPLLEQAAGKTSSPHLRQRIAASLRRSALPRALVQSSTSLLTGGAHEVVNNPPLQLV

Entity 8 polymer

描述 description	RNA-editing substrate-binding complex protein 10 (RESC10)
分子量 formula_weight	60563.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	10

MRRRVVLCCQDVGSLLSSKHSVHSGIGYHERVFSRNLLYRRYPVVTVLPKAGFTVLDTKRWIASSGPPVTGSPLSPVTNPSLNVGTGGGEAVAMEGPLPVSYSPGSGVNGSLPVTSTAITAHCDVLSECVAKADELAVQLKAQNALSASAEILTQEGMEEFVEELKTSATNEMTALVKQMQTTPLLQRAGMHELRRTLYYTTSLKERDWLEEKQYTAAMRMLTVEVLRRDGDGVLSADDVLYVTTHVVTANFYNRHLWNRMEKSLLKFSNYENIDMSSVKAFSTRLFKTRRGCAKETLDIRRKVLLAMSRRVGVLANDFDLPSLLGVLQCYTVHDLTPFHLEPLAIRATNHVGDFTPHECATLAHVLRKWRTMRLEVCERLVERICTSDQLTHHMANAAMIAIRTCFNQVSDGGRNAMNAEPTRQKLRAMGEQIGCRLDEVEYPALPVILSILDVVVTLKIYVPKKCLQVIFSQANDMVAIVMEQKDDLVDPKTGKRVRPITAEEGRQLQALLSHYGNDLAPELSQRMKEAFREGVLPDEASL

Entity 9 polymer

描述 description	RNA-editing substrate-binding complex protein 11 (RESC11)
分子量 formula_weight	103585.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	11

MYRLYRRTVGYQSLHQRLSACHVMCRHVSTDNSDGTTPPKPRRSGIRRVVPSDEEMAELHDLEQEVASTTSSRSKQSALSGVMVEPMRFSTSGGSGMEGDGDDLGELEAEGDEEGVGTNSLAEAENVYKRHNDGGALEKQGLAIPPSGKPTDPLLANRDDEGEGGAVPLSQAEEMTVSRSTLERQACVRSLSLEELVEAVTLYLRATKNPRLVSADEEHIFFPVLMERLNEFHVSQLLDVVECHWARSTLVRYGTTFKDMVRDRIALIATAAAKSASKRPAAAGKSGNDNRDGGAVEEEADDYDEQGDAVYVHEAEEKTSDLIILRAAEEMSPETVLRCIIVMGMSAGRRKRDLQFFQAMGMFLVHHINHYKDPHELVRVLTAFARAKIVPPKRFLALLGRRFAVLNKRKKLGSLPSYRAFVNLYKMGHDQMNTFRFLADCILETIDSNIKAEKKRLRLAQLQSSSNITAATTNENGATNESGCGGSTSSSNPTVTNITGAGDLKATHTSEGASDVAFIGDLDPHLLQNLRARERFKRLTELKPSMFTKLLLVLARFGAPHQQYLRPTTVPLILPTLRAFPPPSFTRLLRAMSLFRTTDLDLIEPVIDFMADSLGPTNVVPADVLQMVRLVAPPDVPVPRNLVKLISLCEAVYSSSASFSHSDGKSSDSADAAACAMTTLSPIRPGDMCAVAVVLLKIQMKDDVPLEALDPLTRLMEFFAERMYLLMKLHIVSLTHVDVFTDLCRQQQHPDVSGHIERLCAERRRVNDAEGDDEYYSQLDIDVRETLHRILIVNDYNTYGQYRPTPGVLQVDFKQALTEVSAFDVLEAADLFAQAFSNALKPAVERHLSRSIIAKLDGGGEEVITEGNSIVLRPPRELLLTREDLGKFVCLLQRTPLRRVRASPVVWRFVEEKAKKLGMDDVLRVVENKLATAV

Entity 10 polymer

描述 description	RNA-editing substrate-binding complex protein 13 (RESC13)
分子量 formula_weight	32445.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	13

MKRTPVRVLNATVAFLQGWGGGSSGGGWGSDDGPGNGSGGGGSGGRGGWGSGGGGGGGWGSGGGGNGGWGSGGGGGGGWGSGGGGRGSGGGSNGGWGSGRGGSAHGFSNPWNDGDAGWRGAATGARANRGRGGFRRGRGGADDGVWGQPNVVDEEAWTAAPPSFNPPVRRVDPLTLTAVEVEIDGIKKLVGQRVQVSGLSDETTWHTLKDHLRQAGEVTFCKVFSGGRAVVEFVTPEDAARAITELQASELEGATLFLREDREDTVLVNTRRKIREVRDAQLRARKEEMEKKRREQAIAEGDCSAPAPPAEVAGDASQKV

Entity 11 polymer

描述 description	RNA-editing substrate-binding complex protein 14 (RESC14)
分子量 formula_weight	41293.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	14

MRSGRKLGCFTNRLRLPFFSPCSQITALTASHRCKSYVLKFLRGQLPEDLKDVNGALGCLYGTLPDVDEFGQFVISPDVVNSFHQFGYVKMPIPVLDHQQIDKLADEVNELANNVEHHPKTERLYATSLADLTGGPLFFCQGQWRAAWGMHDLIYLPTITVAASQILNNSLVRLWYDEVFMKAARTGPCVPWQQNYARWQHTKPVNHVTVMIALDTMNKDRGAPCLVPGSHRWREGGLLPPVSYDPTKDEAHQLNTIWEIINEEEGEMLMDTPPVTVDLRRGEALLIHPLTLFATHGNRSLDAVRCCFIHYMGEKTYAVQNGPLLPHTTKFQADAMIQGPFYPVVFDPAMTEELTMLPTAPSEEEA

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	62372

fit	/app/data/saxs_computation/fn/8fnk/8fnk.fit
pddf	/app/data/pr_computation/fn/8fnk/8fnk.pr.out
profile	/app/data/saxs_computation/fn/8fnk/8fnk.dat
