SAXSdb — 8fpj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fpj
沉积日期 deposition_date	2023-01-04
结构标题 title	Co-structure of the Human Metapneunomovirus RNA-dependent RNA polymerase with MRK-1
关键词 keywords	;RNA-BINDING PROTEIN, HMPV, RDRP, RNA-DEPENDENT RNA POLYMERASE, PRNTASE, POLYRIBONUCLEOTIDYL TRANSFERASE, RNA CAPPING, VIRAL REPLICATION, VIRAL PROTEIN, REPLICATION ;; REPLICATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.74 Å
回转半径 Rg (电子) rg_electron	35.91 Å
零角强度 I(0) i0	483649000.00
分子量 molecular_weight	182550.0 kDa
排除体积 excluded_volume	230770 Å³
包络体积 envelope_volume	304690 Å³
水化壳体积 shell_volume	67720 Å³
包络直径 envelope_diameter	123.4 Å
壳层 Rg shell_rg	44.64 Å
包络 Rg envelope_rg	35.24 Å
形状 Rg shape_rg	35.87 Å
总 Rg total_rg	36.63 Å
总原子数 total_atoms	25986
残基数 n_residues	1596
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	112.8 Å
Rg (实空间) rg_real	36.74 Å
Rg 误差 (实空间) rg_real_error	0.22 Å
I(0) (实空间) i0_real	4.7060e+08
I(0) 误差 (实空间) i0_real_error	5.7840e+06
Rg (倒空间) rg_reciprocal	36.64 Å
I(0) (倒空间) i0_reciprocal	483700000.0000
解质量估计 total_estimate	0.7201
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.9 Å
偏度 Skewness skewness	0.147
峰度 Kurtosis kurtosis	-0.362
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	3.2110
最高正则化参数 α highest_alpha	122400000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.920; Stabil: 0.926; Sysdev: 0.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.862

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase L
分子量 formula_weight	235226.9 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	25986

MGSDYKDHDGDYKDHDIDYKDDDDKGSGSLEVLFQGPMDPLNESTVNVYLPDSYLKGVISFSETNAIGSCLLKRPYLKNDNTAKVAIENPVIEHVRLKNAVNSKMKISDYKVVEPVNMQHEIMKNVHSCELTLLKQFLTRSKNISTLKLNMICDWLQLKSTSDDTSILSFIDVEFIPSWVSNWFSNWYNLNKLILEFRREEVIRTGSILCRSLGKLVFIVSSYGCIVKSNKSKRVSFFTYNQLLTWKDVMLSRFNANFCIWVSNSLNENQEGLGLRSNLQGMLTNKLYETVDYMLSLCCNEGFSLVKEFEGFIMSEILRITEHAQFSTRFRNTLLNGLTDQLTKLKNKNRLRVHSTVLENNDYPMYEVVLKLLGDTLRCIKLLINKNLENAAELYYIFRIFGHPMVDERDAMDAVKLNNEITKILRLESLTELRGAFILRIIKGFVDNNKRWPKIKNLKVLSKRWTMYFKAKNYPSQLELSEQDFLELAAIQFEQEFSVPEKTNLEMVLNDKAISPPKRLIWSVYPKNYLPETIKNRYLEETFNASDSLKTRRVLEYYLKDNKFDQKELKSYVVRQEYLNDKEHIVSLTGKERELSVGRMFAMQPGKQRQIQILAEKLLADNIVPFFPETLTKYGDLDLQRIMEIKSELSSIKTRRNDSYNNYIARASIVTDLSKFNQAFRYETTAICADVADELHGTQSLFCWLHLIVPMTTMICAYRHAPPETKGEYDIDKIEEQSGLYRYHMGGIEGWCQKLWTMEAISLLDVVSVKTRCQMTSLLNGDNQSIDVSKPVKLSEGLDEVKADYRLAVKMLKEIRDAYRNIGHKLKEGETYISRDLQFISKVIQSEGVMHPTPIKKVLRVGPWINTILDDIKTSAESIGSLCQELEFRGESIIVSLILRNFWLYNLYMHESKQHPLAGKQLFKQLNKTLTSVQRFFEIKRENEVVDLWMNIPMQFGGGDPVVFYRSFYRRTPDFLTEAISHVDILLKISANIKNETKVSFFKALLSIEKNERATLTTLMRDPQAVGSERQAKVTSDINRTAVTSILSLSPNQLFSDSAIHYSRNEEEVGIIAENITPVYPHGLRVLYESLPFHKAEKVVNMISGTKSITNLLQRTSAINGEDIDRAVSMMLENLGLLSRILSVVVDSIEIPIKSNGRLICCQISRTLRETSWNNMEIVGVTSPSITTCMDVIYATSSHLKGIIIEKFSTDRTTRGQRGPKSPWVGSSTQEKKLVPVYNRQILSKQQREQLEAIGKMRWVYKGTPGLRRLLNKICLGSLGISYKCVKPLLPRFMSVNFLHRLSVSSRPMEFPASVPAYRTTNYHFDTSPINQALSERFGNEDINLVFQNAISCGISIMSVVEQLTGRSPKQLVLIPQLEEIDIMPPPVFQGKFNYKLVDKITSDQHIFSPDKIDMLTLGKMLMPTIKGQKTDQFLNKRENYFHGNNLIESLSAALACHWCGILTEQCIENNIFKKDWGDGFISDHAFMDFKIFLCVFKTKLLCSWGSQGKNIKDEDIVDESIDKLLRIDNTFWRMFSKVMFEPKVKKRIMLYDVKFLSLVGYIGFKNWFIEQLRSAELHEIPWIVNAEGDLVEIKSIKIYLQLIEQSLFLRITVLNYTDMAHALTRLIRKKLMCDNALLTPISSPMVNLTQVIDPTTQLDYFPKITFERLKNYDTSSNYAKGKLTRNYMILLPWQHVNRYNFVFSSTGCKVSLKTCIGKLMKDLNPKVLYFIGEGAGNWMARTACEYPDIKFVYRSLKDDLDHHYPLEYQRVIGELSRIIDSGEGLSMETTDATQKTHWDLIHRVSKDALLITLCDAEFKDRDDFFKMVILWRKHVLSCRICTTYGTDLYLFAKYHAKDCNVKLPFFVRSVATFIMQGSKLSGSECYILLTLGHHNSLPCHGEIQNSKMKIAVCNDFYAAKKLDNKSIEANCKSLLSGLRIPINKKELDRQRRLLTLQSNHSSVATVGGSKIIESKWLTNKASTIIDWLEHILNSPKGELNYDFFEALENTYPNMIKLIDNLGNAEIKKLIKVTGYMLVSKK

来源 Source

来源生物 organism	Human metapneumovirus
NCBI 分类编号 ncbi_taxonomy_id	162145
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Phosphoprotein
分子量 formula_weight	34814.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D,E

MSFPEGKDILFMGNEAAKLAEAFQKSLRKPSHKRSQSIIGEKVNTVSETLELPTISRPTKPTILSEPKLAWTDKGGAIKTEAKQTIKVMDPIEEEEFTEKRVLPSSDGKTPAEKKLKPSTNTKKKVSFTPNEPGKYTKLEKDALDLLSDNEEEDAESSILTFEERDTSSLSIEARLESIEEKLSMILGLLRTLNIATAGPTAARDGIRDAMIGIREELIADIIKEAKGKAAEMMEEEMNQRTKIGNGSVKLTEKAKELNKIVEDESTSGESEEEEELKDTQENNQEDDIYQLIMKGENKYFQGHHHHHHH

来源 Source

来源生物 organism	Human metapneumovirus
NCBI 分类编号 ncbi_taxonomy_id	162145
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	4-(2-aminopropan-2-yl)-N'-[4-(cyclopropyloxy)-3-methoxybenzoyl]-6-(4-fluorophenyl)pyridine-2-carbohydrazide
分子量 formula_weight	478.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.740 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.74 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	524654

fit	/app/data/saxs_computation/fp/8fpj/8fpj.fit
pddf	/app/data/pr_computation/fp/8fpj/8fpj.pr.out
profile	/app/data/saxs_computation/fp/8fpj/8fpj.dat

Co-structure of the Human Metapneunomovirus RNA-dependent RNA polymerase with MRK-1

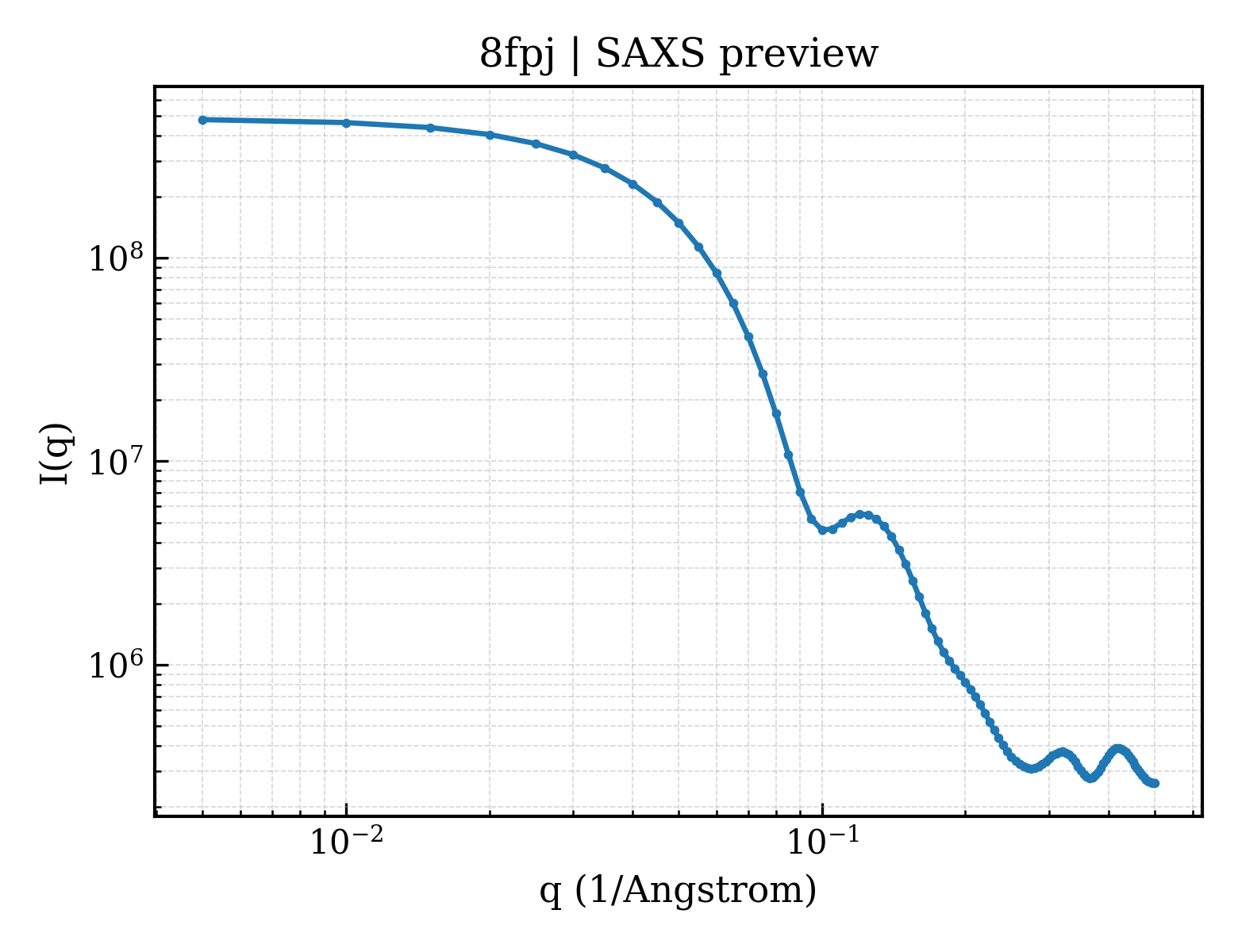

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
