8g0e

Cryo-EM structure of TBAJ-876-bound Mycobacterium smegmatis ATP synthase rotational state 3

Method: ELECTRON MICROSCOPY D_max: 204.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

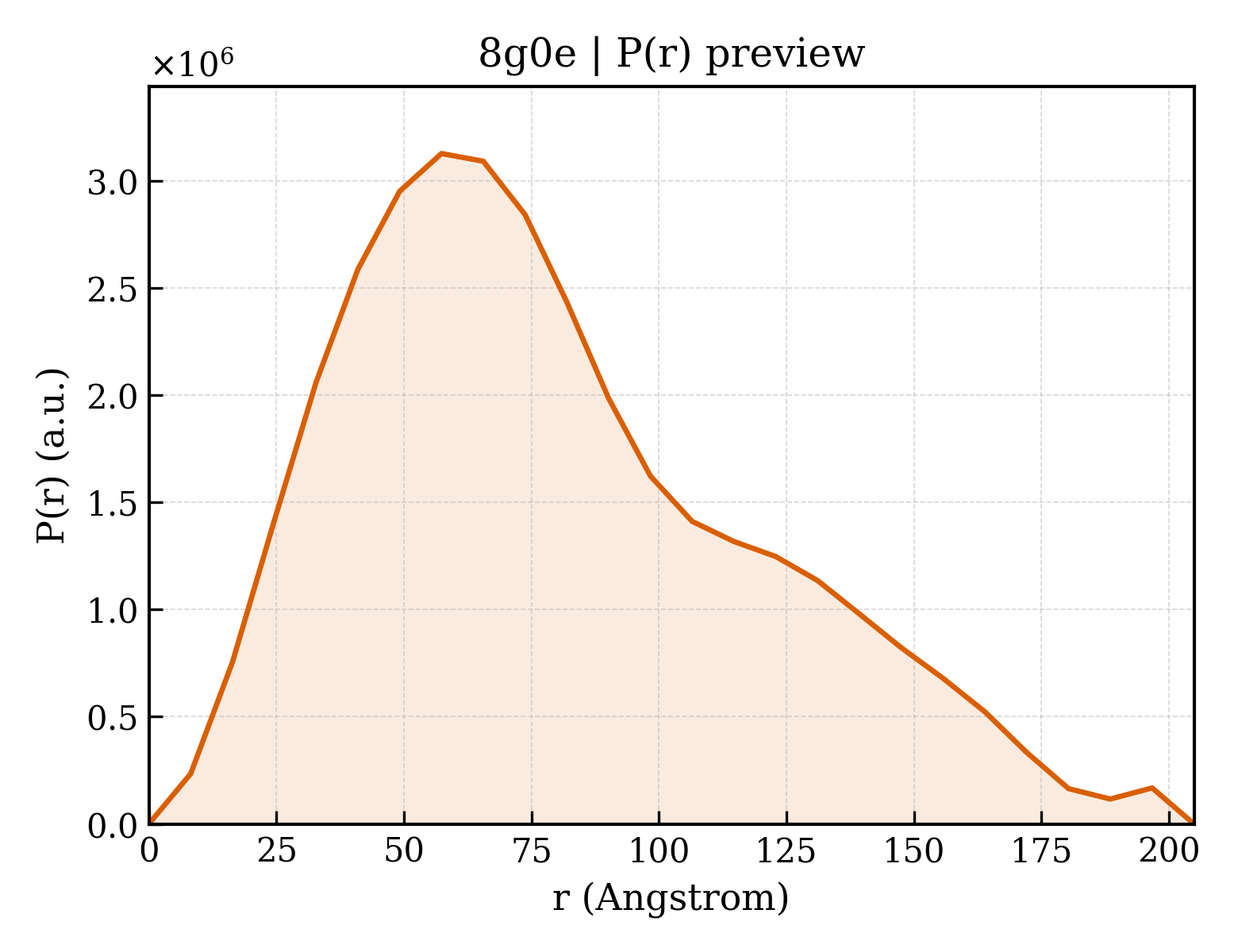

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8g0e
沉积日期 deposition_date	2023-01-31
结构标题 title	Cryo-EM structure of TBAJ-876-bound Mycobacterium smegmatis ATP synthase rotational state 3
关键词 keywords	ATP synthase, mycobacterial, inhibitor, tuberculosis, antibiotic, HYDROLASE, TRANSLOCASE-INHIBITOR complex; TRANSLOCASE/INHIBITOR
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.02 Å
回转半径 Rg (电子) rg_electron	64.11 Å
零角强度 I(0) i0	3503580000.00
分子量 molecular_weight	510390.0 kDa
排除体积 excluded_volume	644030 Å³
包络体积 envelope_volume	870510 Å³
水化壳体积 shell_volume	119130 Å³
包络直径 envelope_diameter	233.5 Å
壳层 Rg shell_rg	60.69 Å
包络 Rg envelope_rg	63.41 Å
形状 Rg shape_rg	64.14 Å
总 Rg total_rg	63.93 Å
总原子数 total_atoms	35959
残基数 n_residues	4858
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	204.9 Å
Rg (实空间) rg_real	62.66 Å
Rg 误差 (实空间) rg_real_error	1.46 Å
I(0) (实空间) i0_real	3.5000e+09
I(0) 误差 (实空间) i0_real_error	7.4420e+07
Rg (倒空间) rg_reciprocal	61.32 Å
I(0) (倒空间) i0_reciprocal	3495000000.0000
解质量估计 total_estimate	0.5585
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.4 Å
偏度 Skewness skewness	0.633
峰度 Kurtosis kurtosis	-0.225
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0039
最高正则化参数 α highest_alpha	383900000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.679; Stabil: 0.999; Sysdev: 0.004; Positv: 1.000; Valcen: 0.991; Smooth: 0.217

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	ATP synthase subunit alpha
分子量 formula_weight	58951.5 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	35959

MAELTISAADIEGAIEDYVSSFSADTEREEIGTVIDAGDGIAHVEGLPSVMTQELLEFPGGVLGVALNLDEHSVGAVILGEFEKIEEGQQVKRTGEVLSVPVGDAFLGRVVNPLGQPIDGQGDIAAETRRALELQAPSVVQRQSVSEPLQTGIKAIDAMTPIGRGQRQLIIGDRKTGKTAVCVDTILNQREAWLTGDPKQQVRCVYVAIGQKGTTIASVKRALEEGGAMEYTTIVAAPASDAAGFKWLAPYTGSAIGQHWMYNGKHVLIVFDDLSKQADAYRAISLLLRRPPGREAFPGDVFYLHSRLLERCAKLSDELGGGSMTGLPIIETKANDISAFIPTNVISITDGQCFLESDLFNQGVRPAINVGVSVSRVGGAAQIKAMKEVAGSLRLDLSQYRELEAFAAFASDLDAASKAQLDRGARLVELLKQPQYSPLAVEEQVVAIFLGTQGHLDSVPVEDVQRFESELLEHVKASHSDIFDGIRETKKLSEEAEEKLVSVINEFKKGFQASDGSSVVVSENAEALDPEDLEKESVKVRKPAPKKA

Entity 2 polymer

描述 description	ATP synthase subunit beta
分子量 formula_weight	51670.5 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MTATAEKTAGRVVRITGPVVDVEFPRGSVPELFNALHAEITFGALAKTLTLEVAQHLGDSLVRCISMQPTDGLVRGVEVTDTGASISVPVGDGVKGHVFNALGDCLDDPGYGKDFEHWSIHRKPPAFSDLEPRTEMLETGLKVVDLLTPYVRGGKIALFGGAGVGKTVLIQEMINRIARNFGGTSVFAGVGERTREGNDLWVELADANVLKDTALVFGQMDEPPGTRMRVALSALTMAEFFRDEQGQDVLLFIDNIFRFTQAGSEVSTLLGRMPSAVGYQPTLADEMGELQERITSTRGRSITSMQAVYVPADDYTDPAPATTFAHLDATTELSRAVFSKGIFPAVDPLASSSTILDPAIVGDEHYRVAQEVIRILQRYKDLQDIIAILGIDELSEEDKQLVNRARRIERFLSQNMMAAEQFTGQPGSTVPLKETIEAFDKLTKGEFDHLPEQAFFLIGGLDDLAKKAESLGAKL

Entity 3 polymer

描述 description	ATP synthase gamma chain
分子量 formula_weight	33439.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAATLRELRGRIRSAGSIKKITKAQELIATSRIAKAQARVEAARPYAAEITNMLTELAGASALDHPLLVERKQPKRAGVLVVSSDRGLCGAYNANVLRRAEELFSLLRDEGKDPVLYVVGRKALGYFSFRQRTVVESWTGFSERPTYENAREIADTLVNAFMAGADDEGDDAGADGILGVDELHIVFTEFRSMLSQTAVARRAAPMEVEYVGEVETGPRTLYSFEPDPETLFDALLPRYIATRVYAALLEAAASESASRRRAMKSATDNADDLIKALTLAANRERQAQITQEISEIVGGANALAGSK

Entity 4 polymer

描述 description	ATP synthase epsilon chain
分子量 formula_weight	13277.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MADLNVEIVAVERELWSGPATFVFTRTTAGEIGILPRHIPLVAQLVDDAMVRVEREGEDDLRIAVDGGFLSVTEETVRILVENAQFESEIDADAAKEDAASDDERTAAWGRARLRALGQID

Entity 5 polymer

描述 description	ATP synthase subunit b
分子量 formula_weight	17636.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MGEFSATILAASQAAEEGGGGSNFLIPNGTFFAVLIIFLIVLGVISKWVVPPISKVLAEREAMLAKTAADNRKSAEQVAAAQADYEKEMAEARAQASALRDEARAAGRSVVDEKRAQASGEVAQTLTQADQQLSAQGDQVRSGLESSVDGLSAKLASRILGVDVNSGGTQ

Entity 6 polymer

描述 description	ATP synthase subunit b-delta
分子量 formula_weight	47504.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MSIFIGQLIGFAVIAFIIVKWVVPPVRTLMRNQQEAVRAALAESAEAAKKLADADAMHAKALADAKAESEKVTEEAKQDSERIAAQLSEQAGSEAERIKAQGAQQIQLMRQQLIRQLRTGLGAEAVNKAAEIVRAHVADPQAQSATVDRFLSELEQMAPSSVVIDTAATSRLRAASRQSLAALVEKFDSVAGGLDADGLTNLADELASVAKLLLSETALNKHLAEPTDDSAPKVRLLERLLSDKVSATTLDLLRTAVSNRWSTESNLIDAVEHTARLALLKRAEIAGEVDEVEEQLFRFGRVLDAEPRLSALLSDYTTPAEGRVALLDKALTGRPGVNQTAAALLSQTVGLLRGERADEAVIDLAELAVSRRGEVVAHVSAAAELSDAQRTRLTEVLSRIYGRPVSVQLHVDPELLGGLSITVGDEVIDGSIASRLAAAQTGLPD

Entity 7 polymer

描述 description	ATP synthase subunit c
分子量 formula_weight	8598.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	9

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9,1,2,3,4,5,6,7,8

MDLDPNAIITAGALIGGGLIMGGGAIGAGIGDGIAGNALISGIARQPEAQGRLFTPFFITVGLVEAAYFINLAFMALFVFATPGLQ

Entity 8 polymer

描述 description	ATP synthase subunit a
分子量 formula_weight	27568.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MLAAEEGGAAIHVGHHTLVFELFGMTFNGDTILATAVTAVIVIALAFYLRAKVTSTGVPSGVQLFWEALTIQMRQQIEGSIGMKIAPFVLPLSVTIFVFILISNWLAVLPLQYGGADGAAAELYKAPASDINFVLALALFVFVCYHAAGIWRRGIVGHPIKVVKGHVAFLAPINIVEELAKPISLALRLFGNIFAGGILVALIAMFPWYIQWFPNAVWKTFDLFVGLIQAFIFSLLTILYFSQSMELDHEDH

Entity 9 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 10 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 11 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 12 non-polymer

描述 description	;(1R,2S)-1-(6-bromo-2-methoxyquinolin-3-yl)-2-(2,6-dimethoxypyridin-4-yl)-4-(dimethylamino)-1-(2,3,6-trimethoxypyridin-4-yl)butan-2-ol ;
分子量 formula_weight	657.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	166169

fit	/app/data/saxs_computation/g0/8g0e/8g0e.fit
pddf	/app/data/pr_computation/g0/8g0e/8g0e.pr.out
profile	/app/data/saxs_computation/g0/8g0e/8g0e.dat
