SAXSdb — 8g7a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Nanosota-3 × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–1198； UniProt 14–1211 Author chain B； PDBConstruct 1–1198； UniProt 14–1211 Author chain D； PDBConstruct 1–1198； UniProt 14–1211

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8g7a
Deposition date deposition_date	2023-02-16
Structure title title	SARS-CoV-2 spike/Nb3 complex with 2 RBDs up and 3 Nb3 (local refinement)
Keywords keywords	SARS-CoV-2, VIRAL PROTEIN-IMMUNE SYSTEM complex, Nanobody; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8g7a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8g7a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

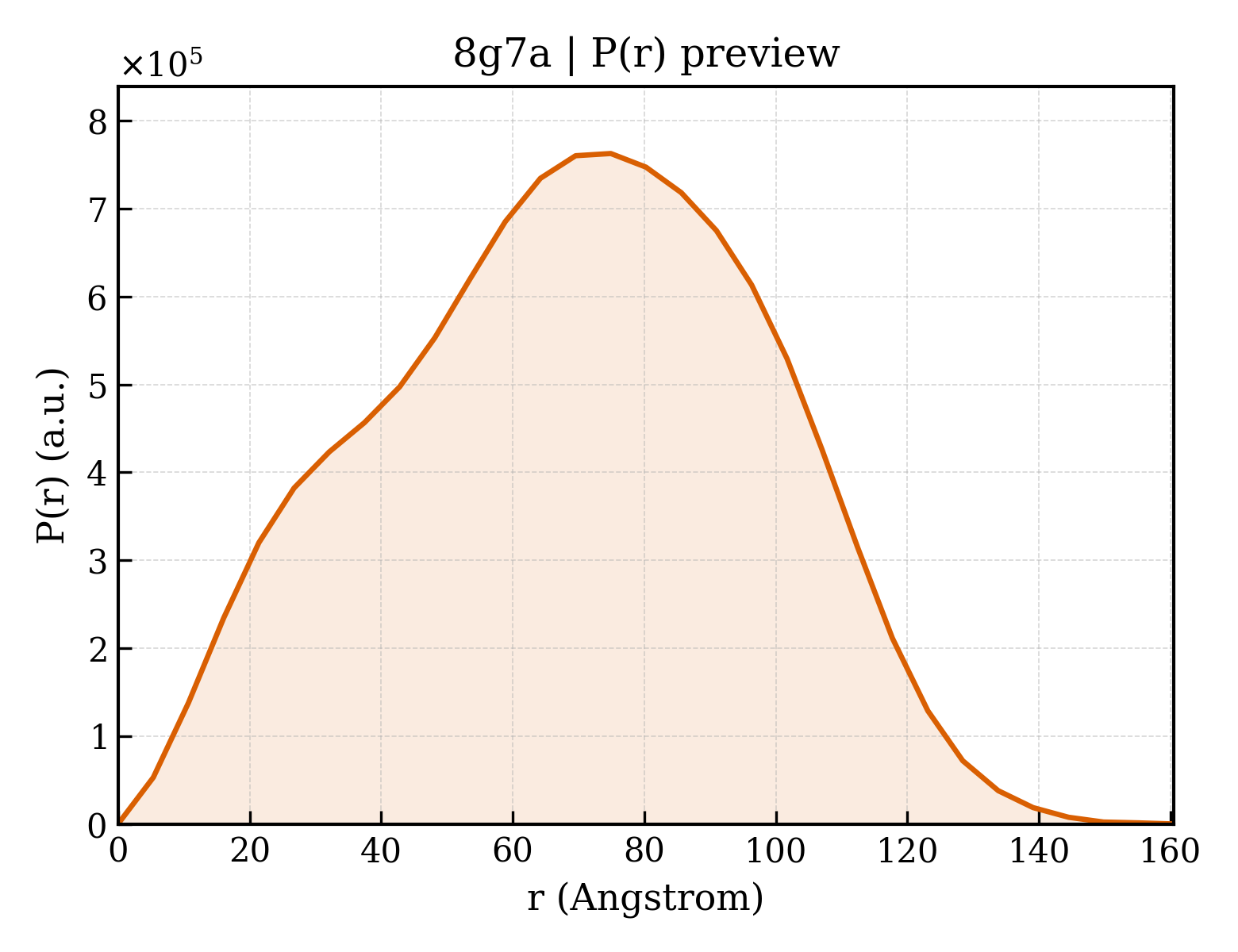

8g7a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.02 Å
Rg (electron density)	52.32 Å
Total Rg	52.56 Å
Atom count	16237
Residues	2046
Excluded volume	288240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8g7a__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nanosota-3
Molecular weight formula_weight	14886.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,C,F
Atom count atom_count	16237

QVQLQESGGGLVQAGGSLRLSCAASGSIFSPNTMGWFRQALGKQREMVAVISSIASTQYANFVKGRFTITRDNTKNTVHLQMNSLIPEDTAVYYCYAVDKSQDYWGQGTQVTVSSGGQHHHHHHGAYPYDVPDYAS

Source Source

Source organism organism	Vicugna pacos
Common name common_name	alpaca
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	136832.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D

QCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNSPAGARSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTPSALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIKGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHH

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	81068
